LG-A017 Professional 2-Core Shielded Signal Cable for Audio Engineering Systems
Product Overview
The LG-A017 is a professional two-core shielded signal cable designed for audio engineering, live sound systems, recording studios, conference installations, broadcasting, and other professional signal-transmission applications.

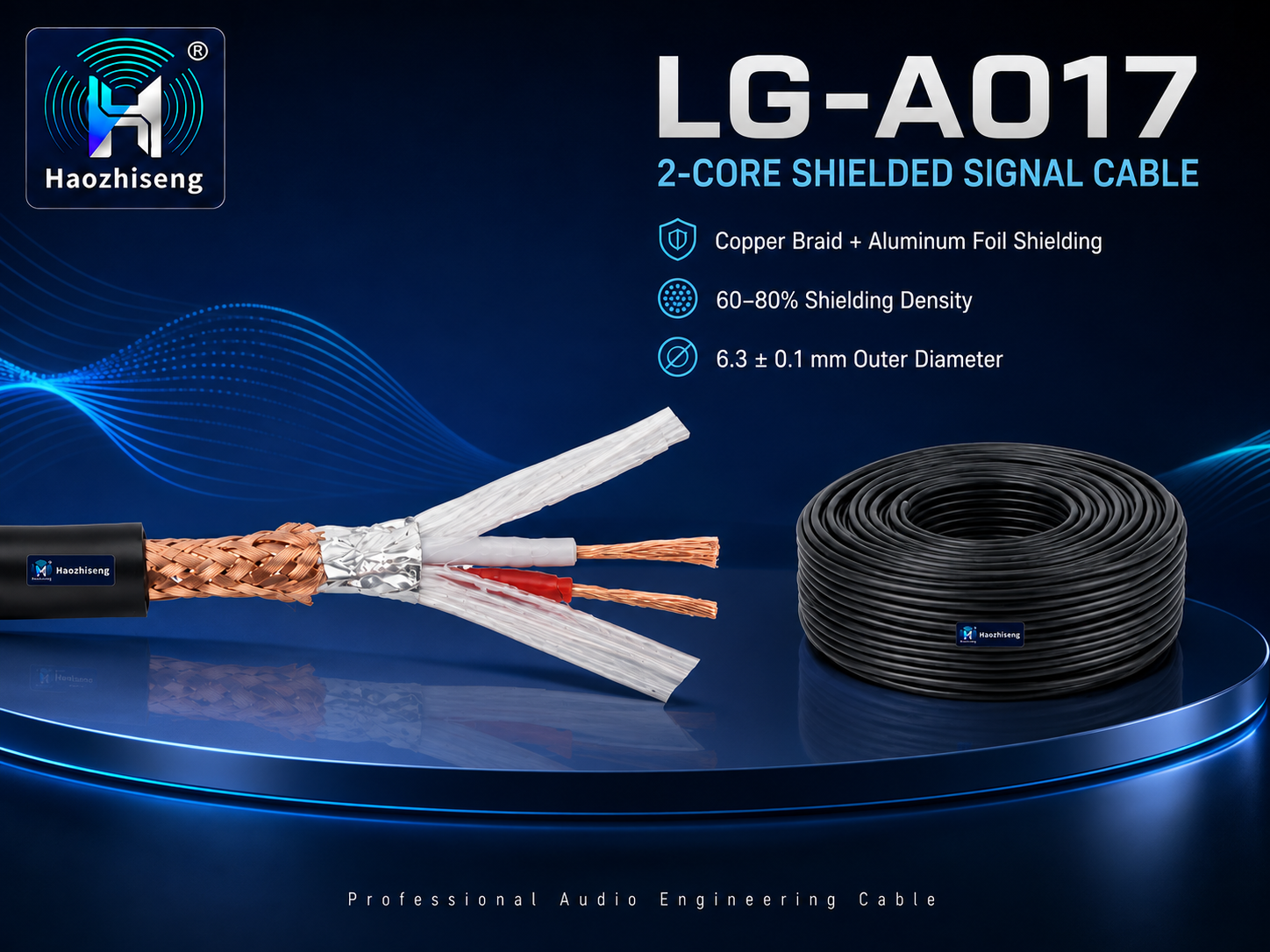

Its internal structure combines two insulated copper conductors with copper braided shielding and an aluminum-foil shielding layer. This multi-layer construction helps reduce external electromagnetic interference and supports stable signal transmission in demanding audio environments.
The cable is protected by a black outer sheath and has an overall diameter of 6.3 ± 0.1 mm. Three conductor and braid configurations are available to meet different project and installation requirements.
Key Features
- Professional two-core engineering signal cable
- Two insulated copper signal conductors
- Copper braided shielding for interference protection
- Additional aluminum-foil shielding layer
- Shielding density of 60–80%
- Three conductor and braid configurations available
- 0.5 mm conductor insulation thickness
- 1.2 mm outer sheath thickness
- Overall cable diameter of 6.3 ± 0.1 mm
- Suitable for fixed installations and mobile audio systems
Available Configurations
| Model | Core / Braid Configuration | Insulation Thickness | Shielding Density | Sheath Thickness | Maximum Conductor Resistance at 20°C | Minimum Insulation Resistance at 70°C | Overall Diameter |
|---|---|---|---|---|---|---|---|
| LG-A017-64 | 2 × 0.3 × 64 | 0.5 mm | 60–80% | 1.2 mm | 69.2 Ω/km | 0.014 MΩ·km | 6.3 ± 0.1 mm |
| LG-A017-96 | 2 × 0.3 × 96 | 0.5 mm | 60–80% | 1.2 mm | 69.2 Ω/km | 0.014 MΩ·km | 6.3 ± 0.1 mm |
| LG-A017-128 | 2 × 0.3 × 128 | 0.5 mm | 60–80% | 1.2 mm | 69.2 Ω/km | 0.014 MΩ·km | 6.3 ± 0.1 mm |

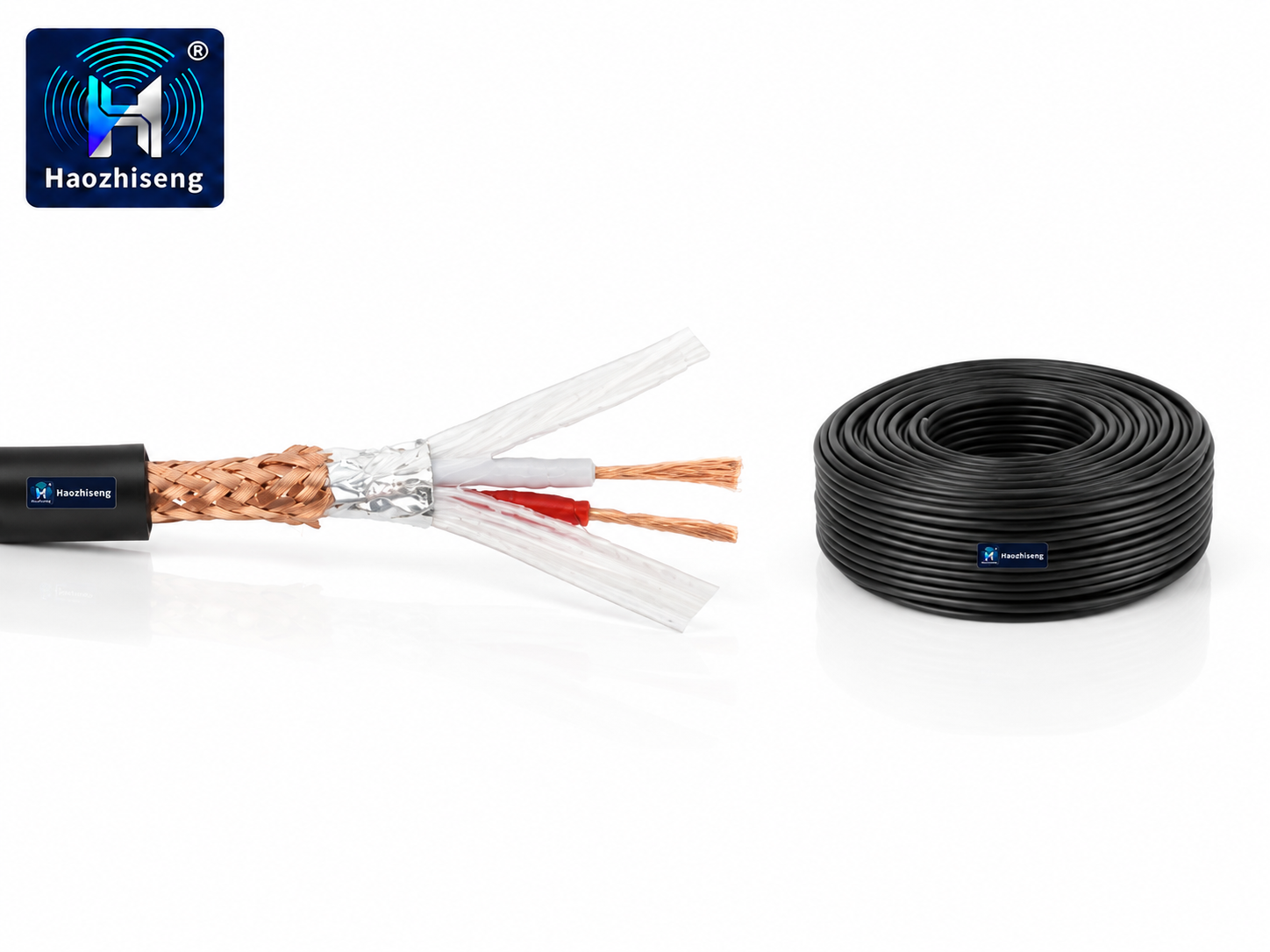

Cable Construction
The LG-A017 uses a layered shielding structure consisting of copper braided shielding and aluminum foil around the insulated signal conductors. The outer black sheath protects the internal components and keeps the cable organized during installation and daily use.
Applications
- Professional audio signal connections
- Live sound and stage systems
- Recording studios
- Broadcast systems
- Conference and presentation systems
- Theaters and entertainment venues
- Houses of worship
- Equipment racks and control rooms
- Fixed audio installations
- Touring and rental sound systems
Why Choose the LG-A017?
The LG-A017 combines a compact two-core construction with copper braid and foil shielding to support reliable signal transmission in professional audio systems. Its three available braid configurations allow installers and system integrators to select the appropriate version for different engineering projects.
