HZS Series Professional Multicore OFC Speaker Cable for Stage and Touring Systems
Product Overview
The HZS Series is a professional multicore speaker cable engineered for live performances, touring PA systems, broadcasting, rental applications and fixed audio installations.
Each model uses high-purity oxygen-free copper conductors made from fine 0.10 mm copper strands. The multi-strand twisted construction provides excellent flexibility and reliable signal transmission, while individually insulated internal conductors help maintain an organized and durable cable structure.
The imported flexible PVC outer jacket remains pliable at temperatures down to −30°C. Internal strength members and tensile cotton fillers improve resistance to pulling, bending and frequent handling, making the HZS Series suitable for demanding professional audio environments.
Key Features
- Professional multicore speaker cable
- High-purity oxygen-free copper conductors
- Fine 0.10 mm stranded copper construction
- Available with 2, 4, 6 or 8 conductors
- Conductor sizes from 1.0 to 6.0 mm²
- Flexible PVC insulation for each internal conductor
- Imported elastic PVC outer jacket
- Flexible performance at temperatures down to −30°C
- Internal strength members for improved tensile resistance
- Tensile cotton fillers for additional reinforcement
- Smooth, round dark-blue outer jacket
- Designed for mobile and fixed professional audio systems

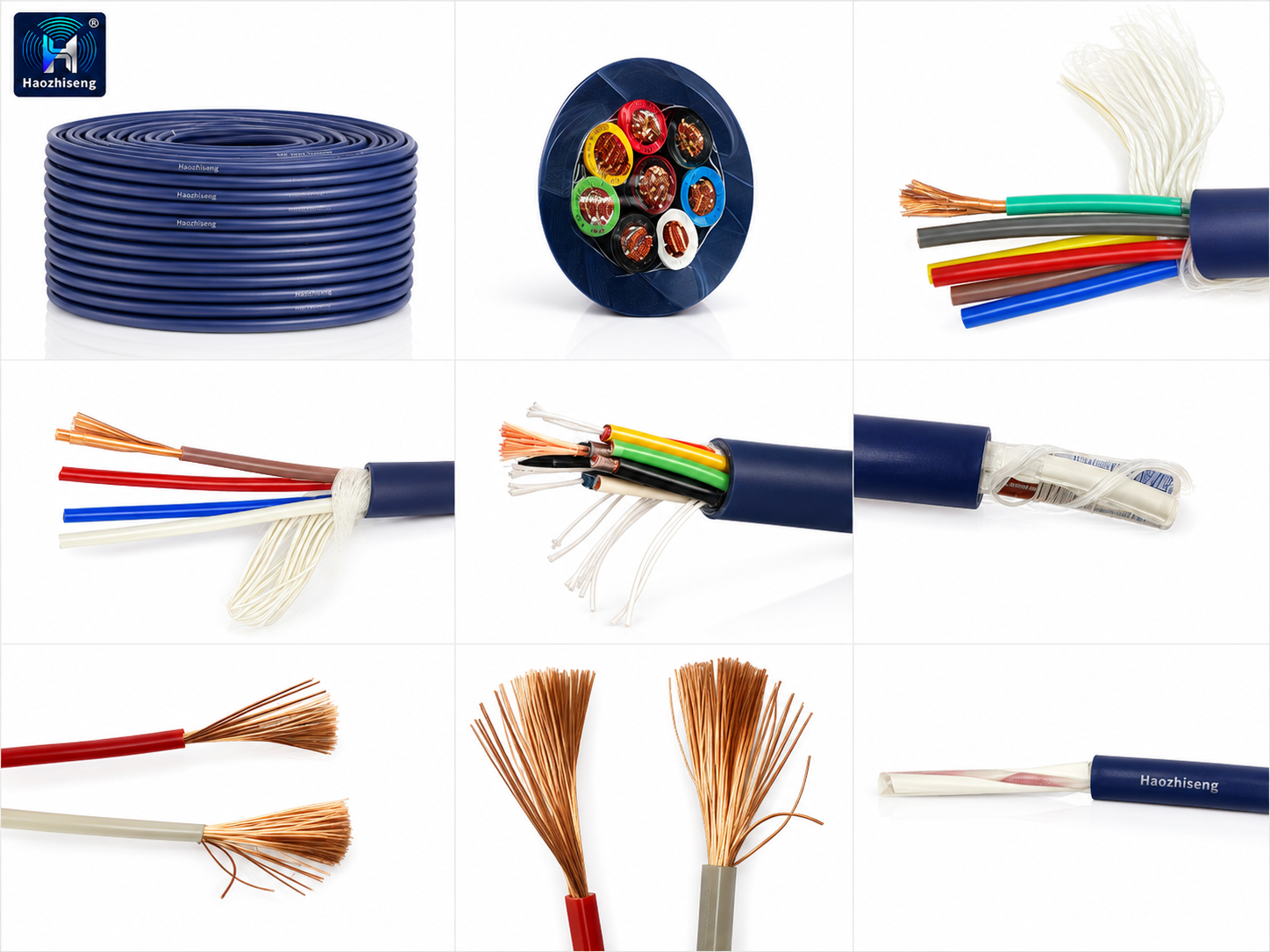

Cable Construction
The HZS Series features fine-stranded OFC conductors arranged in a flexible multicore structure. Each conductor is protected by PVC insulation, while internal reinforcement helps reduce mechanical stress during pulling and repeated bending.
Its elastic PVC outer jacket provides a smooth, rounded finish and remains flexible in low-temperature environments. This construction makes the cable suitable for frequent setup, transportation and long-term professional use.
Applications
- Live concerts and stage performances
- Touring PA systems
- Professional loudspeaker connections
- Broadcast and television systems
- Theatres and entertainment venues
- Houses of worship
- Conference and event systems
- Professional audio rental systems
- Fixed sound installations
Available Models
| Model | Number of Conductors | Conductor Configuration | Overall Diameter |
|---|---|---|---|
| HZS-210 | 2 | 2 × 1.0 mm² | 8.3 mm |
| HZS-215 | 2 | 2 × 1.5 mm² | 8.7 mm |
| HZS-225 | 2 | 2 × 2.5 mm² | 10.2 mm |
| HZS-240 | 2 | 2 × 4.0 mm² | 12.0 mm |
| HZS-260 | 2 | 2 × 6.0 mm² | 12.5 mm |
| HZS-410 | 4 | 4 × 1.0 mm² | 10.0 mm |
| HZS-415 | 4 | 4 × 1.5 mm² | 11.2 mm |
| HZS-425 | 4 | 4 × 2.5 mm² | 12.5 mm |
| HZS-440 | 4 | 4 × 4.0 mm² | 13.0 mm |
| HZS-615 | 6 | 6 × 1.5 mm² | 12.5 mm |
| HZS-625 | 6 | 6 × 2.5 mm² | 15.5 mm |
| HZS-640 | 6 | 6 × 4.0 mm² | 16.5 mm |
| HZS-815 | 8 | 8 × 1.5 mm² | 14.0 mm |
| HZS-825 | 8 | 8 × 2.5 mm² | 15.8 mm |
General Specifications
| Item | Specification |
|---|---|
| Series | HZS Series |
| Product Type | Professional Multicore Speaker Cable |
| Conductor Material | High-Purity Oxygen-Free Copper |
| Individual Copper Strand Diameter | 0.10 mm |
| Conductor Options | 2, 4, 6 or 8 Conductors |
| Conductor Size Range | 1.0–6.0 mm² |
| Internal Insulation | PVC |
| Outer Jacket Material | Flexible PVC Elastomer |
| Outer Jacket Color | Dark Blue |
| Low-Temperature Flexibility | Down to −30°C |
| Internal Reinforcement | Strength Members and Tensile Cotton Fillers |
Why Choose the HZS Series?
The HZS Series combines high-purity OFC conductors, multiple conductor configurations and a flexible reinforced jacket in one dependable cable solution. Its wide range of conductor sizes makes it suitable for different loudspeaker power requirements, installation distances and professional audio system configurations.
