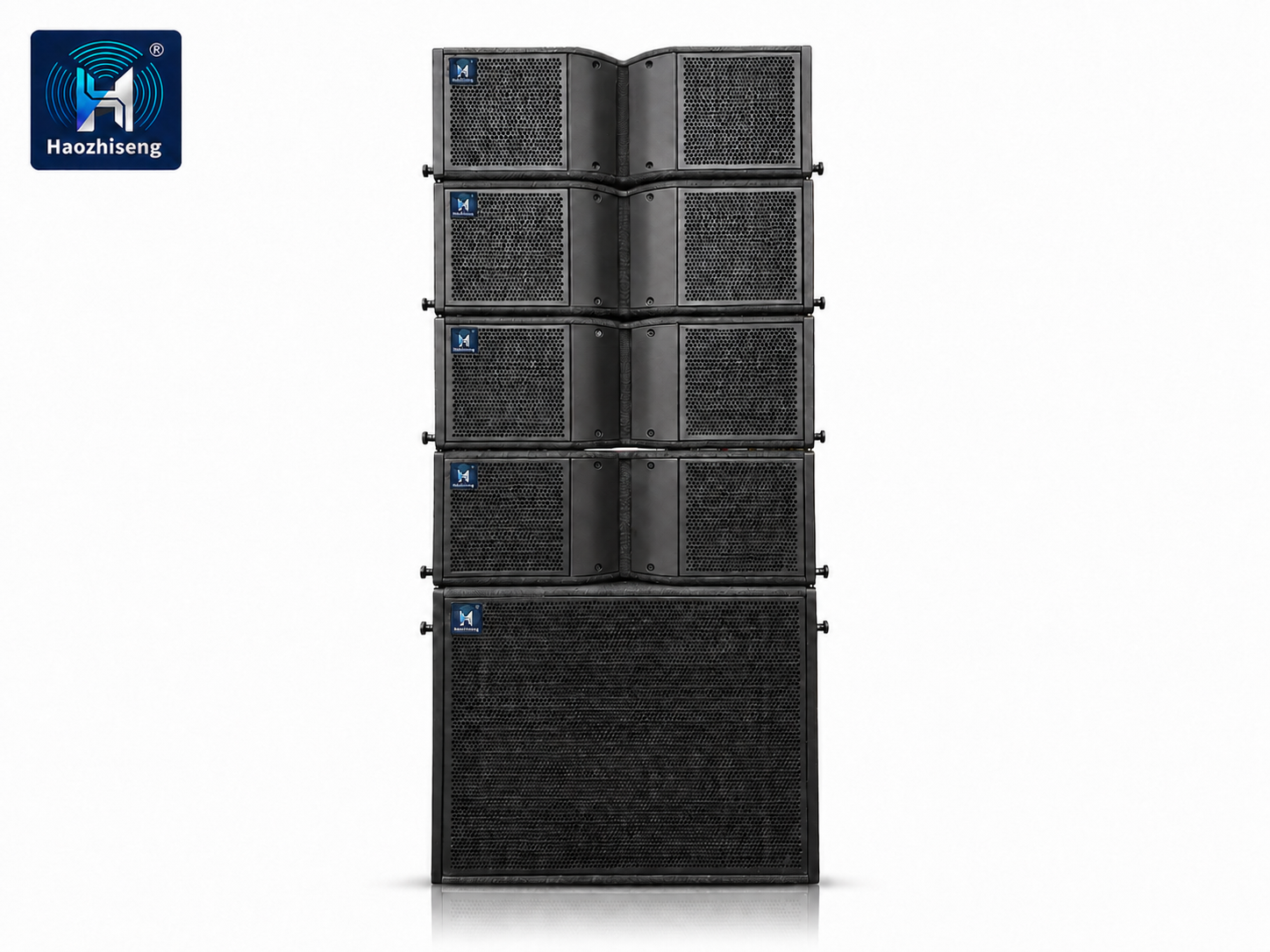

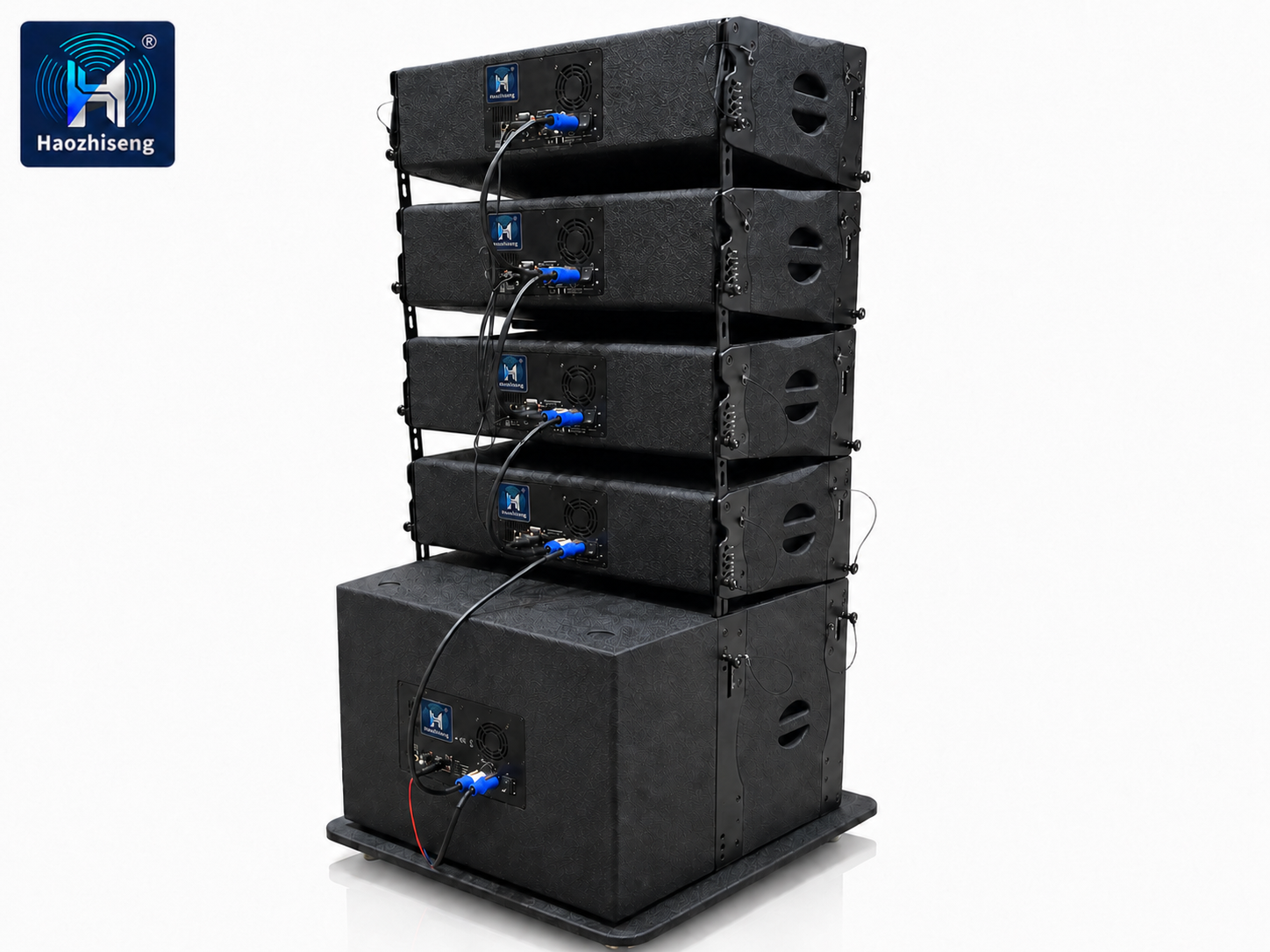

HA208 Dual 8-Inch Active Line Array Speaker System | Professional Self-Powered PA System with HA18SUB Subwoofer
Product Overview
The HA208 Active Line Array Speaker System is a professional self-powered PA solution designed for live concerts, touring sound reinforcement, outdoor festivals, theaters, houses of worship, and fixed installation projects.
With advanced dual 8-inch neodymium drivers, a 3-way active design, and built-in DSP Class-D amplification, the HA208 delivers powerful SPL output, precise sound dispersion, and clear vocal performance for medium to large-scale professional audio applications.
When paired with the HA18SUB active subwoofer, the system becomes a full-range professional PA solution with deep bass extension, balanced frequency response, and high-impact sound reinforcement for demanding environments.
System Architecture
The HA208 system is engineered for scalable professional audio deployment:
- Dual 8-inch neodymium low-frequency drivers
- 3-inch high-frequency compression driver
- Built-in DSP controlled Class-D amplifier

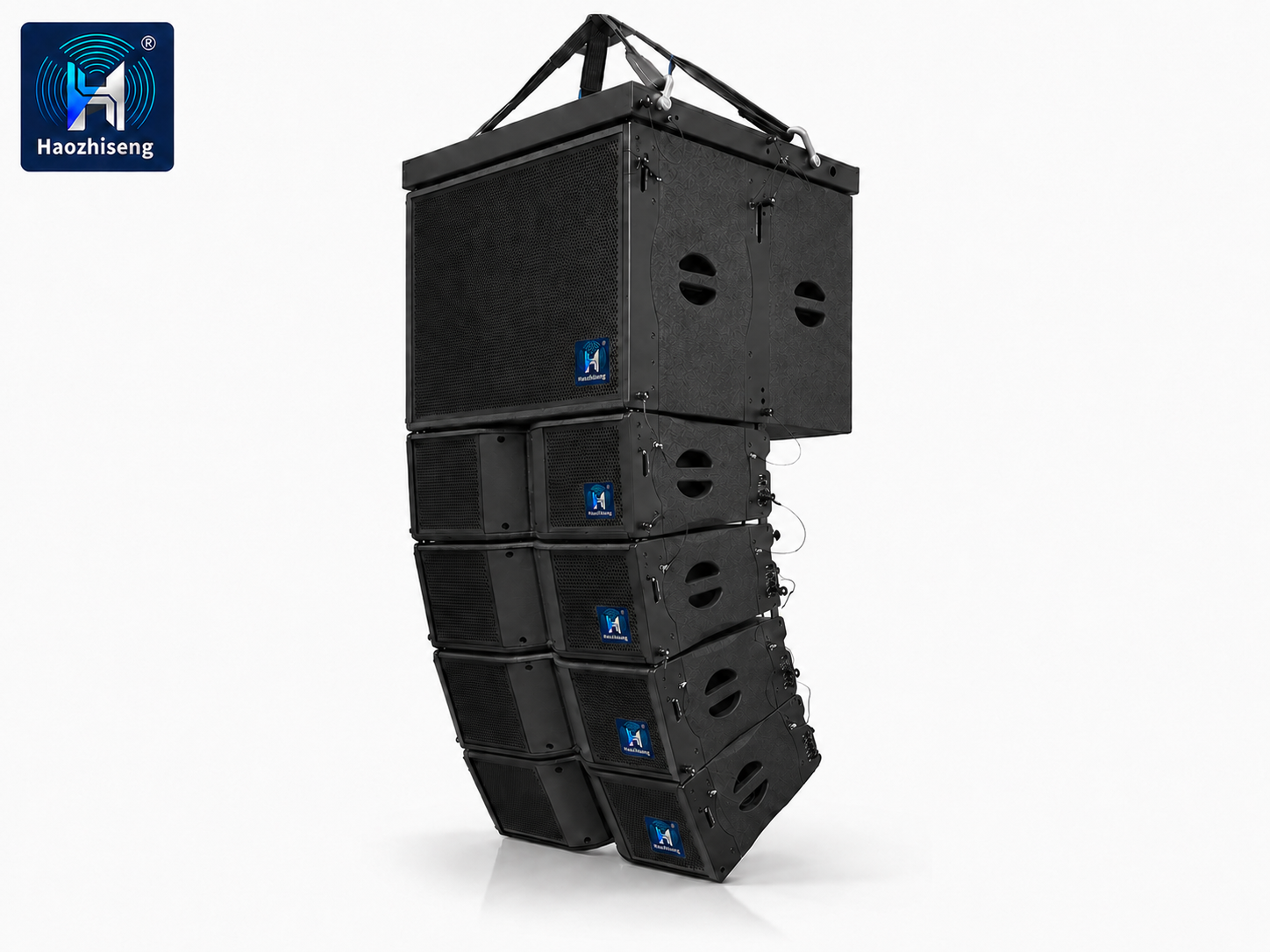

- Flyable and stackable line array rigging system
- High-efficiency active design for fast deployment
The system is optimized for both touring rental applications and permanent installation projects.
DSP Digital Control System
The integrated DSP platform provides precise audio processing and system protection:
- EQ adjustment
- Crossover control
- Delay alignment
- Limiter protection
- Gain control
- RS-485 / USB communication
This ensures stable performance and optimized sound tuning in different acoustic environments.

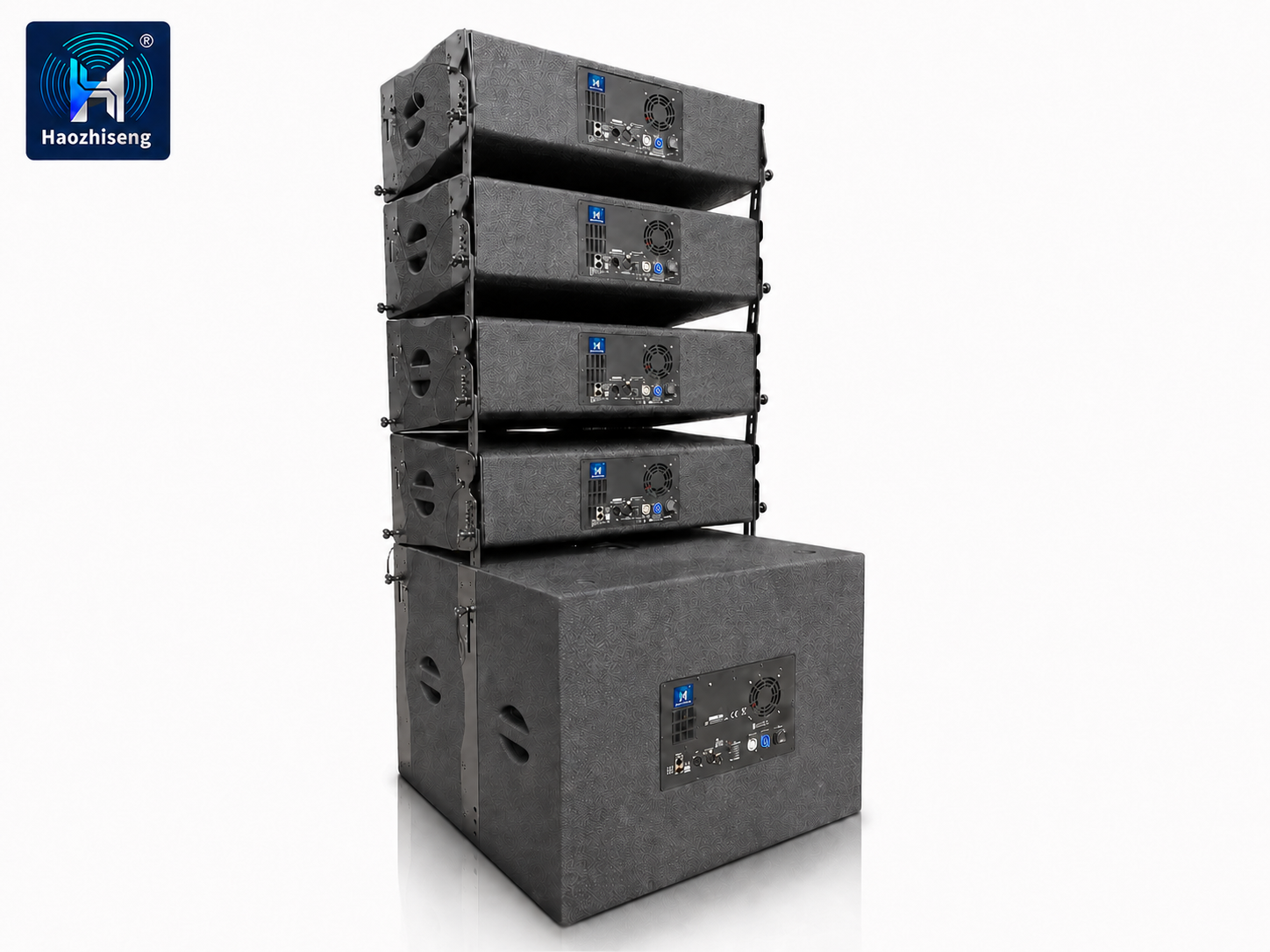

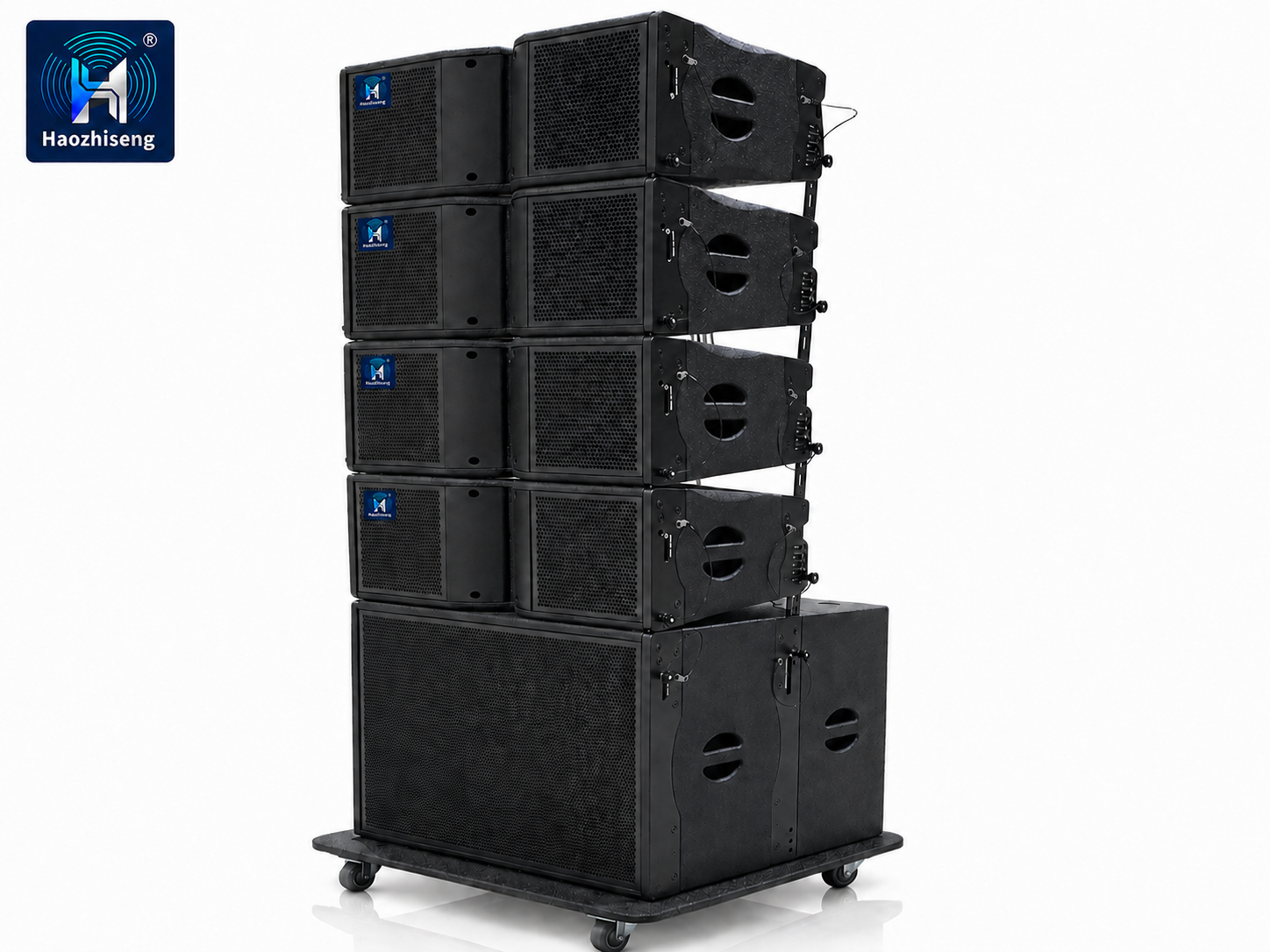

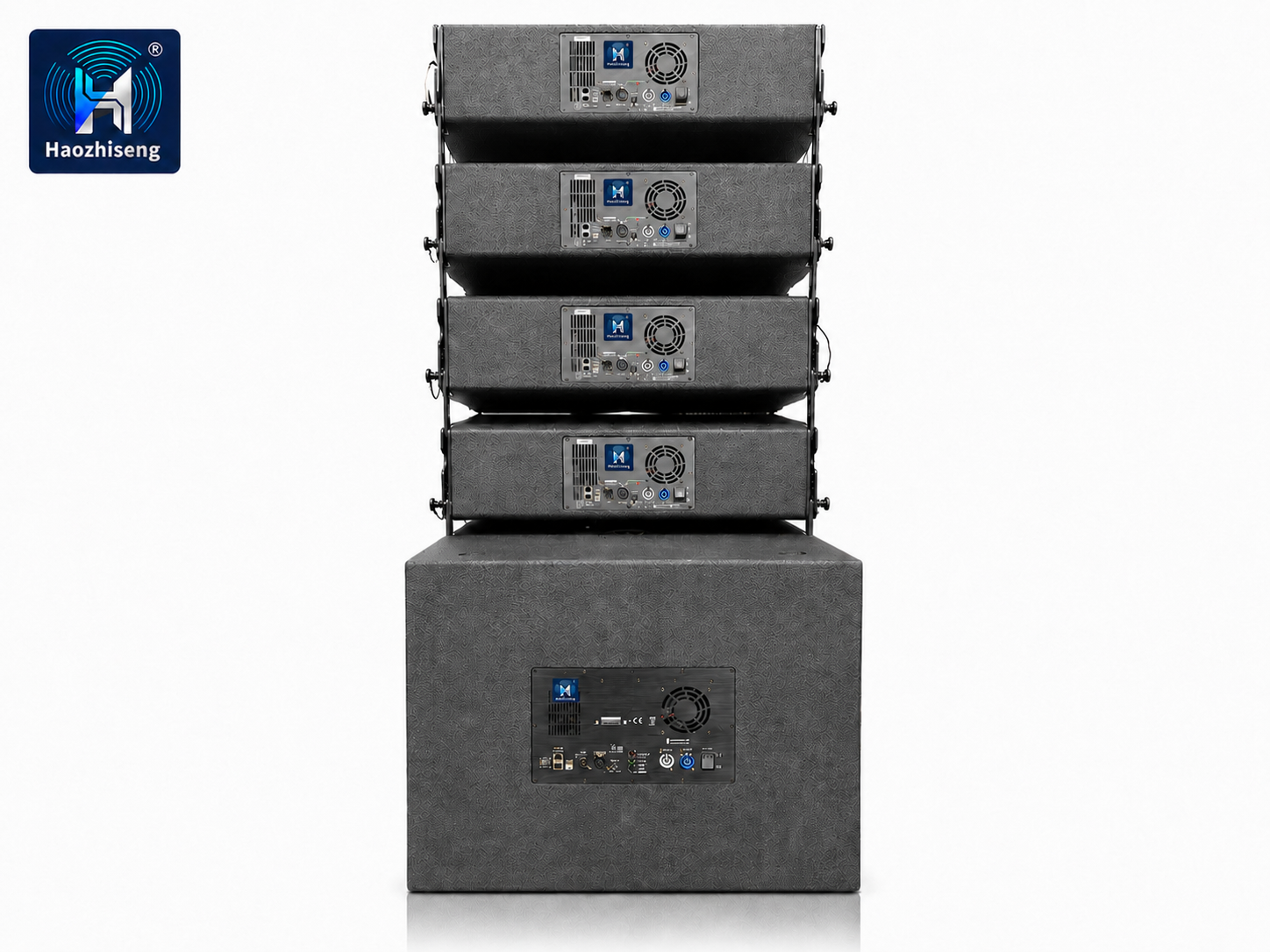

System Expansion with HA18SUB Subwoofer
The HA18SUB active subwoofer extends the system’s low-frequency performance, delivering powerful bass and full-range sound reinforcement.
HA18SUB Key Highlights
- 1 × 18-inch high-power neodymium woofer
- Bass-reflex enclosure design
- Built-in active amplifier module
- Maximum SPL up to 138 dB
- Deep low-frequency extension for professional PA systems
Applications
The HA208 + HA18SUB system is widely used in:
- Live concerts and touring productions
- Outdoor festivals and large events
- Line array PA systems
- Theaters and auditoriums
- Houses of worship
- Corporate events and conferences
- Rental sound reinforcement systems
- Fixed installation projects
- Nightclubs and performance venues
Key Features
- Professional dual 8-inch active line array system
- High SPL output with clear vocal performance
- Built-in DSP Class-D amplifier module
- Scalable line array configuration (fly / stack)
- Neodymium high-efficiency speaker drivers
- Rugged birch plywood cabinet construction
- Waterproof polyurea coating for touring durability
- Professional-grade rigging hardware system
Technical Specifications
HA208 Active Line Array Speaker
| Parameter | Specification |
|---|---|
| Product Type | Active Dual 8-inch Line Array Speaker |
| Frequency Response (-10 dB) | 55 Hz – 20 kHz |
| Horizontal Coverage | 110° Symmetric |
| Vertical Coverage | Depends on array configuration |
| Maximum SPL | 141 dB |
| Low Frequency Power | 450 W |
| High Frequency Power | 80 W |
| LF Drivers | 2 × 8″ Neodymium Woofers |
| HF Driver | 1 × 3″ Compression Driver (Neodymium) |
| Impedance | LF: 8Ω / HF: 8Ω |
| DSP Control | USB / RS-485 |
| Amplifier Type | Built-in DSP Class-D Amplifier |
| Cabinet Material | Birch Plywood |
| Finish | Waterproof Polyurea Coating |
| Rigging System | Integrated Flying Hardware |
| Connectors | 2 × 4-pin Neutrik |
| Dimensions (W × H × D) | 730 × 250 / 164 × 482 mm |
| Net Weight | 26 kg |
HA18SUB Active Subwoofer
| Parameter | Specification |
|---|---|
| Product Type | Active 18-inch Subwoofer |
| Frequency Response (-10 dB) | 32 Hz – Low Frequency Extension |
| Maximum SPL | 138 dB |
| Power Handling | 800 W RMS |
| Driver | 1 × 18″ Neodymium Woofer |
| Enclosure Type | Bass Reflex Design |
| Impedance | 8Ω |
| Amplifier Type | Built-in Active Amplifier |
| Cabinet Material | Birch Plywood |
| Finish | Waterproof Polyurea Coating |
| Connectors | 2 × 4-pin Neutrik |
| Dimensions (W × H × D) | 750 × 540 × 707 mm |
| Net Weight | 52 kg |
System Summary
The HA208 + HA18SUB system provides a complete professional PA solution combining:
- High SPL line array clarity
- Powerful subwoofer low-frequency support
- Scalable system design for different venue sizes
- Reliable touring-grade construction
- Integrated DSP control for precise tuning
It is an ideal solution for modern professional sound reinforcement systems requiring power, clarity, and flexibility.
