Power Distribution Cabinet

DG1216

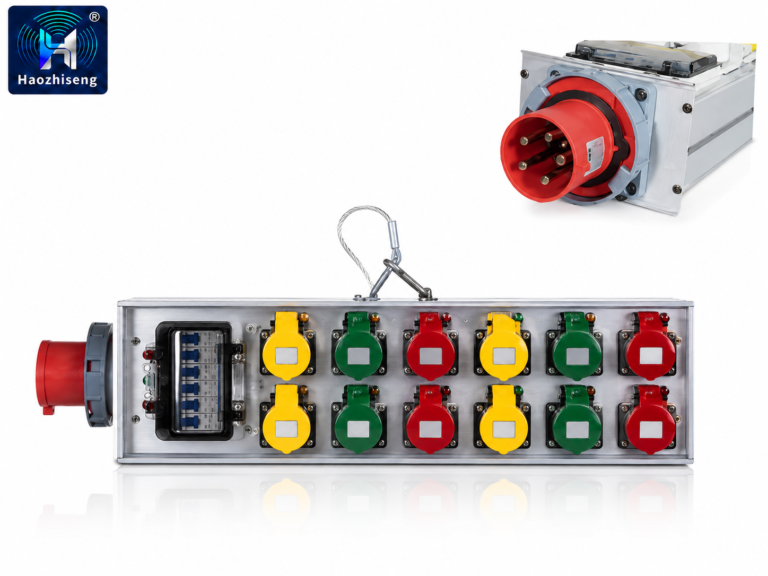

DG1216 63A Three-Phase Power Distribution Unit with 12 × 16A Waterproof Outputs

Professional three-phase power distribution unit Heavy-duty 63A five-pin industrial input Twelve 16A waterproof output sockets Six independent 25A circuit breakers Three-phase status indicator lights Organized two-row output layout Color-coded sockets for convenient phase identification Compact and space-saving enclosure Durable metal construction Suitable for portable and fixed installations Custom input and output configurations available OEM and ODM branding supported

Power and Audio Signal Distribution

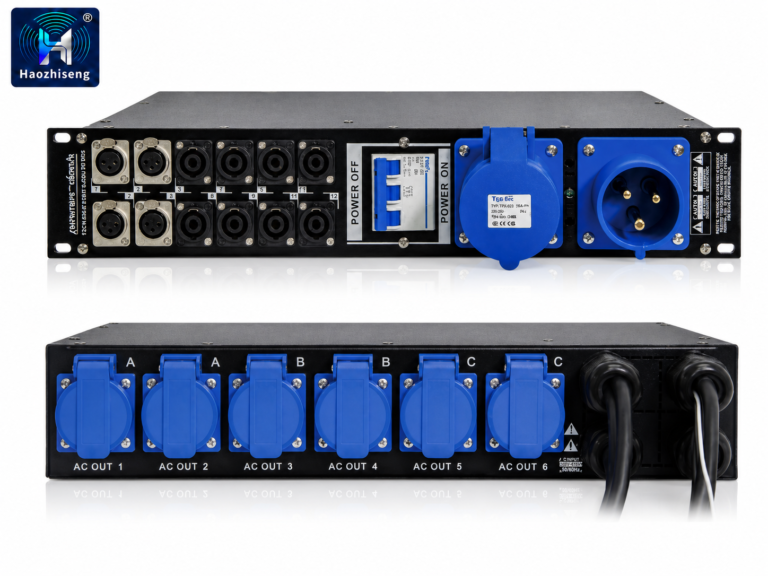

Customizable 6-Way Rack-Mount Power and Audio Signal Distribution Unit

Combined power and audio-signal distribution Six AC power-output circuits in the reference configuration Six audio-signal channels with paired panel connectors Clearly identified A, B and C power-output groups Integrated main circuit breaker Covered industrial power connectors Professional rack-mount metal enclosure Organized connection panel for simplified system wiring Suitable for power and line-array audio-signal distribution Helps reduce cable clutter during system installation Designed for portable and fixed applications Custom connector and cable configurations available OEM and ODM branding supported

Power Distribution Box

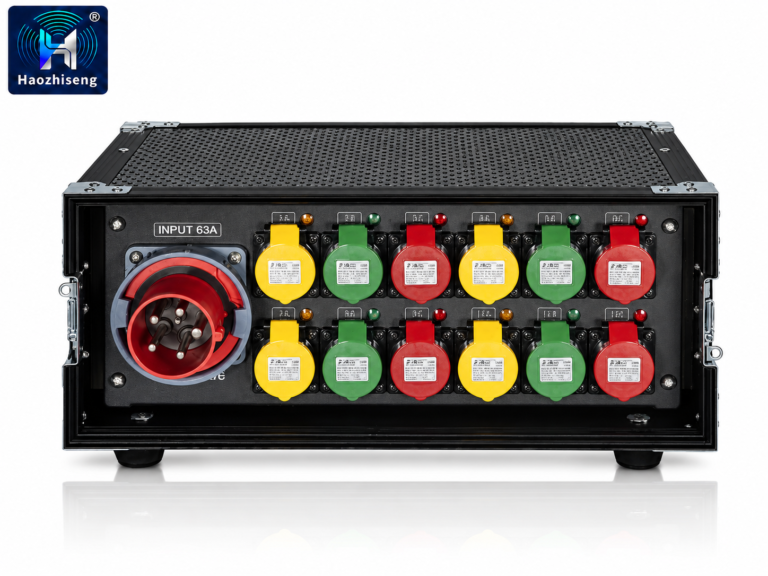

63A Three-Phase Power Distribution Box with 12 × 16A Waterproof Outputs

Three-phase five-wire power-distribution system AC 380V ±10% rated power supply 50Hz/60Hz operating frequency Heavy-duty 63A IP44 industrial input plug Twelve waterproof 16A output sockets Individual indicator light for each output Color-coded output connectors for easy identification Independent phase A, B and C voltage meters Independent phase A, B and C current meters Real-time monitoring without display switching 63A main circuit breaker Independent C20A branch circuit breakers Overload and short-circuit protection Flame-retardant panel construction Compact 4U rack-mountable design Suitable for portable and fixed installations

Power Distribution Cabinet

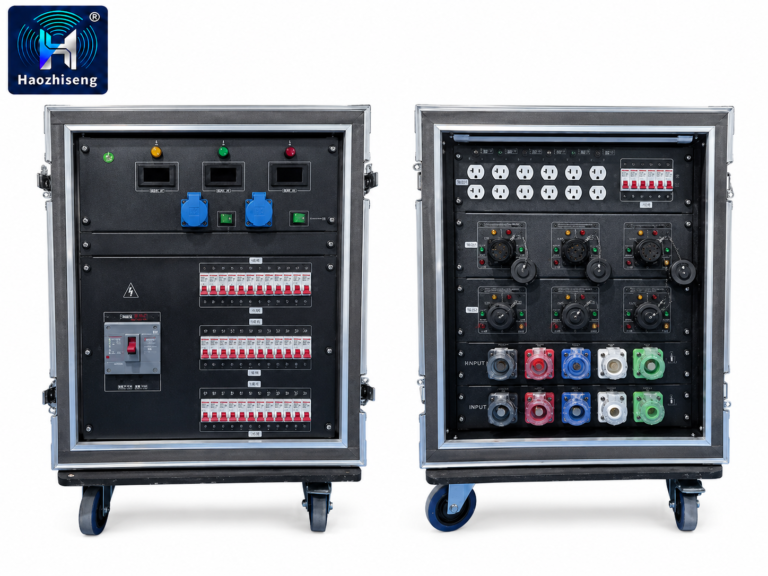

400A Three-Phase Five-Wire Power Distribution Cabinet with Edison and Socapex Outputs

Professional three-phase power distribution cabinet Three-phase five-wire AC 220V power supply 400A power input 400A loop-through power output Six 110V Edison output circuits Six 110V 19-pin Socapex output circuits Independent phase A, B and C voltage monitoring Independent phase A, B and C current monitoring Direct-reading LCD voltage and current meters Real-time data monitoring without display switching Individual C20A circuit breaker for each output circuit Main circuit-breaker control Overload and short-circuit protection Double-layer fire-retardant flight-case construction Heavy-duty handles and protective metal edging Caster wheels for convenient transportation Suitable for portable and temporary power systems

Power Distribution Cabinet

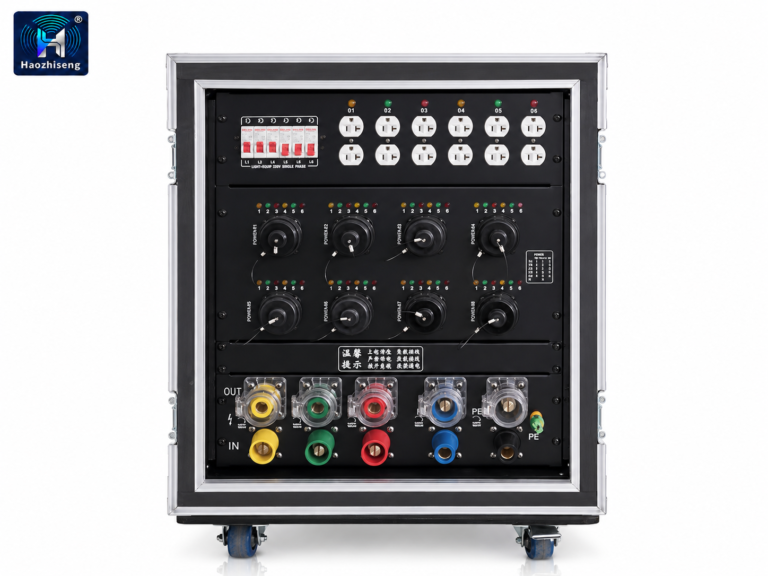

400A Three-Phase Power Distribution Cabinet with Cam-Lok Input and 19-Pin Outputs

Professional 400A three-phase power distribution cabinet Three-phase, five-wire input configuration: L1, L2, L3, N and PE AC 380V ±10%, 50Hz rated input Heavy-duty 400A Cam-Lok input connectors 400A Cam-Lok loop output for system expansion Six duplex American-standard 220V outlet circuits Each duplex outlet circuit rated at 16A Eight professional 19-pin female multicircuit outputs Six 220V circuits available from each 19-pin output Up to 48 individual 220V circuits through compatible fan-out cables Independent circuit breakers for organized output protection Individual LED operating indicators for output circuits Suitable for touring, rental and fixed-installation applications
