Customizable 6-Way Rack-Mount Power and Audio Signal Distribution Unit
Product Summary
This customizable rack-mount distribution unit combines six AC power-output circuits with professional audio-signal distribution in one compact enclosure. Connector types, output quantities, electrical configuration, cable specifications and panel layout can be customized according to different stage, touring, rental and installation requirements.
Product Overview
This professional power and audio-signal distribution unit is designed to simplify equipment connection and cable management in stage-lighting, line-array speaker, touring, rental and event-production systems.
The reference configuration provides six AC power outputs arranged in three identified groups: A, B and C. Multiple audio-signal connectors allow signals to be distributed through the same rack-mounted system, helping reduce separate connection boxes and unnecessary cabling.
An integrated main circuit breaker provides centralized power control, while covered industrial power sockets help protect the connectors during transportation and storage. The durable black metal rack enclosure is suitable for frequent installation, transportation and professional use.
The complete unit can be customized according to the requirements of the customer’s equipment and project. Power connectors, signal connectors, output quantities, voltage, current rating, cable type, cable length, labeling and panel arrangement can all be configured for OEM, ODM and system-integration projects.
Key Features
- Combined power and audio-signal distribution
- Six AC power-output circuits in the reference configuration
- Six audio-signal channels with paired panel connectors
- Clearly identified A, B and C power-output groups
- Integrated main circuit breaker
- Covered industrial power connectors
- Professional rack-mount metal enclosure
- Organized connection panel for simplified system wiring
- Suitable for power and line-array audio-signal distribution
- Helps reduce cable clutter during system installation
- Designed for portable and fixed applications
- Custom connector and cable configurations available
- OEM and ODM branding supported
Reference Configuration

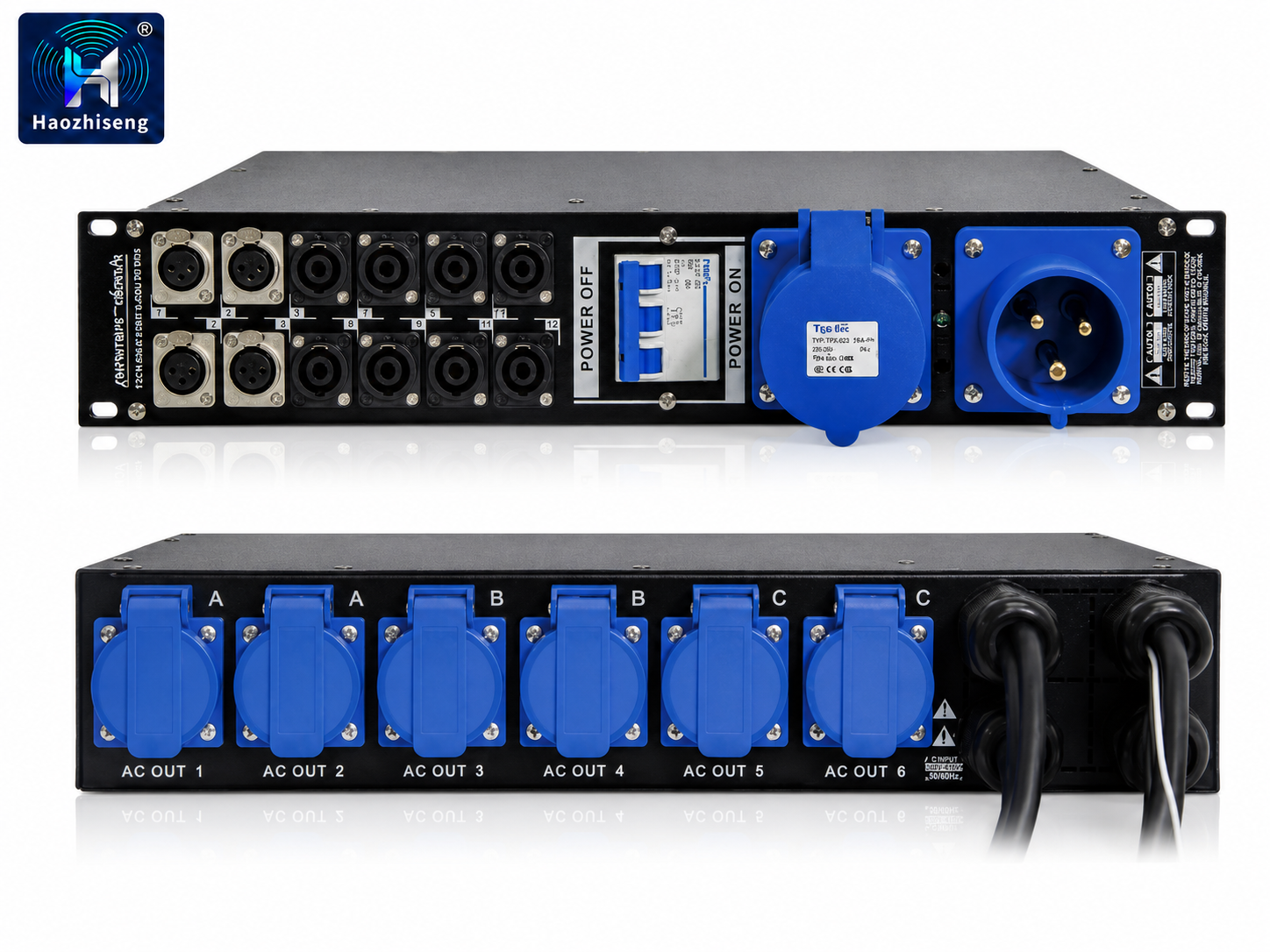

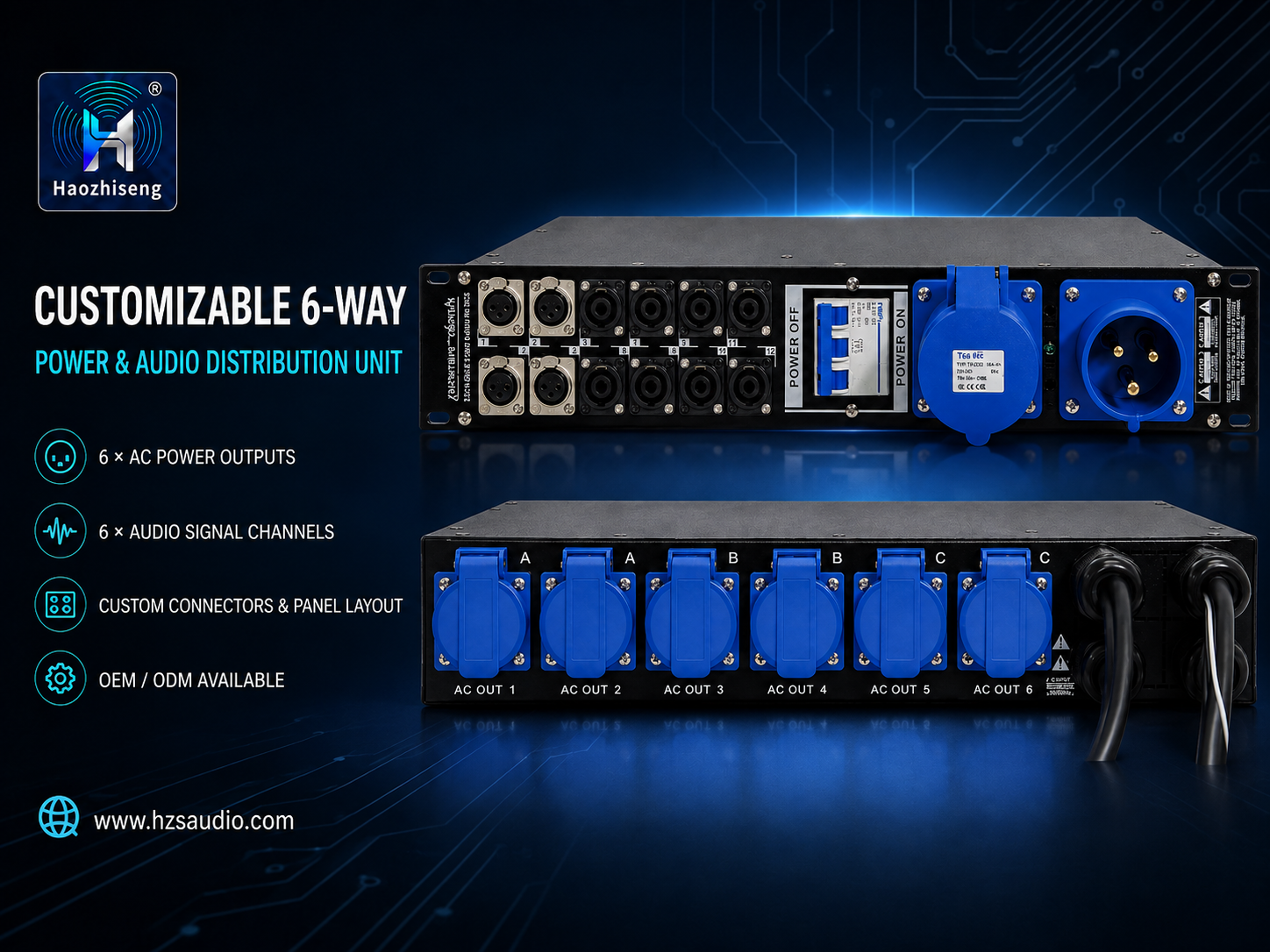

The product shown in the image includes:
- Six covered AC power-output sockets
- Three identified power groups: A, B and C
- Twelve audio-signal panel connectors arranged as six paired channels
- One integrated main circuit breaker
- Industrial power input and output connectors
- Two fixed heavy-duty power cables
- Black rack-mount metal chassis
The configuration shown is for reference. Connector types, quantities and panel arrangements can be changed according to project requirements.
Customization Options
Power Configuration
- Input voltage
- Output voltage
- Rated current
- Number of output circuits
- Single-phase or three-phase configuration
- Power-input connector type
- Power-output connector type
- Fixed cable or detachable connector design
Audio-Signal Configuration
- Number of signal channels
- Input and output connector types
- Male and female connector combinations
- Analog-audio signal distribution
- Line-array speaker signal connections
- Channel labeling and numbering
Cable Options
- Cable length
- Cable cross-sectional area
- Cable jacket material
- Fixed or detachable cables
- Input and output cable combinations
- Color identification
- Cable labeling
Enclosure and Branding
- Rack height and enclosure dimensions
- Front and rear panel layout
- Connector position
- Panel labeling
- Customer LOGO
- Product model number
- OEM packaging
Technical Specifications
| Item | Reference Specification |
|---|---|
| Product Type | Power and Audio-Signal Distribution Unit |
| Mounting Type | Standard Rack-Mount Design |
| Power Outputs | 6 Circuits |
| Power Groups | A/A, B/B and C/C |
| Audio-Signal Channels | 6 Paired Channels |
| Audio Panel Connectors | 12 Connectors |
| Main Power Control | Integrated Circuit Breaker |
| Industrial Connectors | Covered Power Connectors |
| Fixed Power Cables | 2 in the Reference Configuration |
| Enclosure | Black Metal Rack Chassis |
| Voltage and Current | Customizable |
| Connector Configuration | Customizable |
| Cable Length and Specification | Customizable |
| Panel Layout | Customizable |
| Branding | OEM / ODM Available |
Applications
- Line-array speaker systems
- Professional PA systems
- Stage power distribution
- Concerts and live performances
- Touring productions
- Theatres and entertainment venues
- Television and film production
- Event-production systems
- Professional equipment-rental companies
- Exhibition and conference systems
- Temporary power and signal distribution
- Fixed audio installations
Why Choose This Distribution Unit?
This rack-mount distribution unit combines power and audio-signal connections in one organized system, helping simplify equipment setup, reduce cable clutter and improve installation efficiency.
Its customizable design allows the connector types, output quantities, electrical configuration, cable specifications and panel layout to be matched to different equipment and project requirements. It is a practical solution for rental companies, system integrators, stage contractors and professional audio manufacturers requiring specialized OEM or ODM products.
Safety Notice
Electrical ratings and connector configurations must be confirmed before production. Installation, connection and maintenance should be performed by qualified personnel. The selected voltage, current rating, grounding system, cable specification and protective devices must comply with the connected equipment and applicable electrical requirements.
