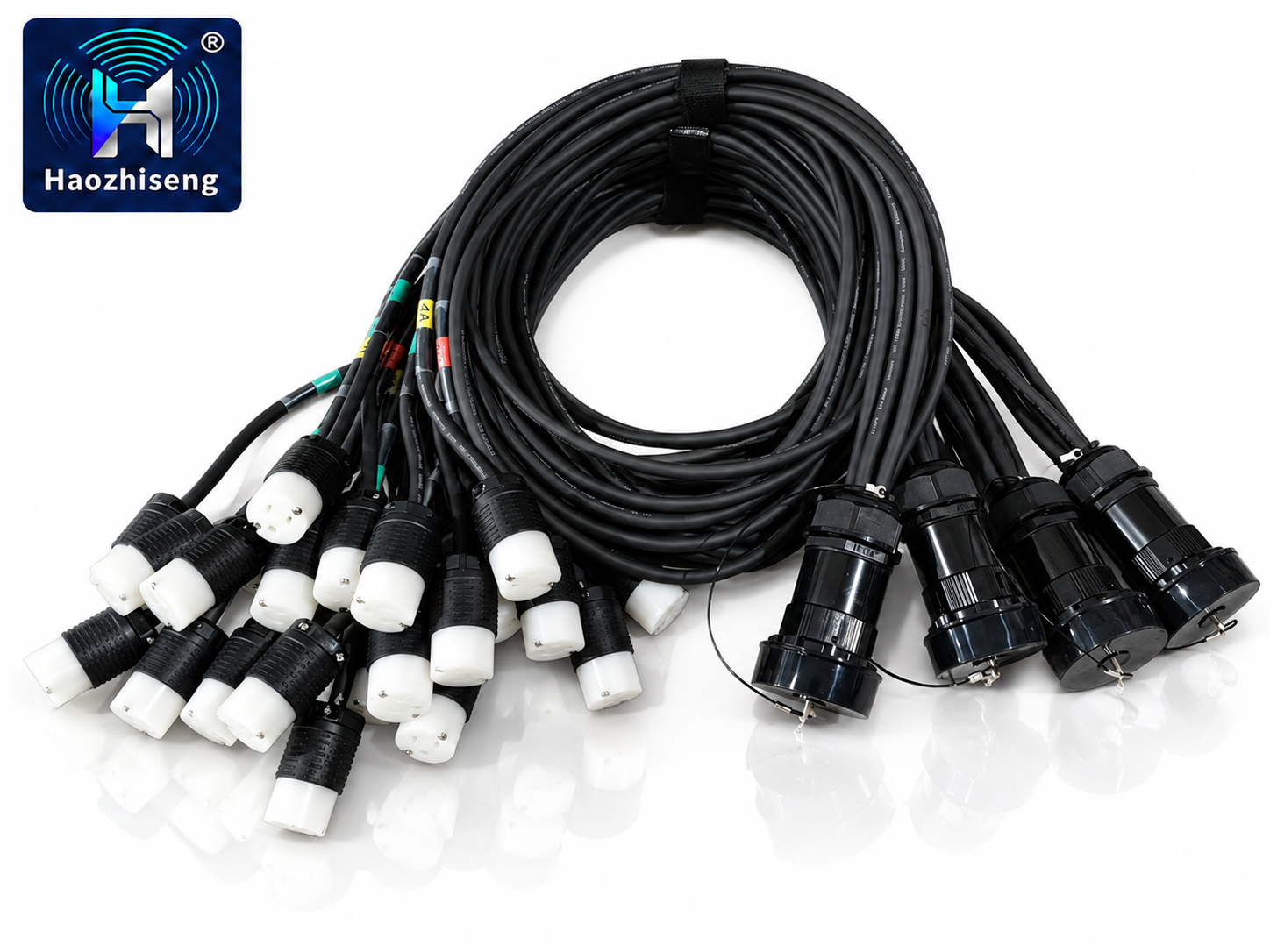

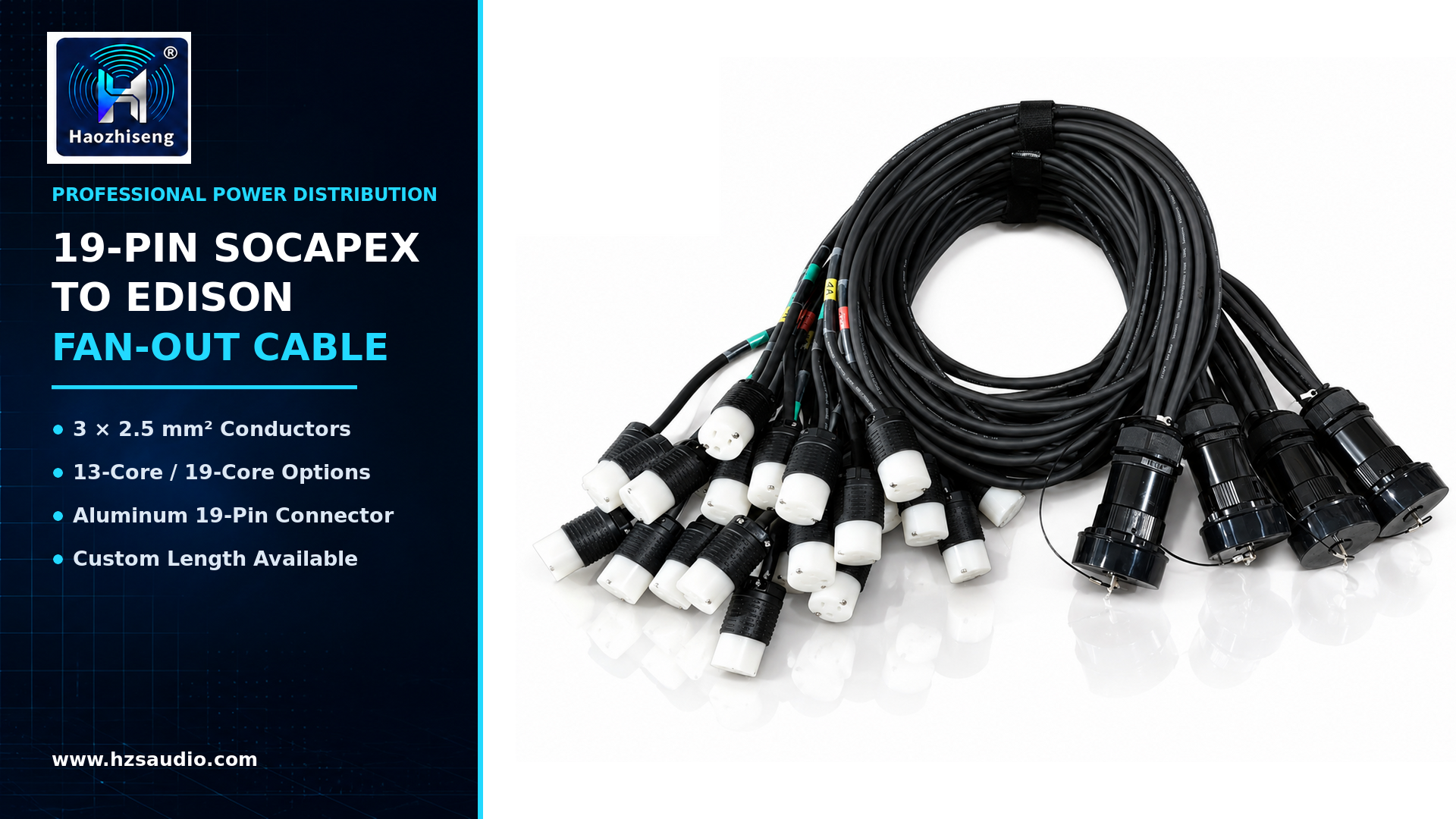

19-Pin Socapex to Edison Female Fan-Out Power Distribution Cable
Product Overview
This professional 19-pin Socapex to Edison female fan-out cable is designed for stage lighting, touring productions, theatres, concerts, rental systems, studios, and temporary power distribution applications.
The multicore cable combines several power circuits into one main cable, helping reduce wiring clutter and simplify system installation. One end features a heavy-duty 19-pin Socapex connector, while the fan-out end is equipped with multiple Edison-style female sockets for connecting lighting fixtures and other compatible equipment.
Available with 13-core or 19-core flexible cable and 3 × 2.5 mm² conductors, the assembly uses a durable aluminum-alloy multipin connector, industrial-grade sockets, and professional soldered connections for dependable performance. Cable length and connector configuration can be customized according to project requirements.
Key Features
- Professional 19-pin Socapex power fan-out cable
- Socapex to Edison female socket configuration
- Suitable for multicircuit power distribution
- 13-core or 19-core flexible cable options
- 3 × 2.5 mm² conductor configuration
- Durable aluminum-alloy 19-pin multipin connector
- Industrial-grade Edison female sockets
- Protective covers help keep connectors clean during storage
- Professional soldering for stable electrical connections
- Reduces cable clutter and simplifies system setup
- Cable length and connector configuration can be customized
Applications
- Stage lighting systems
- Concerts and live events
- Touring productions
- Theatres and performance venues
- Television and film production
- Exhibition and conference systems
- Event production companies
- Professional lighting rental systems
- Temporary power distribution
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Multicore Power Fan-Out Cable |
| Main Connector | 19-Pin Socapex Connector |
| Output Connectors | Edison-Style Female Sockets |
| Cable Options | 13-Core or 19-Core Flexible Cable |
| Conductor Size | 3 × 2.5 mm² |
| Connector Housing | Aluminum Alloy |
| Cable Color | Black |
| Cable Length | Customizable |
| Connector Configuration | Customizable |
| Application | Stage Lighting and Professional Power Distribution |
Why Choose This Socapex Fan-Out Cable?
This 19-pin Socapex fan-out cable provides a convenient solution for distributing multiple power circuits through one multicore cable. Its heavy-duty connectors, flexible cable construction, and professional soldered connections make it suitable for frequent use in demanding stage, touring, theatre, and rental environments.
Customized cable lengths, wiring configurations, connector types, and private-label branding are available for OEM and project requirements.
