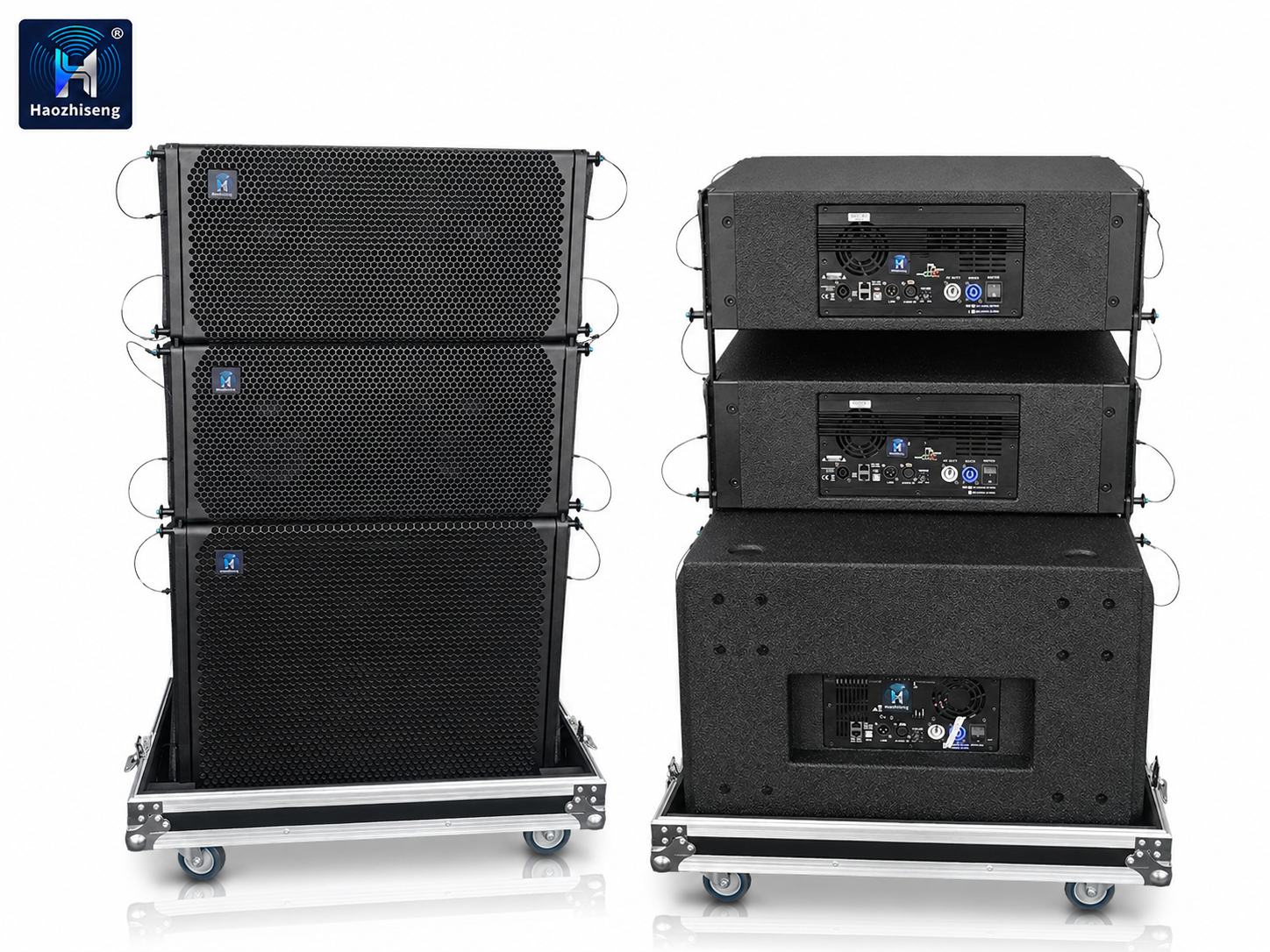

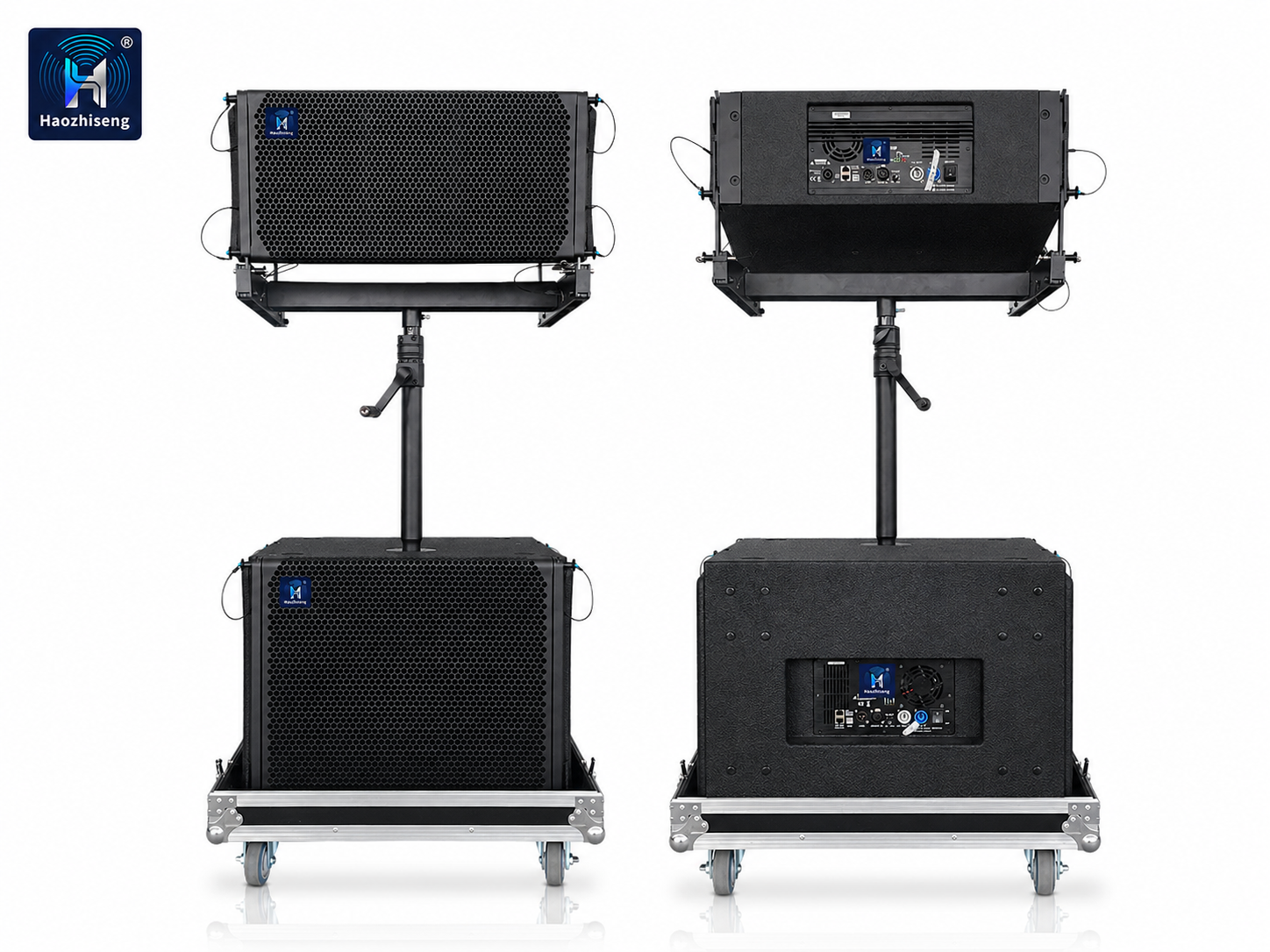

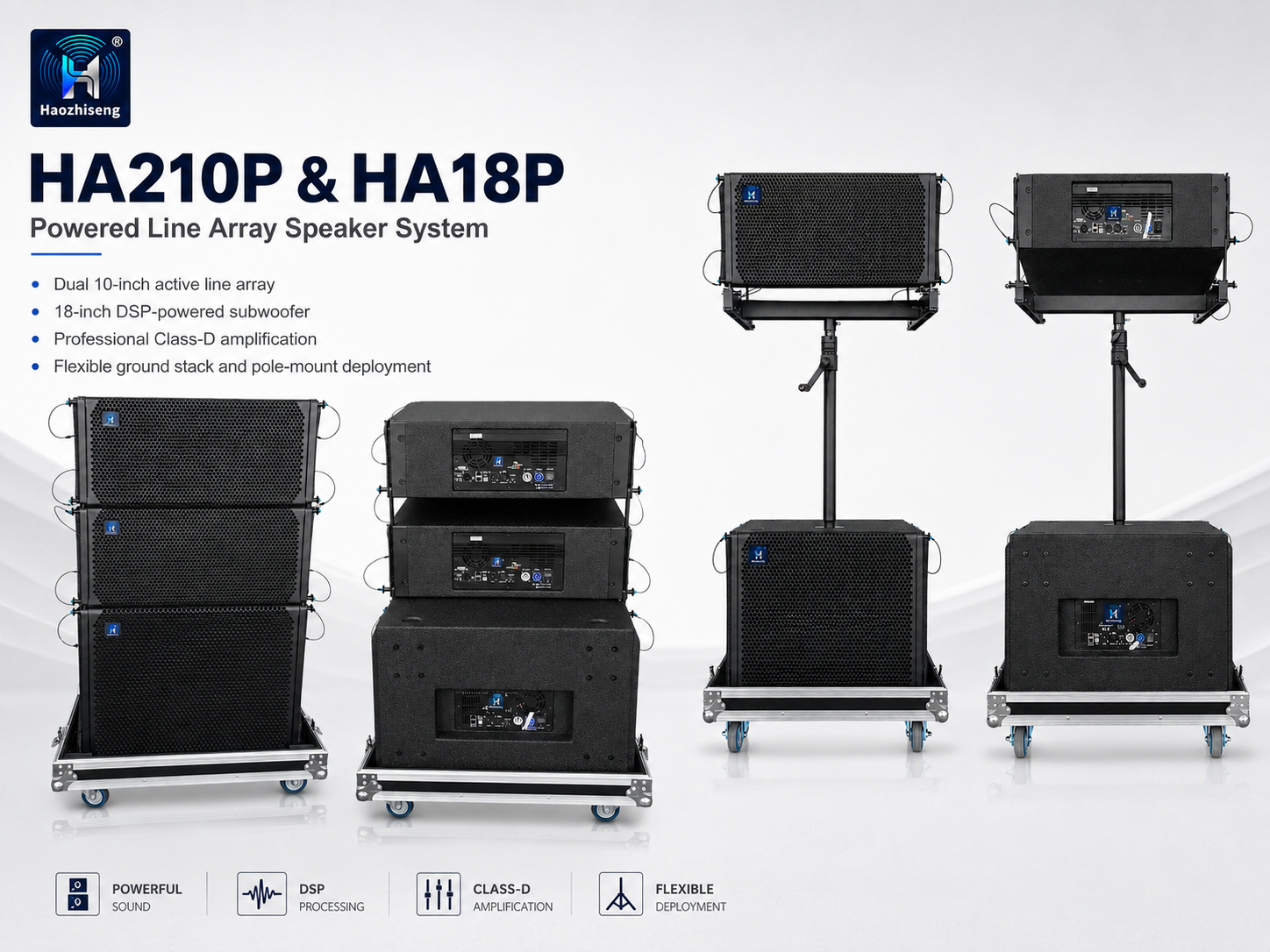

HA210P & HA18P Dual 10-Inch Powered Line Array Speaker System
Professional Active PA System with DSP-Controlled Subwoofer
Product Overview
The HA210P & HA18P is a complete powered line array speaker system designed for professional live sound reinforcement, touring productions, corporate events, theaters, houses of worship, and fixed installation applications.
The HA210P active line array module features dual 10-inch neodymium low-frequency drivers combined with a high-performance compression driver, delivering high output, clear vocal reproduction, and controlled directivity for medium to large venues.
The HA18P active subwoofer is equipped with a powerful 18-inch horn-loaded neodymium woofer, providing deep low-frequency extension, high SPL output, and strong bass impact to complete the full-range sound system.
Both modules integrate professional DSP-controlled Class-D plate amplifiers, offering precise adjustment of EQ, crossover, delay, limiter, gain, and system presets for optimized performance in different acoustic environments.
Built with premium Russian birch plywood and finished with durable waterproof polyurea coating, the HA210P & HA18P system delivers excellent reliability for touring, rental, and permanent installation projects.
Key Features
Dual 10-Inch Active Line Array Module
The HA210P features two 10-inch neodymium LF drivers and a 3.5-inch neodymium compression driver, providing powerful mid-high frequency performance with excellent clarity, vocal intelligibility, and consistent coverage.

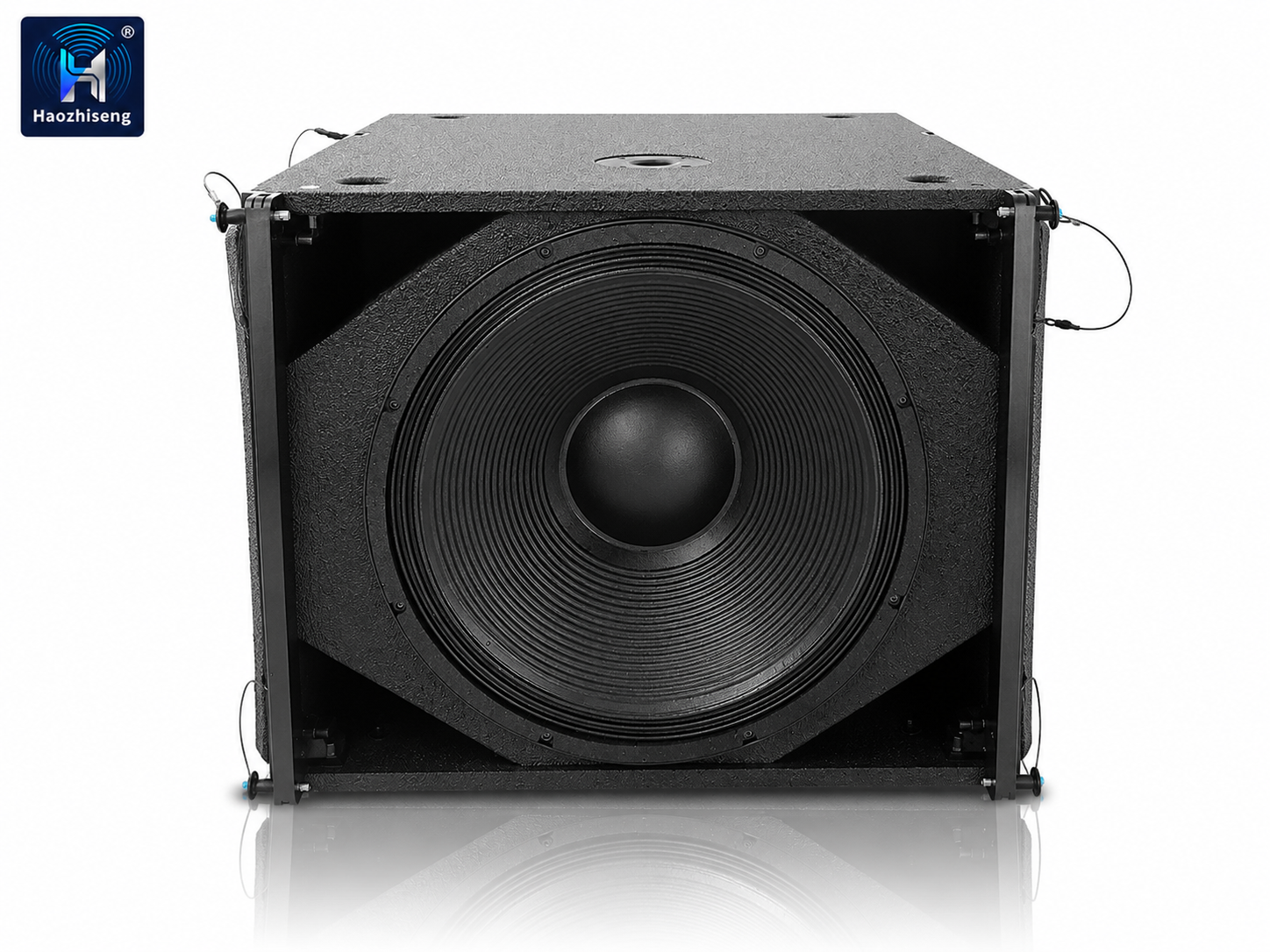

High-Power 18-Inch Active Subwoofer
The HA18P incorporates an 18-inch horn-loaded woofer with a built-in DSP amplifier, delivering extended low-frequency response, high acoustic efficiency, and powerful bass reproduction for live music and large-scale applications.

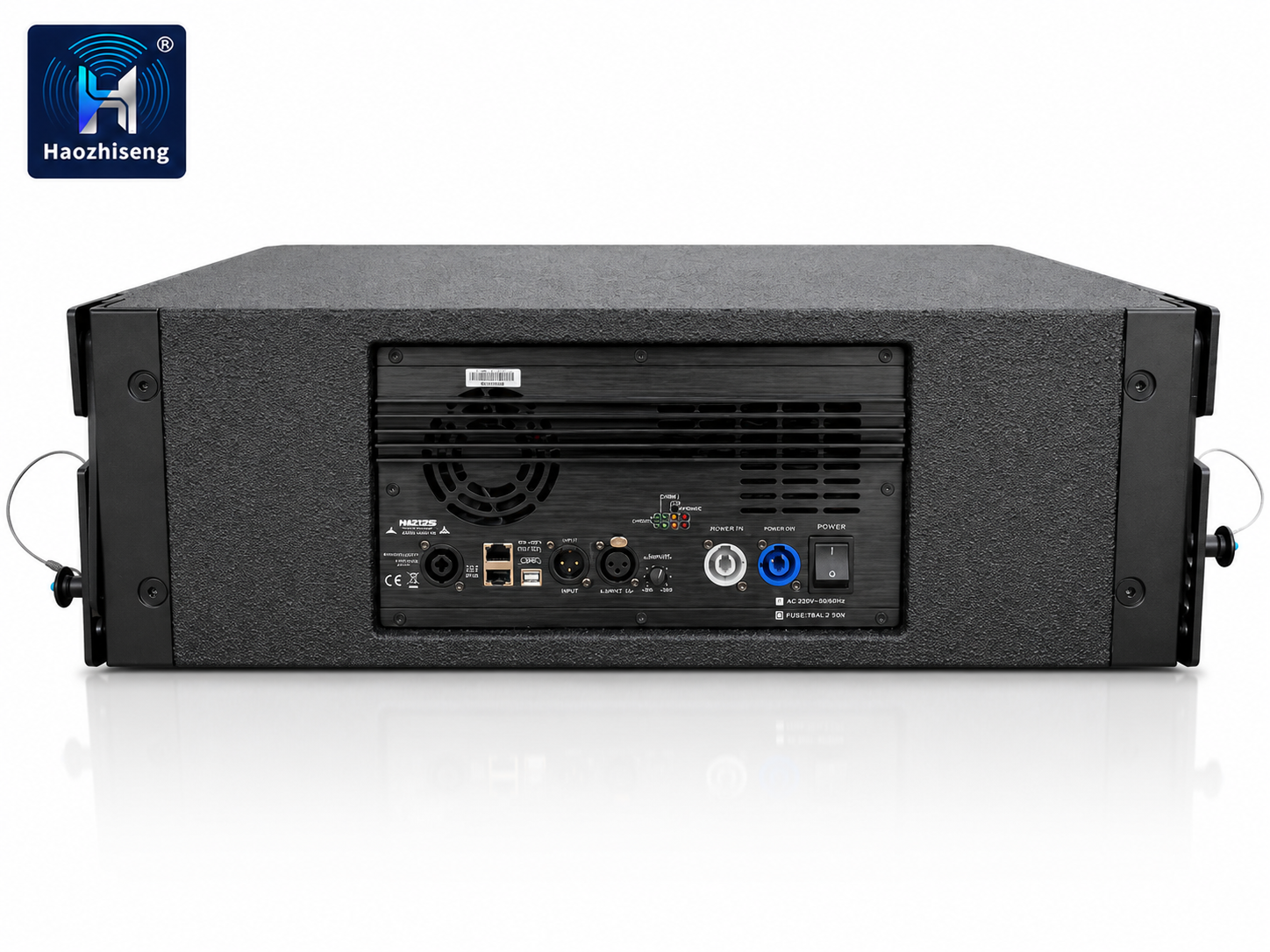

Integrated DSP Plate Amplifier System
Both HA210P and HA18P are equipped with professional DSP amplifier modules supporting:
- Gain adjustment
- EQ tuning
- Crossover management
- Delay adjustment
- Limiter protection
- Polarity control
- System presets
This allows precise acoustic optimization for different venues and sound requirements.
Flexible Rigging and System Configuration

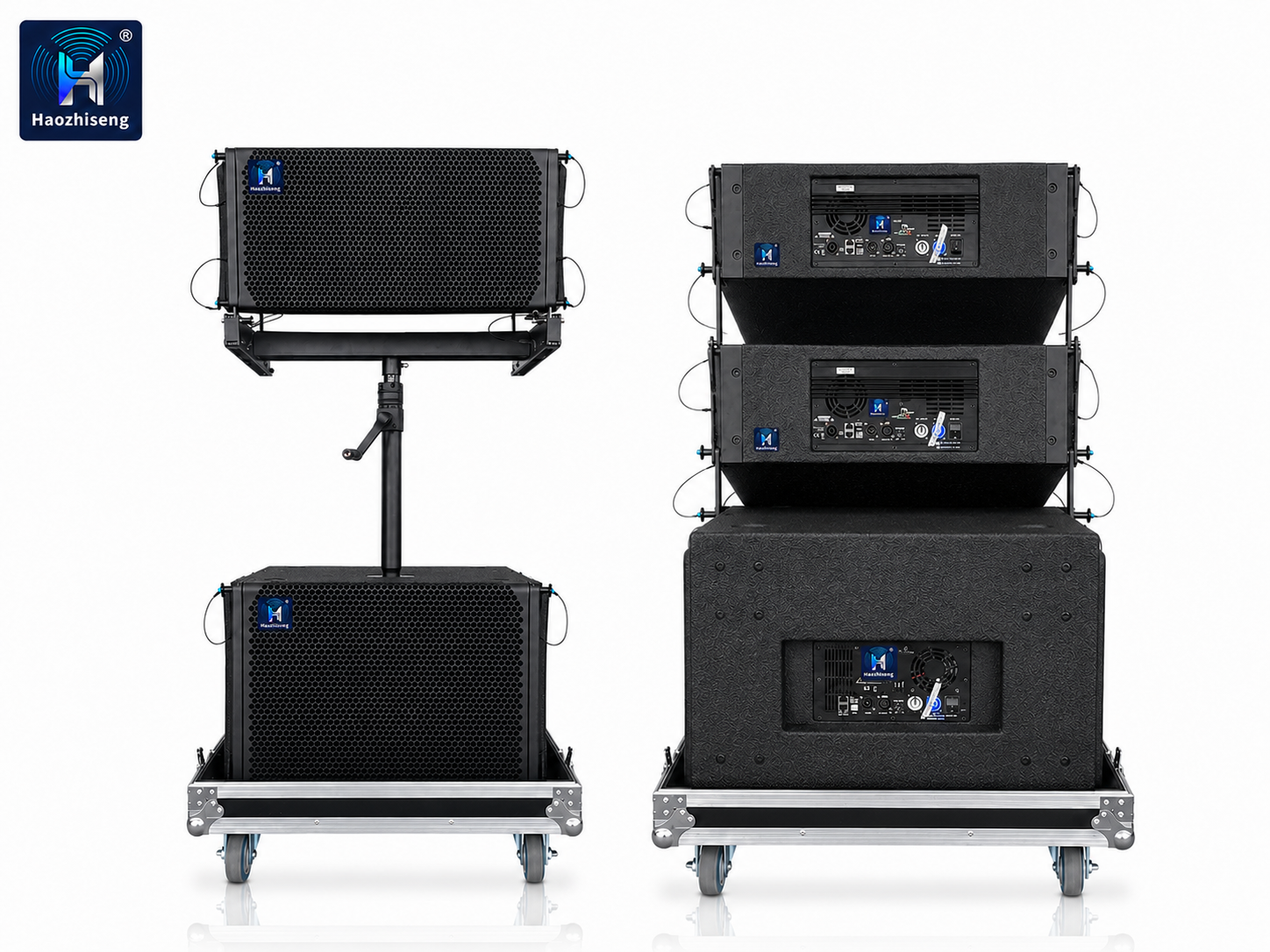

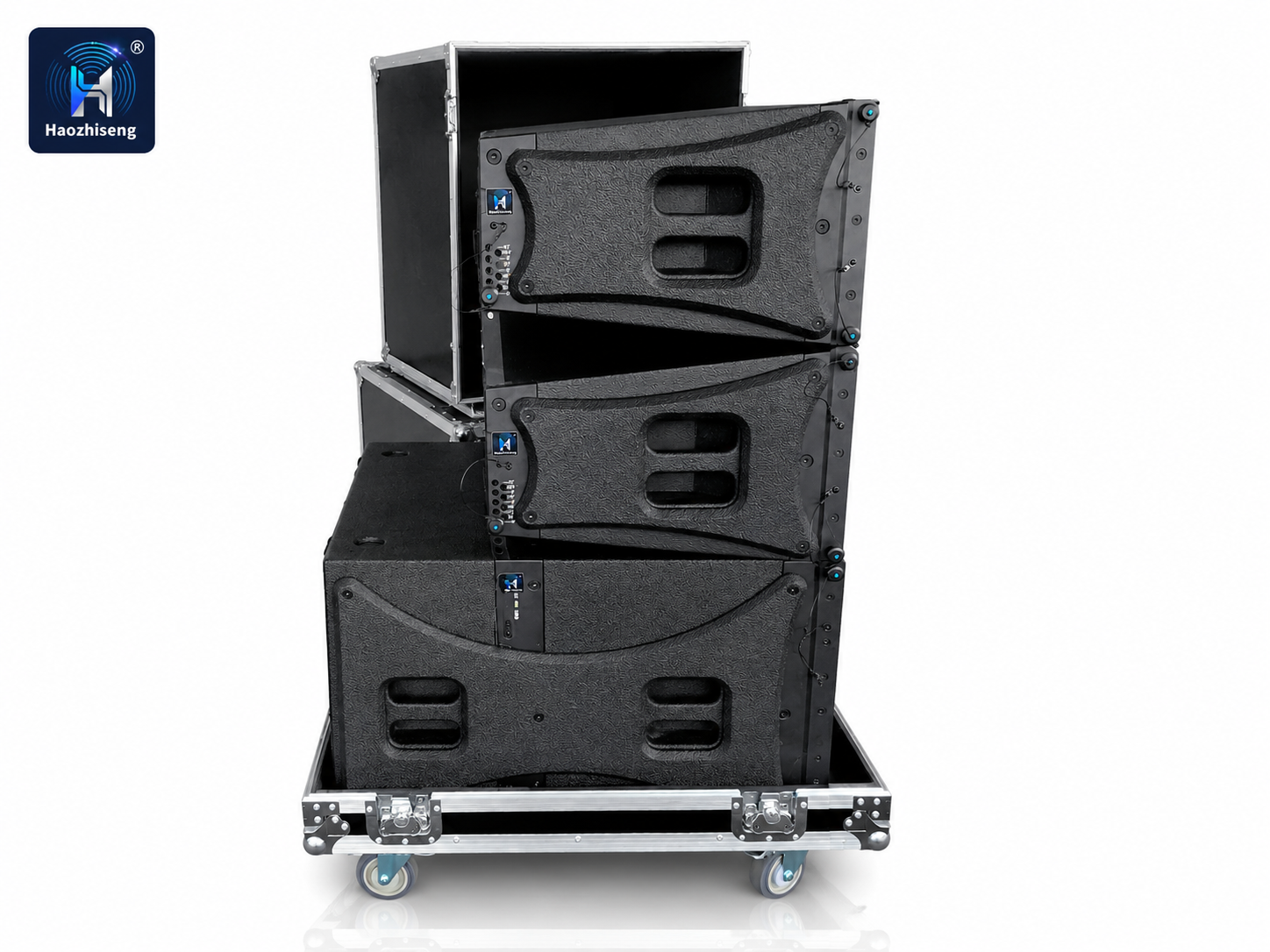

The integrated rigging hardware supports flying installation and ground stacking configurations, allowing flexible deployment for touring systems, rental companies, and permanent installations.

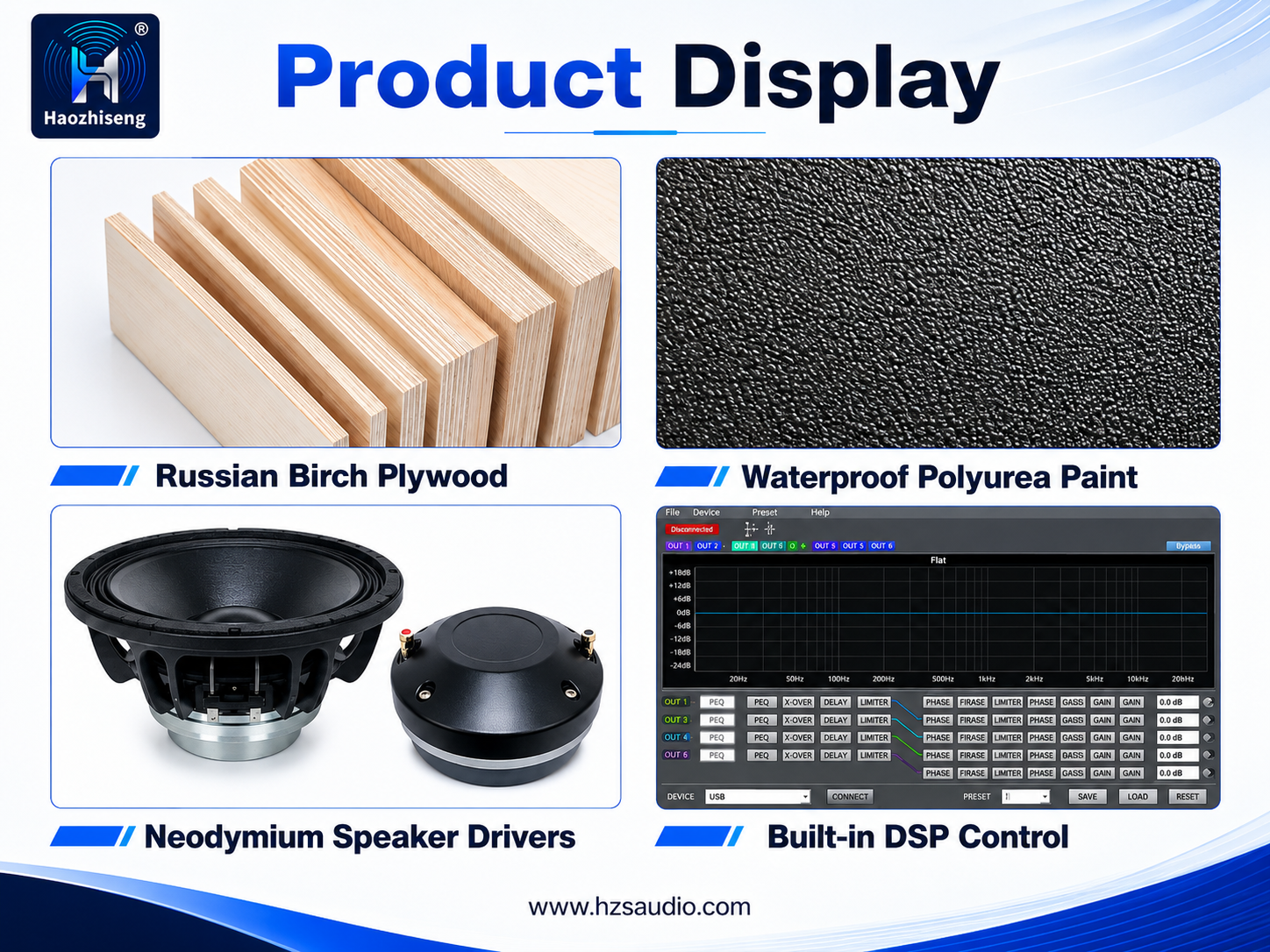

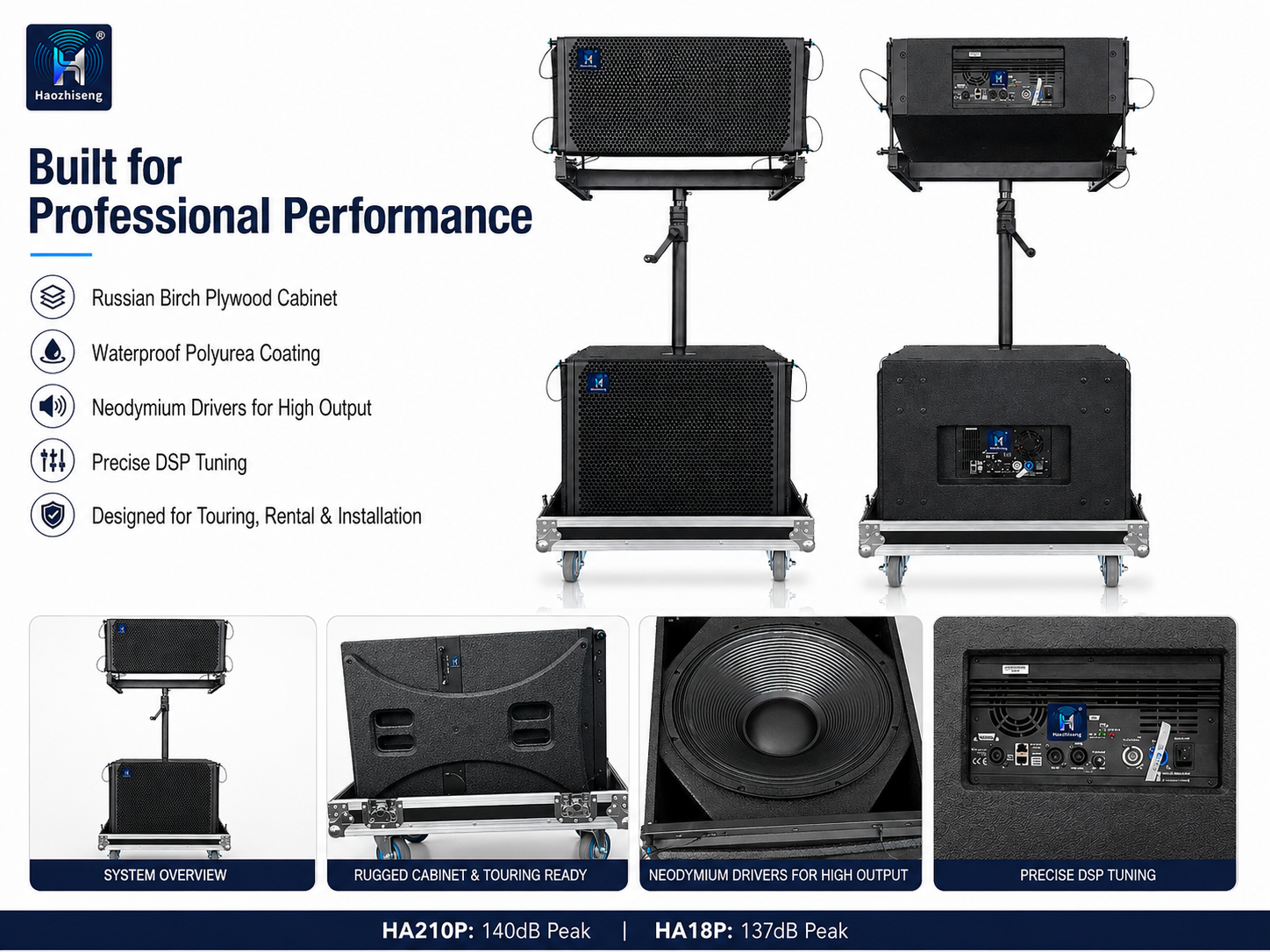

Premium Cabinet Construction
The cabinets are constructed from high-strength Russian birch plywood and coated with waterproof polyurea paint, providing excellent durability, vibration resistance, and protection against transportation and outdoor conditions.
Applications
Live Concerts & Touring Sound Systems
Provides powerful output, controlled coverage, and reliable performance for concerts, festivals, and touring productions.
Corporate Events & Rental Applications
Ideal for conferences, product launches, entertainment events, and temporary sound reinforcement systems requiring fast deployment.
Houses of Worship & Performing Arts Centers
Delivers clear speech reproduction and balanced musical performance for churches, theaters, and auditoriums.
Fixed Installation Projects
Suitable for professional venues requiring compact design, high output capability, and advanced DSP system control.
Technical Specifications

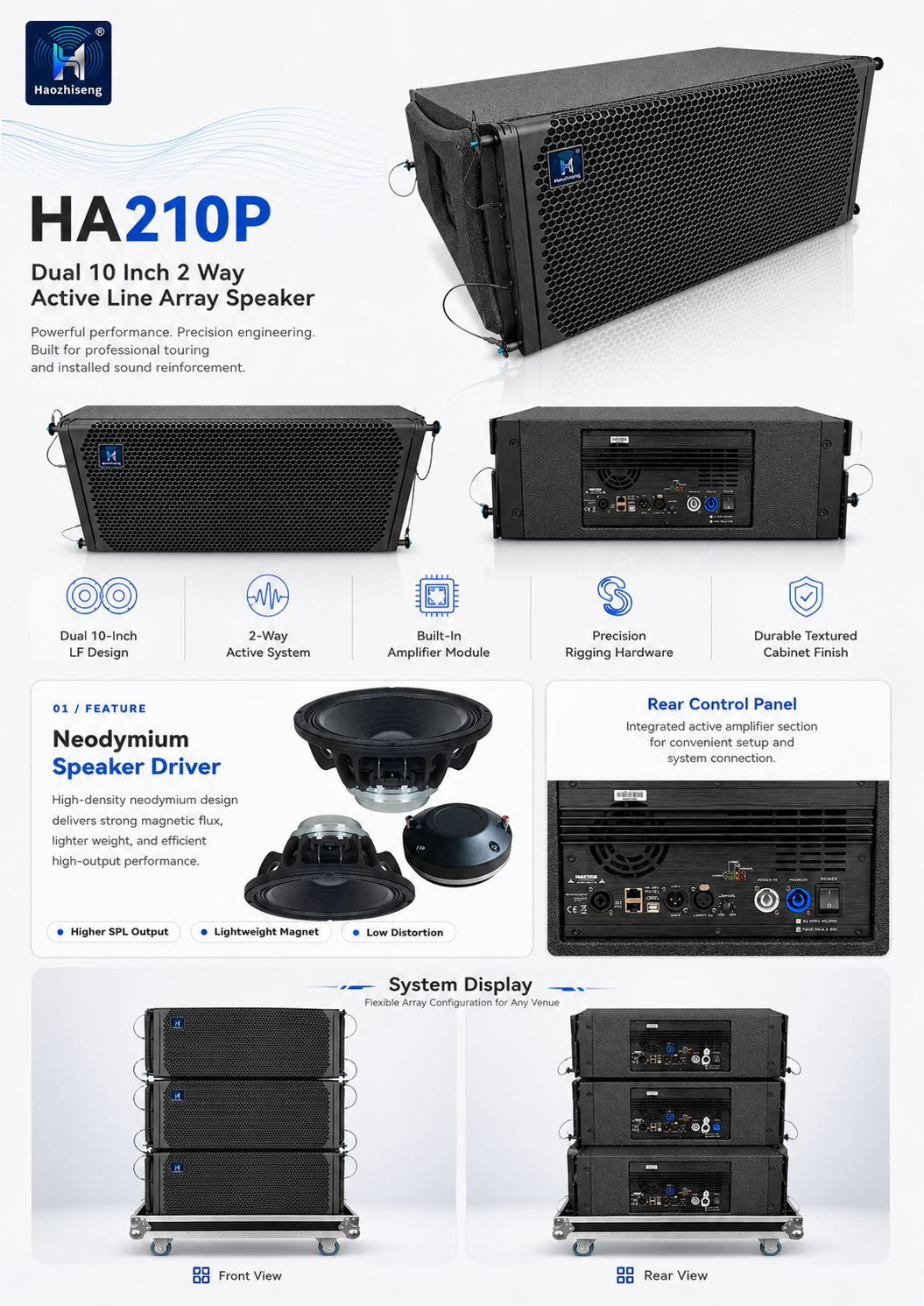

HA210P Active Dual 10-Inch Line Array Speaker
| Parameter | Specification |
|---|---|
| Model | HA210P |
| System Type | Powered Dual 10-Inch 2-Way Line Array Speaker |
| LF Driver | 2 × 10″ Neodymium Woofer |
| HF Driver | 1 × 3.5″ Neodymium Compression Driver |
| Frequency Response | 50Hz – 20kHz (±3dB) |
| Power Handling | LF: 1000W / HF: 300W |
| Impedance | LF: 8Ω / HF: 8Ω |
| Coverage (H × V) | 80° × 12° |
| Sensitivity | 103dB (1W/1m) |
| Maximum SPL | 140dB Peak |
| Amplifier Module | 2-Channel DSP Plate Amplifier |
| DSP Functions | MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, X-OVER |
| Dimensions (H×W×D) | 283 × 600 × 455 mm |
| Net Weight | 27 kg |
| Cabinet Material | Russian Birch Plywood + Polyurea Coating |

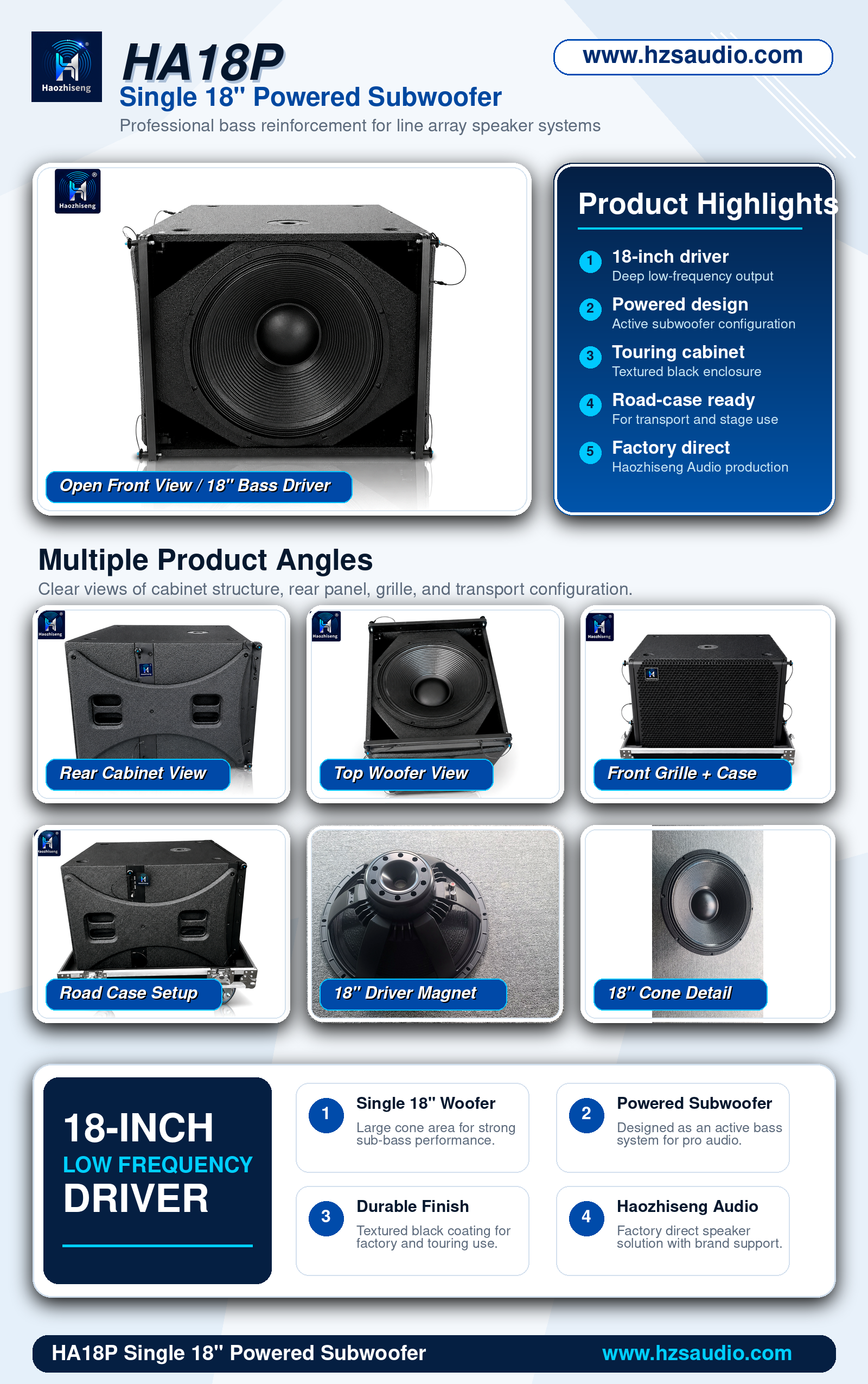

HA18P Active 18-Inch Line Array Subwoofer
| Parameter | Specification |
|---|---|
| Model | HA18P |
| System Type | Powered 18-Inch Horn-Loaded Subwoofer |
| LF Driver | 1 × 18″ Neodymium Woofer |
| Frequency Response | 30Hz – 150Hz |
| Power Handling | 2400W |
| Impedance | 8Ω |
| Sensitivity | 101dB (1W/1m) |
| Maximum SPL | 137dB Peak |
| Amplifier Module | 1-Channel DSP Plate Amplifier |
| DSP Functions | MUTE, Polarity, Gain, Delay, Limiter, Mixer, EQ, X-OVER |
| Dimensions (H×W×D) | 600 × 500 × 800 mm |
| Net Weight | 47 kg |
| Cabinet Material | Russian Birch Plywood + Polyurea Coating |
Why Choose HA210P & HA18P?
- Complete powered line array solution with built-in amplification
- High-output neodymium drivers for professional sound performance
- Advanced DSP control for precise system tuning
- Rugged plywood cabinet with waterproof polyurea finish
- Flexible rigging design for touring and installation
- Ideal solution for professional PA systems, rental companies, and system integrators
