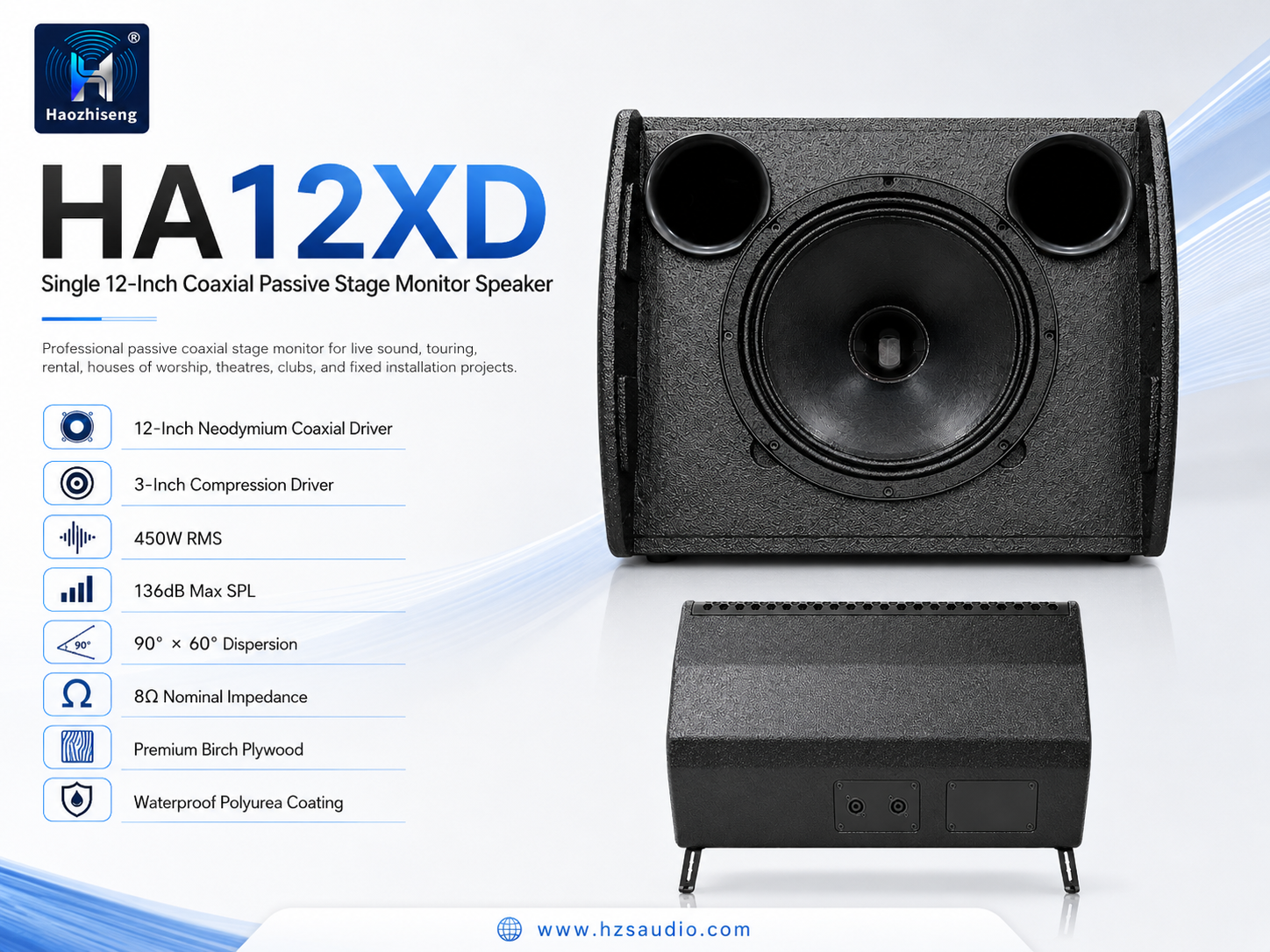

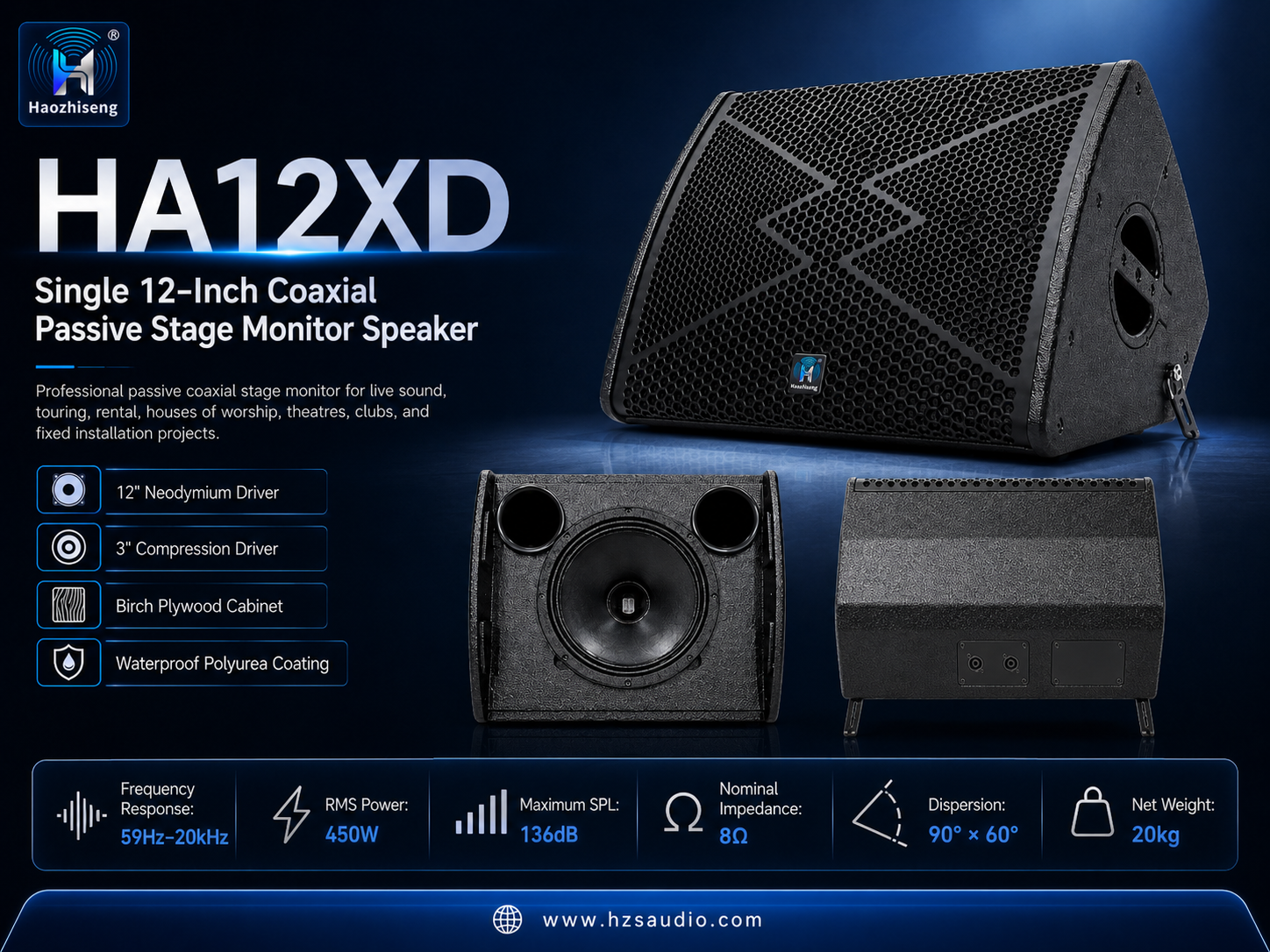

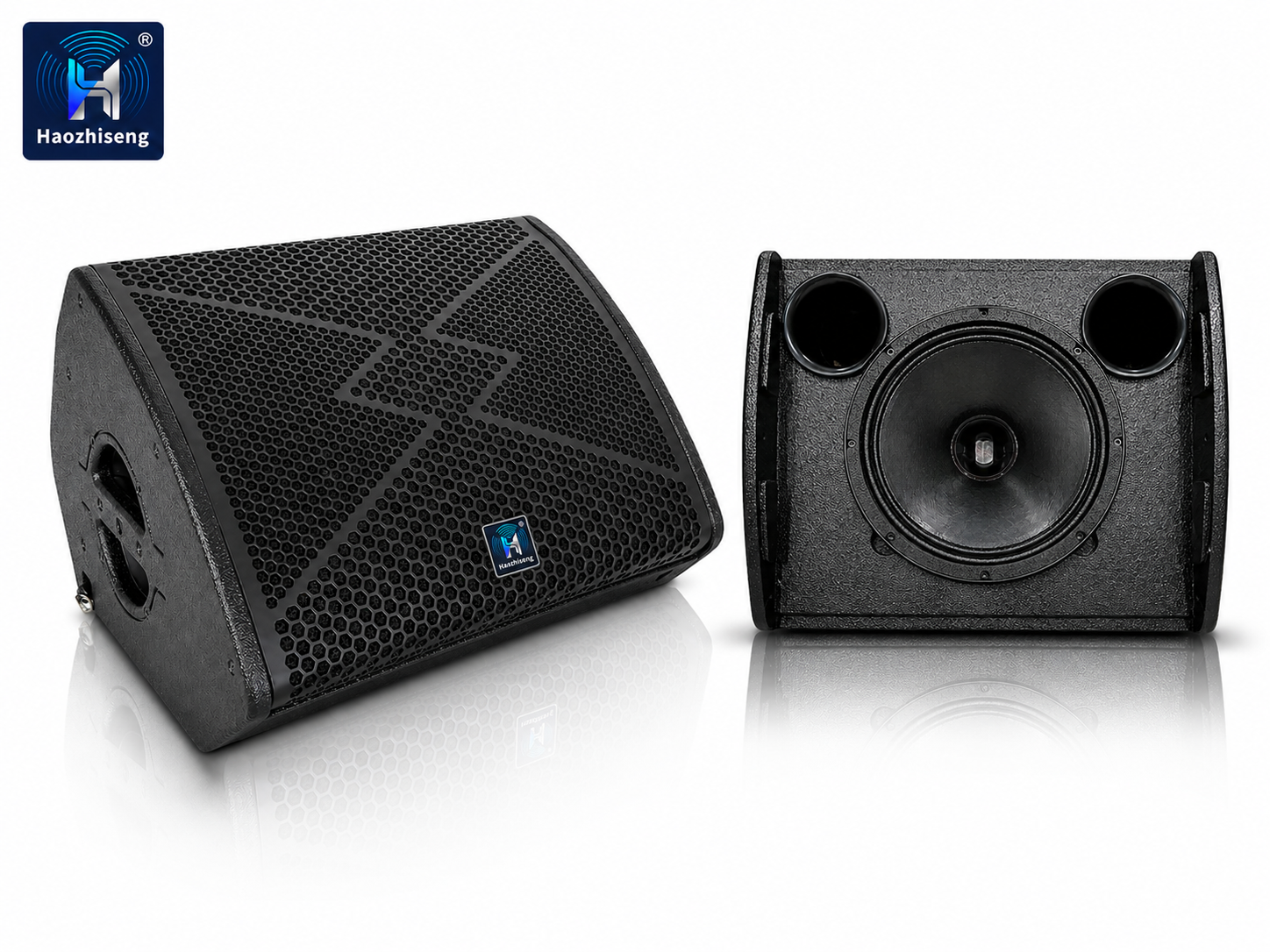

HA12XD Single 12-Inch Coaxial Passive Stage Monitor Speaker
Product Overview
The HA12XD is a professional passive coaxial stage monitor speaker designed for live sound, touring productions, rental systems, houses of worship, theatres, clubs, and fixed installation projects.
Equipped with a 12-inch neodymium low-frequency driver and a 3-inch compression driver on the same acoustic axis, the HA12XD delivers clear vocal reproduction, accurate phase response, and consistent sound coverage across the listening area.

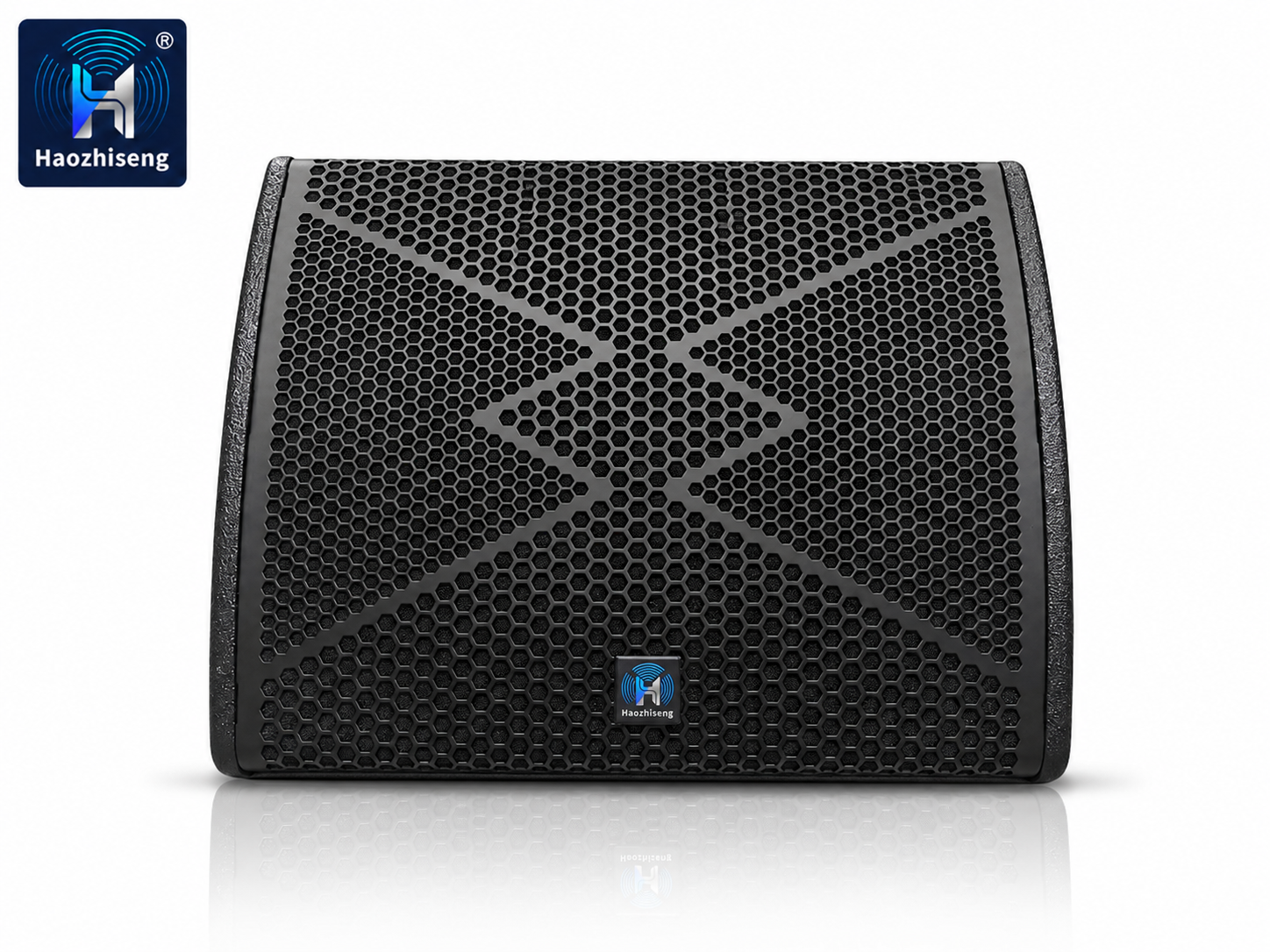

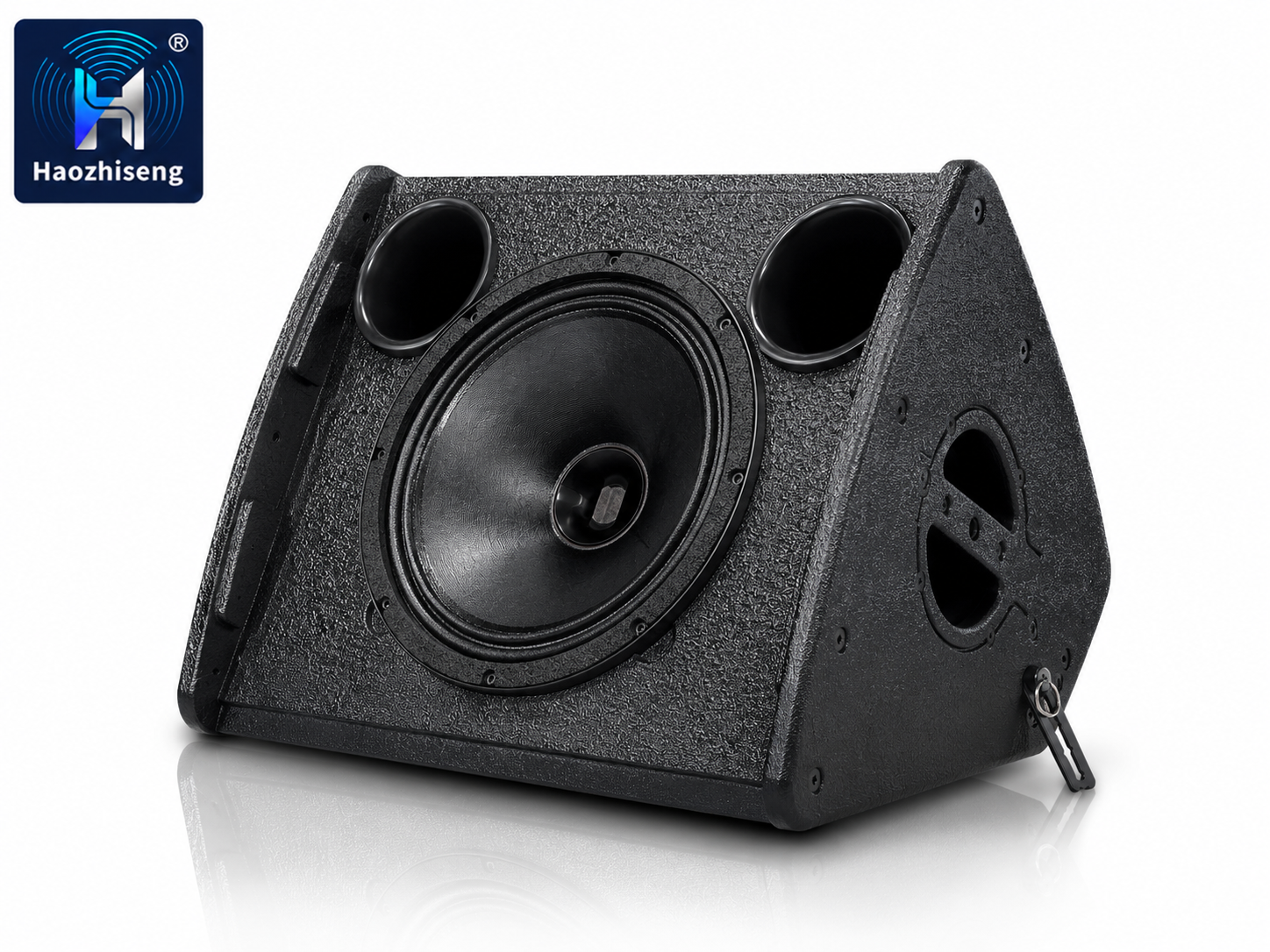

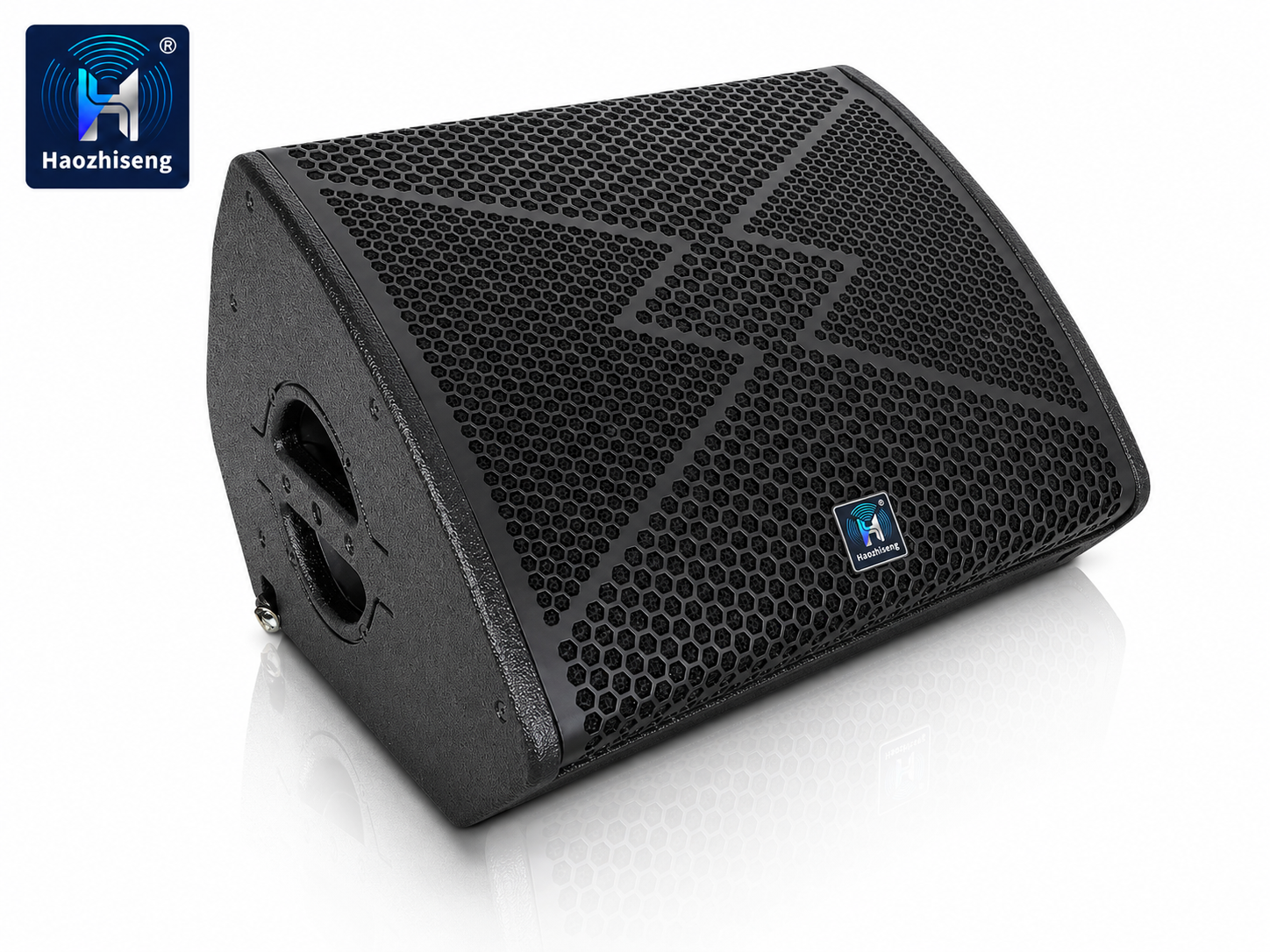

Its compact wedge-shaped cabinet is ideal for floor monitoring while saving stage space. Built from premium birch plywood and finished with a durable waterproof polyurea coating, the HA12XD offers excellent strength, reliability, and protection for demanding professional use.
Key Features
12-Inch Coaxial Driver Design

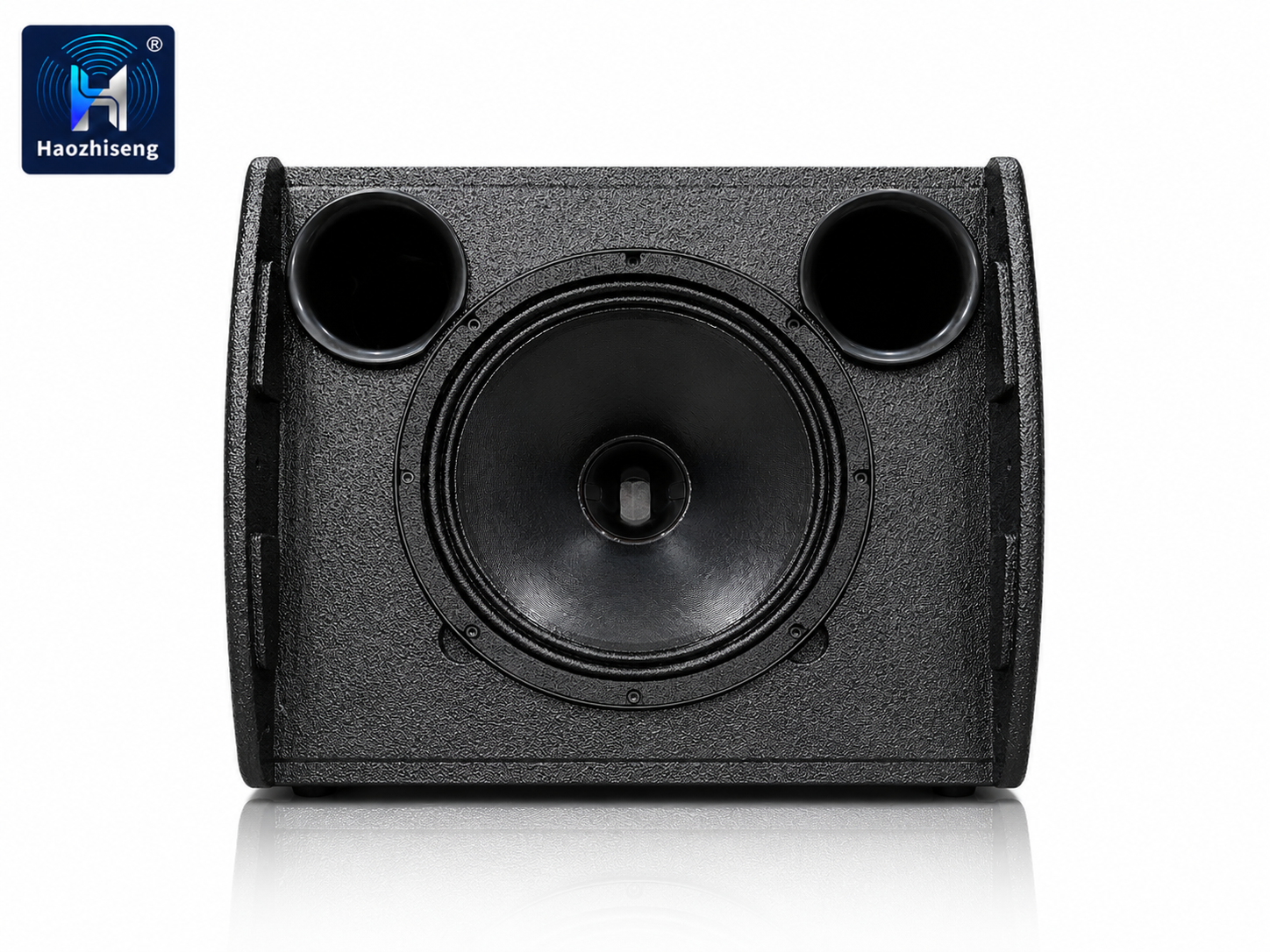

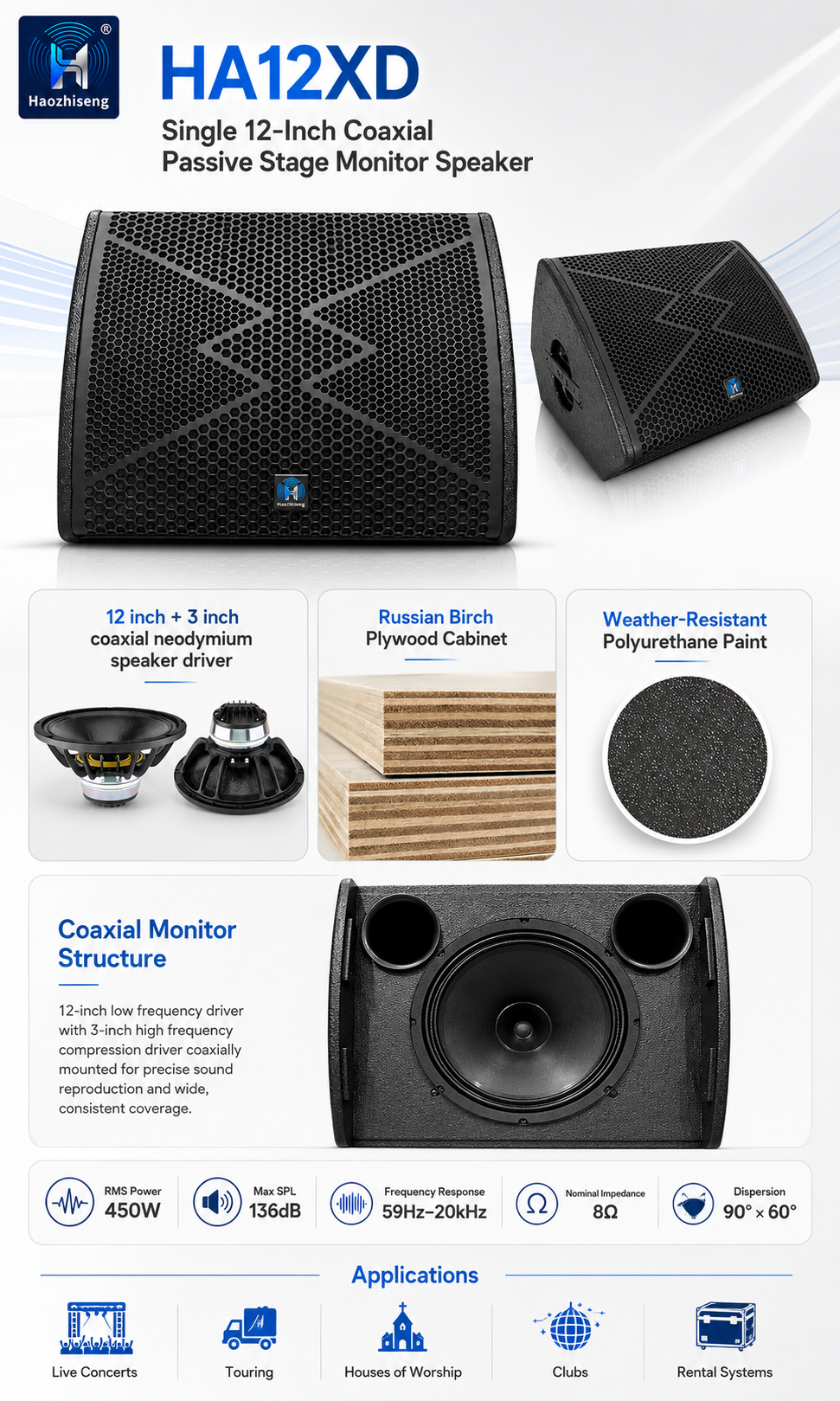

The coaxial structure combines a 12-inch neodymium woofer and 3-inch compression driver on one acoustic axis, providing smooth response, clear vocals, and accurate sound imaging.
Consistent Sound Coverage
With 90° × 60° dispersion, the HA12XD delivers stable and even coverage, helping performers hear vocals and instruments clearly on stage.
Powerful Passive Monitor Performance
With 450W RMS power handling, 8Ω nominal impedance, and 136dB maximum SPL, the HA12XD provides strong output for professional monitoring applications.
Premium Birch Plywood Cabinet
The enclosure is made from high-quality birch plywood, offering excellent rigidity, acoustic stability, and long-term durability.
Waterproof Polyurea Finish
The rugged polyurea coating protects the cabinet against scratches, moisture, and transportation wear, making it suitable for touring and rental environments.
Flexible Deployment
The HA12XD can be used as a floor monitor, side-fill monitor, portable PA speaker, or fixed installation loudspeaker.
Why Choose the HA12XD?
The HA12XD combines coaxial acoustic design, neodymium drivers, high SPL output, birch plywood construction, and a durable waterproof finish in one compact stage monitor. It is an ideal solution for professional sound companies, rental systems, live events, and installation projects requiring clear and reliable stage monitoring.
Applications
- Live concerts
- Touring productions
- Rental sound systems
- Stage monitoring
- Houses of worship
- Clubs and bars
- Corporate events
- Conference systems
- Performing arts centers
- Wedding productions
- DJ monitoring
- Music festivals
- Fixed sound installations

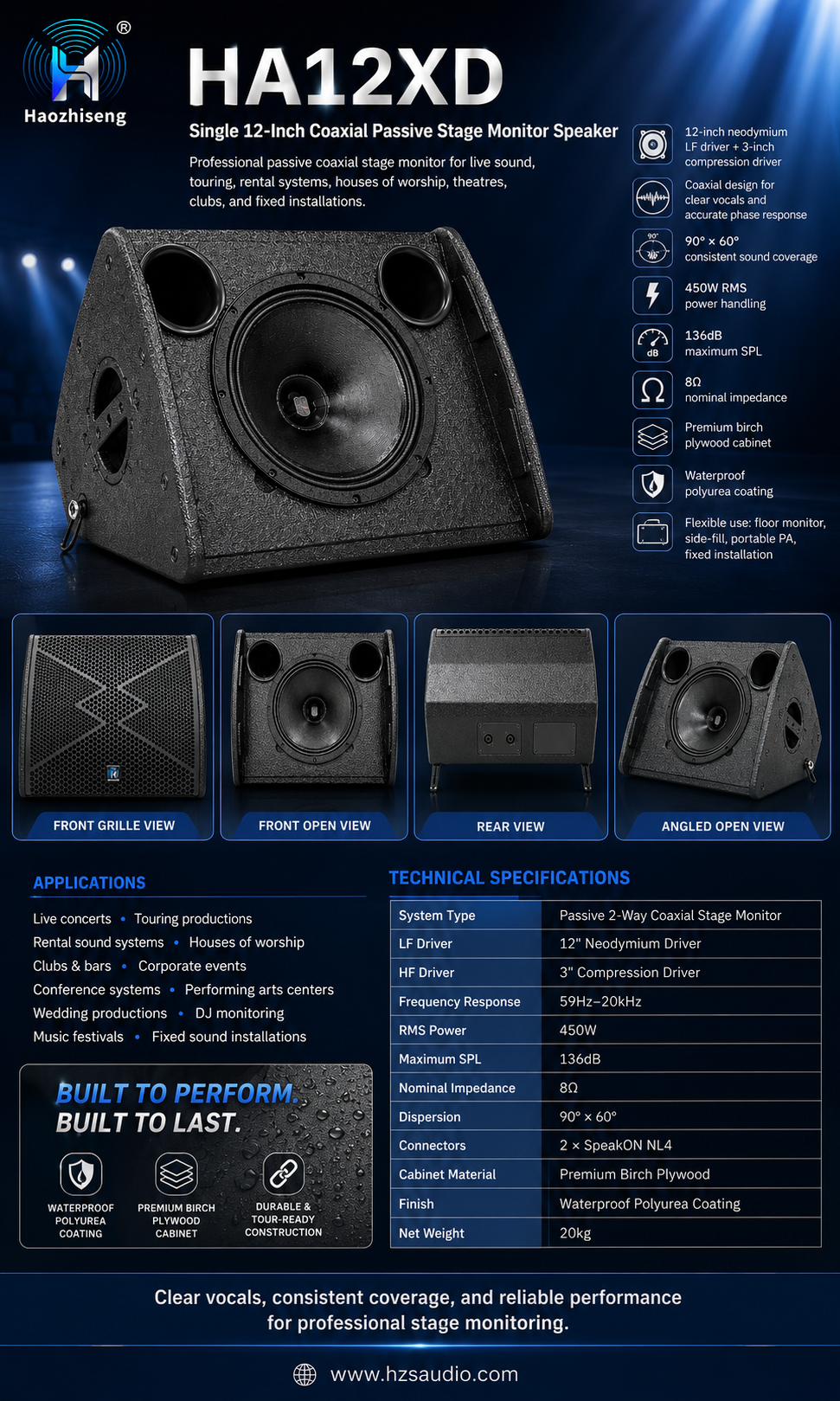

Technical Specifications
| Specification | HA12XD |
|---|---|
| System Type | Passive 2-Way Coaxial Stage Monitor |
| LF Driver | 12″ Neodymium Driver |
| HF Driver | 3″ Compression Driver |
| Frequency Response | 59Hz–20kHz |
| RMS Power | 450W |
| Maximum SPL | 136dB |
| Nominal Impedance | 8Ω |
| Dispersion | 90° × 60° |

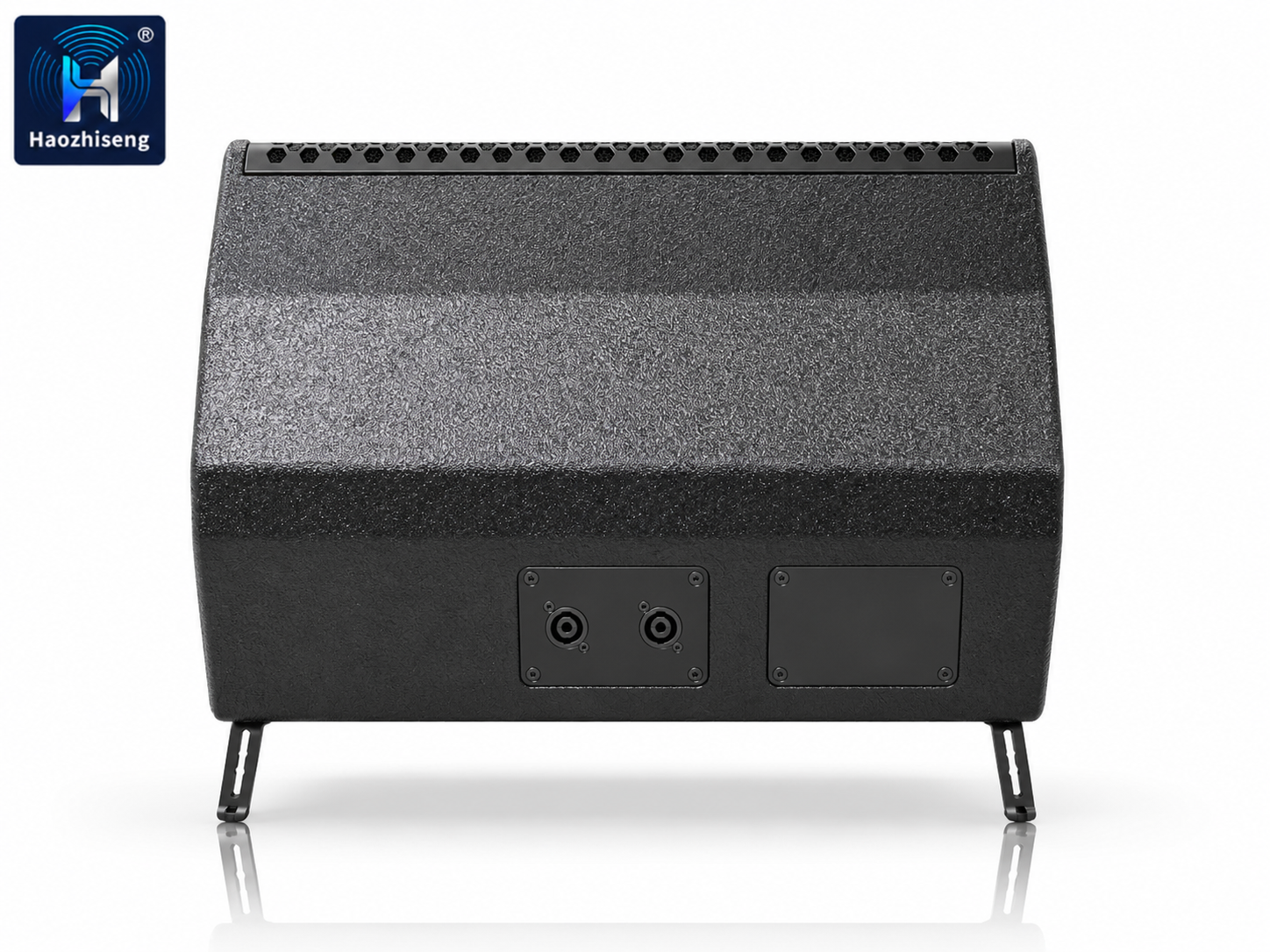

| Connectors | 2 × SpeakON NL4 |
| Cabinet Material | Premium Birch Plywood |
| Finish | Waterproof Polyurea Coating |
| Net Weight | 20kg |
FAQ
What is the advantage of a coaxial stage monitor?
A coaxial design places the low-frequency and high-frequency drivers on the same acoustic axis, helping improve phase coherence, vocal clarity, and coverage consistency.
Is the HA12XD suitable for touring and rental use?
Yes. The birch plywood cabinet and waterproof polyurea coating are designed for frequent transportation, stage use, and professional rental applications.
What amplifier is recommended for the HA12XD?
The HA12XD works best with a professional DSP amplifier that provides enough clean power and headroom. An amplifier around 800W–1200W per channel at 8Ω is recommended for professional use.
Short Description
The HA12XD is a professional single 12-inch coaxial passive stage monitor speaker featuring a 12-inch neodymium woofer, 3-inch compression driver, 450W RMS power handling, and 136dB maximum SPL. Built with premium birch plywood and waterproof polyurea coating, it delivers clear vocals, consistent coverage, and reliable performance for live sound, touring, rental, and fixed installation applications.
