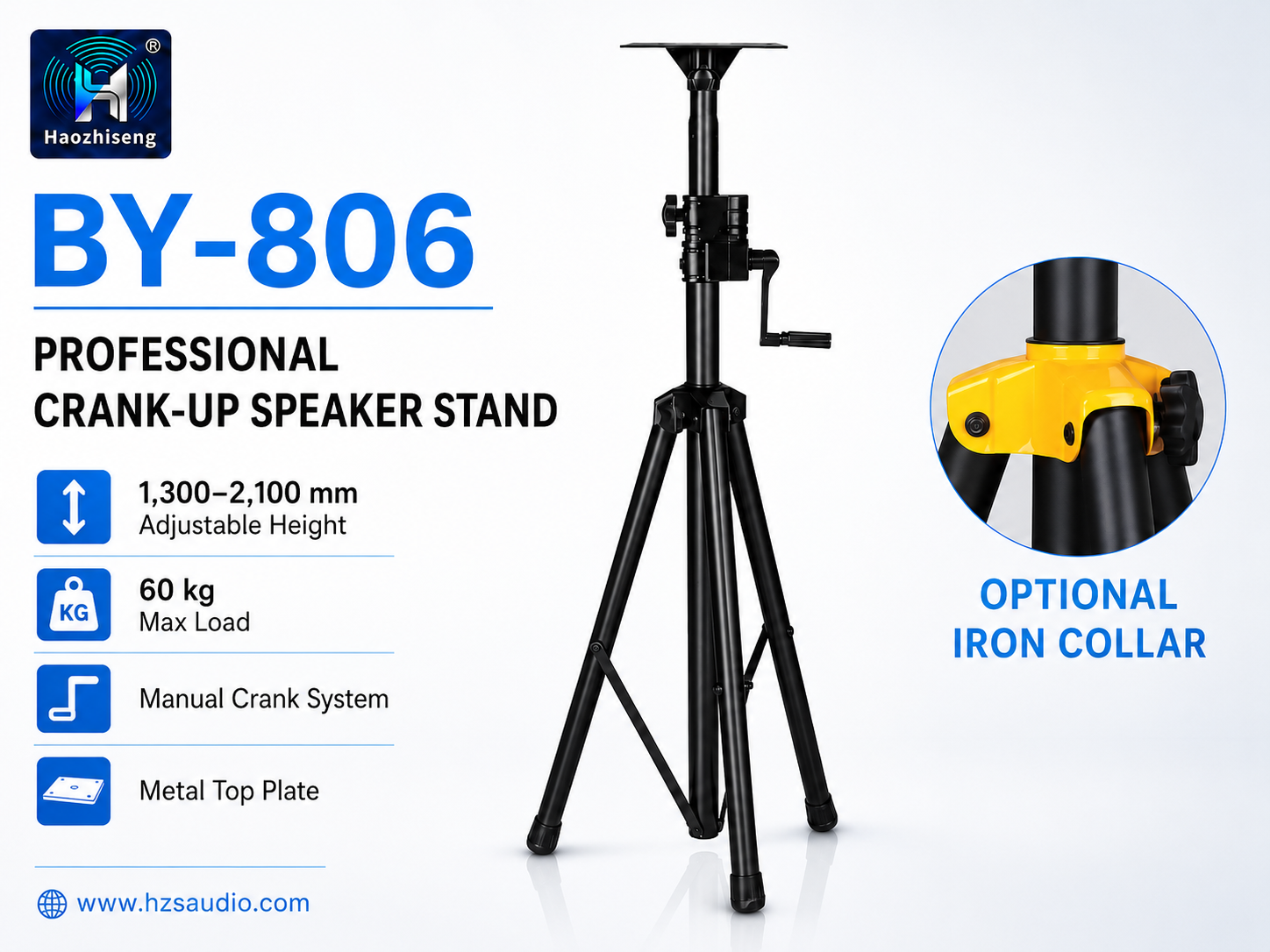

BY-806 Professional Crank-Up Speaker Stand with Metal Top Plate
Product Overview
The BY-806 is a heavy-duty professional speaker stand designed for PA systems, live events, touring productions, rental applications, conference venues, houses of worship, and fixed audio installations.
Equipped with a manual crank lifting mechanism, the stand provides smooth and convenient height adjustment from 1,300 to 2,100 mm. Its reinforced tripod base, support braces, and durable metal tubing provide dependable stability, while the maximum load capacity of 60 kg makes it suitable for a wide range of professional loudspeakers.
The flat metal top plate offers stable speaker support, and multiple locking knobs help secure the stand at the required operating height.
Key Features
- Professional heavy-duty PA speaker stand
- Manual crank system for convenient height adjustment
- Adjustable height from 1,300 to 2,100 mm
- Maximum load capacity of 60 kg
- Flat metal top plate for stable speaker placement
- Reinforced tripod base with support braces
- Multiple locking knobs for secure positioning
- Ø42 mm main lifting tube
- Ø35 mm upper tube and tripod leg tubes
- Durable black finish for professional applications
- Optional iron locking collar available separately
- Suitable for portable and fixed sound systems

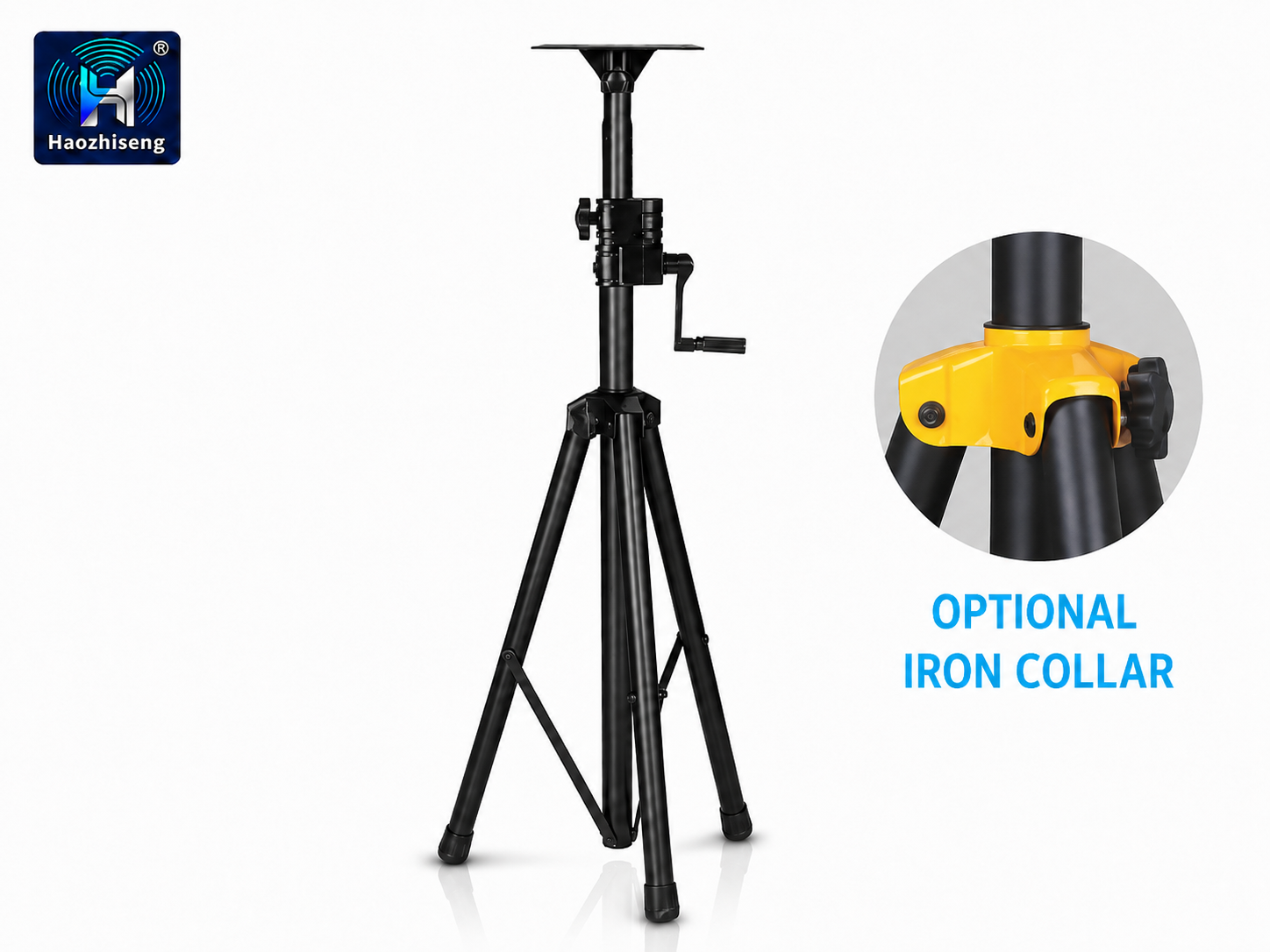

Optional Iron Collar
An optional iron locking collar is available for the BY-806. This accessory provides an alternative reinforced locking configuration for different installation requirements.
The optional iron collar is sold separately and is not included with the standard speaker stand.
Applications
- Live sound reinforcement
- PA speaker systems
- Mobile DJ systems
- Touring and stage productions
- Professional audio rental
- Conference and corporate events
- Houses of worship
- Clubs and entertainment venues
- Temporary and fixed audio installations
Technical Specifications
| Item | Specification |
|---|---|
| Model | BY-806 |
| Product Type | Professional Crank-Up Speaker Stand |
| Adjustable Height | 1,300–2,100 mm |
| Maximum Load Capacity | 60 kg |
| Lifting Mechanism | Manual Crank |
| Upper Tube Diameter | 35 mm |
| Main Tube Diameter | 42 mm |
| Tripod Leg Tube Diameter | 35 mm |
| Top Support | Flat Metal Top Plate |
| Base Type | Reinforced Tripod Base |
| Optional Accessory | Iron Locking Collar |
| Net Weight | 6.5 kg |
| Carton Dimensions | 34 × 31.5 × 118 cm |
| Packing Quantity | 4 pieces per carton |
| Color | Black |
Why Choose the BY-806?
The BY-806 combines a convenient crank-up lifting system, a reinforced tripod structure, and a 60 kg maximum load capacity in one professional speaker stand. Its wide height-adjustment range and stable metal top plate make it a reliable solution for stages, rental companies, event venues, conference systems, and professional PA installations.
