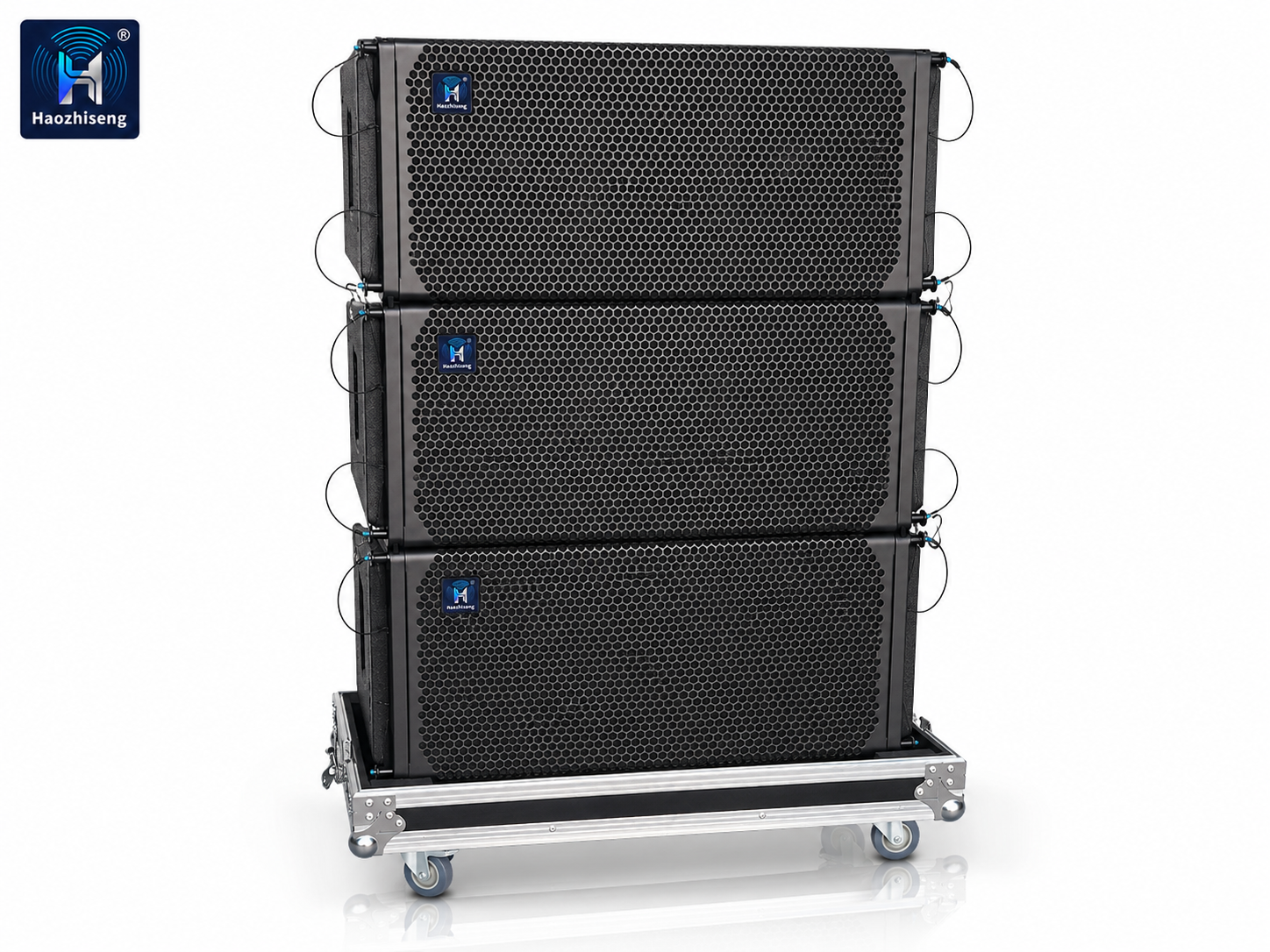

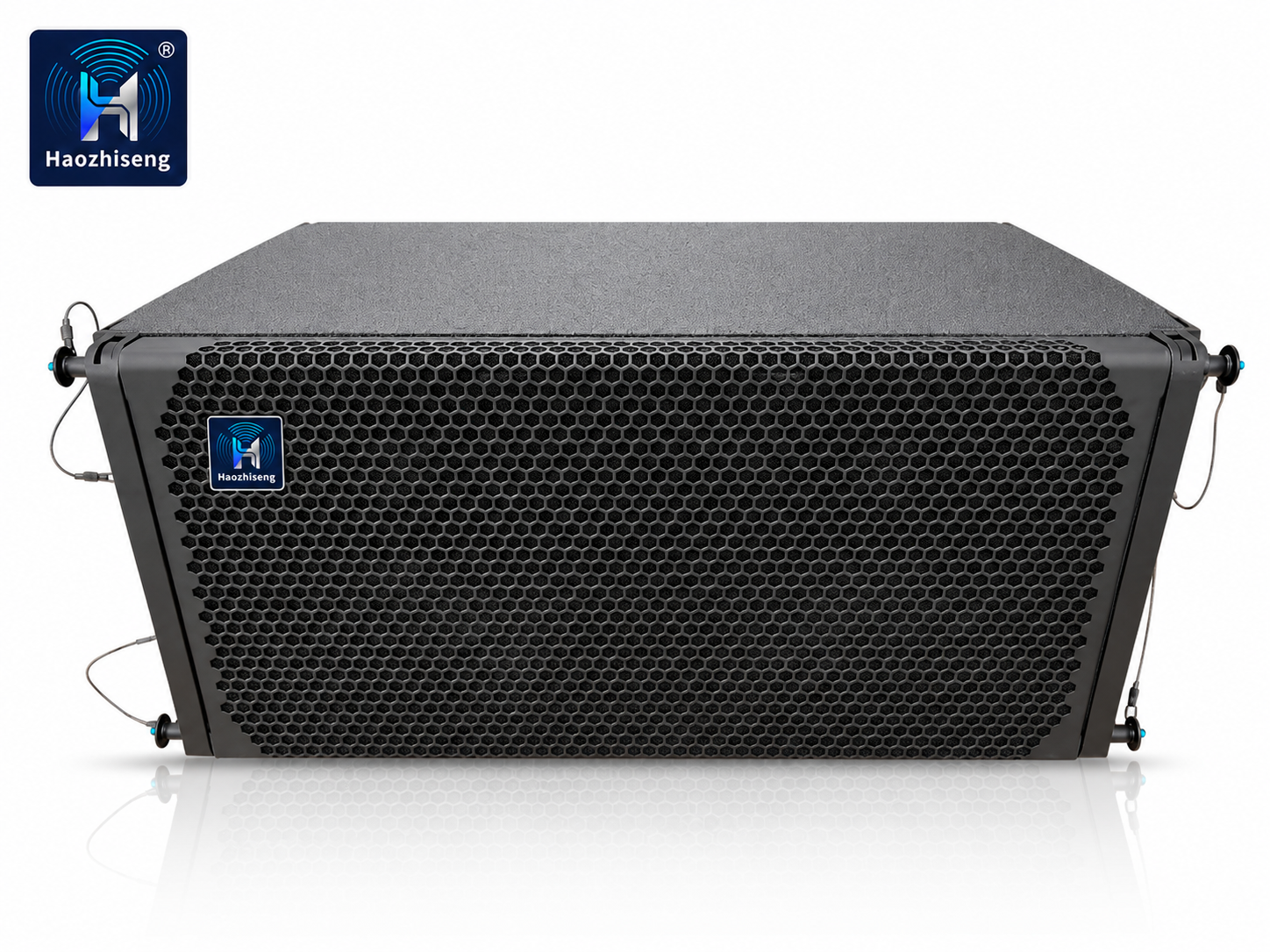

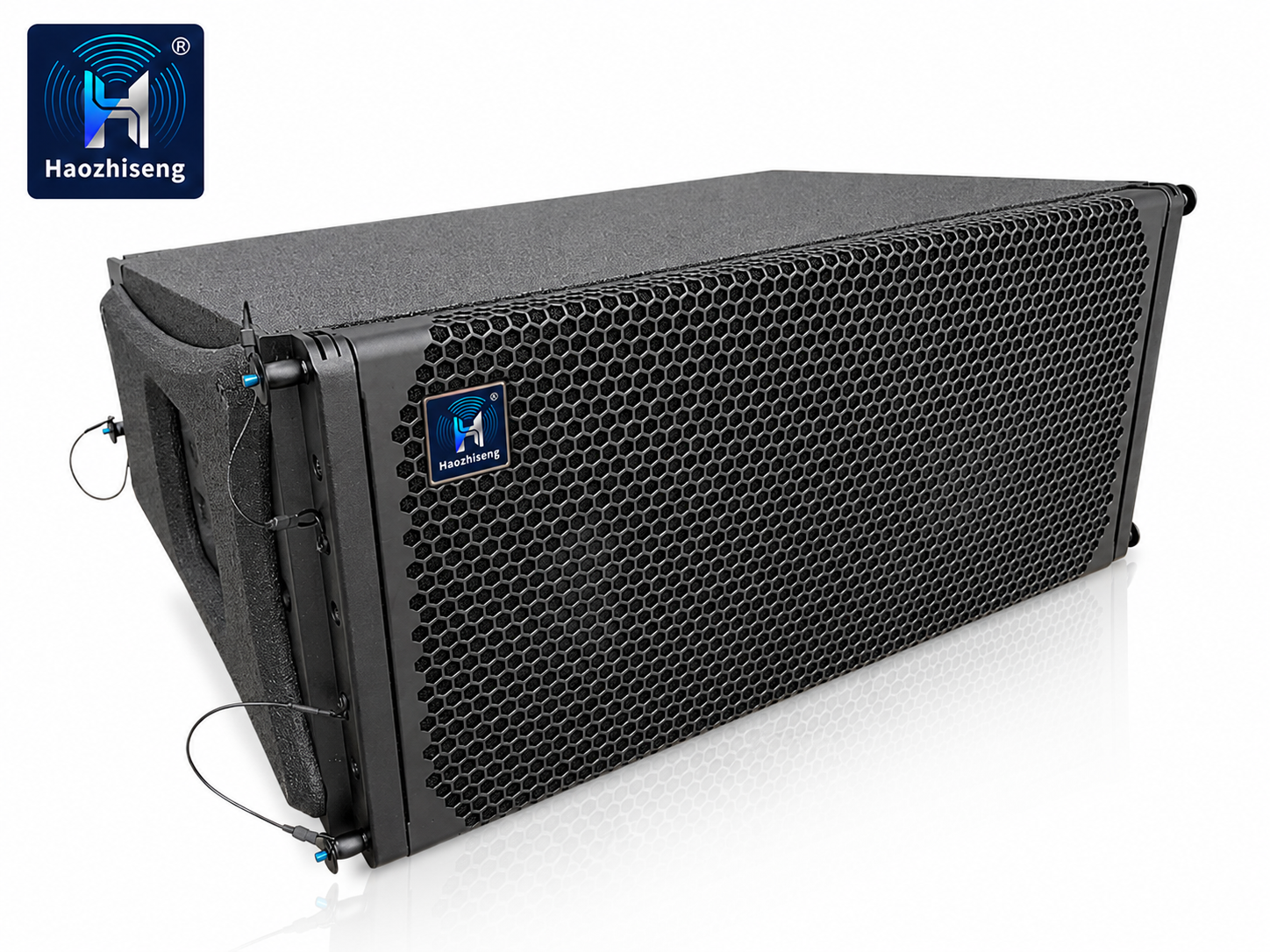

HA210P Dual 10-Inch 2-Way Passive Line Array Loudspeaker for Professional Concert and Touring PA Systems
Product Overview
The Haozhiseng Audio HA210P is a professional dual 10-inch passive line array loudspeaker designed for concerts, touring productions, live events, theaters, auditoriums, houses of worship, festivals, rental systems, and fixed installations.
Equipped with two 10-inch neodymium low-frequency drivers and a 3-inch neodymium high-frequency compression driver, the HA210P delivers clear vocal reproduction, powerful low-mid frequency response, smooth high-frequency detail, and high sound pressure levels with low distortion.
Its precision waveguide provides controlled 80° × 12° dispersion, helping maintain consistent coverage and accurate long-distance sound projection. The compact 2-way design makes the HA210P suitable for medium- and large-scale sound reinforcement systems where high output, clear intelligibility, and scalable deployment are required.
The enclosure is constructed from first-grade Russian birch plywood and protected by a durable waterproof polyurea coating. Professional rigging hardware supports flexible flown or ground-stacked configurations for touring, rental, and permanent installation applications.
Key Features
Dual 10-Inch Neodymium LF Drivers
Two high-efficiency 10-inch neodymium drivers provide strong low-mid frequency output, fast transient response, and accurate reproduction of vocals and musical instruments.
3-Inch Neodymium HF Compression Driver
The high-frequency compression driver delivers clear treble, excellent speech intelligibility, and reliable projection for professional live sound applications.
High-Output 2-Way Design
With a maximum SPL of 139 dB, the HA210P provides powerful output while maintaining clarity and low distortion at high operating levels.
Controlled 80° × 12° Coverage
The optimized waveguide delivers wide horizontal dispersion and narrow vertical coverage, helping reduce unwanted reflections and maintain consistent sound distribution across the audience area.
Long-Throw Sound Projection
The line array configuration supports stable long-distance projection, making the HA210P suitable for concerts, theaters, outdoor events, and medium- to large-sized venues.
Professional Rigging System
Integrated rigging hardware allows multiple cabinets to be flown or ground-stacked for scalable system configurations.
Russian Birch Plywood Cabinet
The enclosure is manufactured from first-grade Russian birch plywood for excellent structural strength, acoustic stability, and long-term reliability.
Waterproof Polyurea Finish
The rugged polyurea coating protects the cabinet against moisture, scratches, impacts, and transportation wear during touring and rental use.
Typical Applications
- Live concerts and festivals
- Touring sound systems
- Theater and auditorium installations
- Houses of worship
- Outdoor events
- Rental PA systems
- Corporate events
- Fixed professional audio installations
- Medium- and large-venue sound reinforcement
Technical Specifications
| Item | Specification |
|---|---|
| Model | HA210P |
| System Type | 2-Way Passive Line Array Loudspeaker |
| LF Drivers | 2 × 10-Inch Neodymium Drivers |
| HF Driver | 1 × 3-Inch Neodymium Compression Driver |
| Frequency Range | 63 Hz – 18 kHz |
| Program Power | 1000 W |
| Peak Power | 2000 W |
| Nominal Impedance | 8 Ω |
| Coverage (H × V) | 80° × 12° |
| Sensitivity (1 W/1 m) | 107 dB |
| Maximum SPL at 1 m | 139 dB |
| Connection | speakON NL4, 1± |
| Dimensions (H × W × D) | 284 × 600 × 400 mm |
| Net Weight | 24 kg |
| Cabinet Material | First-Grade Russian Birch Plywood |
| Finish | Waterproof Polyurea Coating |
Why Choose the HA210P?
The HA210P combines dual 10-inch neodymium drivers, high-output performance, controlled directivity, long-throw projection, and rugged professional construction in a compact passive line array enclosure. It is an ideal choice for rental companies, touring productions, system integrators, and venue operators requiring clear vocals, powerful low-mid response, scalable deployment, and reliable performance.
