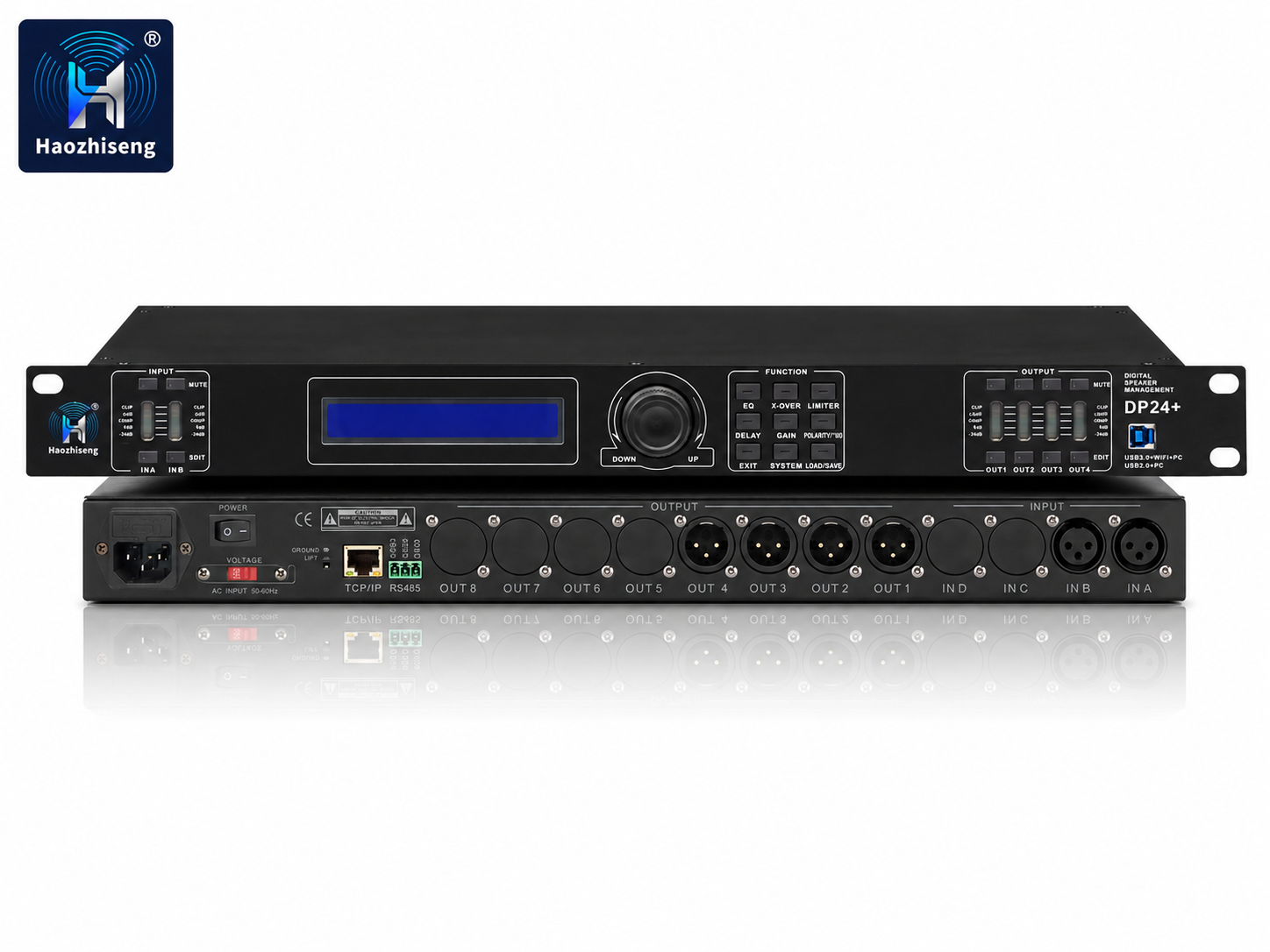

DP24+ 2-Input 4-Output Professional DSP Loudspeaker Management Processor

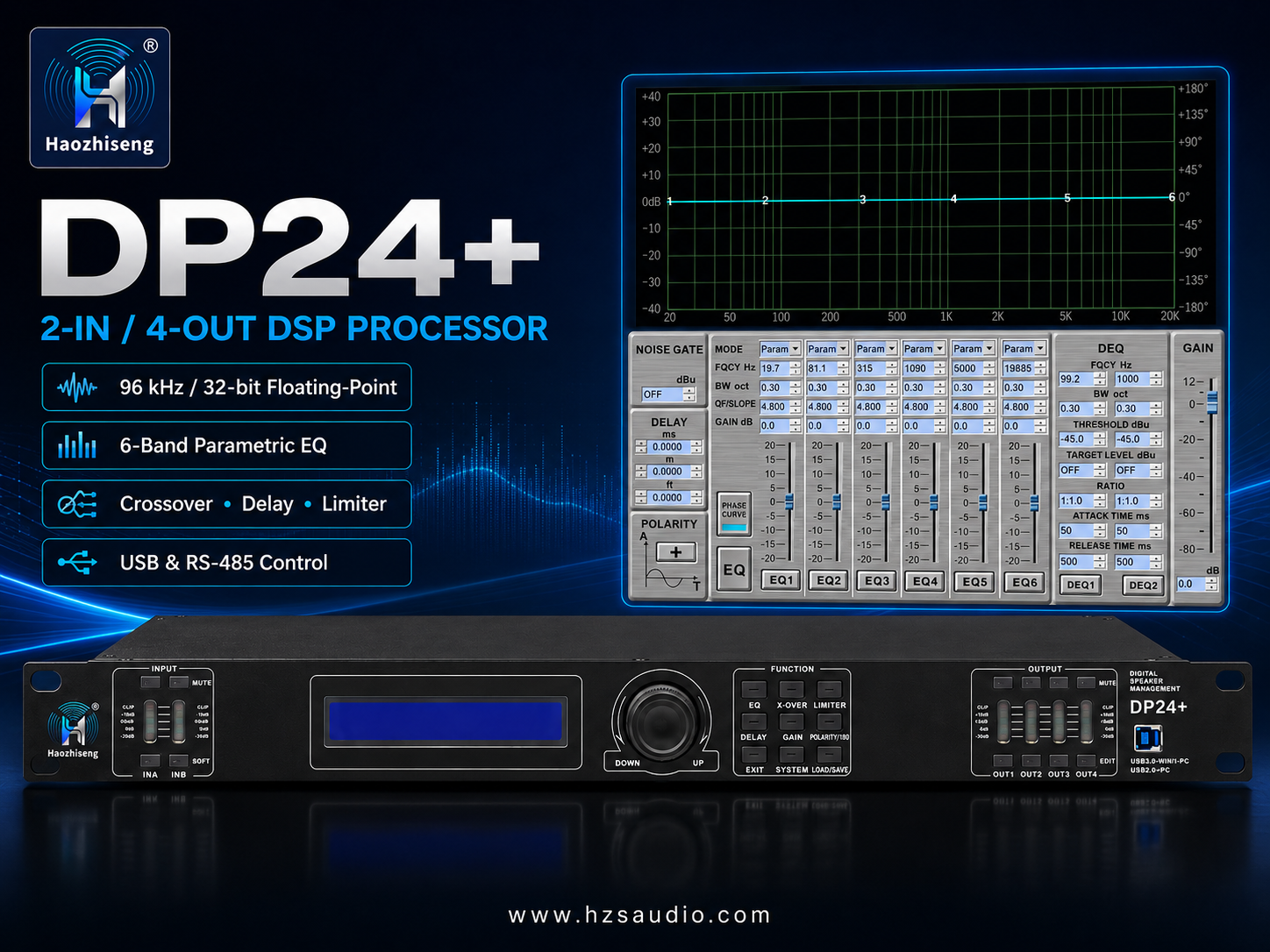

Product Overview
The Haozhiseng Audio DP24+ is a professional 2-input, 4-output digital loudspeaker management processor designed for PA systems, live sound reinforcement, touring applications, and fixed installations.
Featuring a 32-bit floating-point DSP engine and a 96 kHz sampling rate, the DP24+ provides accurate signal processing and flexible system control. Its integrated EQ, crossover, delay, limiter, polarity, gain, and signal-routing functions allow precise optimization of full-range speakers, subwoofers, stage monitors, delay speakers, and multi-zone audio systems.
USB and RS-485 control interfaces simplify system configuration, making the DP24+ suitable for both portable sound systems and permanent installations.
Key Features
2-Input, 4-Output System Configuration
Two XLR inputs and four XLR outputs support flexible configurations for full-range speakers, subwoofers, stage monitors, delay speakers, and multi-zone sound systems.
32-Bit DSP Processing
The 32-bit floating-point DSP engine and 96 kHz sampling rate provide accurate signal processing and clear audio reproduction.
Independent 6-Band Parametric EQ
Each channel features a 6-band parametric equalizer with adjustable frequency, gain, and Q settings for precise system tuning.
Complete Loudspeaker Management Functions
Integrated processing functions include:
- Parametric EQ
- High-pass and low-pass crossovers
- Delay
- Limiter
- Polarity
- Input and output gain
- Signal routing
Flexible Crossover Control
The DP24+ supports Linkwitz-Riley, Butterworth, and Bessel filter types, with selectable crossover slopes for different loudspeaker and system configurations.
Output Limiter
The adjustable output limiter helps control excessive signal levels, reduce clipping, and protect connected amplifiers and loudspeakers when correctly configured.
USB and RS-485 Control
USB and RS-485 interfaces provide convenient system configuration and remote-control options for live sound and fixed-installation applications.
Front-Panel Monitoring
The front panel features a 2 × 24-character LCD and LED level meters for convenient parameter adjustment and real-time signal monitoring.
Applications
- Professional PA systems
- Live sound reinforcement
- DJ and touring sound systems
- Line array speaker systems
- Full-range and subwoofer systems
- Nightclubs and entertainment venues
- Conference and corporate audio systems
- Houses of worship
- Auditoriums and fixed installations
- Delay speaker and multi-zone systems
Technical Specifications
| Item | Specification |
|---|---|
| Model | DP24+ |
| Input Channels | 2 × XLR female |
| Output Channels | 4 × XLR male |
| DSP Engine | 32-bit floating-point processing |
| Sampling Rate | 96 kHz |
| Parametric EQ | 6 bands per channel |
| EQ Gain Range | −20 dB to +20 dB |
| Output Gain Range | −12 dB to +12 dB |
| Crossover Functions | High-pass filter and low-pass filter |
| Filter Types | Linkwitz-Riley, Butterworth and Bessel |
| Frequency Range | 20 Hz–20 kHz |
| Crossover Slopes | 12, 18, 24 and 48 dB/octave |
| Delay Range | 0–1,000 ms |
| Limiter Threshold | −20 dBu to +20 dBu |
| Control Interfaces | USB and RS-485 |
| Display | 2 × 24-character LCD |
| Level Monitoring | LED level meters |
Why Choose the DP24+?
The DP24+ combines essential loudspeaker management functions with flexible 2-input, 4-output signal routing in a professional DSP processor. Its 96 kHz sampling rate, parametric EQ, crossover, delay, limiter, and remote-control interfaces make it a practical solution for system tuning and loudspeaker protection.
Whether used for live performances, touring systems, rental equipment, entertainment venues, or permanent installations, the DP24+ provides reliable control for modern professional PA systems.
