AC-1600 16-Channel UHF Antenna Distribution and Amplifier System
Product Overview

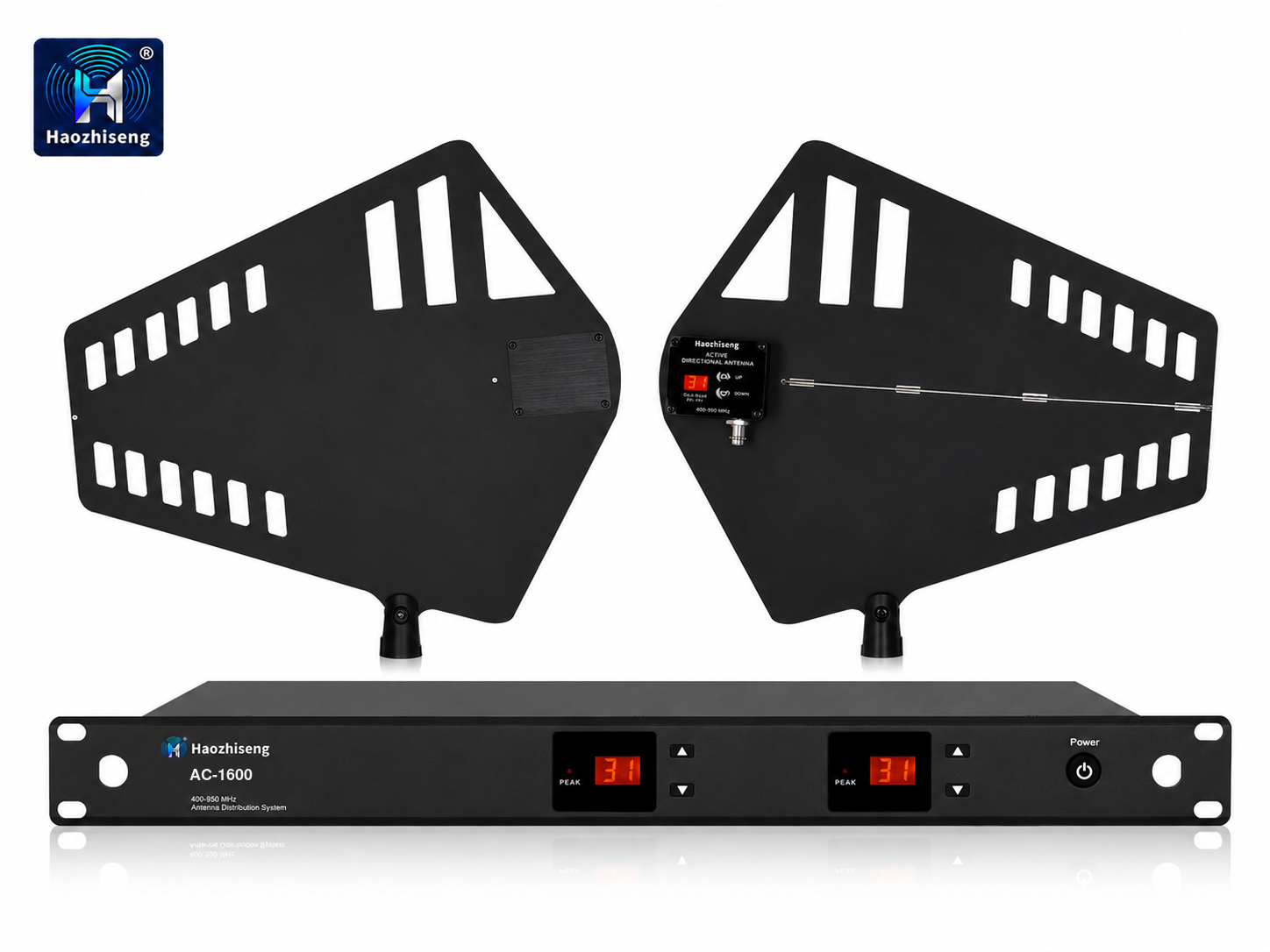

The AC-1600 is a professional 16-channel UHF antenna distribution and amplification system designed for multi-channel wireless microphone installations. It distributes RF signals from one pair of directional antennas to multiple wireless receivers, simplifying antenna installation and improving system organization.
Operating across a wide 400–950 MHz frequency range, the AC-1600 is suitable for a variety of professional UHF wireless systems. The included active directional antennas use a log-periodic dipole array design and provide 7.5 dBi gain for focused RF reception and reliable signal coverage.
The rack-mount distribution unit uses professional BNC connections and maintains a standard 50 Ω system impedance. It is suitable for concerts, touring systems, theatres, broadcasting, houses of worship, conference venues and fixed audio installations.
Key Features

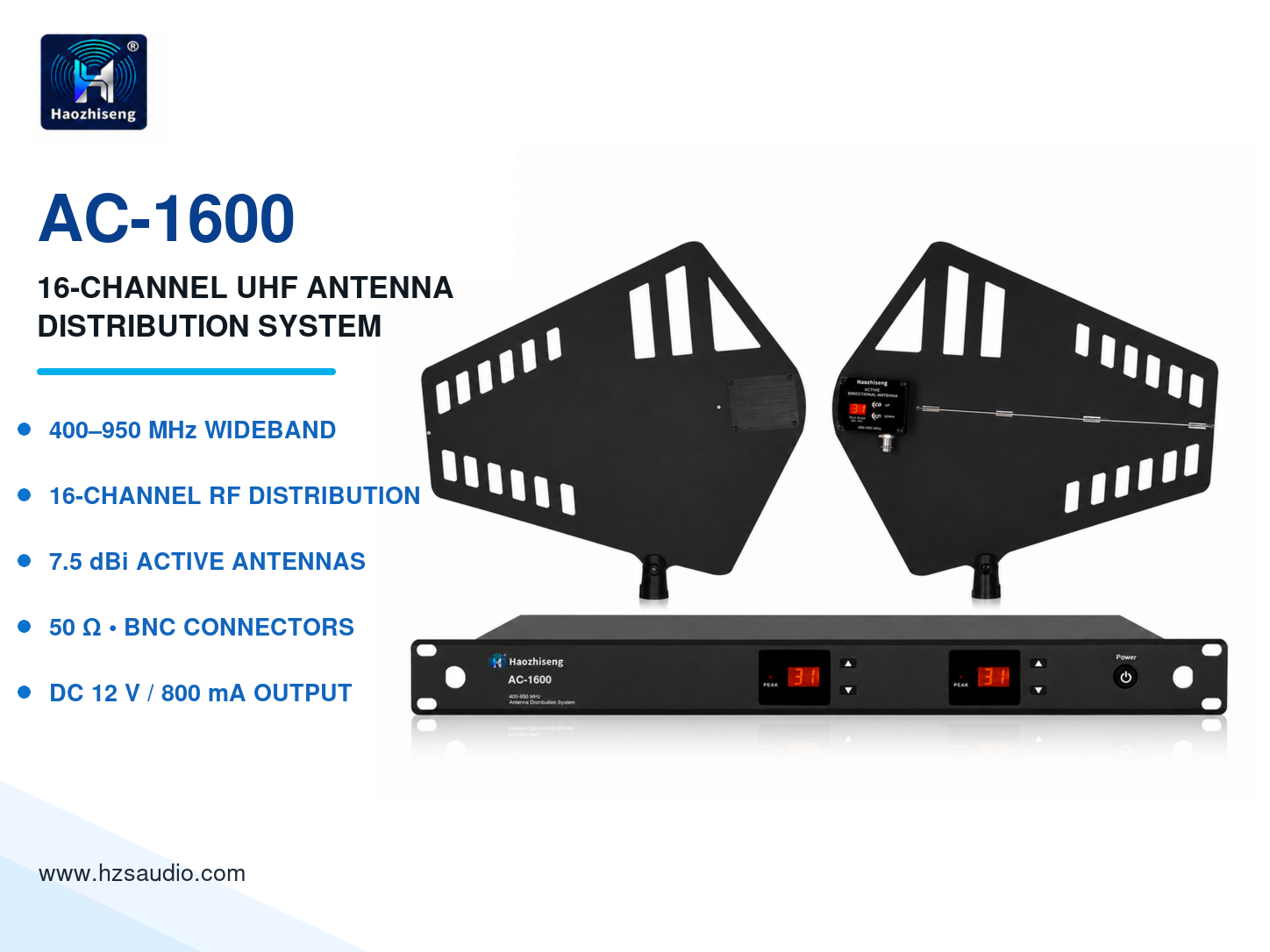

- Professional 16-channel UHF antenna distribution system
- Wide 400–950 MHz frequency coverage
- Distributes one antenna pair to multiple wireless receivers
- Includes two active directional antennas
- Log-periodic dipole array antenna design
- 7.5 dBi directional antenna gain
- BNC antenna input and output connections
- Standard 50 Ω system impedance
- DC 12 V / 800 mA external power output
- 1U rack-mount construction
- Suitable for portable and fixed wireless systems
Active Directional Antenna Specifications
| Item | Specification |
|---|---|
| Antenna Type | Log-Periodic Dipole Array |
| RF Frequency Range | 400–950 MHz |
| Operating Voltage | 10 V DC |
| Impedance | 50 Ω |
| Connector Type | BNC |
| Antenna Gain | 7.5 dBi |
Antenna Distribution System Specifications
| Item | Specification |
|---|---|
| Model | AC-1600 |
| Product Type | 16-Channel UHF Antenna Distribution and Amplifier System |
| Carrier Frequency Range | 400–950 MHz |
| Antenna Input/Output Connectors | BNC |
| System Impedance | 50 Ω |
| External DC Power Output | DC 12 V / 800 mA |
| Installation Type | 1U Rack Mount |
Applications
- Multi-channel wireless microphone systems
- Live performances and concerts
- Touring and rental audio systems
- Theatres and entertainment venues
- Broadcasting and television studios
- Houses of worship
- Conference and presentation systems
- Schools and auditoriums
- Fixed professional audio installations
Why Choose the AC-1600?
The AC-1600 combines wideband UHF compatibility, 16-channel RF distribution and high-gain active directional antennas in one professional rack-mount system. It reduces the number of antennas required in complex wireless installations while providing organized signal distribution and dependable RF reception.
