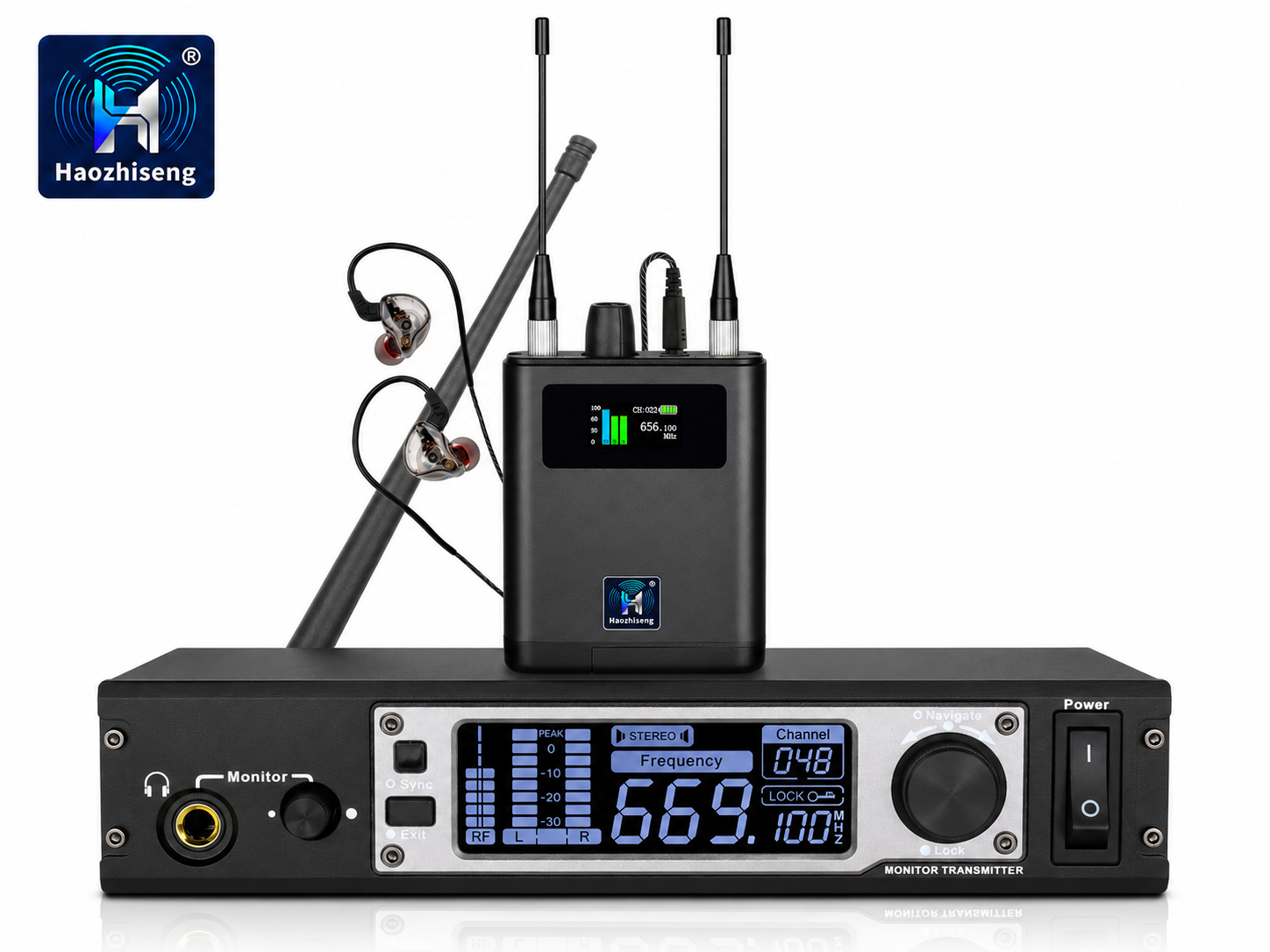

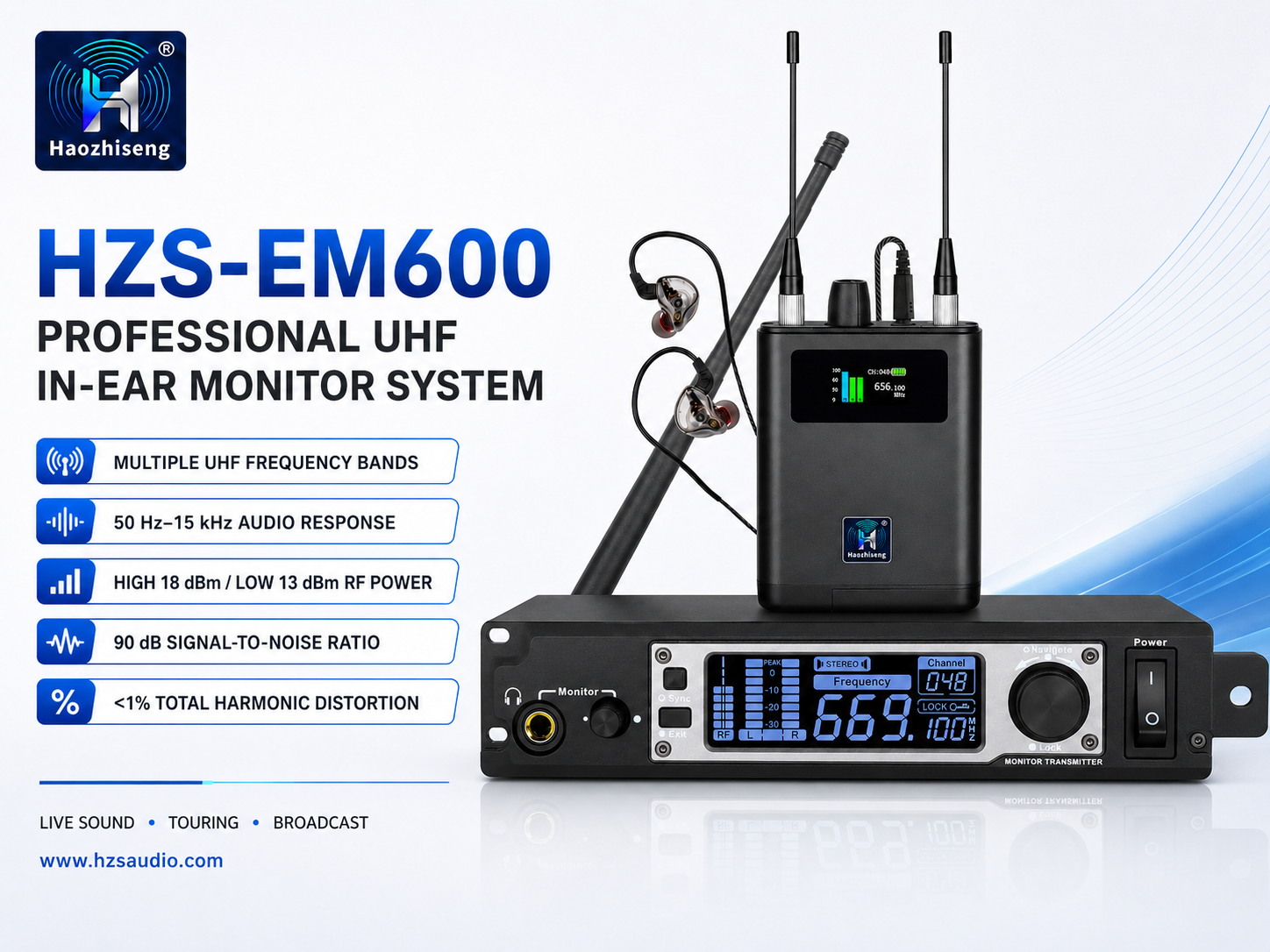

HZS-EM600 Professional UHF Wireless In-Ear Monitor System
Product Overview
The HZS-EM600 is a professional UHF wireless in-ear monitoring system designed for live performances, touring productions, rehearsal rooms, houses of worship, broadcasting, and other professional audio applications.
The system consists of a rack-mount transmitter and a portable bodypack receiver. It delivers a frequency response of 50 Hz–15 kHz with a signal-to-noise ratio of 90 dB and distortion below 1%, providing clear and reliable monitoring for performers and audio professionals.
Selectable high and low transmission power settings allow the system to be adapted to different venues and operating requirements. Multiple frequency-band configurations are available to meet regional wireless frequency requirements.
Key Features
- Professional UHF wireless in-ear monitoring system
- Rack-mount transmitter with portable bodypack receiver
- Multiple frequency-band options
- 50 Hz–15 kHz audio frequency response
- Selectable high and low RF transmission power
- PLL-based stable wireless transmission
- Receiver sensitivity of −104 dBm
- Signal-to-noise ratio of 90 dB
- Low distortion of less than 1%
- 3.5 mm headphone output
- Suitable for stage, touring, rehearsal and broadcast applications
Available Frequency Bands
- 555–580 MHz
- 610–690 MHz
- 803–806 MHz
- 905–930 MHz
Available frequency bands may vary according to regional regulations and product configuration.
Transmitter Specifications
| Item | Specification |
|---|---|
| Model | HZS-EM600 |
| Product Type | UHF Wireless In-Ear Monitor System |
| Frequency Bands | 555–580 MHz / 610–690 MHz / 803–806 MHz / 905–930 MHz |
| Audio Frequency Response | 50 Hz–15 kHz |
| Transmission Power | High: 18 dBm / Low: 13 dBm |
| Audio Modulation Frequency | 28 kHz |
| Frequency Accuracy | ±10 kHz |
| Power Supply | DC 12 V / 500 mA |
Bodypack Receiver Specifications
| Item | Specification |
|---|---|
| Frequency Bands | 555–580 MHz / 610–690 MHz / 803–806 MHz / 905–930 MHz |
| Modulation Mode | FM |
| Audio Frequency Response | 50 Hz–15 kHz |
| Receiver Sensitivity | −104 dBm |
| Headphone Output | 3.5 mm headphone output |
| Output Level | 120 mV |
| Total Harmonic Distortion | <1% |
| Signal-to-Noise Ratio | 90 dB |
| Operating Voltage | 3 V |
| Operating Current | 120 mA |
Applications
- Live performances
- Touring productions
- Rehearsal rooms
- Houses of worship
- Broadcasting and television production
- Theatres and entertainment venues
- Professional audio rental systems
- Stage monitoring applications
Why Choose the HZS-EM600?
The HZS-EM600 combines flexible UHF frequency options, adjustable transmission power and a portable bodypack receiver in a practical professional monitoring system. Its clear audio response, low distortion and stable wireless performance make it a reliable solution for musicians, vocalists, presenters and audio professionals who require dependable personal monitoring.
