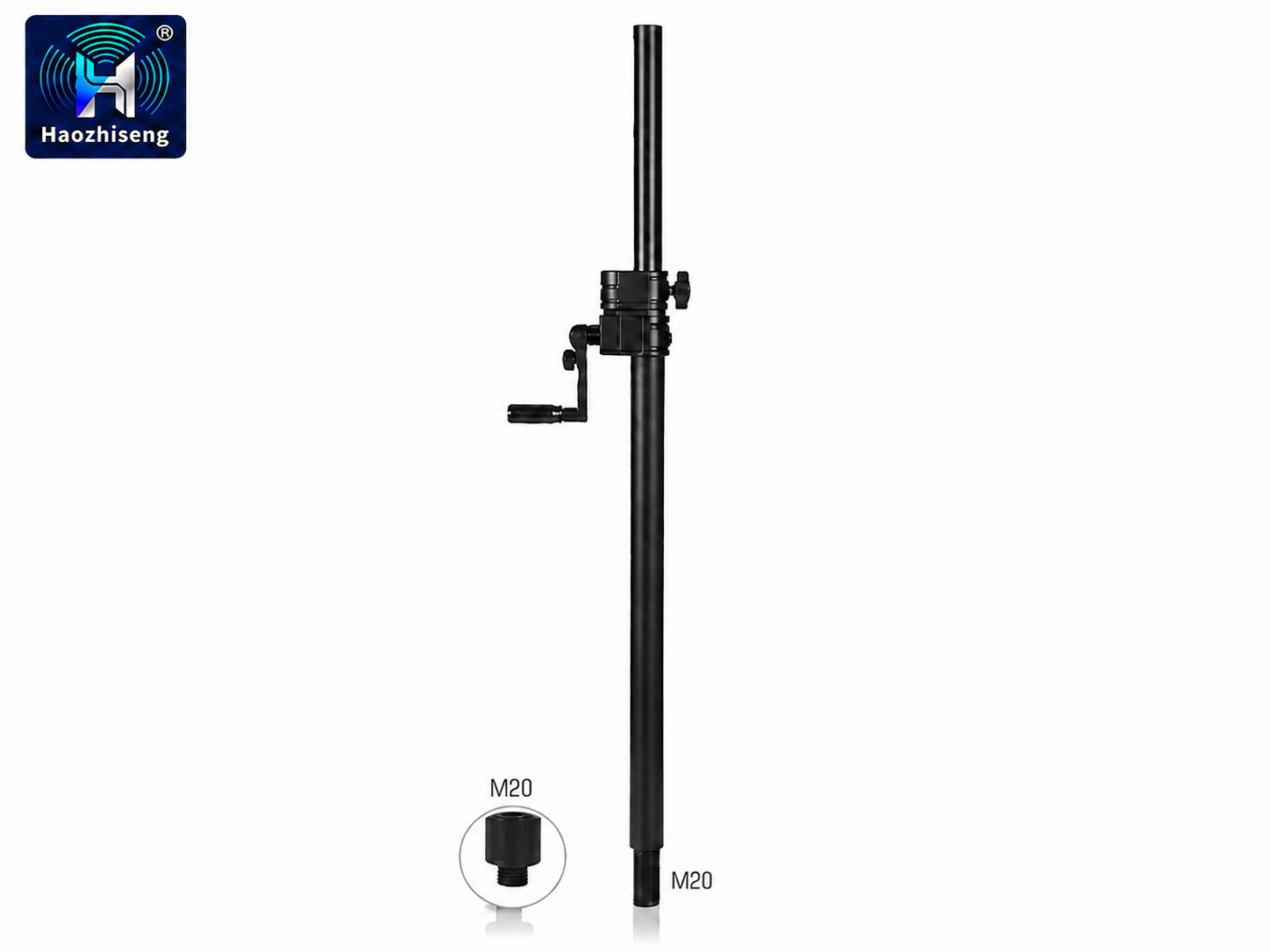

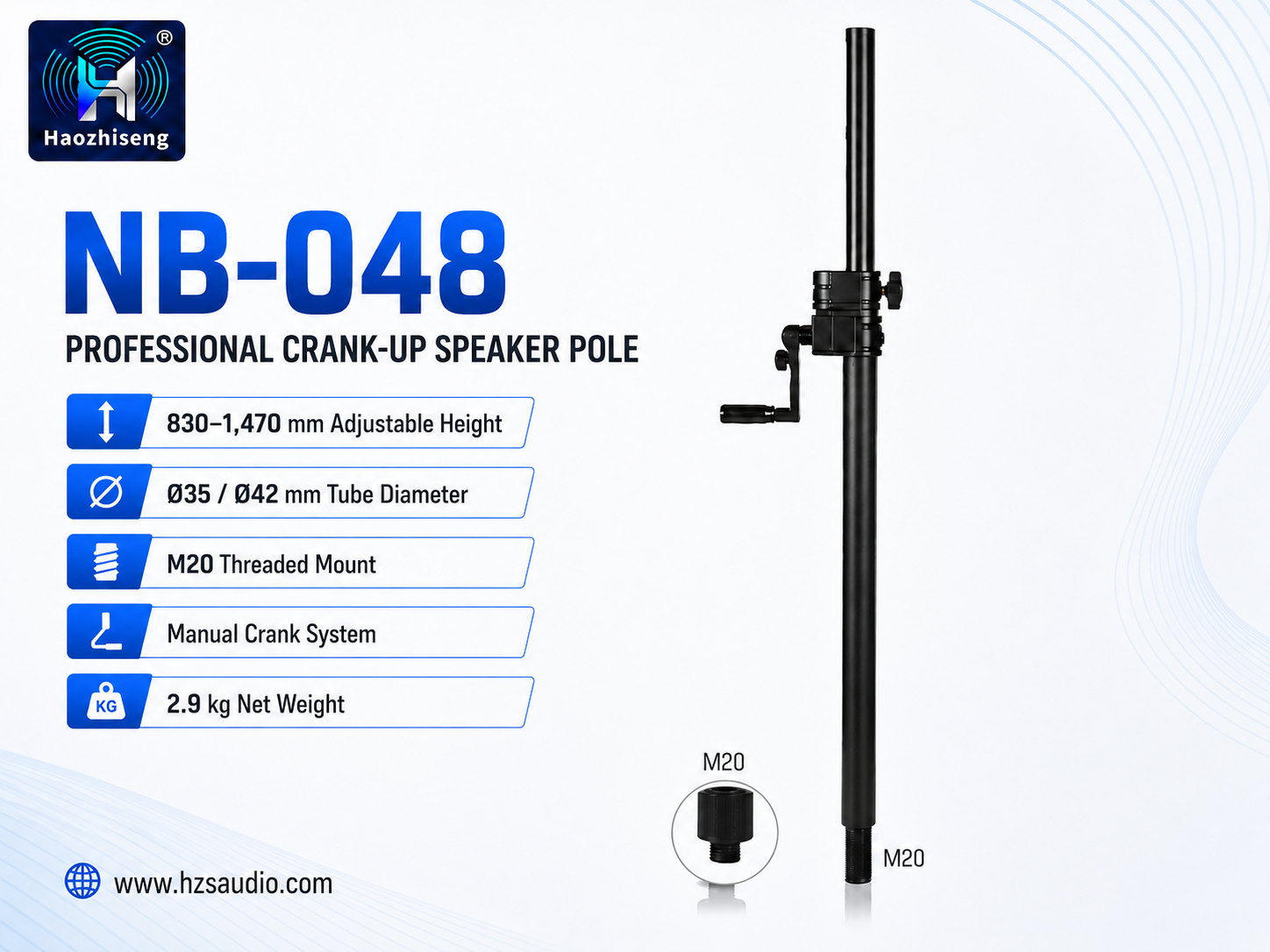

NB-048 Professional Crank-Up Speaker Pole with M20 Threaded Mount
Product Overview
The NB-048 is a professional adjustable speaker pole designed for mounting full-range PA speakers above subwoofers, speaker bases, or other compatible support systems.
Its manual crank mechanism provides smooth height adjustment from 830 to 1,470 mm, making it easier to position the loudspeaker at the required height. Locking knobs help secure the pole after adjustment for dependable use during performances and installations.
The standard 35 mm upper tube is compatible with most pole-mount PA speakers, while the reinforced 42 mm main tube provides stable support. An M20 threaded connection at the bottom allows the pole to be securely attached to a compatible subwoofer or speaker base.
Key Features
- Professional adjustable PA speaker pole
- Height adjustable from 830 to 1,470 mm
- Manual crank mechanism for convenient lifting
- Locking knobs for secure height adjustment
- Standard 35 mm upper speaker-mount tube
- Reinforced 42 mm main support tube
- M20 threaded bottom mounting connection
- Separate M20 threaded adapter design
- Durable black metal construction
- Compact and convenient for transportation
- Suitable for portable and fixed PA systems
M20 Threaded Connection
The NB-048 features an M20 threaded mounting interface at the bottom, providing a secure connection to compatible subwoofers and speaker bases.
The M20 connection helps reduce unwanted movement and provides a more stable installation than a conventional non-threaded pole connection.
Applications
- Active and passive PA speakers
- Subwoofer satellite speaker systems
- Mobile DJ systems
- Live sound reinforcement
- Touring and stage productions
- Professional audio rental systems
- Conference and corporate events
- Houses of worship
- Clubs and entertainment venues
- Temporary and fixed audio installations
Technical Specifications
| Item | Specification |
|---|---|
| Model | NB-048 |
| Product Type | Professional Crank-Up Speaker Pole |
| Adjustable Height | 830–1,470 mm |
| Lifting Mechanism | Manual Crank |
| Upper Tube Diameter | 35 mm |
| Main Tube Diameter | 42 mm |
| Bottom Connection | M20 Threaded Mount |
| Adapter Type | M20 Threaded Adapter |
| Weight | 2.9 kg |
| Carton Dimensions | 34.5 × 24.5 × 105 cm |
| Packing Quantity | 8 pieces per carton |
| Color | Black |
Why Choose the NB-048?
The NB-048 combines convenient crank-assisted height adjustment, a standard 35 mm speaker mount, and a secure M20 threaded connection in a compact professional speaker pole. It is a practical solution for subwoofer-mounted PA speakers used in live events, mobile DJ systems, rental applications, conference venues, and fixed sound installations.
