AC-1600A 16-Channel UHF Antenna Distribution and Amplifier System with Network Ports
Product Overview
The AC-1600A is a professional 16-channel UHF antenna distribution and amplification system designed for multi-channel wireless microphone installations. It operates across a wide 400–950 MHz frequency range and allows multiple wireless receivers to share one pair of antennas, helping simplify antenna installation and improve system organization.

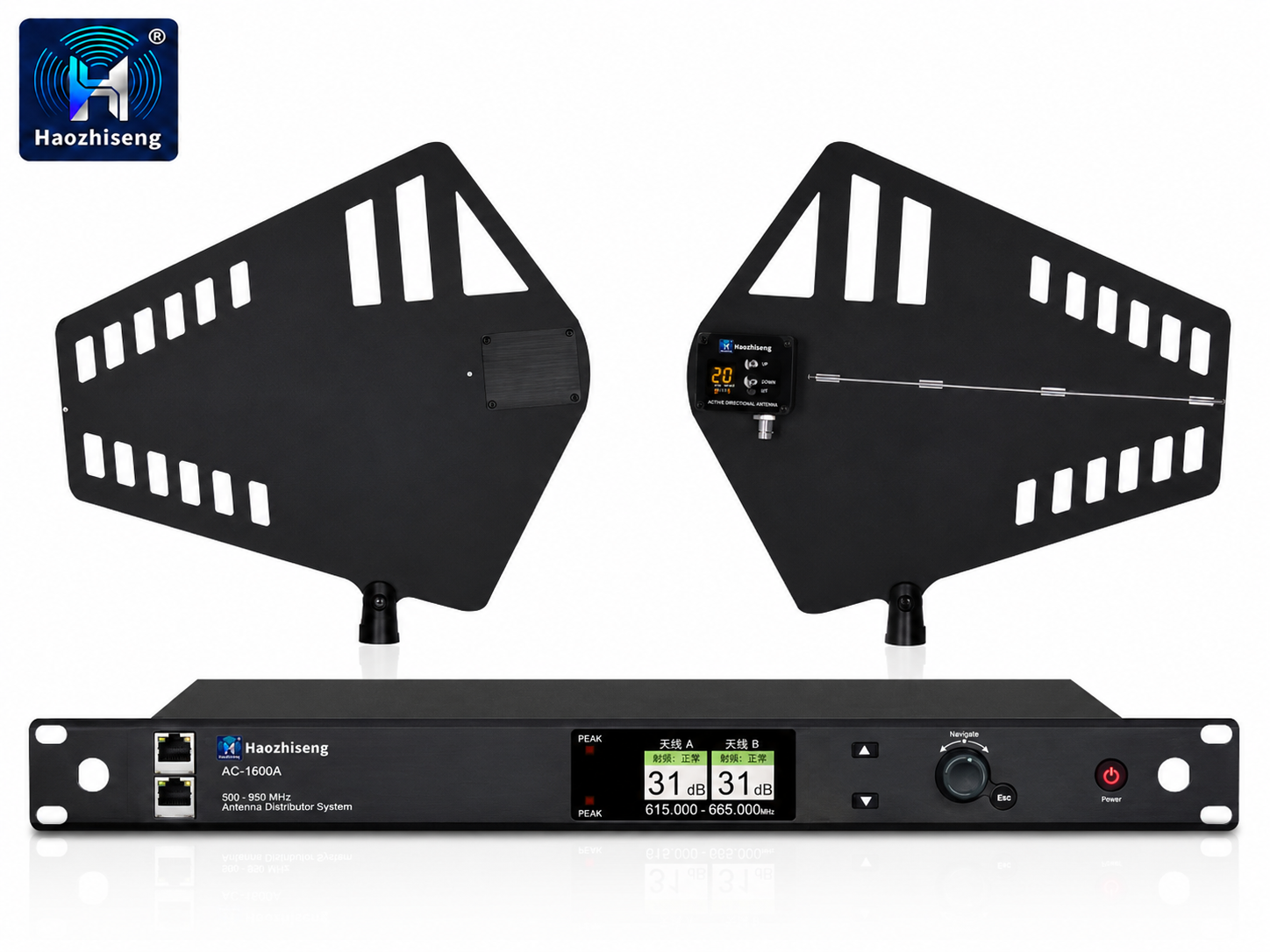

The system includes two active directional antennas based on a log-periodic dipole array design. Each antenna provides 7.5 dBi gain for focused RF reception and improved signal coverage in demanding wireless environments.

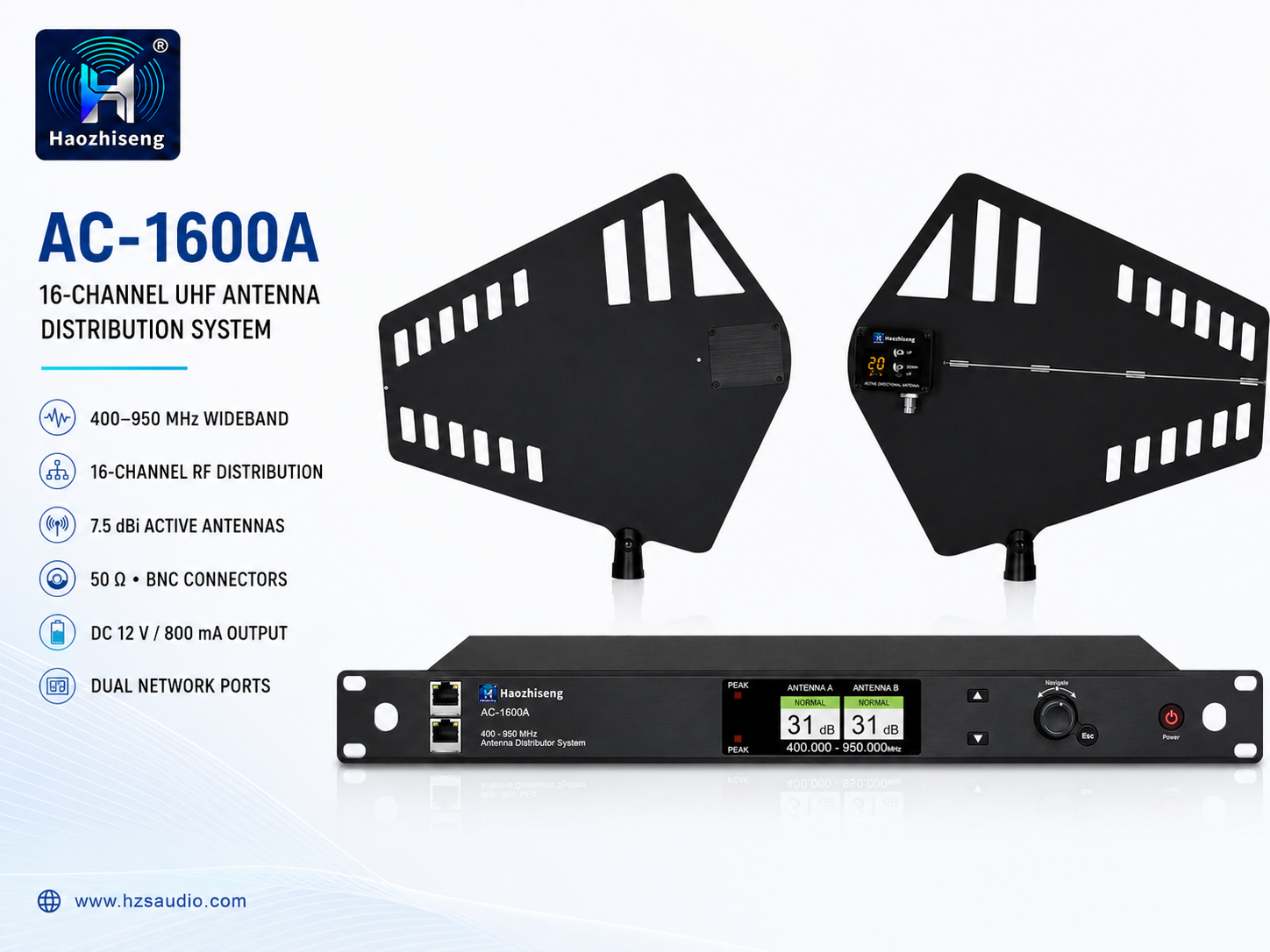

The rack-mount distribution unit features BNC antenna connections, 50 Ω system impedance, a front-panel display and network ports. It is suitable for live performances, touring systems, theatres, broadcasting, houses of worship, conference venues and fixed professional audio installations.
Key Features
- Professional 16-channel UHF antenna distribution system
- Wide 400–950 MHz operating frequency range
- Supports multi-channel wireless receiver systems
- Two active directional antennas
- Log-periodic dipole array antenna design
- 7.5 dBi directional antenna gain
- BNC RF input and output connections
- Standard 50 Ω system impedance
- Integrated network ports
- Front-panel system display and controls
- External DC 12 V / 800 mA power output
- Rack-mount design for professional installations
Active Directional Antenna Specifications
| Item | Specification |
|---|---|
| Antenna Type | Log-Periodic Dipole Array |
| RF Frequency Range | 400–950 MHz |
| Operating Voltage | 10 V DC |
| Impedance | 50 Ω |
| Connector Type | BNC |
| Antenna Gain | 7.5 dBi |
Antenna Distribution System Specifications
| Item | Specification |
|---|---|
| Model | AC-1600A |
| Product Type | 16-Channel UHF Antenna Distribution and Amplifier System |
| Carrier Frequency Range | 400–950 MHz |
| Antenna Input/Output Connectors | BNC |
| System Impedance | 50 Ω |
| External DC Power Output | DC 12 V / 800 mA |
| Network Connection | Integrated Network Ports |
| Installation Type | 1U Rack Mount |
Applications
- Multi-channel wireless microphone systems
- Live performances and concerts
- Touring and rental audio systems
- Theatres and entertainment venues
- Broadcasting and television studios
- Houses of worship
- Conference and presentation systems
- Schools and auditoriums
- Fixed professional audio installations
Why Choose the AC-1600A?
The AC-1600A combines 16-channel signal distribution, wideband UHF compatibility and high-gain active directional antennas in one professional rack-mount system. It reduces the number of antennas required in complex wireless installations while providing organized RF distribution and reliable reception across multiple wireless receiver channels.
