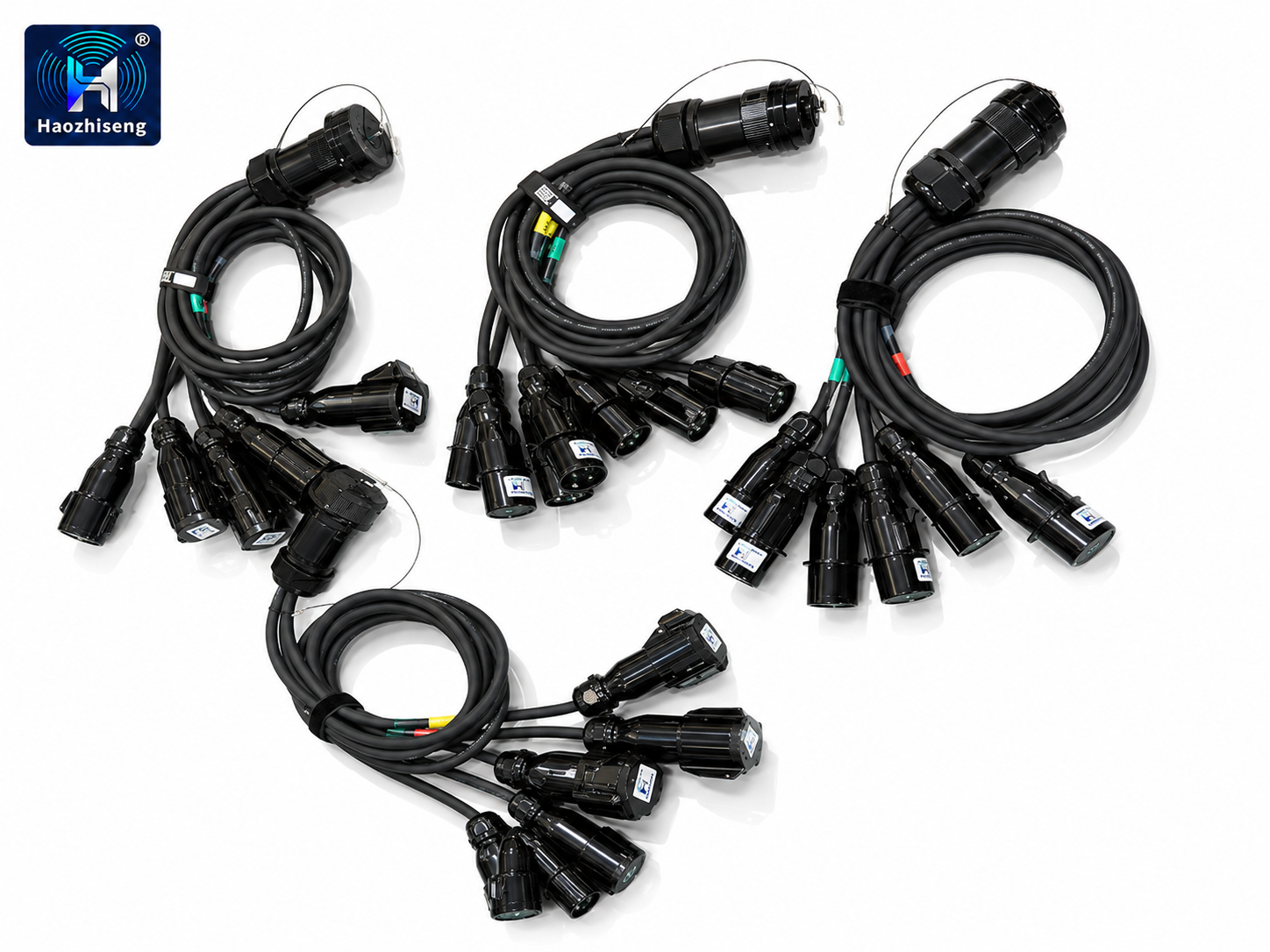

19-Pin Socapex to 16A 3-Pin Fan-Out Power Cable
Product Overview
The 19-pin Socapex to 16A 3-pin fan-out cable is designed for professional stage power distribution, touring productions, rental systems, theatres, live events, and temporary installations.
It combines a durable aluminium 19-pin Socapex connector with multiple WEIPU 16A 3-pin connectors, allowing one multicore cable to distribute power efficiently to several devices. The flexible multicore cable is available in 13-core or 19-core configurations, with customized cable lengths and connector arrangements available for different projects.
Professional soldering and assembly workmanship provide secure internal connections and dependable performance during frequent installation, transportation, and operation.
Key Features
- Professional 19-pin Socapex fan-out power cable
- Multiple 16A 3-pin output connectors
- 3 × 2.5 mm² cable specification per circuit
- Available with 13-core or 19-core flexible cable
- Durable aluminium 19-pin Socapex connector
- Genuine WEIPU 16A 3-pin connectors
- Water-resistant connector design
- Secure professional soldering and assembly
- Flexible cable for convenient installation and storage
- Custom cable lengths and connector configurations available
- Suitable for touring, rental and fixed-installation applications
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Multicore Fan-Out Power Cable |
| Main Connector | 19-Pin Socapex Connector |
| Output Connector | WEIPU 16A 3-Pin Plug |
| Cable Configuration | 13-Core or 19-Core |
| Circuit Cable Size | 3 × 2.5 mm² |
| Main Connector Material | Aluminium |
| Cable Color | Black |
| Cable Length | Customizable |
| Connector Configuration | Customizable |
Applications
- Professional stage power distribution
- Concerts and live performances
- Touring sound and lighting systems
- Theatre and entertainment venues
- Event production systems
- Professional rental companies
- Temporary power installations
- Fixed stage and venue installations
Why Choose This Cable?
This 19-pin Socapex fan-out cable provides a practical and dependable solution for distributing power through one organized multicore cable system. Its aluminium Socapex connector, professional WEIPU 16A plugs, flexible cable construction, and secure assembly make it suitable for demanding stage, touring, rental, and installation applications.
