DG1216 63A Three-Phase Power Distribution Unit with 12 × 16A Waterproof Outputs
Product Summary
The DG1216 is a compact professional power distribution unit featuring a 63A five-pin industrial input, twelve 16A waterproof outputs, six 25A circuit breakers and three-phase indicator lights. Its durable metal construction and organized output layout make it suitable for stage lighting, concerts, touring systems, rental equipment and temporary event-power applications.
Input connectors, output connectors, electrical ratings, cable specifications, panel layouts and branding can be customized according to project requirements.
Product Overview
The DG1216 provides an organized and convenient solution for distributing three-phase power to multiple lighting fixtures and compatible electrical devices.

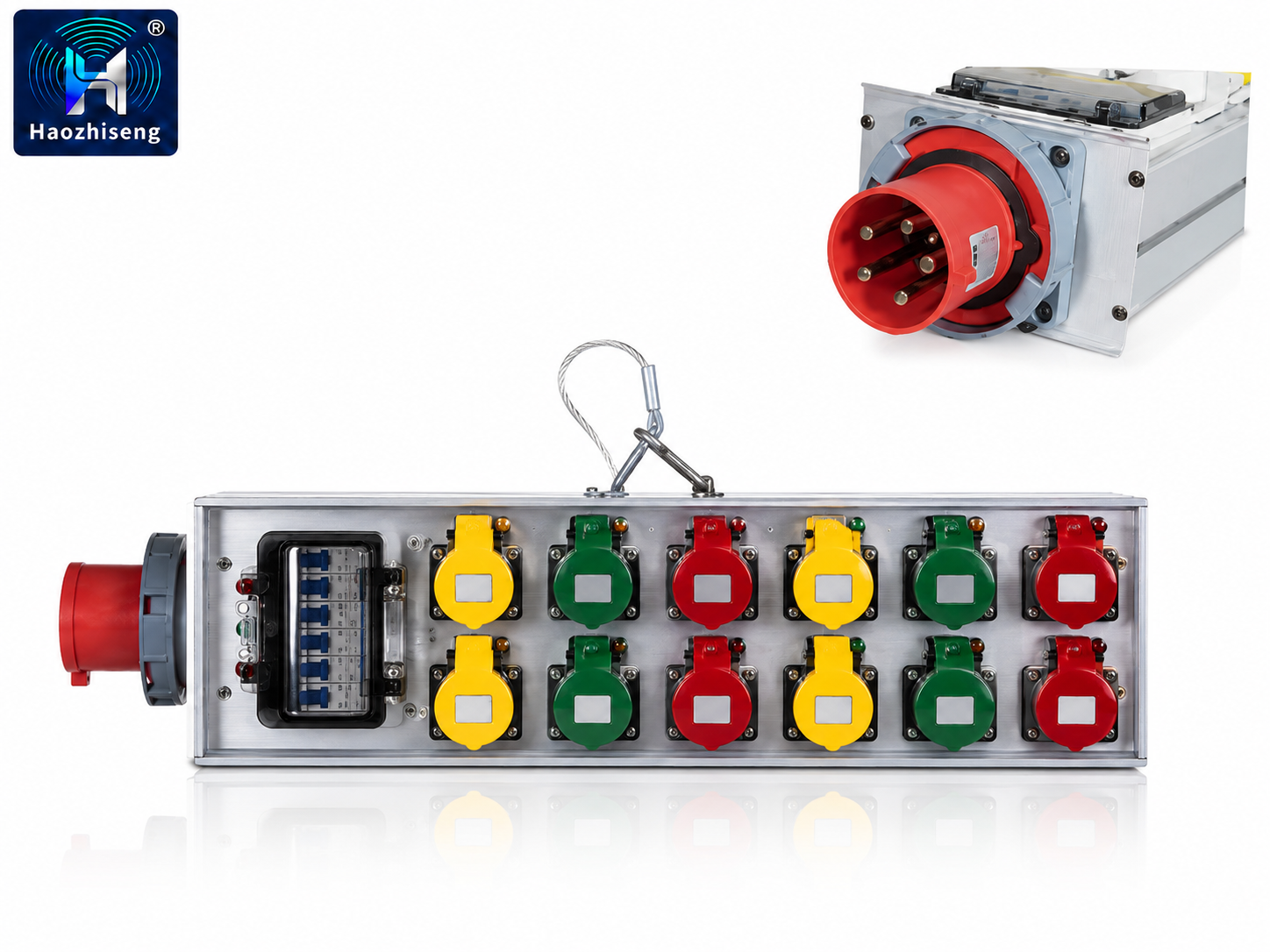

A heavy-duty 63A five-pin industrial connector is used for the main power input. Twelve 16A waterproof output sockets are arranged in two rows, providing convenient connections for multiple pieces of equipment.
Six independent 25A circuit breakers divide and protect the output circuits, while three-phase indicator lights provide a clear visual indication of the phase status. The long, compact enclosure helps save installation space and makes the unit convenient for touring, rental and temporary power systems.
The DG1216 can be manufactured with different input connectors, output sockets, current ratings, cable types and panel arrangements to meet the requirements of different countries, equipment and projects.
Key Features
- Professional three-phase power distribution unit
- Heavy-duty 63A five-pin industrial input
- Twelve 16A waterproof output sockets
- Six independent 25A circuit breakers
- Three-phase status indicator lights
- Organized two-row output layout
- Color-coded sockets for convenient phase identification
- Compact and space-saving enclosure
- Durable metal construction
- Suitable for portable and fixed installations
- Custom input and output configurations available
- OEM and ODM branding supported
Power Input
The reference configuration uses one 63A five-pin industrial power connector. The heavy-duty connector provides a secure connection for professional three-phase power-distribution applications.
The input-connector brand, current rating, pin configuration and mounting position can be customized.
Power Outputs
The DG1216 is equipped with twelve 16A waterproof output sockets arranged in two rows of six. The yellow, green and red socket colors provide convenient visual identification of different output groups or phases.
Output quantity, socket type, connector color, voltage and current rating can be customized according to the connected equipment and installation requirements.
Circuit Protection and Phase Indication
Six 25A circuit breakers provide individual control and protection for the output groups. This arrangement allows circuits to be switched and managed separately.
Three-phase indicator lights provide a clear visual indication of the incoming phase status, helping operators check the power condition during setup and operation.
Technical Specifications
| Item | Specification |
|---|---|
| Model | DG1216 |
| Product Type | Three-Phase Power Distribution Unit |
| Input Connector | 63A Five-Pin Industrial Connector |
| Rated Input Current | 63A |
| Output Configuration | 12 × 16A Waterproof Sockets |
| Circuit Breakers | 6 × 25A |
| Phase Indication | Three-Phase Indicator Lights |
| Socket Arrangement | Two Rows of Six |
| Enclosure Material | Metal |
| Product Dimensions | 600 × 150 × 80 mm |
| Connector Configuration | Customizable |
| Electrical Configuration | Customizable |
| Branding | OEM / ODM Available |
Customization Options
The DG1216 can be customized according to customer drawings, equipment requirements and local electrical standards.
Available customization options include:
- Input-connector type
- Input-current rating
- Output-socket type
- Number of output circuits
- Output voltage and current
- Circuit-breaker rating
- Single-phase or three-phase configuration
- Cable length and conductor size
- Fixed cable or detachable connector design
- Phase and circuit labeling
- Indicator-light configuration
- Enclosure dimensions
- Panel layout
- Customer LOGO and model number
- OEM packaging
Applications
- Professional stage-lighting systems
- Concerts and live performances
- Touring productions
- Theatres and entertainment venues
- Television and film production
- Exhibitions and conferences
- Outdoor and indoor events
- Professional equipment-rental companies
- Temporary power-distribution systems
- Fixed lighting installations
- Customized industrial power projects
Why Choose the DG1216?
The DG1216 combines a 63A industrial input, twelve waterproof outputs, independent circuit protection and three-phase indication in one compact distribution unit.
Its organized connection layout simplifies equipment setup and power management, while the customizable design allows the connector types, output quantities, electrical ratings and enclosure layout to be matched to specific projects.
Safety Notice
The voltage, current rating, connector type, grounding method, cable specification and protective devices must be confirmed before production. Installation, operation and maintenance should be performed by qualified electrical personnel and must comply with the requirements of the connected equipment and applicable electrical regulations.
