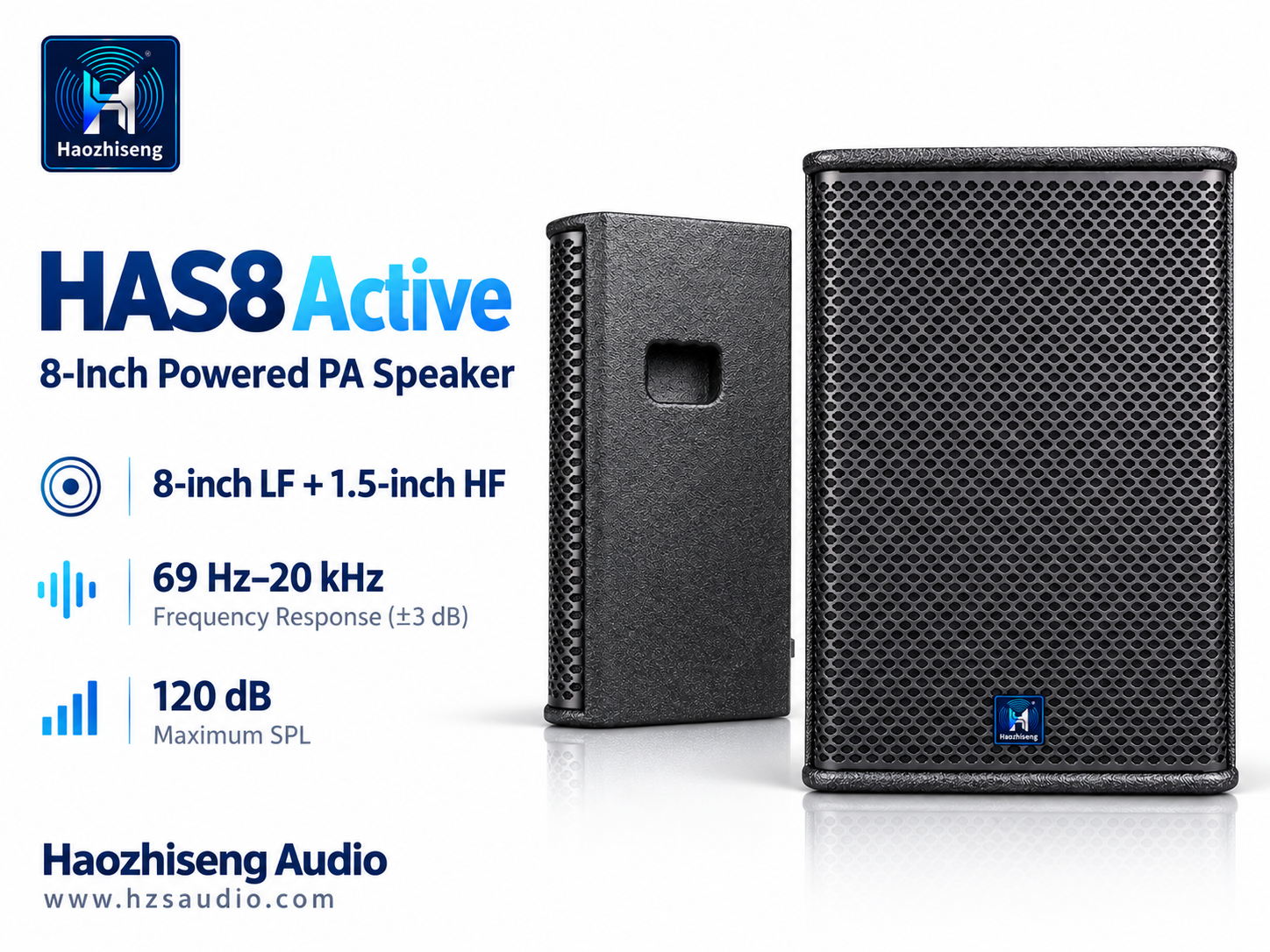

HAS8 Active 8-Inch Powered PA Speaker and Stage Monitor
The Haozhiseng Audio HAS8 Active is a compact, two-way powered loudspeaker designed for professional sound reinforcement and stage monitoring. Combining an 8-inch low-frequency driver, a 1.5-inch high-frequency compression driver, and built-in amplification, it provides a practical solution for portable PA systems and fixed installations.
With a frequency response of 69 Hz–20 kHz (±3 dB) and a maximum SPL of 120 dB, the HAS8 Active offers clear vocal reproduction and balanced sound for speech and music. Its compact cabinet and 13 kg net weight make it suitable for smaller venues and stages where space is limited.
Key Features
- Built-in amplification for convenient operation without a separate external power amplifier.
- 8-inch LF driver and 1.5-inch HF compression driver for two-way full-range reproduction.
- 69 Hz–20 kHz frequency response (±3 dB) for speech, vocals, and music.
- 120 dB maximum SPL in a compact enclosure.
- 90° horizontal × 50° vertical nominal coverage with a rotatable horn.
- Versatile cabinet design for PA and stage monitor applications.
- Braced 15 mm plywood enclosure with a textured black polyurethane finish.

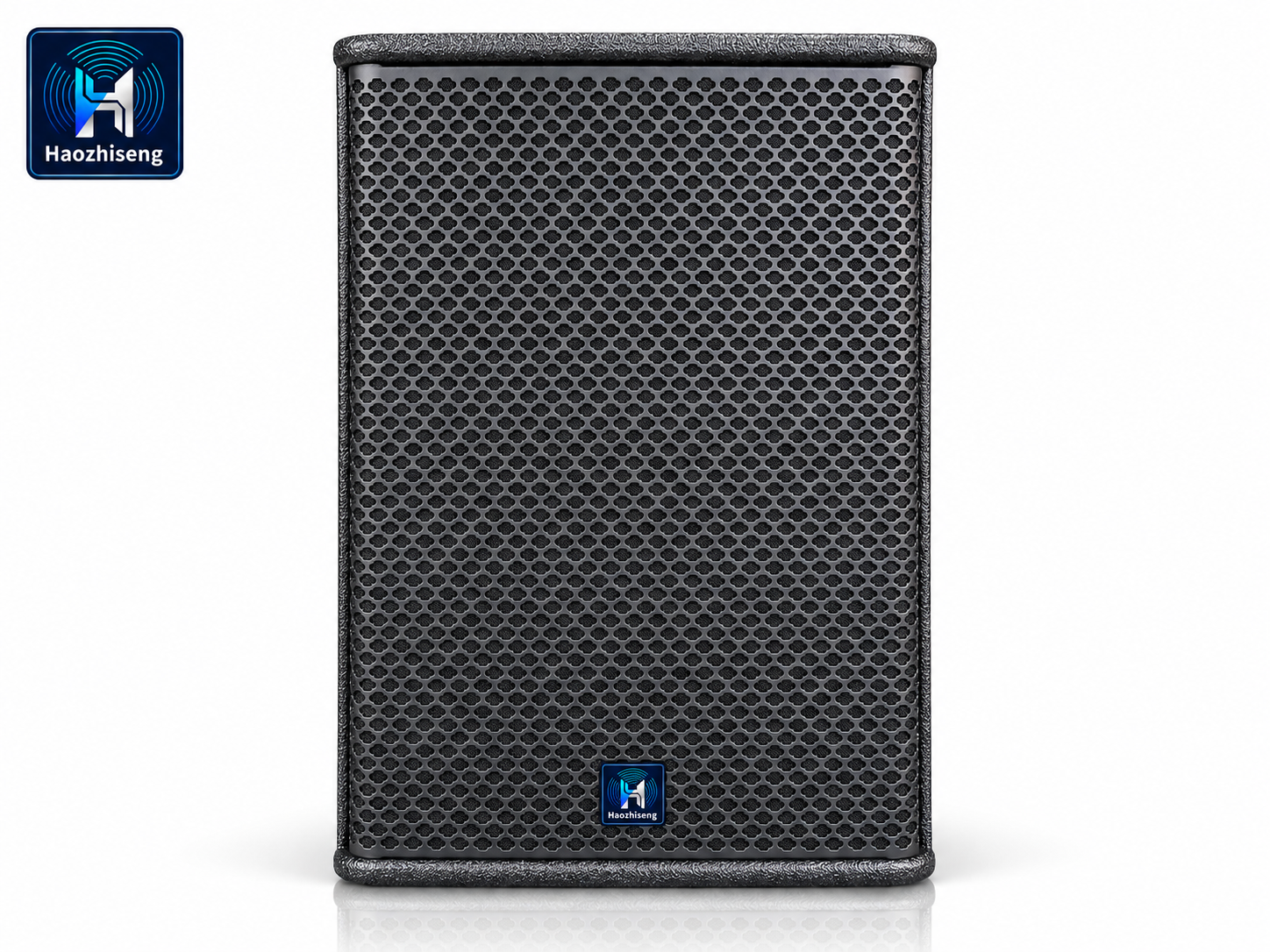

- 1.5 mm perforated steel grille with acoustic foam backing to help protect the drivers.
- 13 kg net weight for manageable transport and setup.
Clear Sound in a Compact Format
The HAS8 Active pairs an 8-inch woofer with a 1.5-inch compression driver to reproduce vocals, instruments, and recorded music. Its compact footprint allows practical placement in conference rooms, worship spaces, entertainment venues, and portable sound systems.
It can also serve as a front-fill or near-field reinforcement speaker within a larger PA system. For applications requiring extended bass, combine it with a compatible subwoofer.
Built-In Amplification
The integrated amplifier brings amplification and loudspeaker components together in one enclosure, reducing the need for separate amplifier equipment.
This active design simplifies equipment planning for mobile performers, rental companies, and venues seeking a compact powered sound solution.
Flexible PA and Stage Monitoring
The HAS8 Active can be used for audience sound reinforcement or stage monitoring, helping performers and presenters hear vocals and instruments in a compact setup.
Its rotatable high-frequency horn provides 90° × 50° nominal dispersion, allowing coverage orientation to be adapted for different cabinet positions and applications.
Durable Plywood Construction

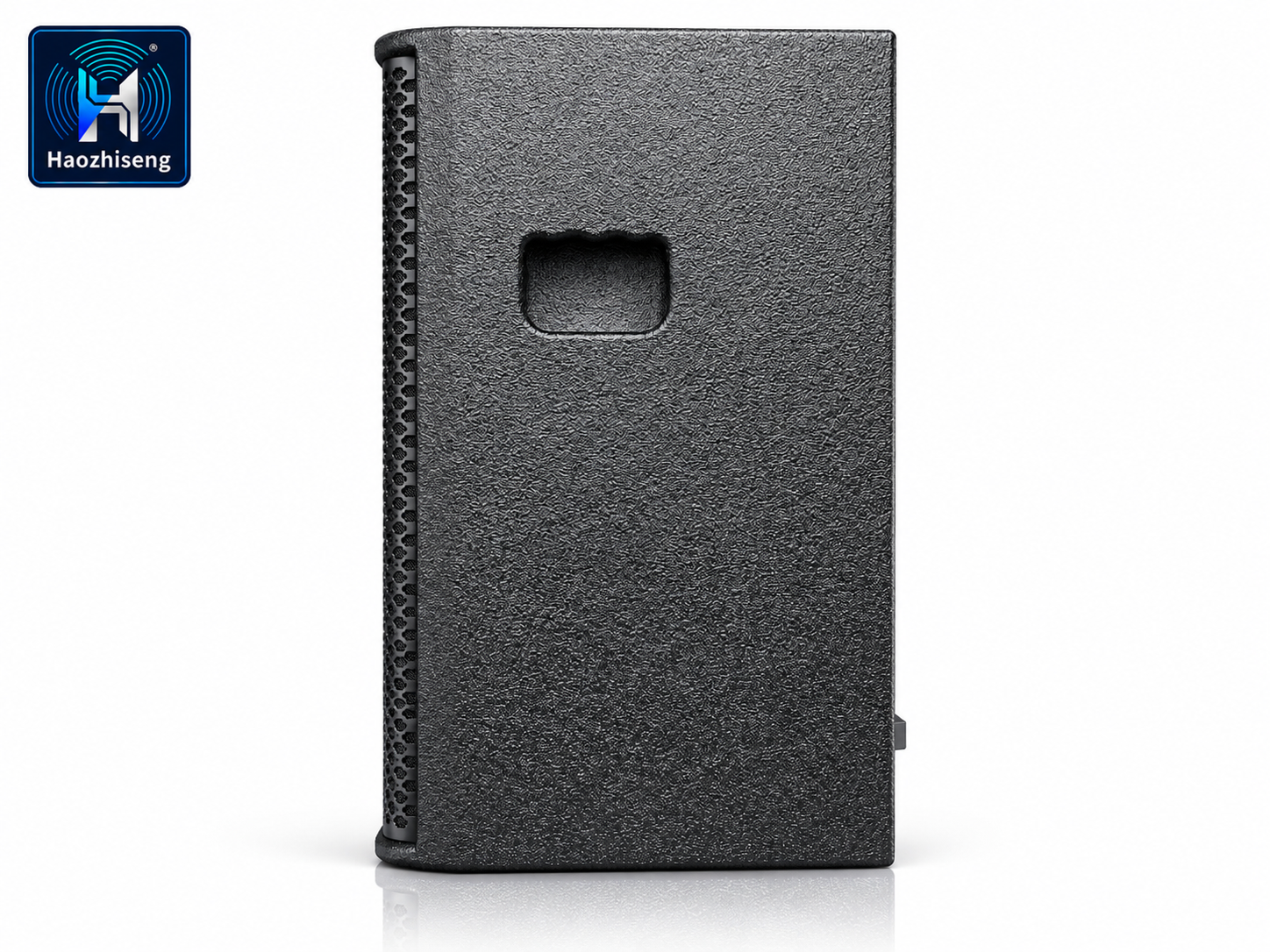

The braced 15 mm plywood cabinet provides a solid enclosure for professional use. A black catalyzed polyurethane finish preserves a textured appearance, while the 1.5 mm perforated steel grille and black acoustic foam backing help protect the loudspeaker components.
Measuring 415 × 255 × 220 mm and weighing 13 kg, the HAS8 Active is easy to accommodate in portable systems and installations with limited space.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HAS8 Active |
| Brand | Haozhiseng Audio |
| System Type | Two-way active full-range PA speaker |
| Amplification | Built-in amplifier |
| LF Driver | 1 × 8-inch woofer |
| HF Driver | 1 × 1.5-inch compression driver |
| Frequency Response (±3 dB) | 69 Hz–20 kHz |
| Loudspeaker Sensitivity (1 W / 1 m) | 96 dB SPL |
| Long-Term SPL | 117 dB |
| Maximum SPL | 120 dB |
| Loudspeaker Nominal Impedance | 8Ω |
| Loudspeaker RMS Power Handling | 200 W |
| Loudspeaker Peak Power Handling | 400 W |
| Nominal Dispersion (H × V) | 90° × 50° |
| HF Horn | Rotatable |
| Enclosure Material | Braced 15 mm plywood |
| Cabinet Finish | Black catalyzed polyurethane paint |
| Grille | 1.5 mm perforated steel with black acoustic foam backing |
| Dimensions (H × W × D) | 415 × 255 × 220 mm |
| Net Weight — Active Version | 13 kg |
Power-handling and impedance figures refer to the loudspeaker section, not the built-in amplifier’s output power or the active speaker’s audio input impedance.
Applications
- Live performances and stage monitoring
- Portable PA and mobile DJ systems
- Churches and worship spaces
- Conferences and corporate presentations
- Schools and multipurpose rooms
- Bars and entertainment venues
- Front-fill and near-field sound reinforcement
- Rental systems and fixed installations
Why Choose the HAS8 Active?
The HAS8 Active combines built-in amplification, flexible coverage, and durable plywood construction in a compact 8-inch speaker. Its versatile cabinet design makes it a practical choice for users who need one powered loudspeaker for both PA reinforcement and stage monitoring.
Contact Haozhiseng Audio for pricing, system configurations, and OEM/ODM inquiries.
Website: www.hzsaudio.com
