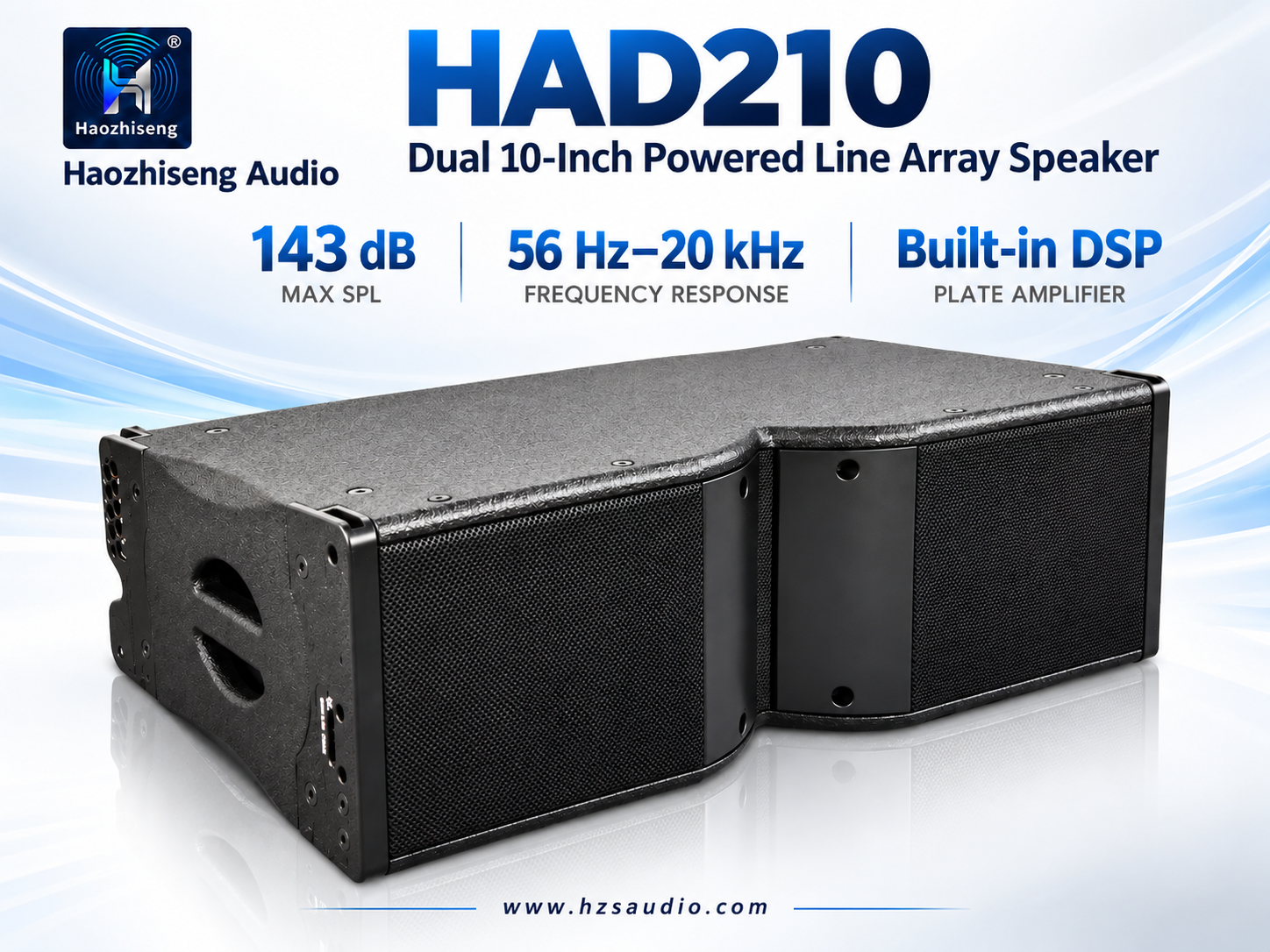

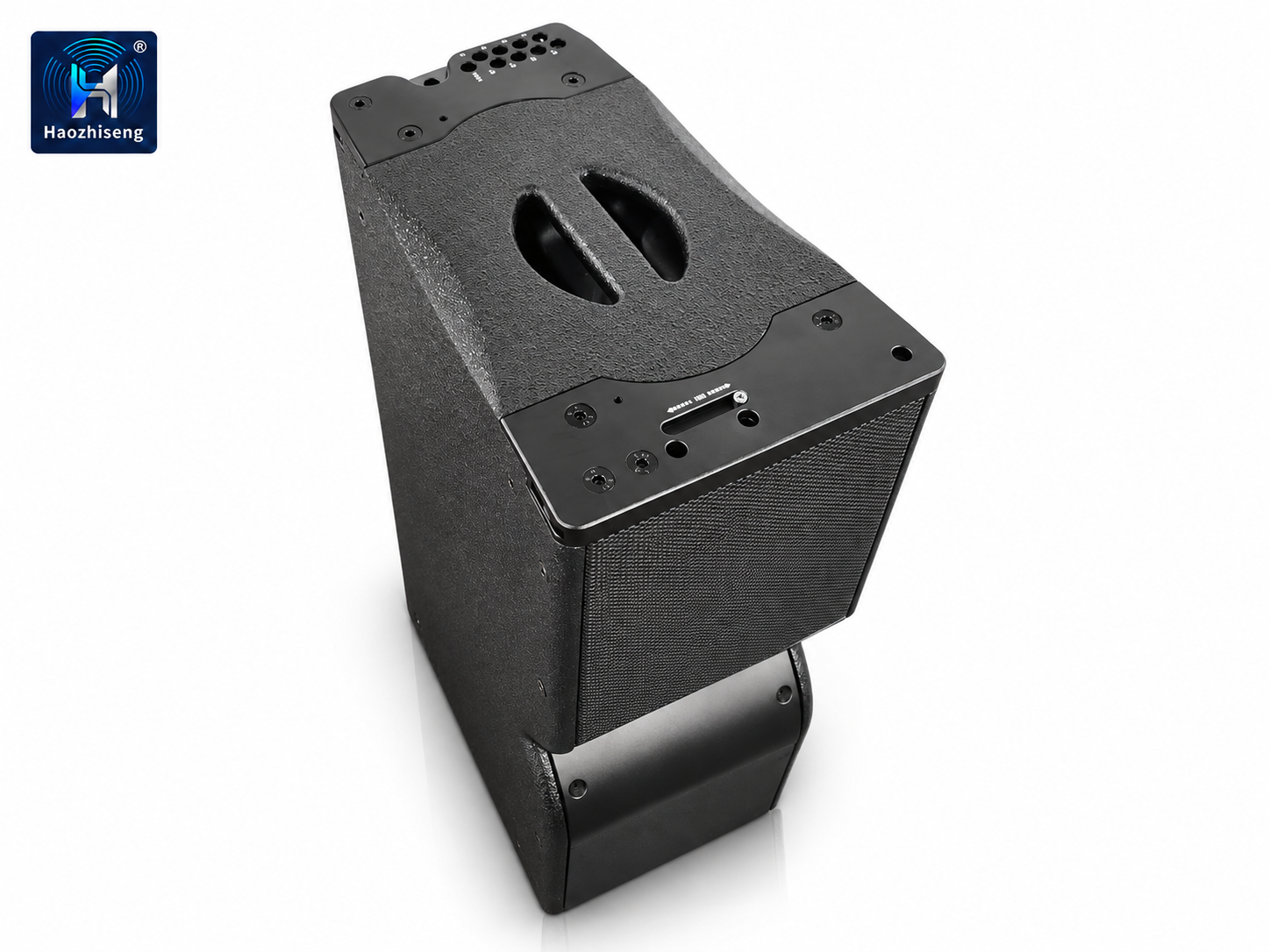

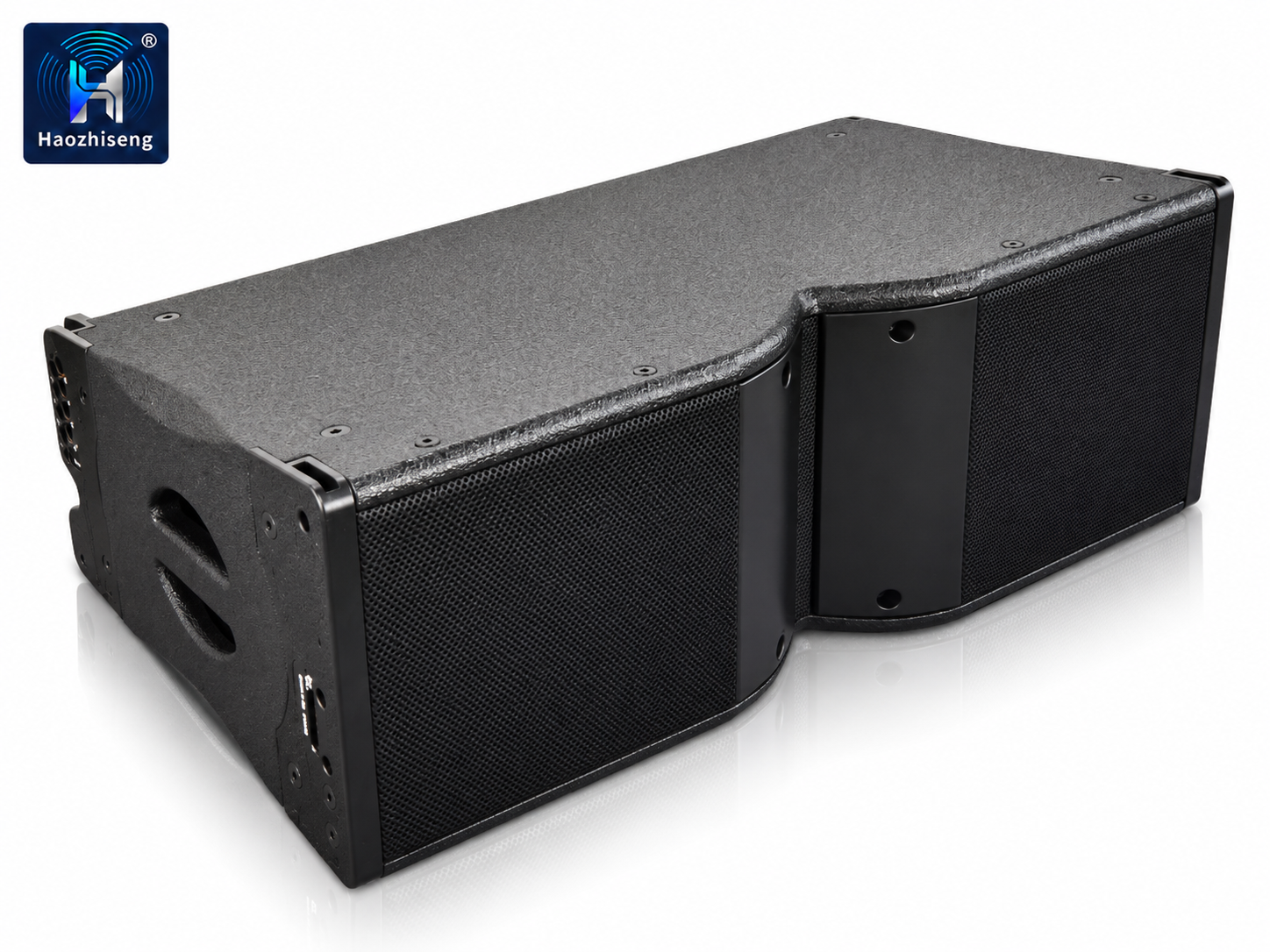

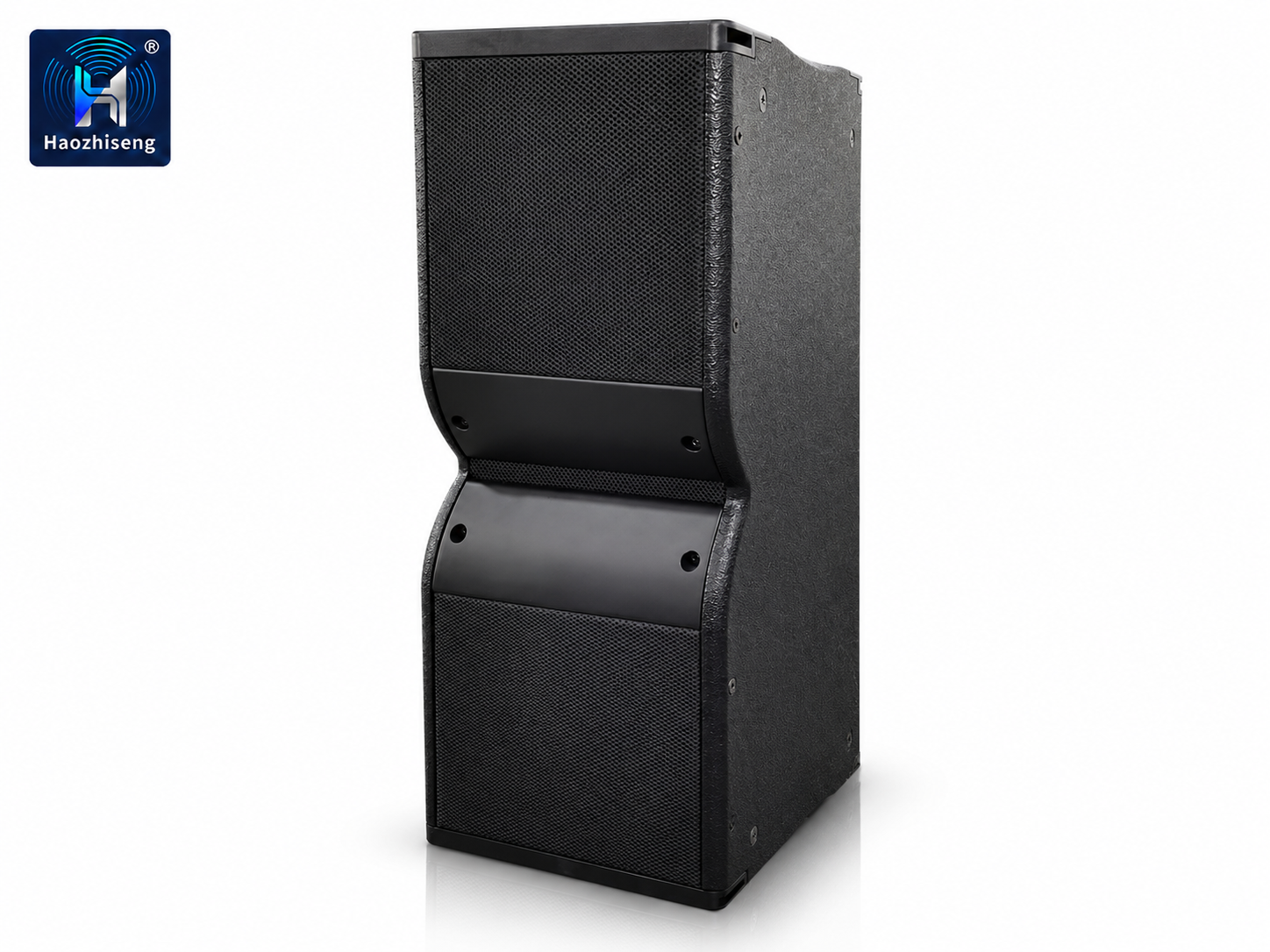

HAD210 Dual 10-Inch Powered Line Array Speaker with Built-in DSP
The Haozhiseng Audio HAD210 is a dual 10-inch powered line array speaker designed for professional live sound, rental systems, and fixed installations. Equipped with two 10-inch neodymium woofers, one 3-inch neodymium high-frequency driver, and a built-in DSP plate amplifier, it combines integrated amplification and signal processing in a compact enclosure.
With a frequency response of 56 Hz–20 kHz and a maximum SPL of 143 dB, the HAD210 delivers powerful sound reinforcement for music and speech. Its birch plywood cabinet features a waterproof polyurea paint finish, while dedicated rigging hardware supports professional array installation.

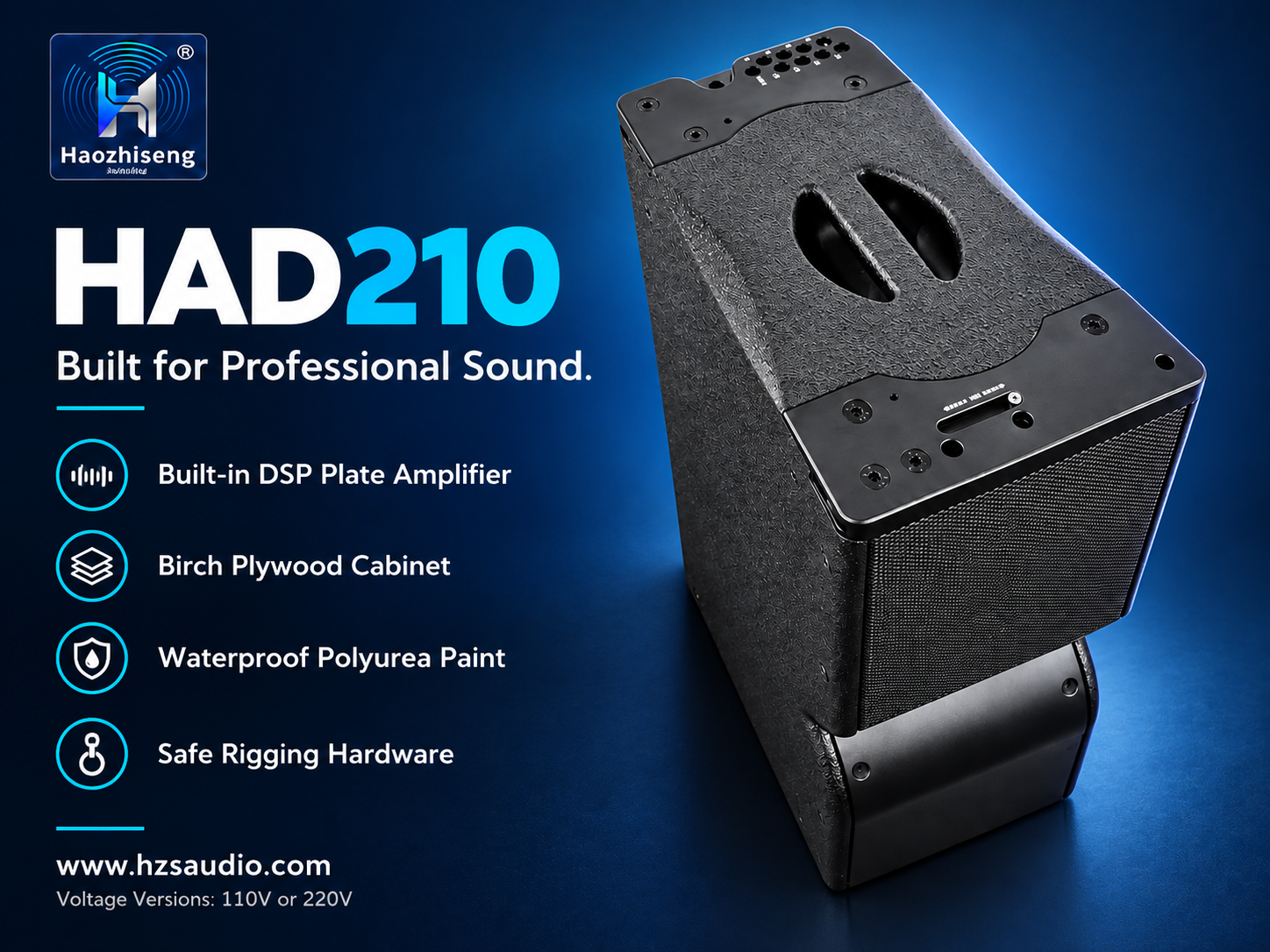

Key Features
- Dual 10-inch neodymium woofers for powerful low- and mid-frequency reproduction.
- One 3-inch neodymium HF driver for clear vocals and detailed high frequencies.
- Built-in DSP plate amplifier combining amplification and digital signal processing.
- 143 dB maximum SPL for high-output professional sound reinforcement.
- 56 Hz–20 kHz frequency response for music and vocal applications.
- Russian birch plywood cabinet with waterproof polyurea paint for a durable, textured finish.
- Safe rigging hardware designed for professional line array deployment.
- 110V or 220V voltage versions to suit different power requirements.
- Compact cabinet with a 32 kg unit weight for portable and installed systems.
Integrated Amplification and DSP
The HAD210 features a built-in DSP plate amplifier, bringing amplification and loudspeaker signal processing together in one enclosure. This integrated design simplifies system configuration and reduces the need for external amplifier racks.
Neodymium Drivers for Professional Sound
Two 10-inch neodymium woofers work alongside a 3-inch neodymium high-frequency driver to reproduce music and vocals with power and clarity. The LF section has a specified power handling of 1200 W, while the HF section is rated at 300 W.

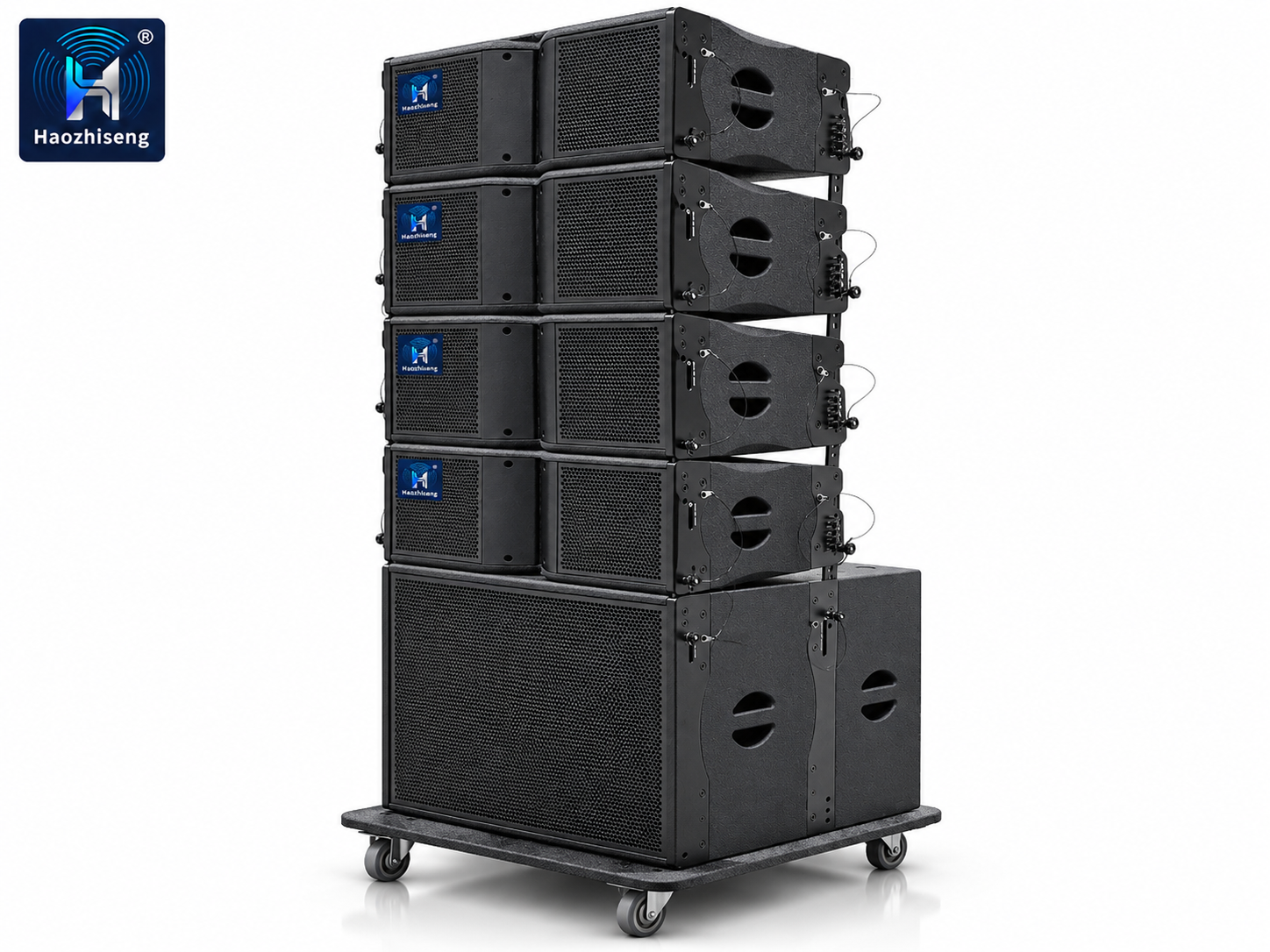

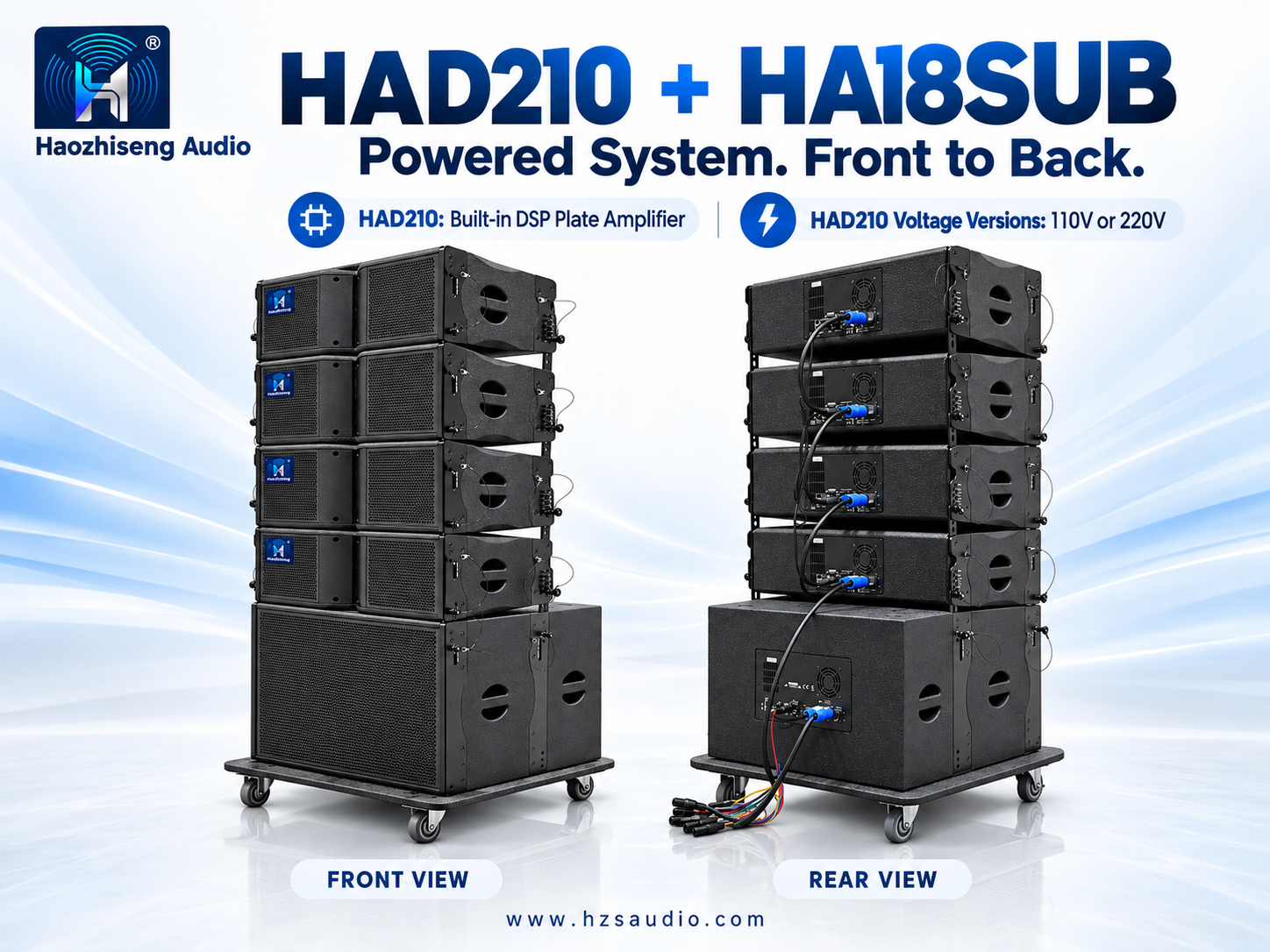

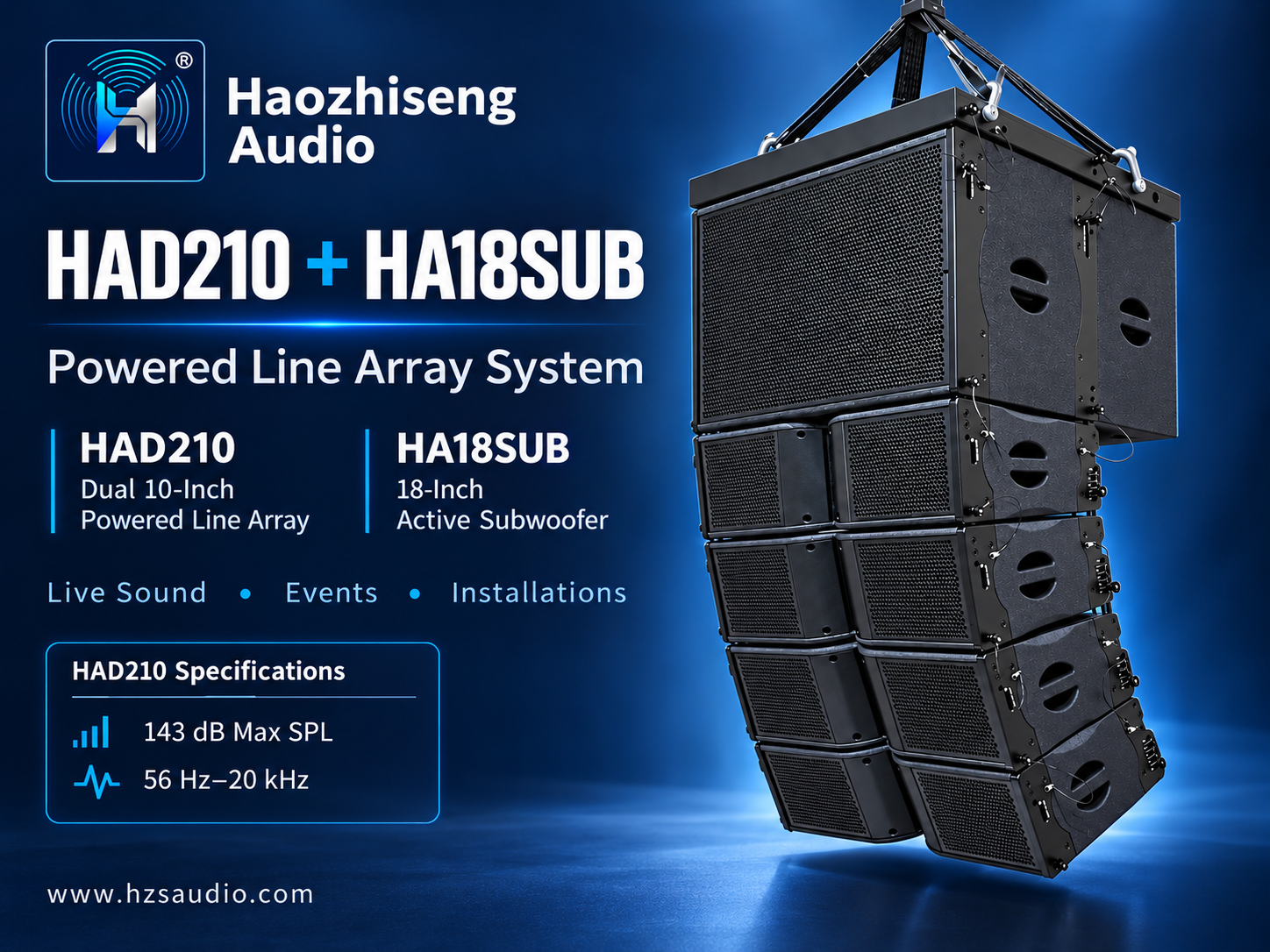

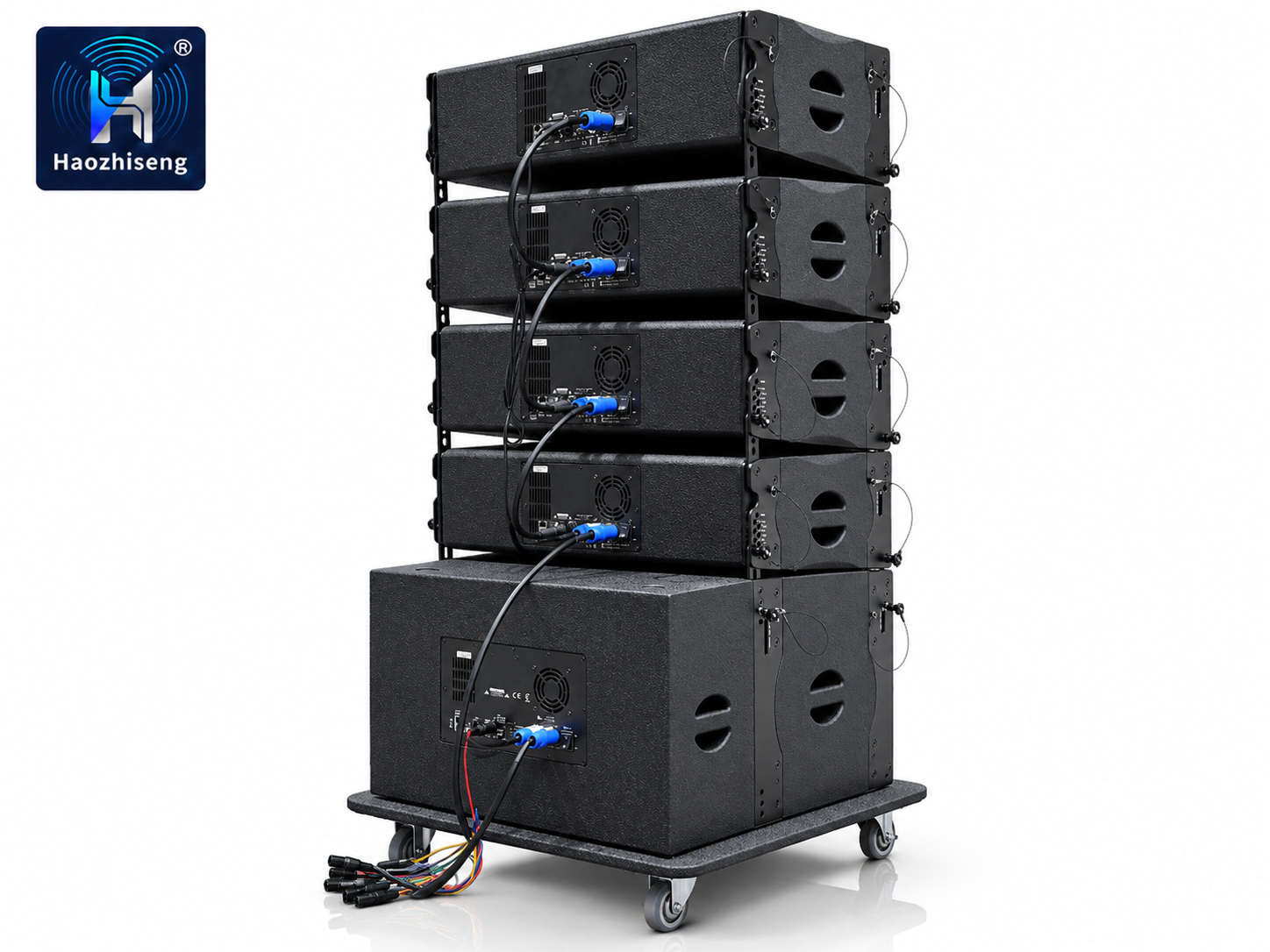

For applications requiring extended low-frequency output, the HAD210 can be combined with suitable subwoofers.
Durable Birch Plywood Cabinet
The Russian birch plywood enclosure provides a rigid structure for professional use. A waterproof polyurea paint finish protects the cabinet surface and preserves its rugged, textured appearance through repeated handling.

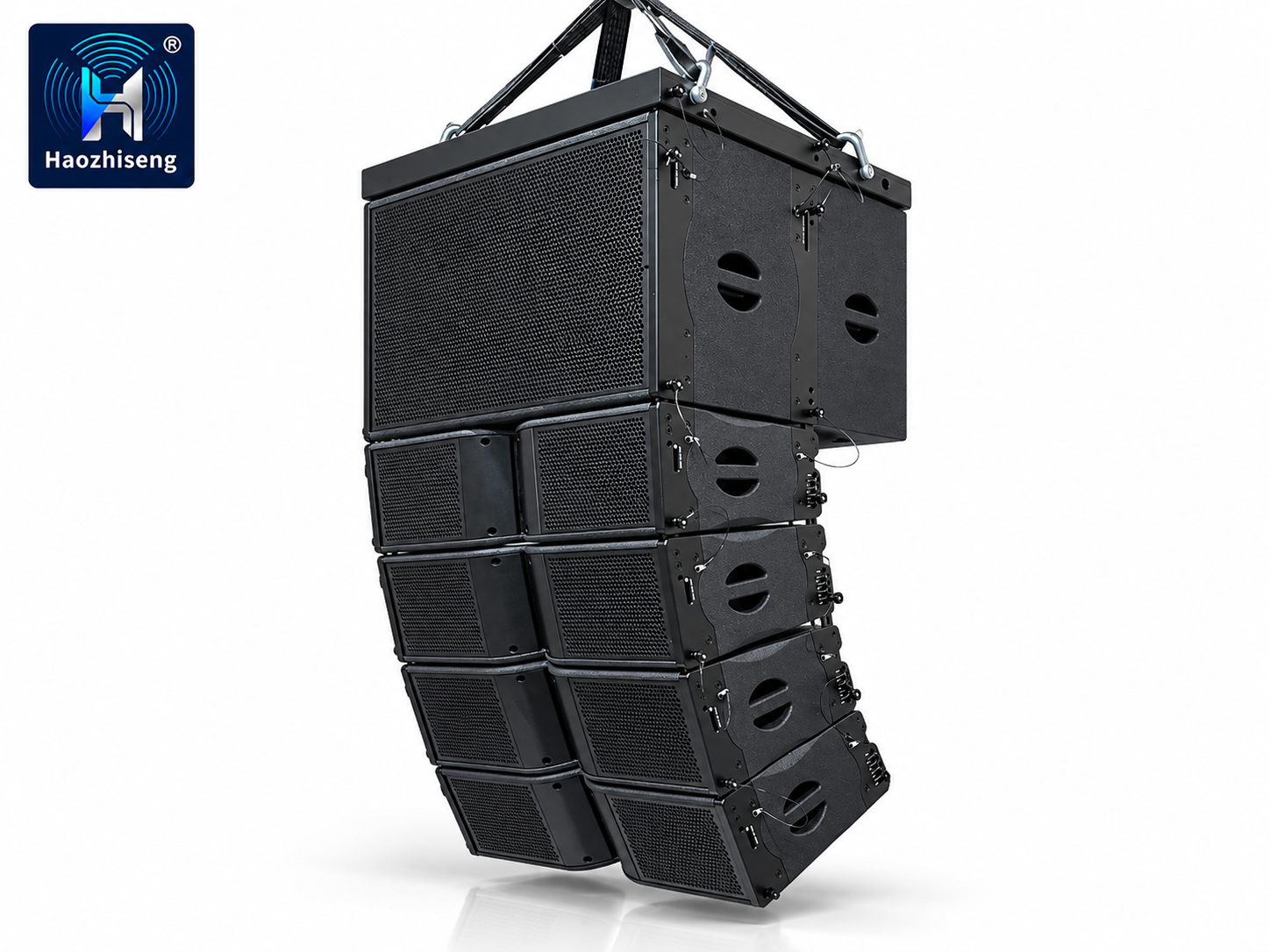

Professional Rigging Hardware
Dedicated rigging hardware supports line array assembly and installation. Array configurations should follow the specified hardware load limits and installation instructions.
Voltage Options
The HAD210 is available in 110V or 220V versions. Select the appropriate version for the local power supply when ordering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HAD210 |
| Brand | Haozhiseng Audio |
| Product Type | Dual 10-Inch Powered Line Array Speaker |
| LF Drivers | 2 × 10-inch neodymium woofers |
| HF Driver | 1 × 3-inch neodymium driver |
| Amplification | Built-in DSP plate amplifier |
| Frequency Response | 56 Hz–20 kHz |
| LF Power Handling | 1200 W |
| HF Power Handling | 300 W |
| Driver Impedance | 8 Ω + 8 Ω |
| Maximum SPL | 143 dB |
| Sensitivity | 103 dB |
| Cabinet Material | Russian birch plywood |
| Cabinet Finish | Waterproof polyurea paint |
| Rigging | Dedicated line array rigging hardware |
| Voltage Version | 110V or 220V |
| Dimensions (H × W × D) | 310 × 852 × 445 mm |
| Weight | 32 kg |
Power handling figures refer to the driver sections, not the built-in amplifier’s output power. The waterproof paint specification applies to the cabinet coating.
Applications
- Live performances and stage sound reinforcement
- Mobile production and rental systems
- Corporate events and conferences
- Theaters and multipurpose halls
- Houses of worship
- Fixed entertainment installations
Why Choose the HAD210?
The HAD210 combines dual 10-inch neodymium drivers, integrated DSP amplification, and a durable birch plywood cabinet in a compact powered line array design. With 143 dB maximum SPL, professional rigging hardware, and a protective polyurea finish, it offers a practical solution for demanding portable and installed sound systems.
Contact Haozhiseng Audio for system configurations, pricing, and OEM/ODM inquiries.
