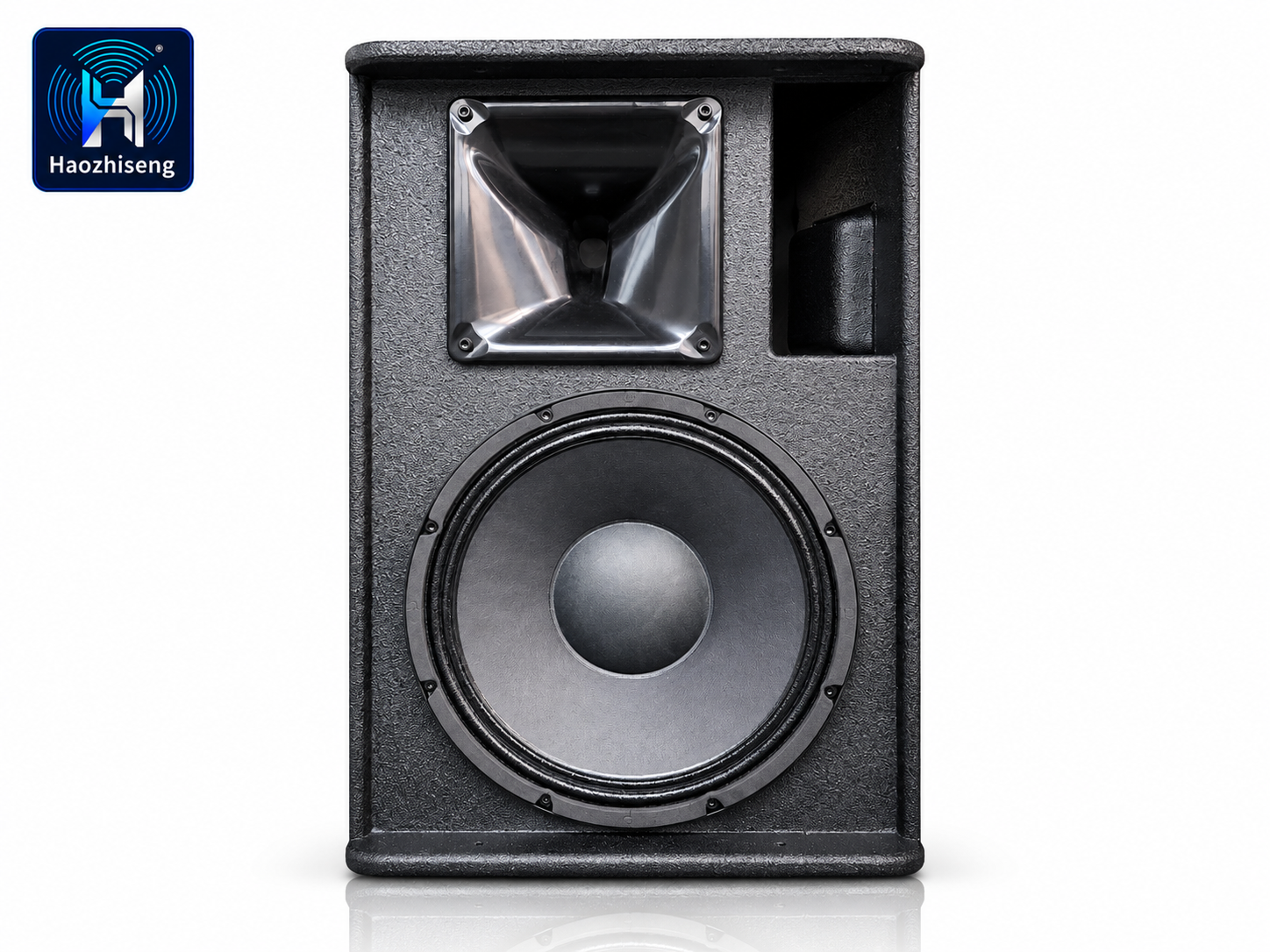

HAS10 Active 10-Inch Powered PA Speaker and Stage Monitor
The Haozhiseng Audio HAS10 Active is a compact, two-way powered loudspeaker designed for professional sound reinforcement and stage monitoring. Featuring a 10-inch low-frequency driver, a 2-inch high-frequency compression driver, and built-in amplification, it provides a convenient solution for portable PA systems and fixed installations.
With a frequency response of 65 Hz–20 kHz (±3 dB) and a maximum SPL of 125 dB, the HAS10 Active delivers clear vocals and balanced music reproduction. Its multi-angle cabinet, rotatable horn, and 15 kg net weight make it a practical choice for main PA, stage monitor, front-fill, and side-fill applications.
Key Features
- Built-in amplification for operation without a separate external power amplifier.
- 10-inch LF driver and 2-inch HF compression driver for two-way full-range reproduction.
- 65 Hz–20 kHz frequency response (±3 dB) for speech and music reinforcement.
- 125 dB maximum SPL in a compact enclosure.
- 90° horizontal × 50° vertical nominal coverage with a rotatable horn.
- Multi-angle cabinet design for main PA and stage monitoring.
- 15 mm plywood construction with a textured black polyurethane finish.
- 1.5 mm perforated steel grille with acoustic foam backing to help protect the drivers.
- 15 kg net weight for convenient transport and deployment.
Clear Vocals and Balanced Sound
The HAS10 Active combines a 10-inch woofer with a 2-inch compression driver to reproduce speech, vocals, and musical instruments. Its compact format makes it suitable for applications where vocal clarity and practical placement are priorities.
Use it for presentations, live performances, or background and foreground music. For applications requiring deeper bass, pair it with a compatible subwoofer.
Built-In Amplification for Convenient Setup
The integrated amplifier brings amplification and loudspeaker components together in one enclosure, reducing the need for separate amplifier equipment.
This active design makes the HAS10 Active a practical choice for mobile entertainers, rental companies, and venues seeking a compact powered speaker for everyday sound reinforcement.
Flexible PA and Stage Monitor Configuration
The multi-angle enclosure allows the HAS10 Active to serve as a main PA speaker or a floor monitor. It can also support larger systems as a front-fill or side-fill speaker.
A rotatable high-frequency horn provides 90° × 50° nominal dispersion, allowing coverage orientation to be adapted for vertical or horizontal deployment.

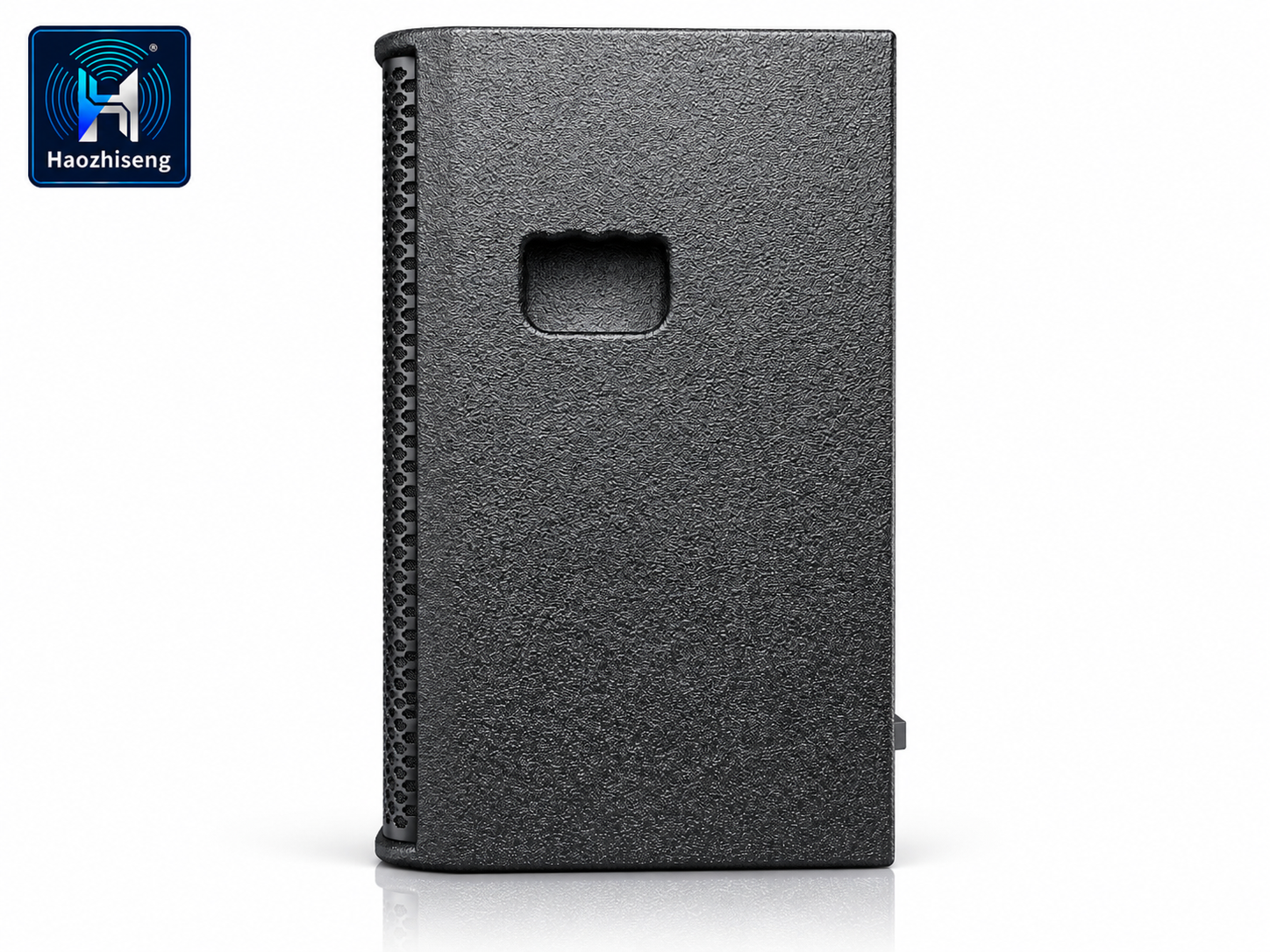

Durable Cabinet Construction
The 15 mm plywood enclosure features a black catalyzed polyurethane paint finish with a professional textured appearance.

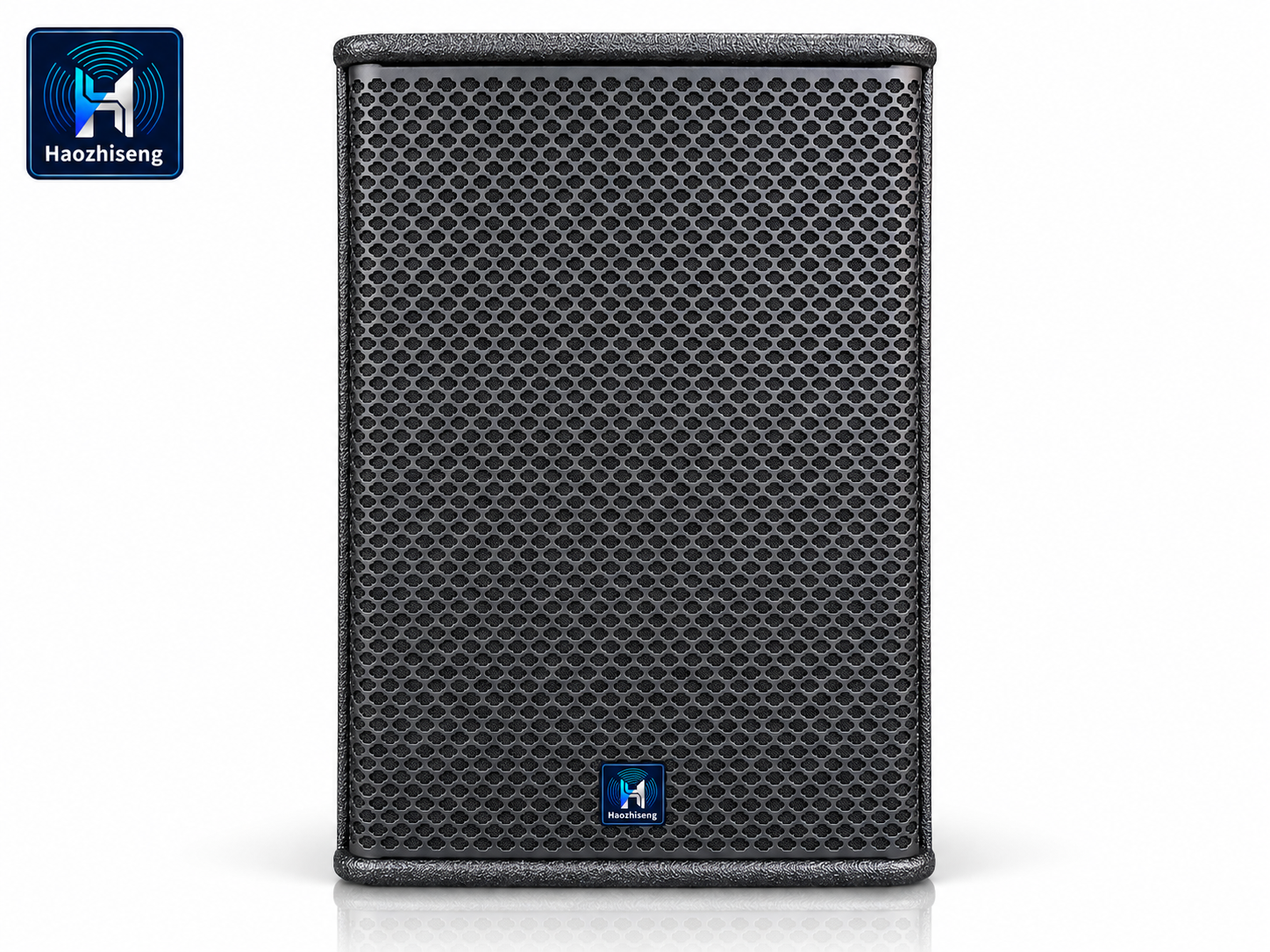

A 1.5 mm perforated steel grille, backed by black acoustic foam, helps protect the drivers. Measuring 510 × 315 × 280 mm and weighing 15 kg, the HAS10 Active is easy to accommodate in a variety of portable and installed sound systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HAS10 Active |
| Brand | Haozhiseng Audio |
| System Type | Two-way active full-range PA speaker |
| Amplification | Built-in amplifier |
| LF Driver | 1 × 10-inch woofer |
| HF Driver | 1 × 2-inch compression driver |
| Frequency Response (±3 dB) | 65 Hz–20 kHz |
| Loudspeaker Sensitivity (1 W / 1 m) | 98 dB SPL |
| Long-Term SPL | 119 dB |
| Maximum SPL | 125 dB |
| Loudspeaker Nominal Impedance | 8Ω |
| Loudspeaker Power Handling (AES) | 300 W |
| Loudspeaker Peak Power Handling | 600 W |
| Nominal Dispersion (H × V) | 90° × 50° |
| HF Horn | Rotatable |
| Enclosure Material | 15 mm plywood |
| Cabinet Finish | Black catalyzed polyurethane paint |
| Grille | 1.5 mm perforated steel with black acoustic foam backing |
| Dimensions (H × W × D) | 510 × 315 × 280 mm |
| Net Weight | 15 kg |
Power-handling and impedance figures refer to the loudspeaker section, not the built-in amplifier’s output power or the active speaker’s audio input impedance.
Applications
- Live performances and portable PA systems
- Stage monitoring
- Front-fill and side-fill reinforcement
- Mobile DJ and private events
- Churches and worship spaces
- Conferences, classrooms, and presentations
- Bars, KTV venues, and entertainment spaces
- Rental systems and fixed installations
Why Choose the HAS10 Active?
The HAS10 Active combines built-in amplification, a compact 10-inch two-way design, and flexible cabinet geometry in one practical sound reinforcement solution. Its rotatable horn, protective steel grille, and durable plywood enclosure make it a versatile addition to portable systems and permanent installations.
With a net weight of 15 kg, it offers manageable handling for users who regularly transport and set up their audio equipment.
Contact Haozhiseng Audio for pricing, system configurations, and OEM/ODM inquiries.
Website: www.hzsaudio.com
