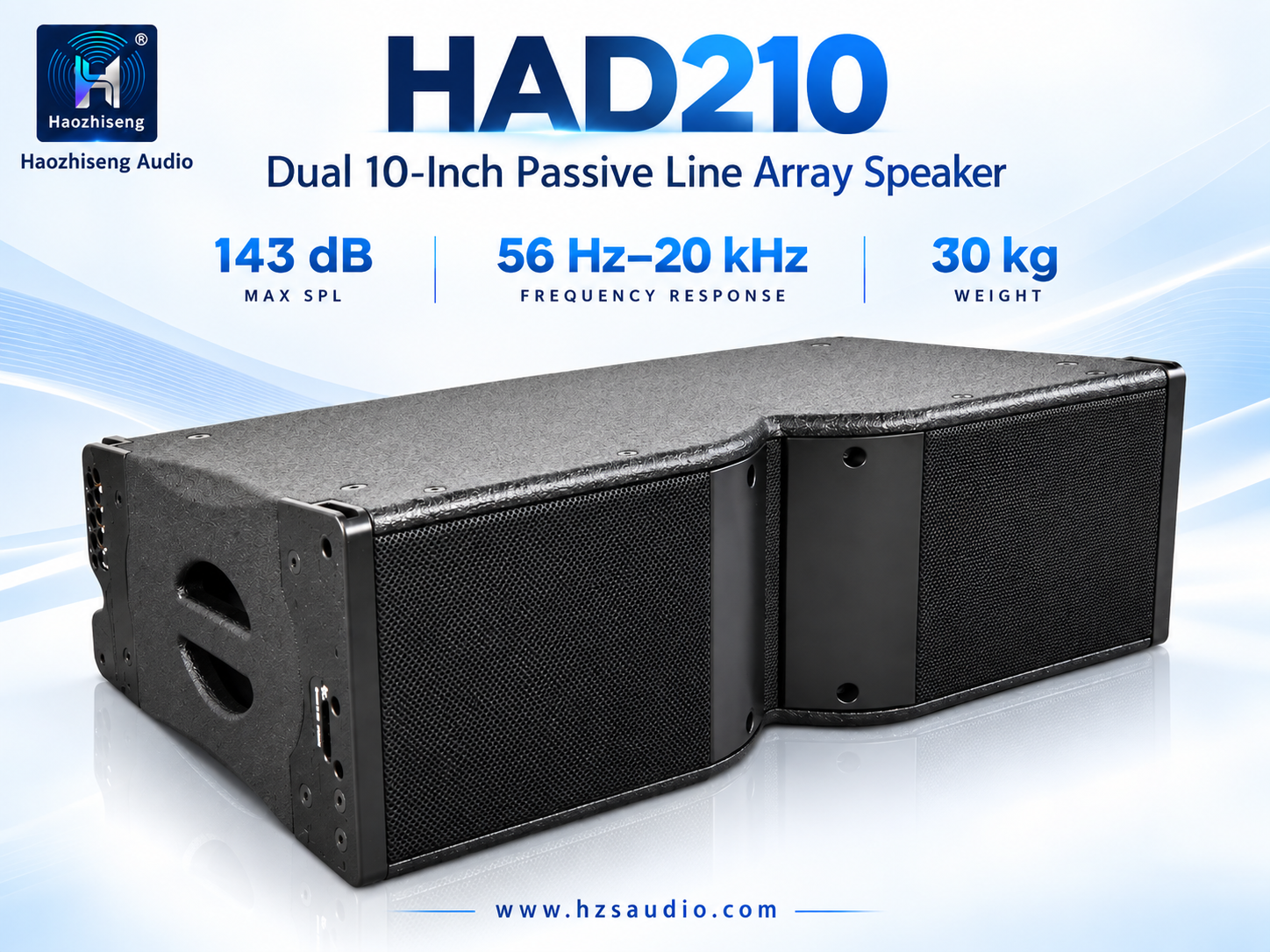

HAD210 Dual 10-Inch Passive Line Array Speaker
The Haozhiseng Audio HAD210 is a dual 10-inch passive line array speaker designed for professional live sound, rental applications, and fixed installations. Featuring two 10-inch neodymium woofers and one 3-inch neodymium high-frequency driver, it delivers powerful sound reinforcement in a compact, durable enclosure.
With a frequency response of 56 Hz–20 kHz and a maximum SPL of 143 dB, the HAD210 supports both music and vocal applications. Its Russian birch plywood cabinet is finished with waterproof polyurea paint, while dedicated rigging hardware and two 4-pin Neutrik connectors support professional system deployment.
Key Features
- Dual 10-inch neodymium woofers for powerful low- and mid-frequency reproduction.
- One 3-inch neodymium HF driver for clear vocals and detailed high frequencies.
- Passive design for use with external amplification and loudspeaker processing.
- 143 dB maximum SPL for high-output sound reinforcement.
- 56 Hz–20 kHz frequency response for music and speech.
- 2 × 4-pin Neutrik connectors for professional speaker cable connections.
- Russian birch plywood cabinet with a durable waterproof polyurea paint finish.
- Dedicated rigging hardware for professional line array assembly.
- 30 kg cabinet weight and compact dimensions for portable and installed systems.
External Amplification and System Control
The HAD210 is designed for use with external power amplifiers and loudspeaker processors, allowing amplification and processing to be configured around the system’s requirements. This arrangement supports centralized amplifier racks for rental systems, event production, and permanent installations.

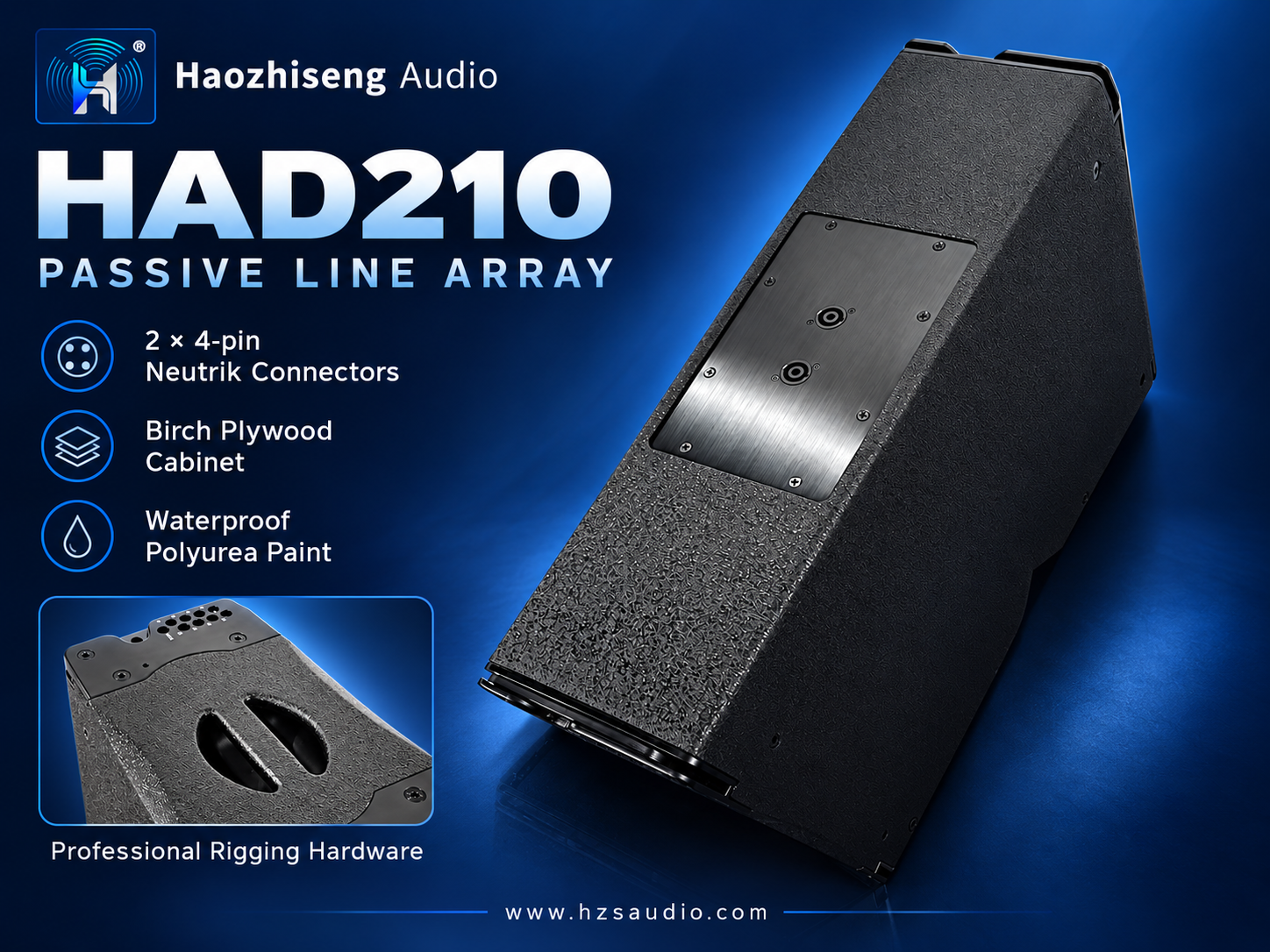

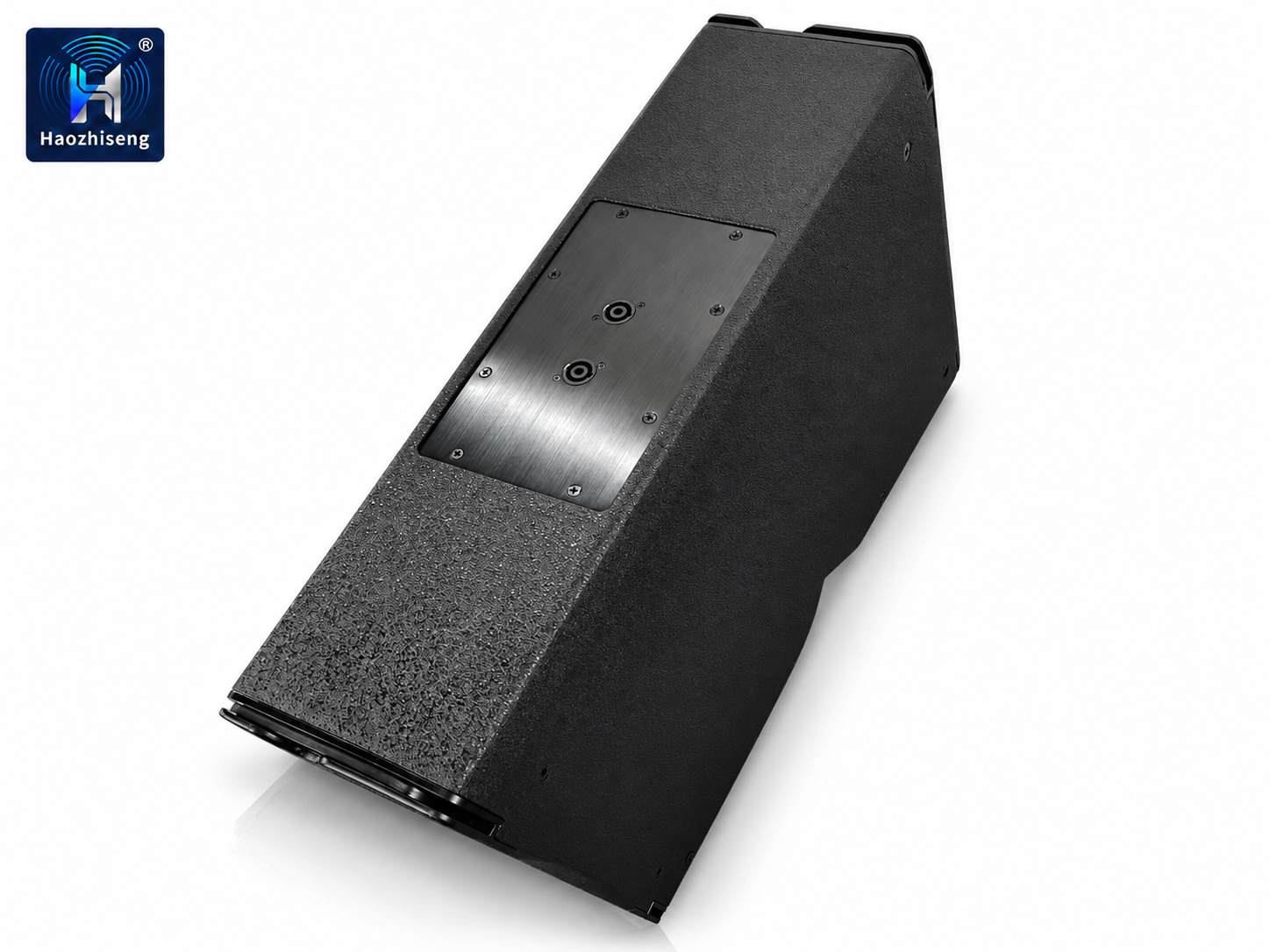

Two 4-pin Neutrik connectors provide the speaker cable connection points.
Neodymium Driver Configuration
Two 10-inch neodymium woofers work with a single 3-inch neodymium high-frequency driver to reproduce music and vocals with power and clarity. Specified power handling is 1200 W for the LF section and 300 W for the HF section.

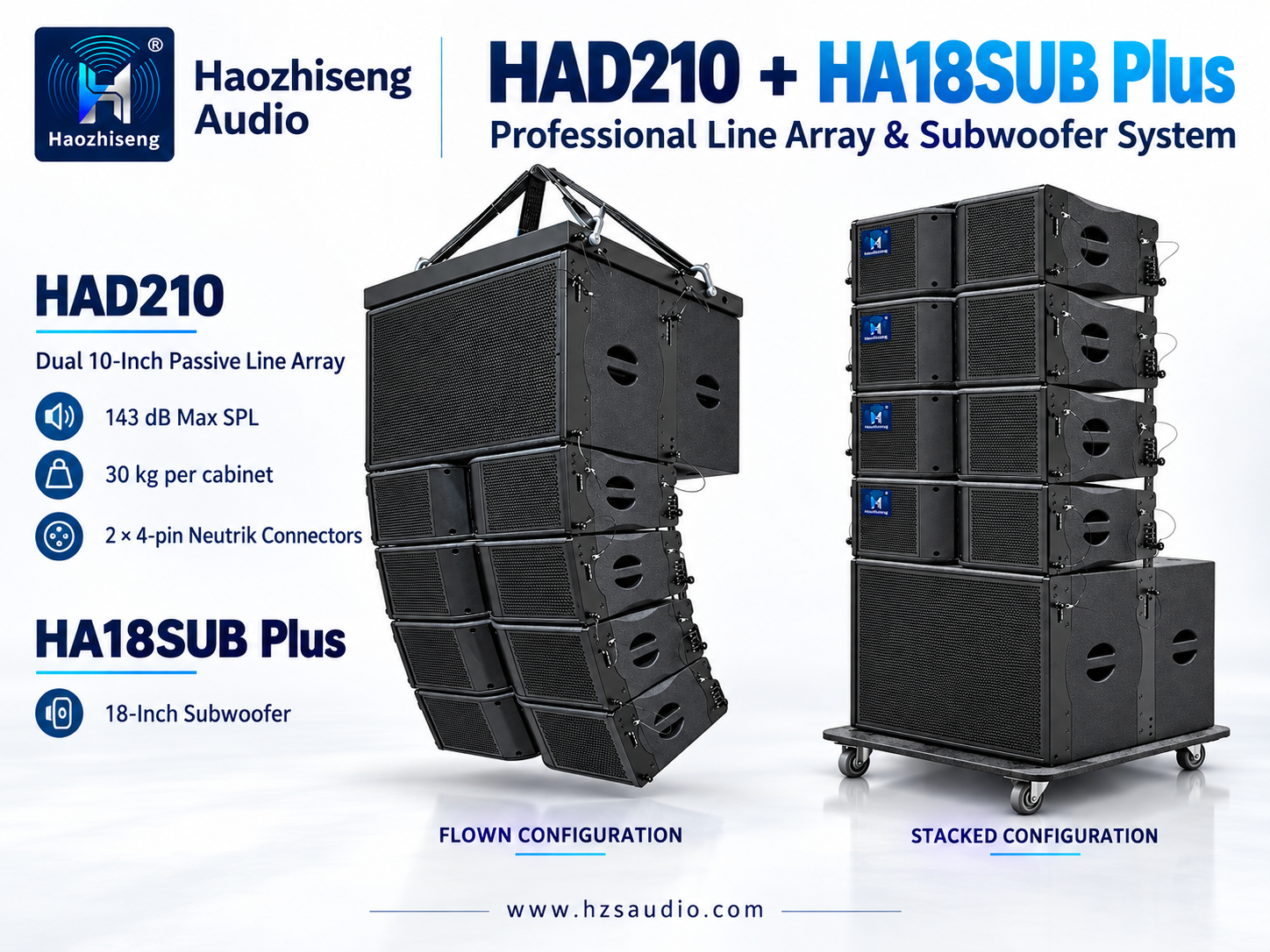

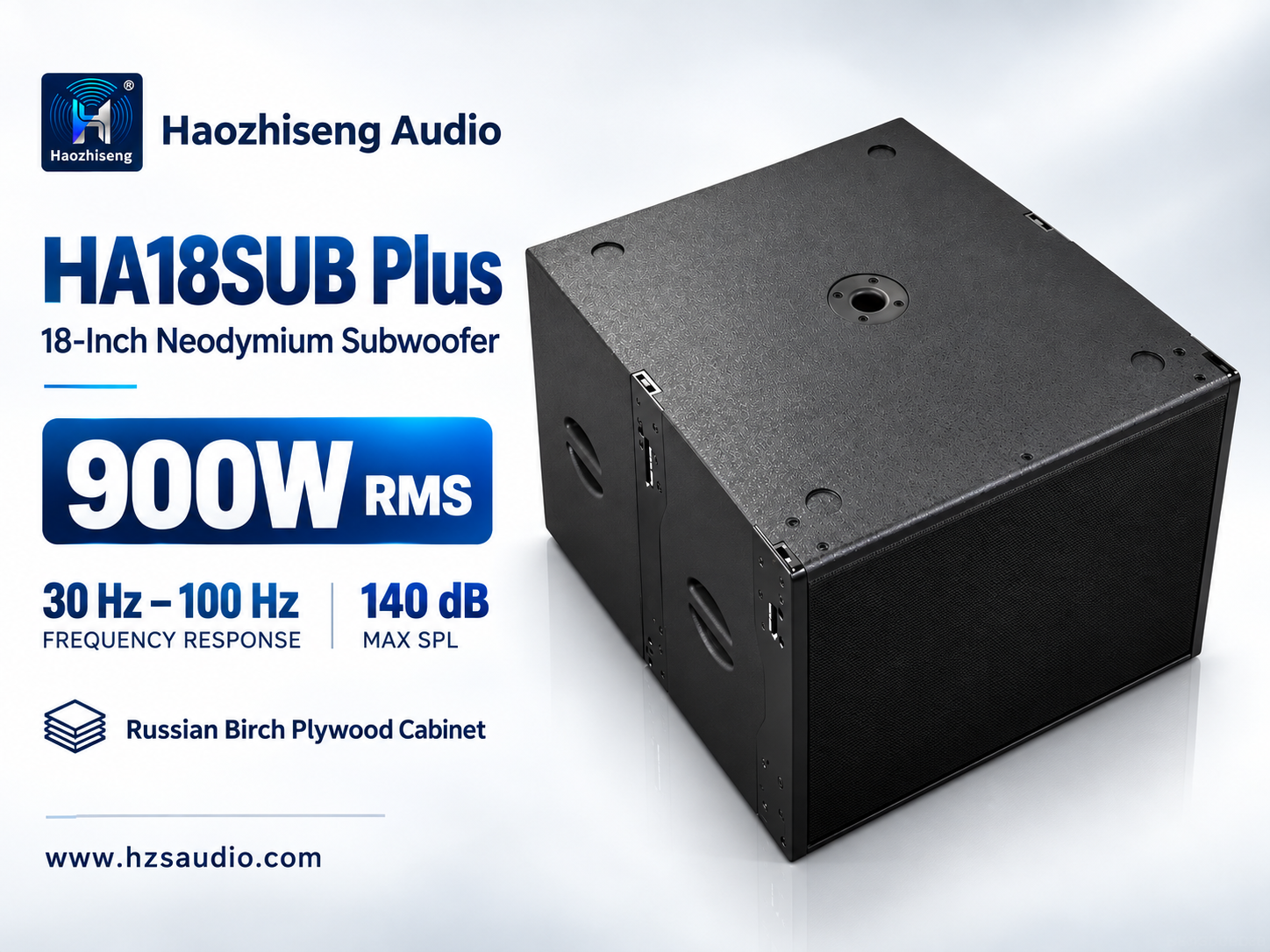

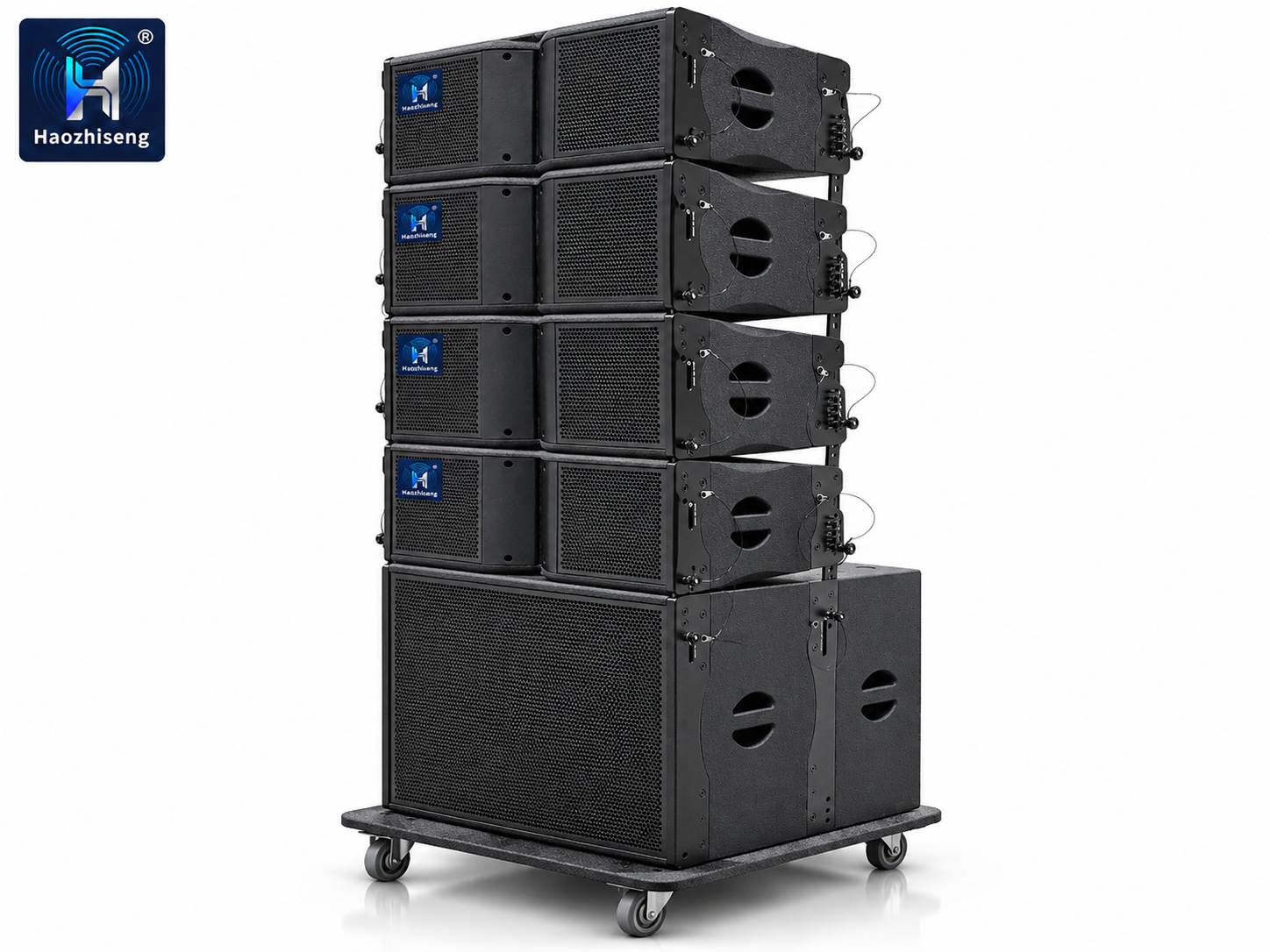

For applications requiring extended bass response, the HAD210 can be paired with suitable subwoofers.

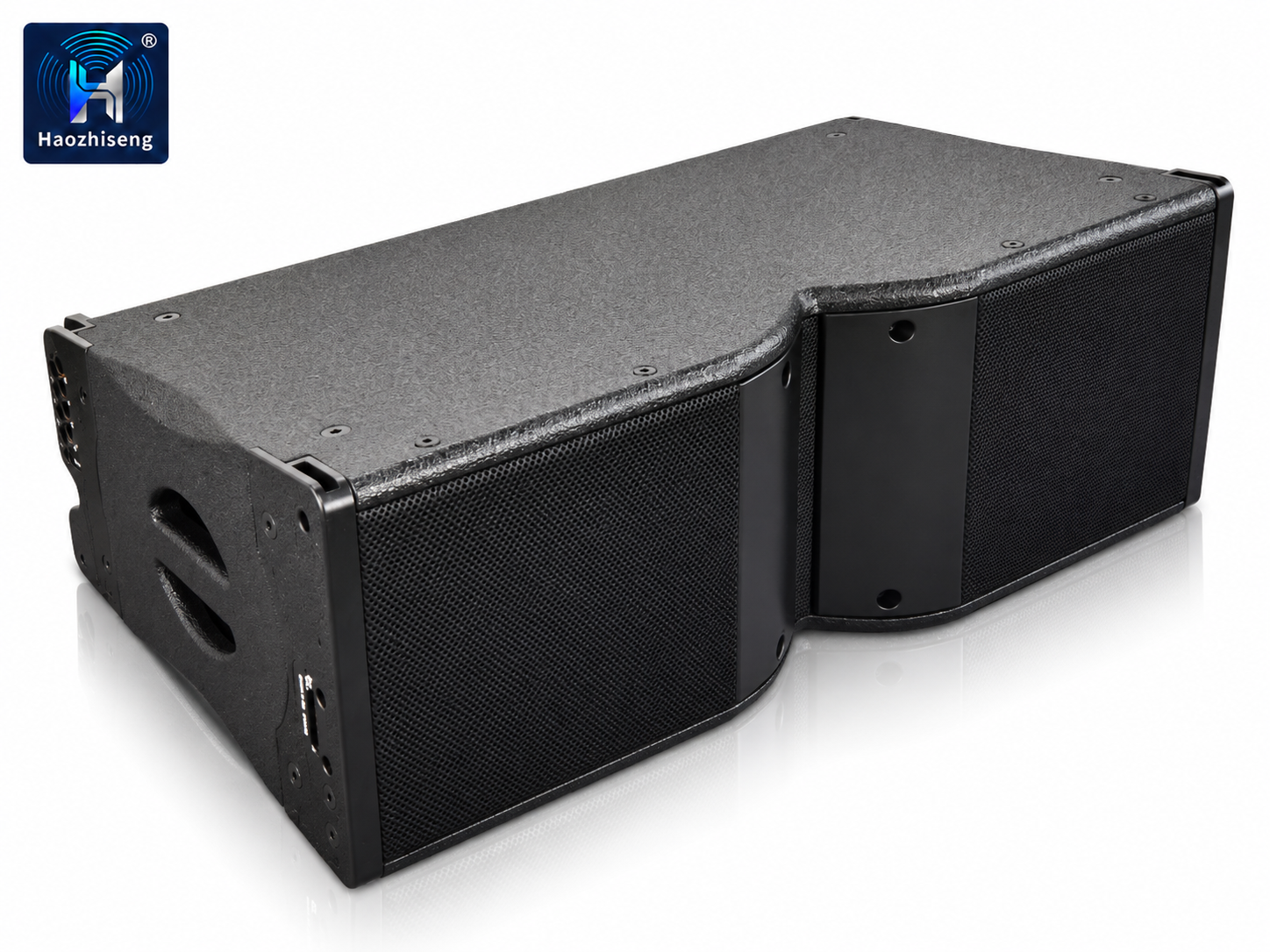

Durable Cabinet Construction
The Russian birch plywood enclosure provides a rigid structure for professional use. Its waterproof polyurea paint finish protects the cabinet surface and maintains a rugged, textured appearance through repeated handling.

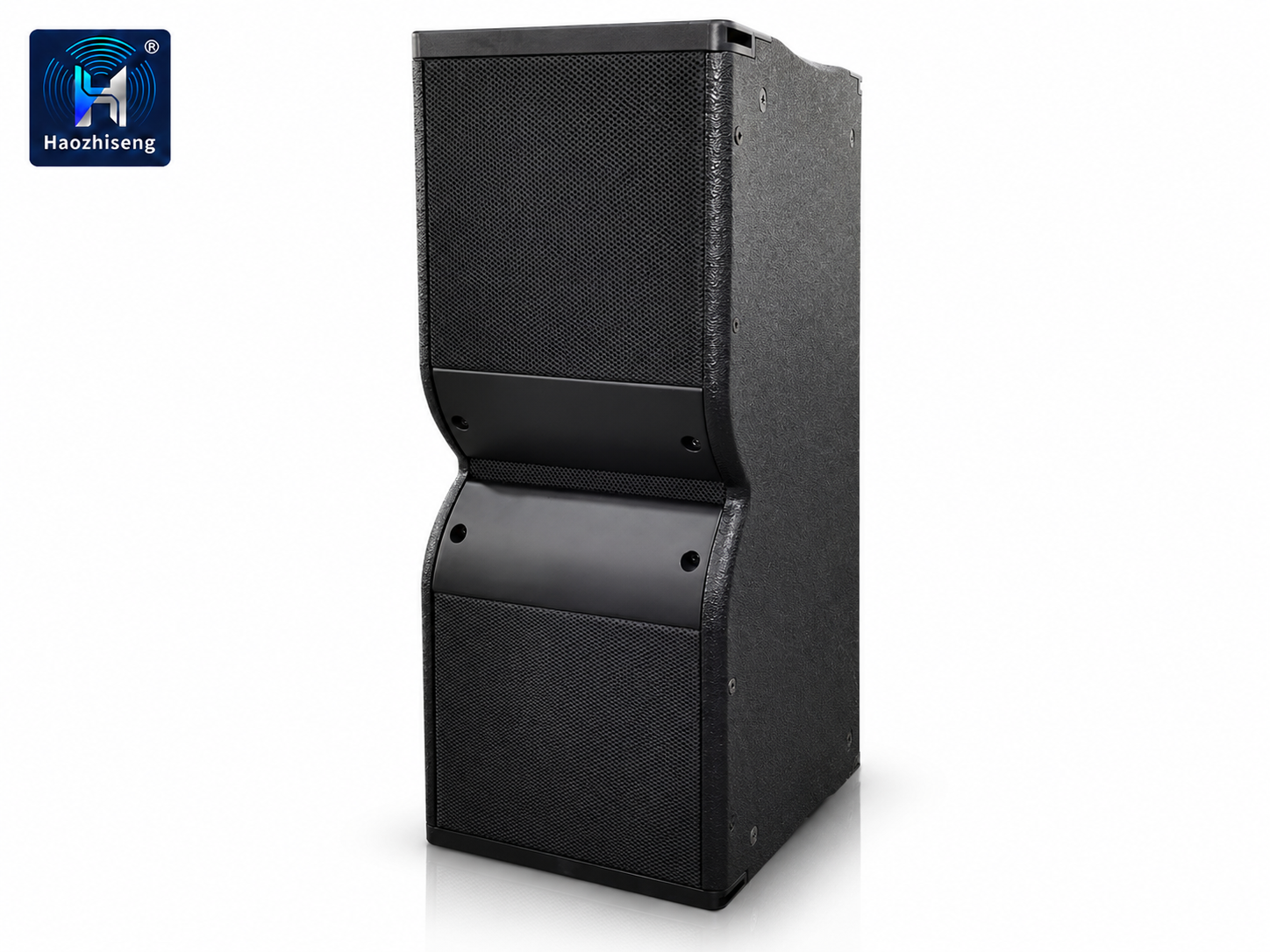

A steel grille with acoustic foam helps protect the drivers while preserving a clean, professional front appearance.

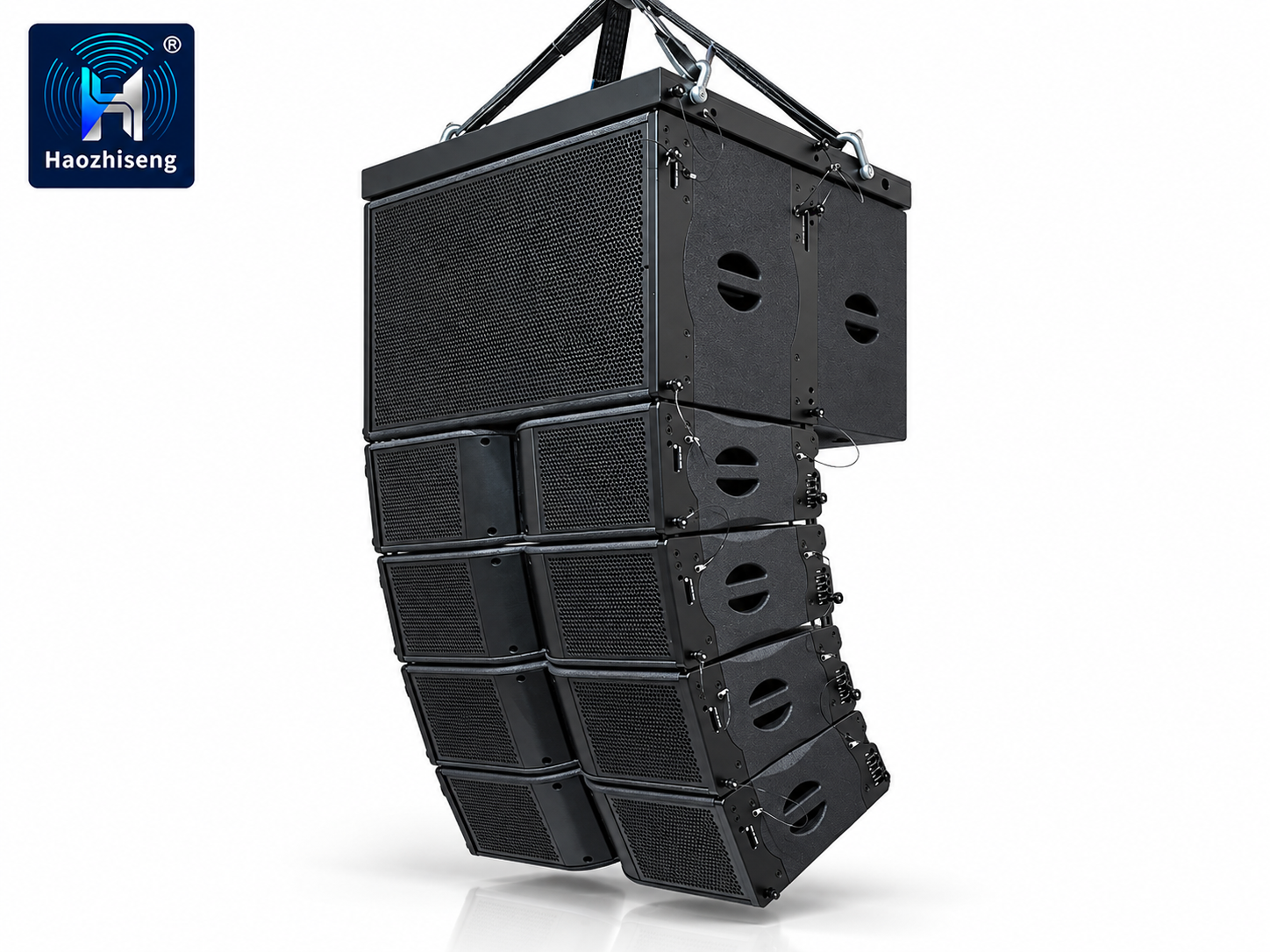

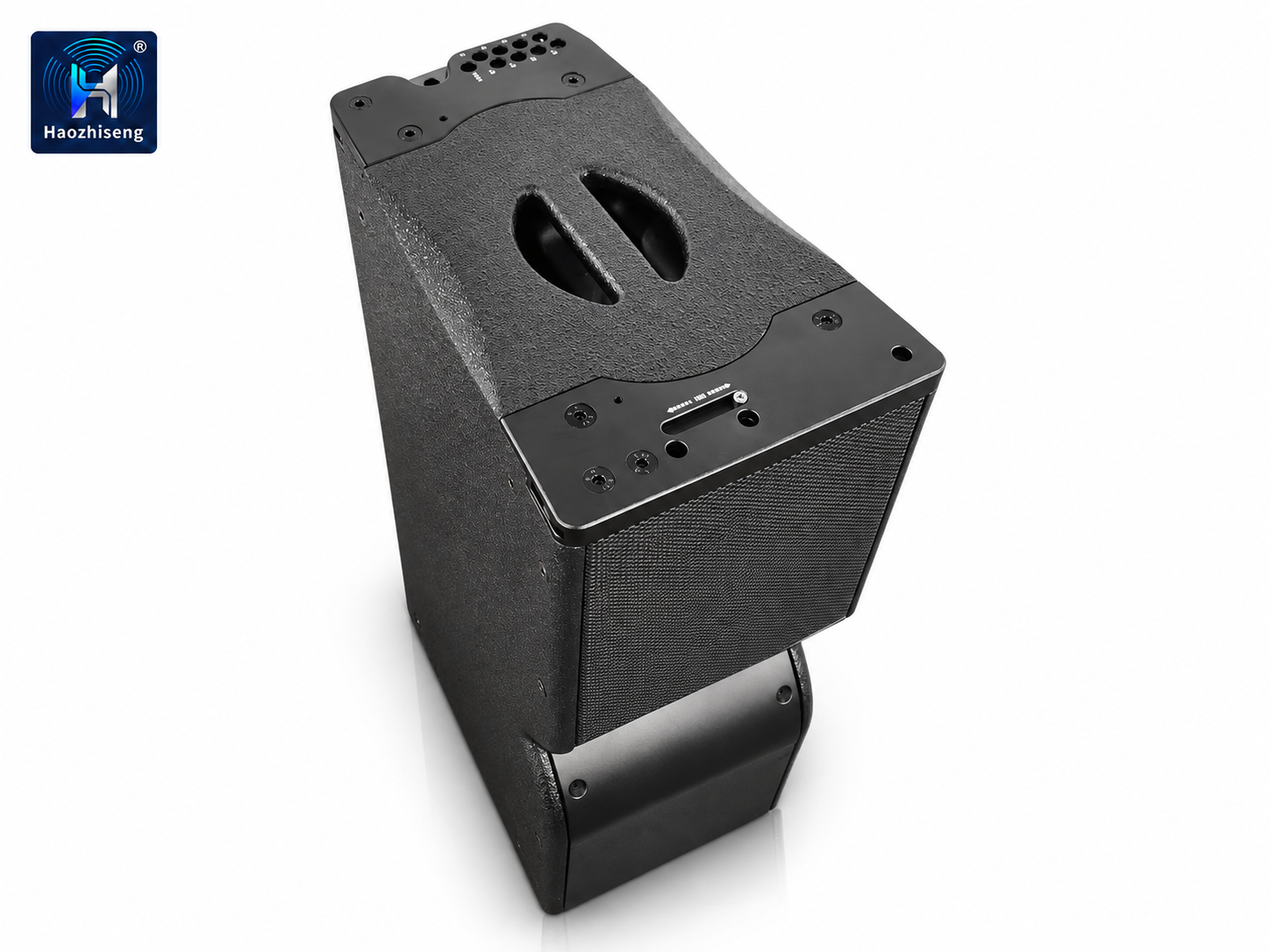

Professional Rigging Hardware
Dedicated rigging hardware supports line array assembly for portable and permanent systems. The compact cabinet measures 310 × 852 × 445 mm (H × W × D) and weighs 30 kg, supporting practical transport and installation planning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HAD210 |
| Brand | Haozhiseng Audio |
| Product Type | Dual 10-Inch Passive Line Array Speaker |
| LF Drivers | 2 × 10-inch neodymium woofers |
| HF Driver | 1 × 3-inch neodymium driver |
| Amplification | External power amplifier required |
| Frequency Response | 56 Hz–20 kHz |
| LF Power Handling | 1200 W |
| HF Power Handling | 300 W |
| Driver Impedance | 8 Ω + 8 Ω |
| Maximum SPL | 143 dB |
| Sensitivity | 103 dB |
| Connectors | 2 × 4-pin Neutrik connectors |
| Cabinet Material | Russian birch plywood |
| Cabinet Finish | Waterproof polyurea paint |
| Front Protection | Steel grille with acoustic foam |
| Rigging | Dedicated line array rigging hardware |
| Dimensions (H × W × D) | 310 × 852 × 445 mm |
| Weight | 30 kg |
Applications
- Live performances and stage sound reinforcement
- Mobile production and rental systems
- Corporate events and conferences
- Theaters and multipurpose halls
- Houses of worship
- Fixed entertainment installations
Why Choose the HAD210?
The HAD210 combines neodymium drivers, a durable birch plywood cabinet, and professional rigging hardware in a compact passive line array design. Its external amplification architecture gives system designers flexibility in amplifier selection and loudspeaker processing, while Neutrik connectors and a protective polyurea finish support everyday professional use.
Contact Haozhiseng Audio for system configurations, pricing, and OEM/ODM inquiries.
