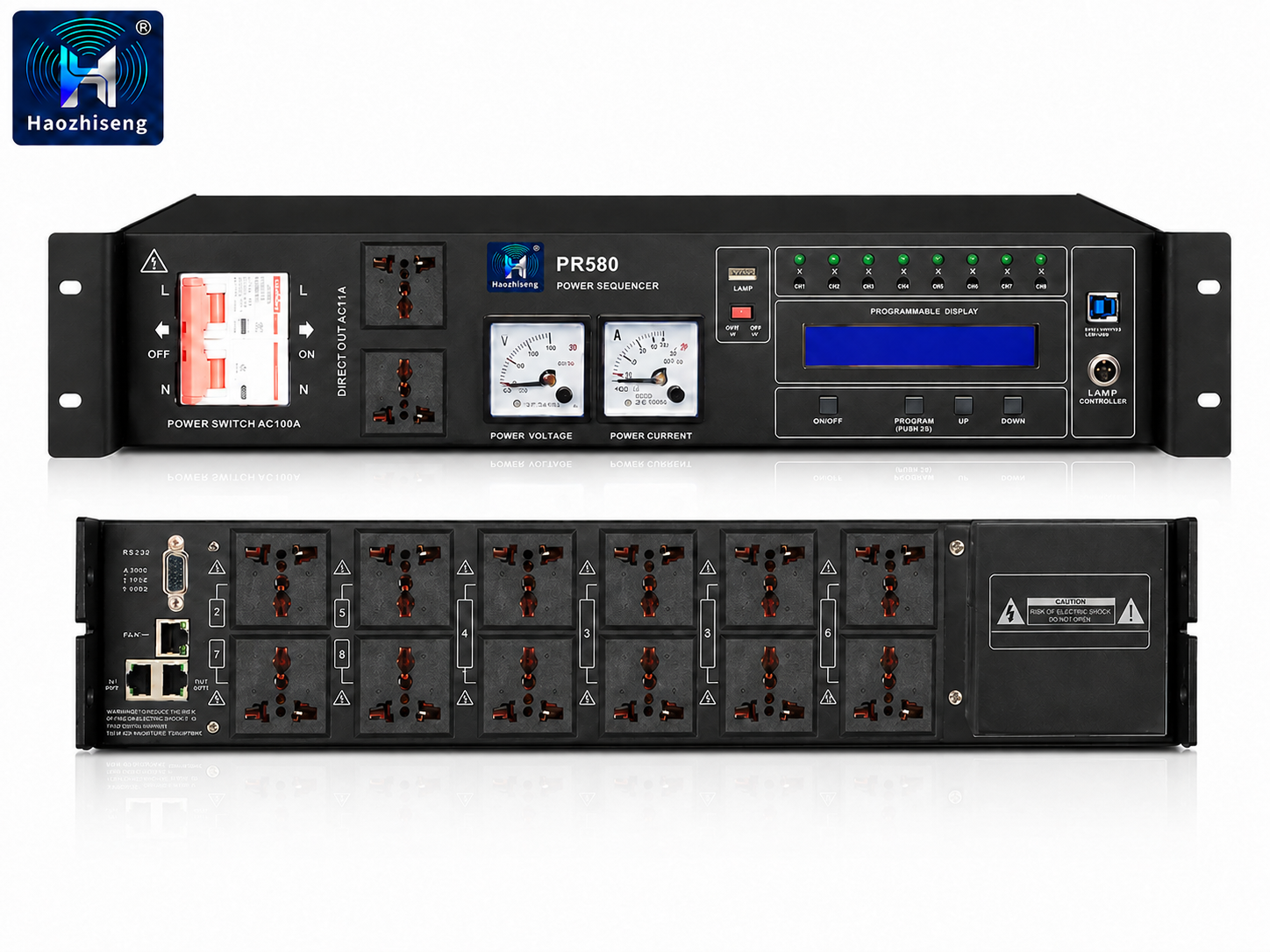

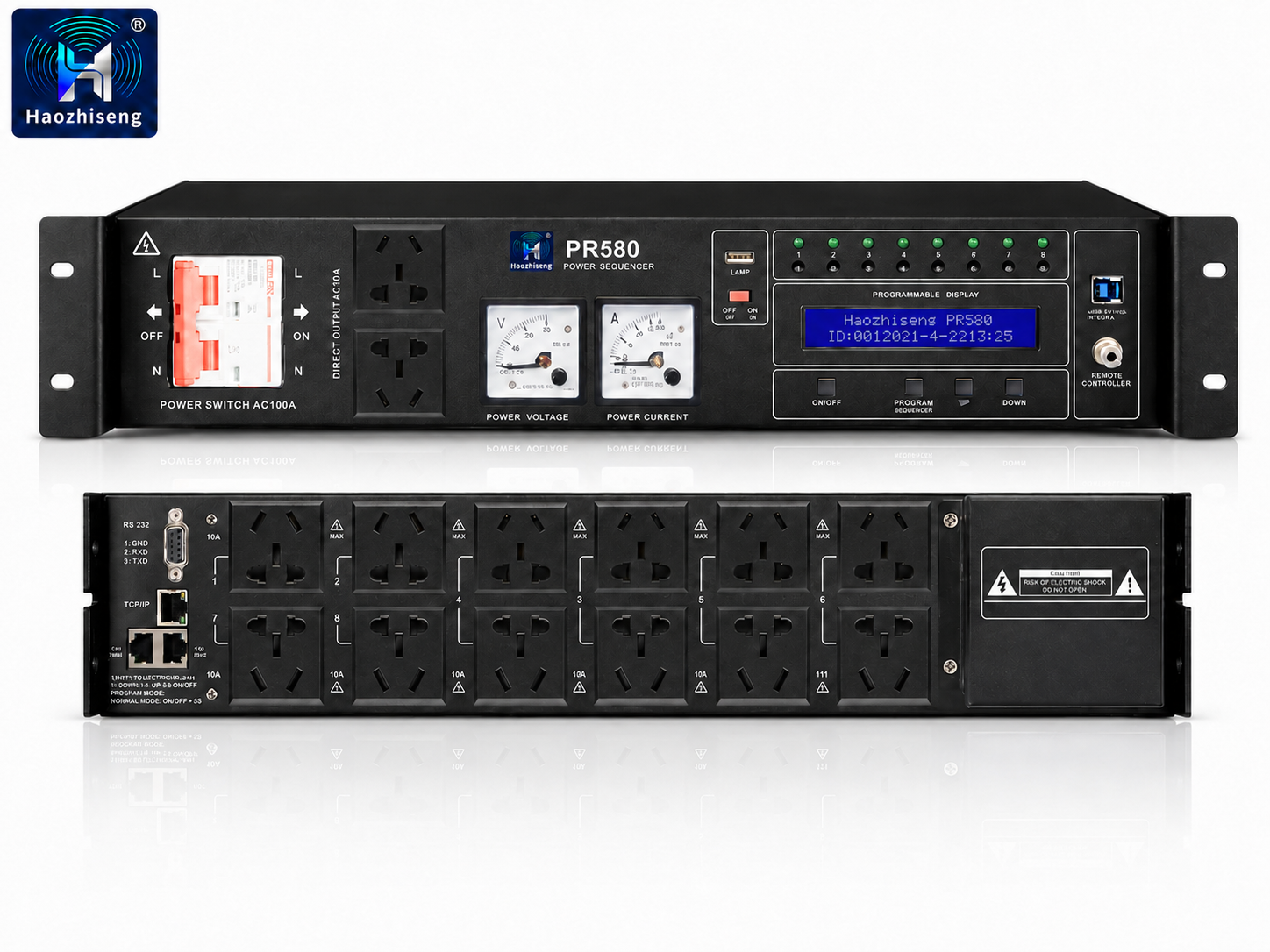

PR580 8-Channel Single-Phase Digital Programmable Power Sequencer
Product Overview
The PR580 is a professional single-phase digital programmable power sequencer designed for audio systems, stage equipment, conference installations, broadcasting facilities and other applications requiring reliable sequential power control.
Powered by a 32-bit ARM processor, the PR580 provides precise and stable timing control for connected equipment. Eight independently controlled sequencing channels help reduce the impact of simultaneous power-on current, allowing amplifiers, processors and other devices to be switched on or off in a controlled sequence.

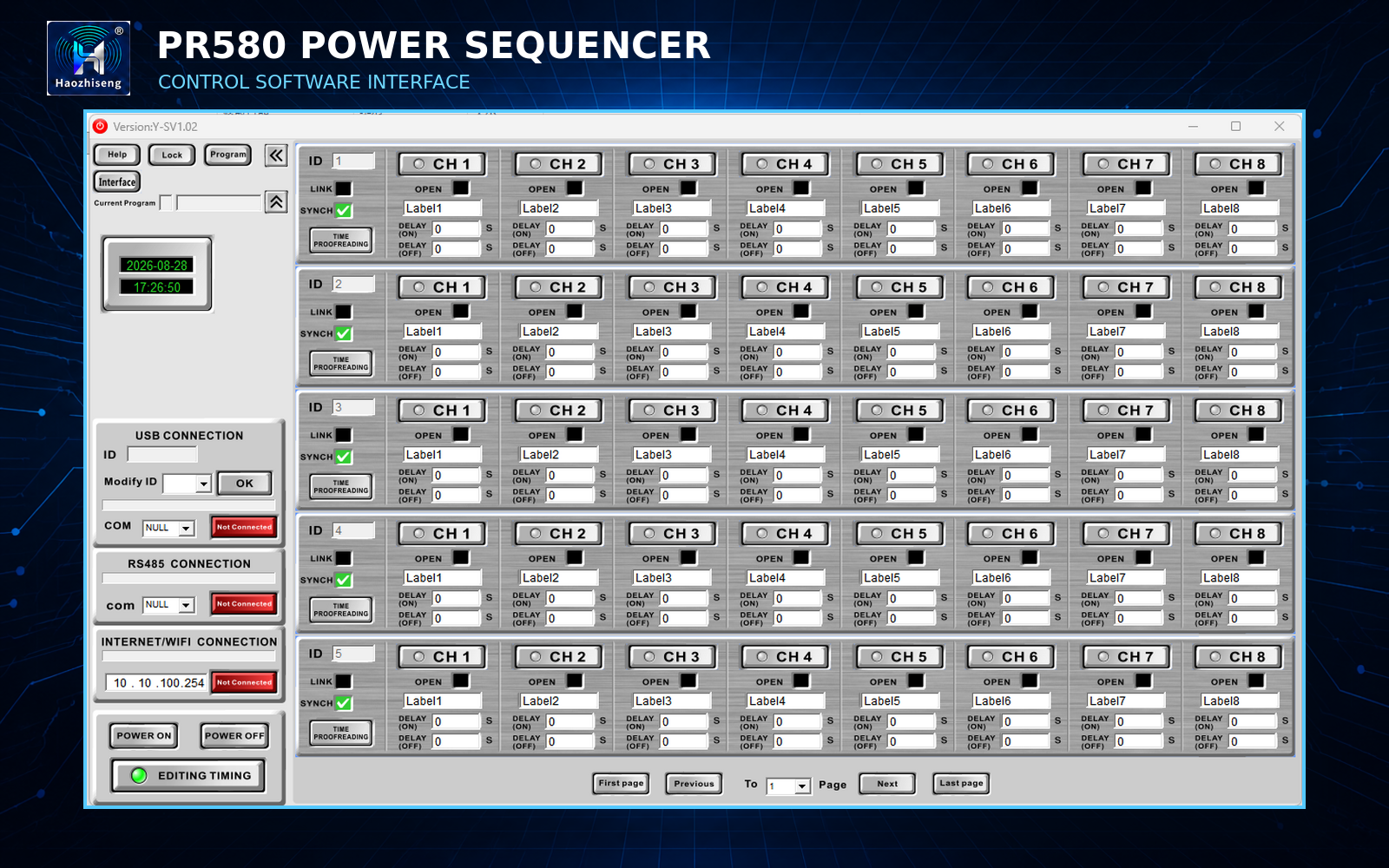

The unit supports USB, RS-485, RS-232, UDP and optional Wi-Fi control. Its programmable timer, built-in calendar and remote-control capabilities make it suitable for both live-event systems and unattended fixed installations.
Key Features
- Eight independently controlled power-sequencing channels
- 32-bit ARM processor for precise and stable timing control
- Single-phase 110 V or 220 V operation
- Maximum total load current of 100 A
- Rated total power capacity up to 22 kW
- Built-in perpetual calendar
- Programmable automatic power-on and power-off scheduling
- Scheduled operation can be programmed up to one year in advance
- User-adjustable delay time for each sequence
- LCD2402 display for operating status and system information
- Analog voltage and current meters for real-time monitoring
- USB, RS-485, RS-232 and UDP communication
- Optional Wi-Fi and remote internet control
- Multiple PR580 units can be cascaded without an additional controller
- Universal outlets compatible with Chinese, US and European-style plugs
- Independent high-performance RFI/EMI filtering for each channel
- Password protection for installation and event security
- Hardware emergency shutdown for individual outputs
- USB lamp socket for operation in low-light environments
- 2U rack-mount design
Programmable Timing Control
The PR580 allows users to set the sequencing delay according to the requirements of the connected system. Its built-in calendar supports scheduled power-on and power-off operation for periods of up to one year, making it suitable for venues and installations that require automatic daily or periodic equipment control.

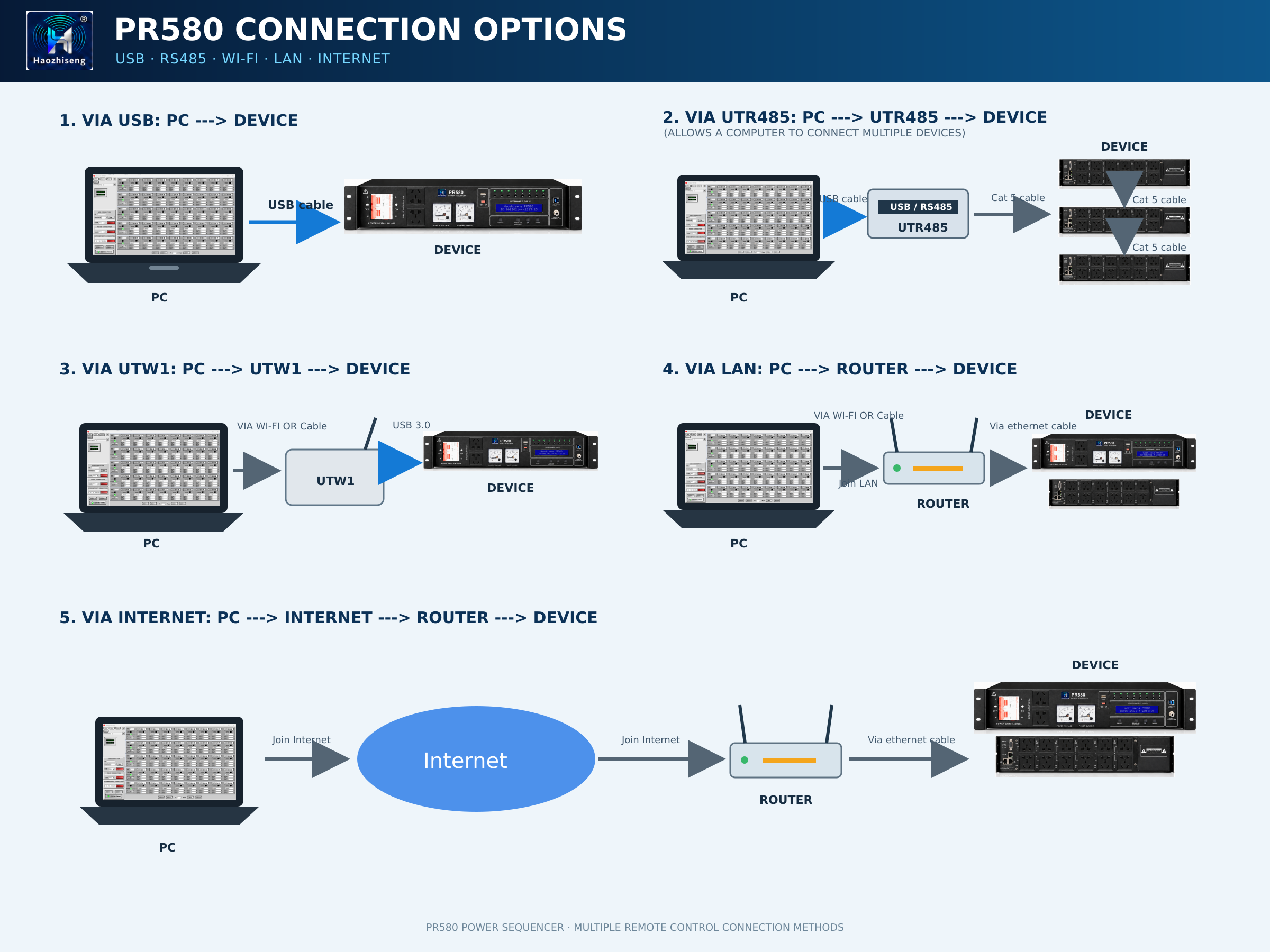

Multiple Control Options
The PR580 provides several control and communication methods:
- Front-panel operation
- USB control
- RS-485 communication
- RS-232 communication
- UDP network control
- Optional Wi-Fi control
- Remote internet control
- Multi-unit cascading

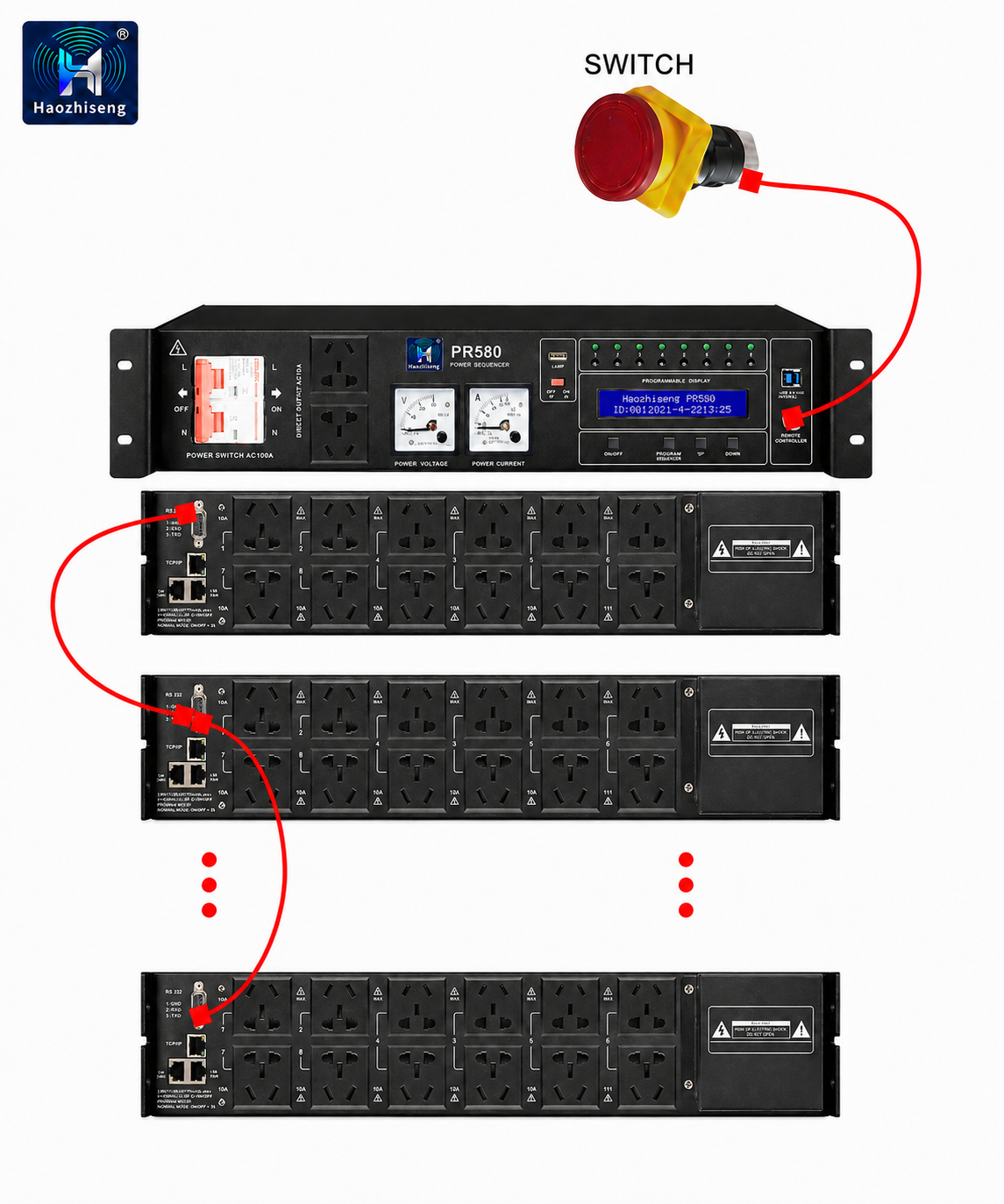

Compatible PR580 power sequencers can be connected in a cascade, allowing larger systems to be controlled without purchasing additional central control equipment.
Real-Time Monitoring
Two analog meters display the incoming power voltage and load current in real time. The LCD interface provides clear information about system settings, operating status and control results, helping operators monitor the power system conveniently.
Power Protection and Filtering
The PR580 uses a single-phase 100 A air circuit breaker with current-limiting and short-circuit protection. Each sequencing channel incorporates independent high-performance RFI/EMI power filtering to help provide clean and stable power for connected audio and electronic equipment.
Applications
- Professional audio systems
- Power amplifiers and DSP processors
- Stage lighting and sound systems
- Concerts and live performances
- Theatres and entertainment venues
- Conference and multimedia systems
- Broadcasting and recording studios
- Houses of worship
- Clubs and performance venues
- Professional rental systems
- Equipment rooms and control centers
- Fixed audio and AV installations
Technical Specifications
| Item | Specification |
|---|---|
| Model | PR580 |
| Product Type | Single-Phase Digital Programmable Power Sequencer |
| Sequencing Channels | 8 independently controlled channel pairs |
| Operating Voltage | Single-phase 110 V or 220 V, ±20% |
| Operating Frequency | 50 Hz or 60 Hz |
| Power Input | Single-phase 3-core terminal connection |
| Main Power Control | Single-phase 100 A air circuit breaker |
| Protection | Current-limiting and short-circuit protection |
| Display | LCD2402 display |
| Monitoring | Analog voltage and current meters |
| Total Maximum Load Current | 100 A |
| Rated Total Power | 22 kW |
| Timing Delay | User adjustable |
| Communication | USB, RS-485, RS-232 and UDP |
| Wireless Control | Optional Wi-Fi |
| Remote Control | Remote internet control supported |
| Cascading | Multiple compatible units can be cascaded |
| Outlet Compatibility | Chinese, US and European-style plugs |
| Ground Resistance | R ≤ 100 mΩ at 25 A |
| Rack Height | 2U |
| Product Dimensions | 482 × 435 × 88 mm |
| Net Weight | 10.25 kg |
| Shipping Dimensions | 612 × 542 × 200 mm |
| Shipping Volume | 0.0211 m³ |
| Gross Weight | 11 kg per unit |
Output Load Reference
- Maximum single-phase total load current: 100 A
- Under audio-load conditions: maximum current is 40 A per channel; channels 3 and 4 are rated at 26 A
- Under resistive-load conditions: maximum current is 20 A per channel; channels 3 and 4 are rated at 13 A
Why Choose the PR580?
The PR580 combines programmable timing, real-time voltage and current monitoring, multiple communication interfaces and comprehensive power protection in a compact 2U rack-mount unit.
Its eight independently controlled channels, optional Wi-Fi connectivity, remote internet control and multi-unit cascading capability make it a practical power-management solution for professional audio, stage, broadcasting, conference and fixed-installation systems.
