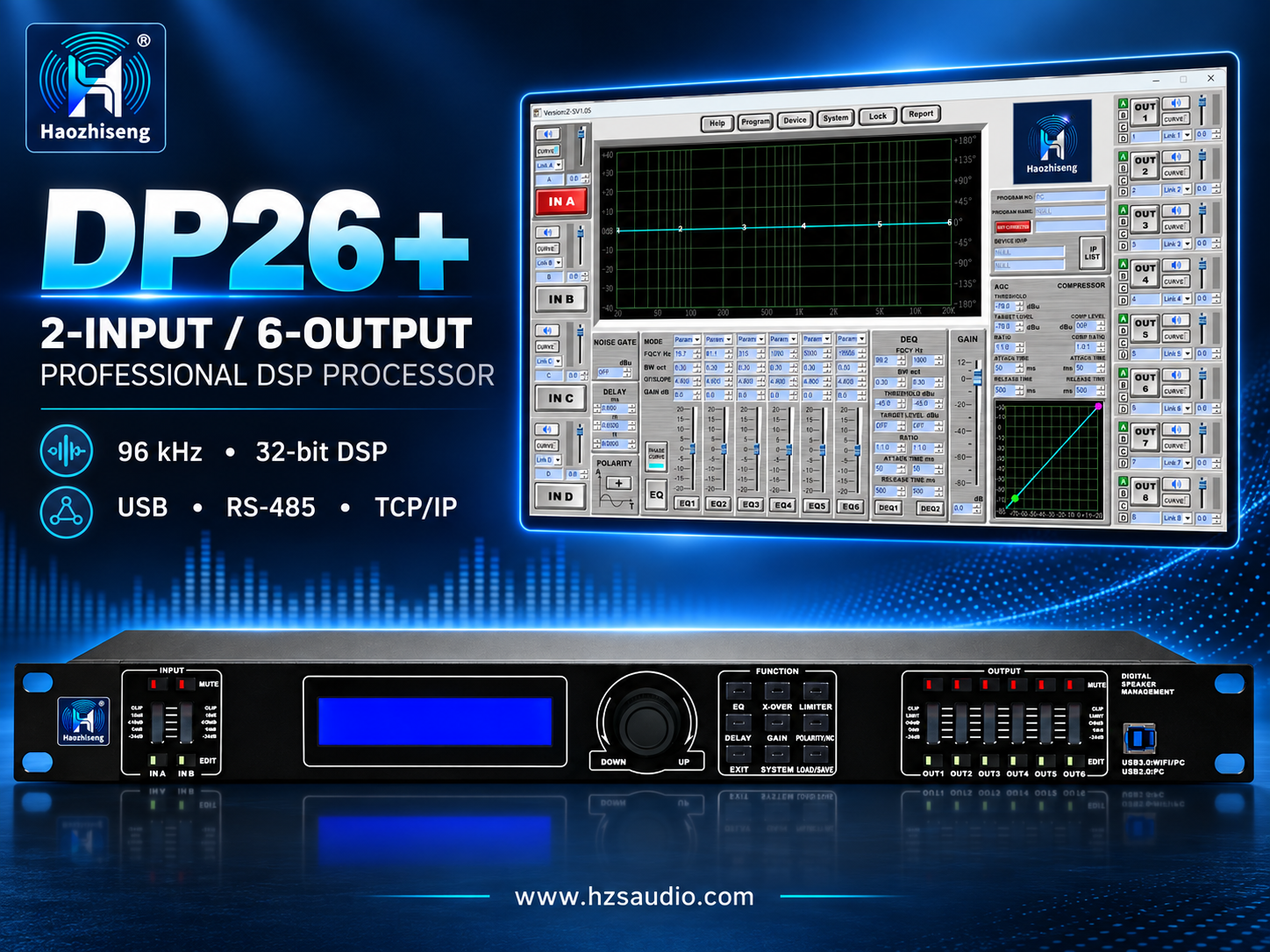

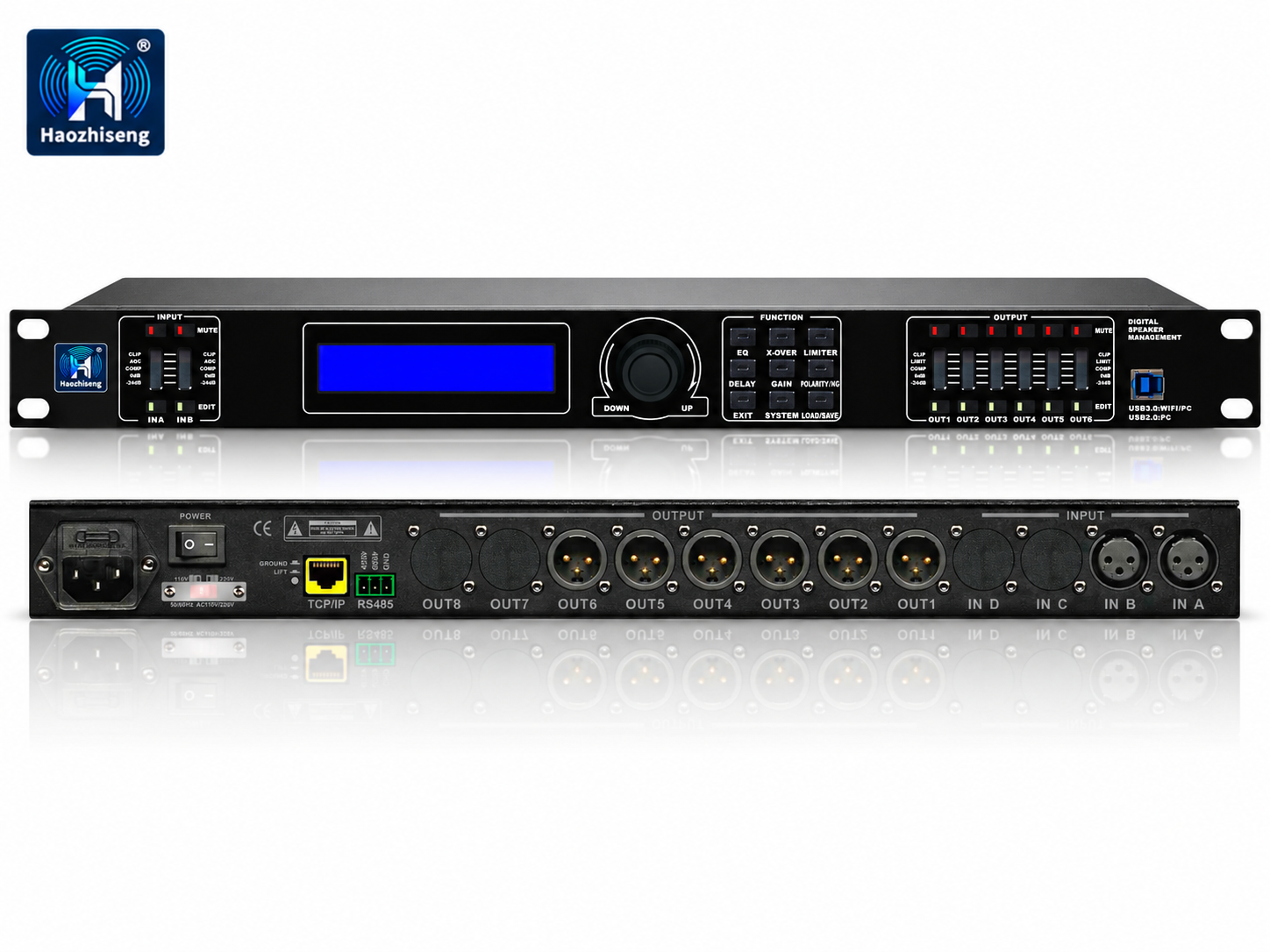

DP26+ 2-Input 6-Output Professional DSP Loudspeaker Management Processor
Product Overview
The Haozhiseng Audio DP26+ is a professional 2-input, 6-output digital loudspeaker management processor designed for PA systems, live sound reinforcement, touring systems, rental applications, houses of worship and fixed audio installations.
Featuring a 96 kHz sampling rate, 24-bit A/D and D/A converters, and a 32-bit DSP processor, the DP26+ provides precise signal processing with wide frequency response, low distortion and excellent channel separation.
Each input and output channel includes comprehensive processing functions such as parametric EQ, gain, delay, polarity, compressor and mute control. Six independently configurable outputs also provide flexible input routing, crossover filters and limiters for accurate loudspeaker system management.
PC control is available through front-panel USB, rear-panel RS-485 and TCP/IP connections.
Key Features
- 2 balanced XLR inputs
- 6 balanced XLR outputs
- 96 kHz sampling rate
- 24-bit A/D and D/A converters
- 32-bit DSP processing
- Six-band parametric EQ
- Adjustable frequency, gain and Q
- EQ gain range from −20 dB to +20 dB
- Independent input and output delay
- Adjustable crossover, compressor and limiter
- Flexible input-to-output signal routing
- Polarity, gain and mute control
- Front-panel USB connection
- Rear-panel RS-485 and TCP/IP control
- 2 × 24-character blue-backlit LCD
- Five-segment LED input and output level indicators
- Universal AC 90–240 V power supply
- Compact 1U rack-mount design
Input Processing
Each input channel provides:
- Independent mute control
- Gain adjustment
- Delay from 0 to 1,000 ms
- Normal or reversed polarity
- Six-band parametric EQ
- PEQ, low-shelf, high-shelf, first-order APF and second-order APF filters
- Two dynamic EQ filters
- Compressor
- Automatic gain control
Output Processing
Each output channel provides:
- Independent mute control
- Flexible input routing and mixing
- Gain adjustment
- Delay from 0 to 1,000 ms
- Normal or reversed polarity
- Six-band parametric EQ
- High-pass and low-pass crossover filters
- Linkwitz-Riley, Bessel and Butterworth filter types
- Adjustable limiter
- Compressor
Crossover Filter Slopes
- Bessel and Butterworth: 12, 18, 24, 30, 36, 42 or 48 dB/octave
- Linkwitz-Riley: 12, 24, 36 or 48 dB/octave
- Adjustable frequency range: 19.7 Hz–20 kHz
Technical Specifications
| Item | Specification |
|---|---|
| Model | DP26+ |
| Product Type | Professional DSP Loudspeaker Management Processor |
| Input Channels | 2 |
| Input Connectors | 2 × Balanced Female XLR |
| Output Channels | 6 |
| Output Connectors | 6 × Balanced Male XLR |
| Input Impedance | 23 kΩ balanced |
| Output Impedance | 150 Ω balanced |
| PC Control Interfaces | Front USB, rear RS-485 and TCP/IP |
| RS-485 Connector | Phoenix terminal |
| TCP/IP Connector | RJ45 |
| Sampling Rate | 96 kHz |
| DSP Processor | 32-bit |
| A/D and D/A Converters | 24-bit |
| Frequency Response | 19.7 Hz–20 kHz, ±0.49 dB |
| Common-Mode Rejection Ratio | >40 dB at 0 dBu, 1 kHz |
| Maximum Input Level | +17.3 dBu at 1 kHz |
| Signal-to-Noise Ratio | >106 dB at +17.3 dBu, 1 kHz |
| Total Harmonic Distortion | <0.007% at 0 dBu, 1 kHz |
| Channel Separation | >100 dB at 0 dBu, 1 kHz |
| Input Gain Range | −80 to +12 dBu, 0.1 dB steps |
| Output Gain Range | −80 to +12 dBu, 0.1 dB steps |
| Input/Output Delay | 0–1,000 ms |
| EQ Gain Range | −20 to +20 dB |
| EQ Frequency Range | 19.7 Hz–20 kHz |
| EQ Bandwidth | 0.05–3 octaves |
| Display | 2 × 24-character blue-backlit LCD |
| Level Indicators | Five-segment LED input/output meters |
| Power Supply | AC 90–240 V, 50/60 Hz |
| Power Consumption | ≤25 W |
| Product Dimensions | 482 × 190 × 44 mm |
| Net Weight | 3.6 kg |
| Single-Unit Carton | 562 × 296 × 98 mm / 0.0163 m³ |
| Six-Unit Carton | 583 × 315 × 615 mm / 0.1129 m³ |
| Single-Unit Gross Weight | 4.5 kg |
| Six-Unit Gross Weight | 28.5 kg |
| Packing Quantity | 1 piece or 6 pieces per carton |
Applications
- Professional PA systems
- Live performances and concerts
- Touring sound systems
- Rental audio systems
- Clubs and entertainment venues
- Houses of worship
- Conference halls
- Theatres and auditoriums
- Multi-zone sound systems
- Fixed audio installations
Why Choose the DP26+?
The DP26+ combines professional 96 kHz DSP processing, flexible 2-input/6-output routing and comprehensive loudspeaker management functions in a compact 1U rack-mount unit. With USB, RS-485 and TCP/IP control, it provides convenient system configuration and precise signal management for both portable and permanently installed professional sound systems.
