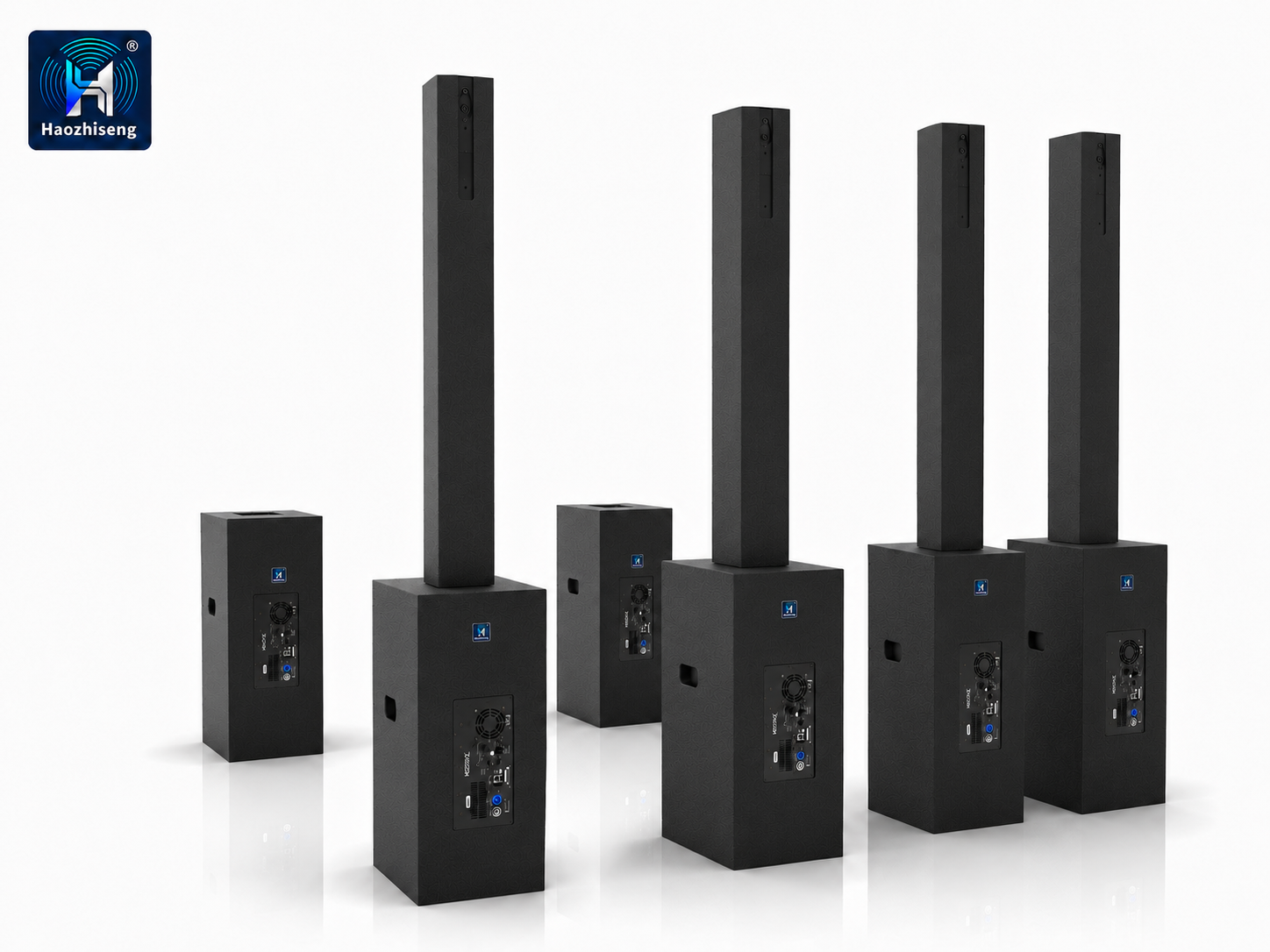

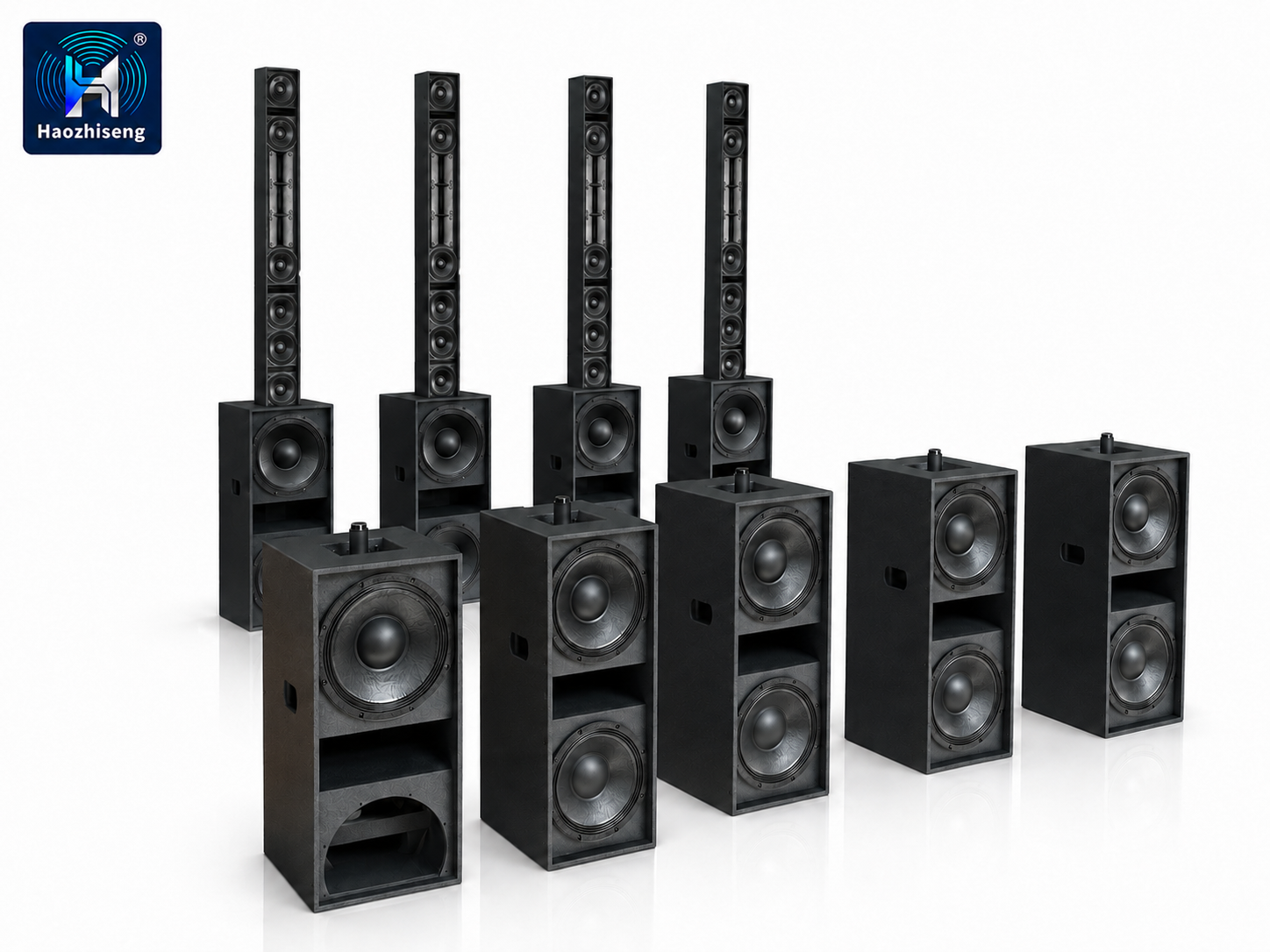

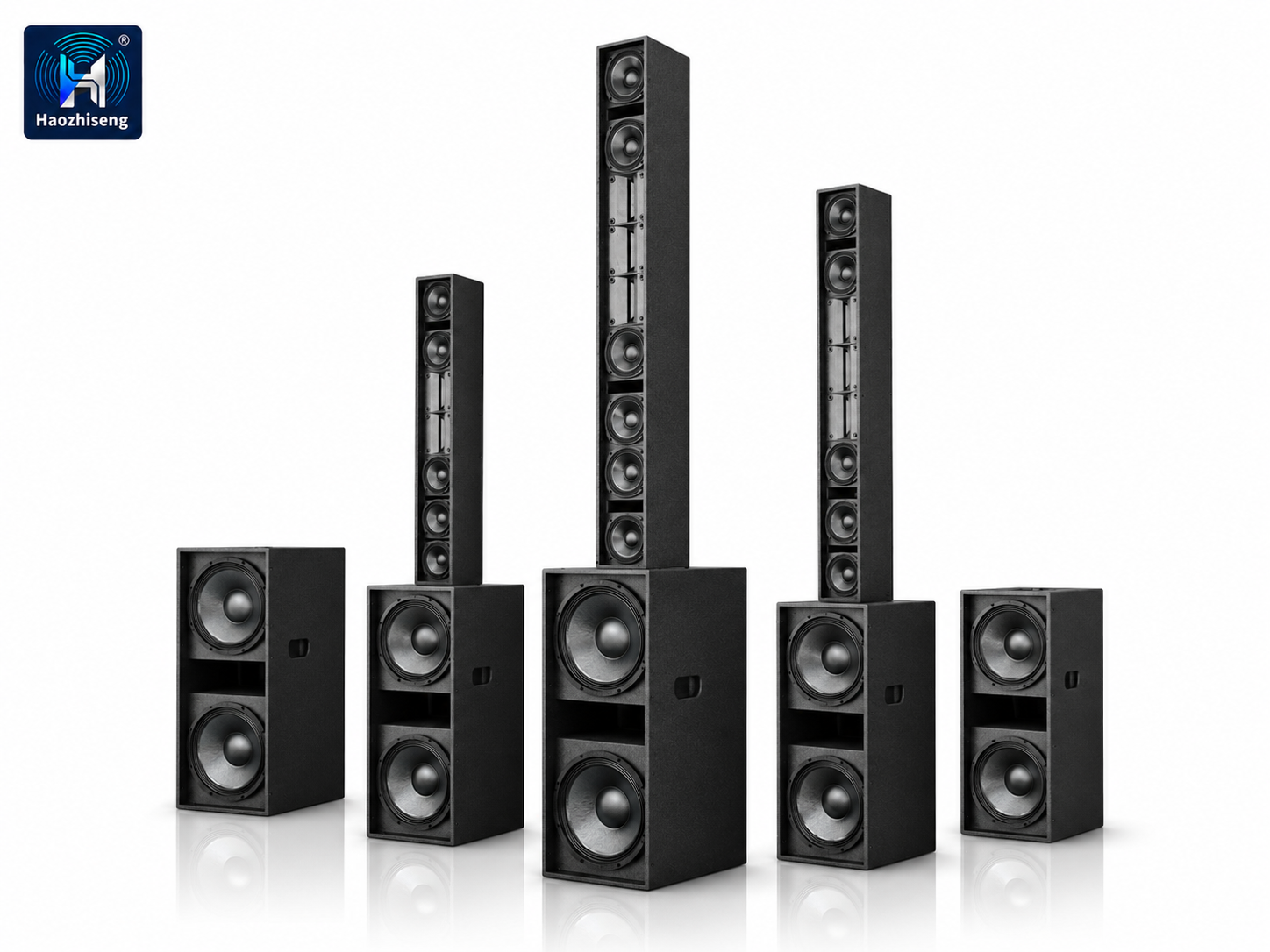

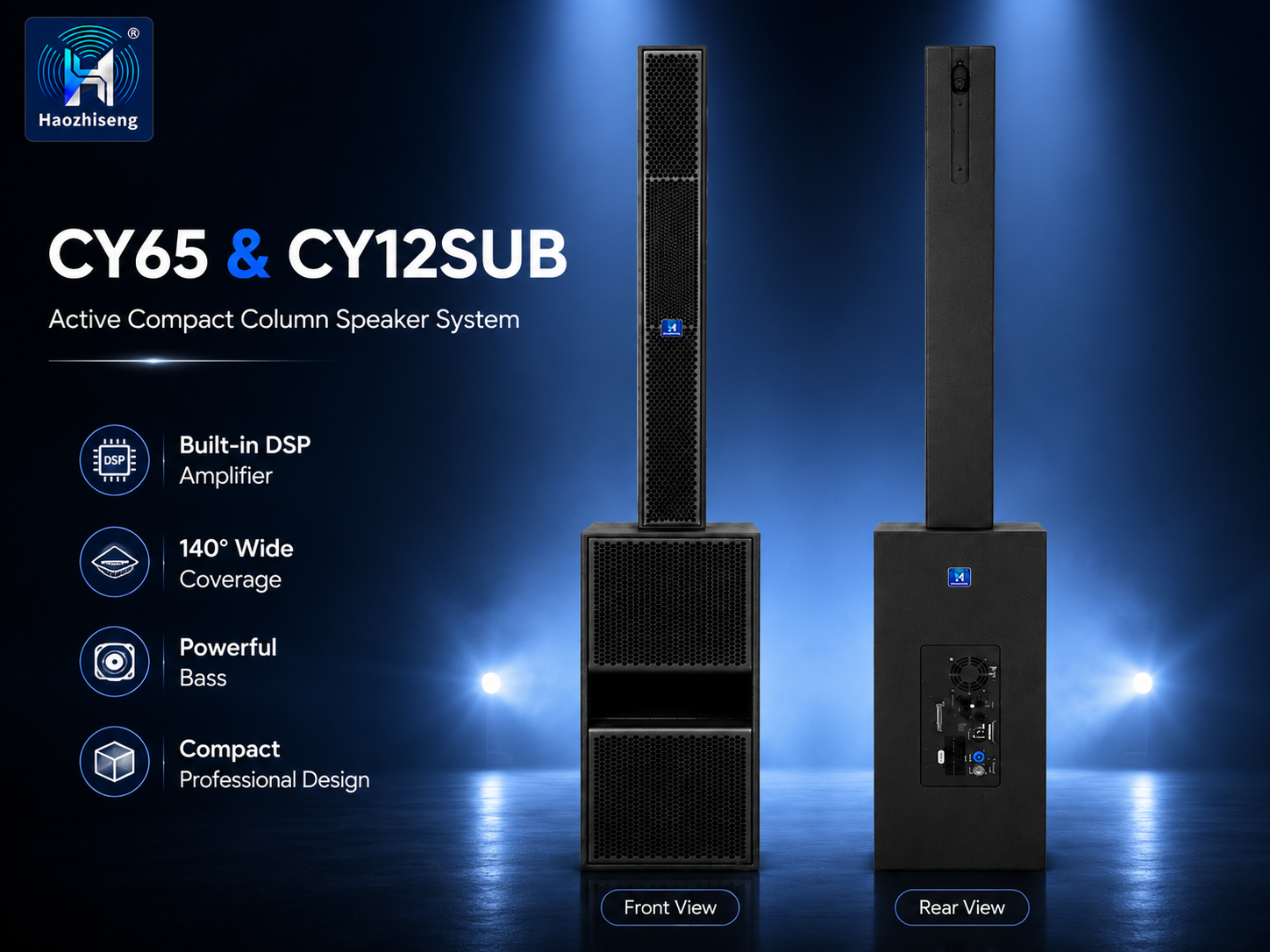

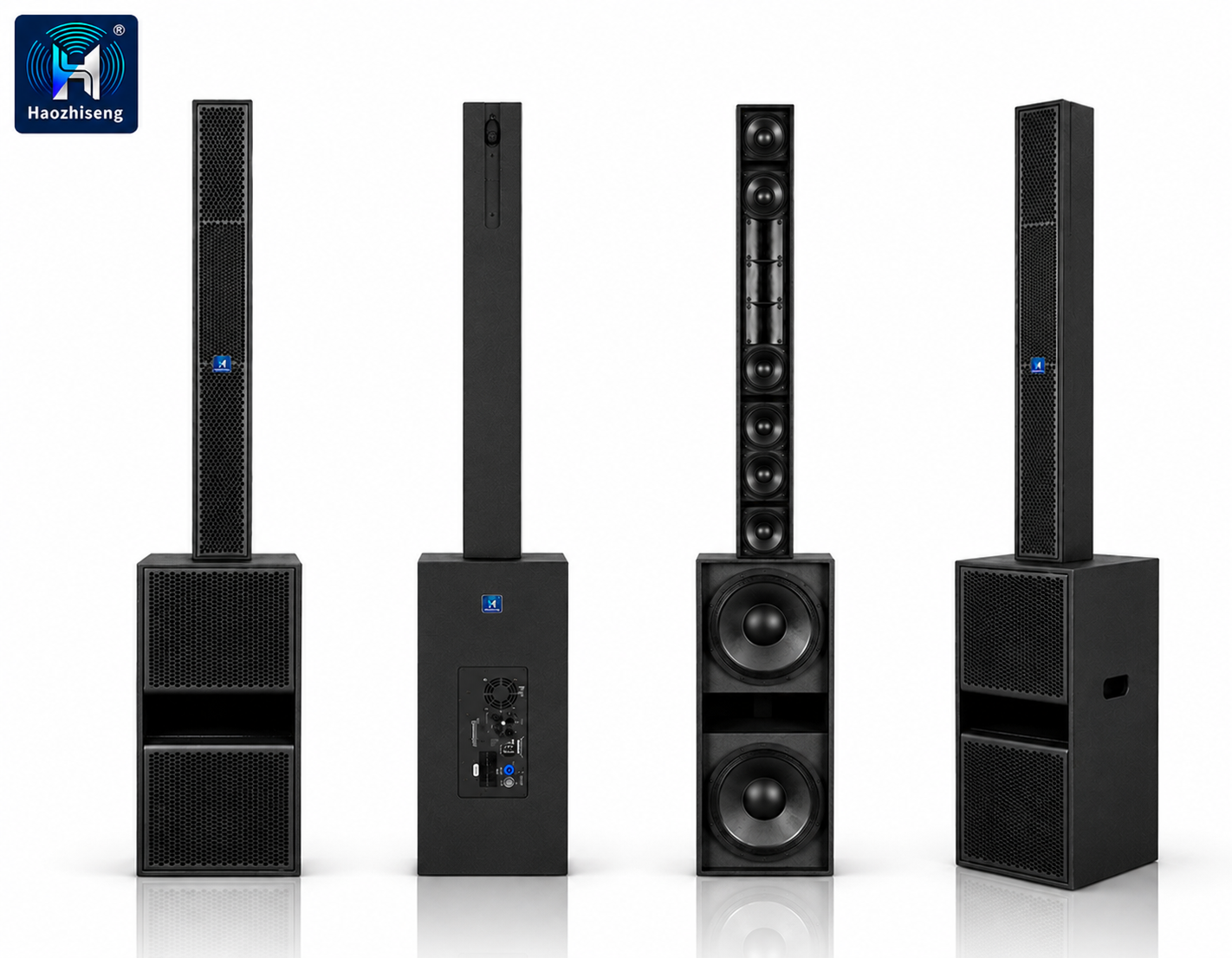

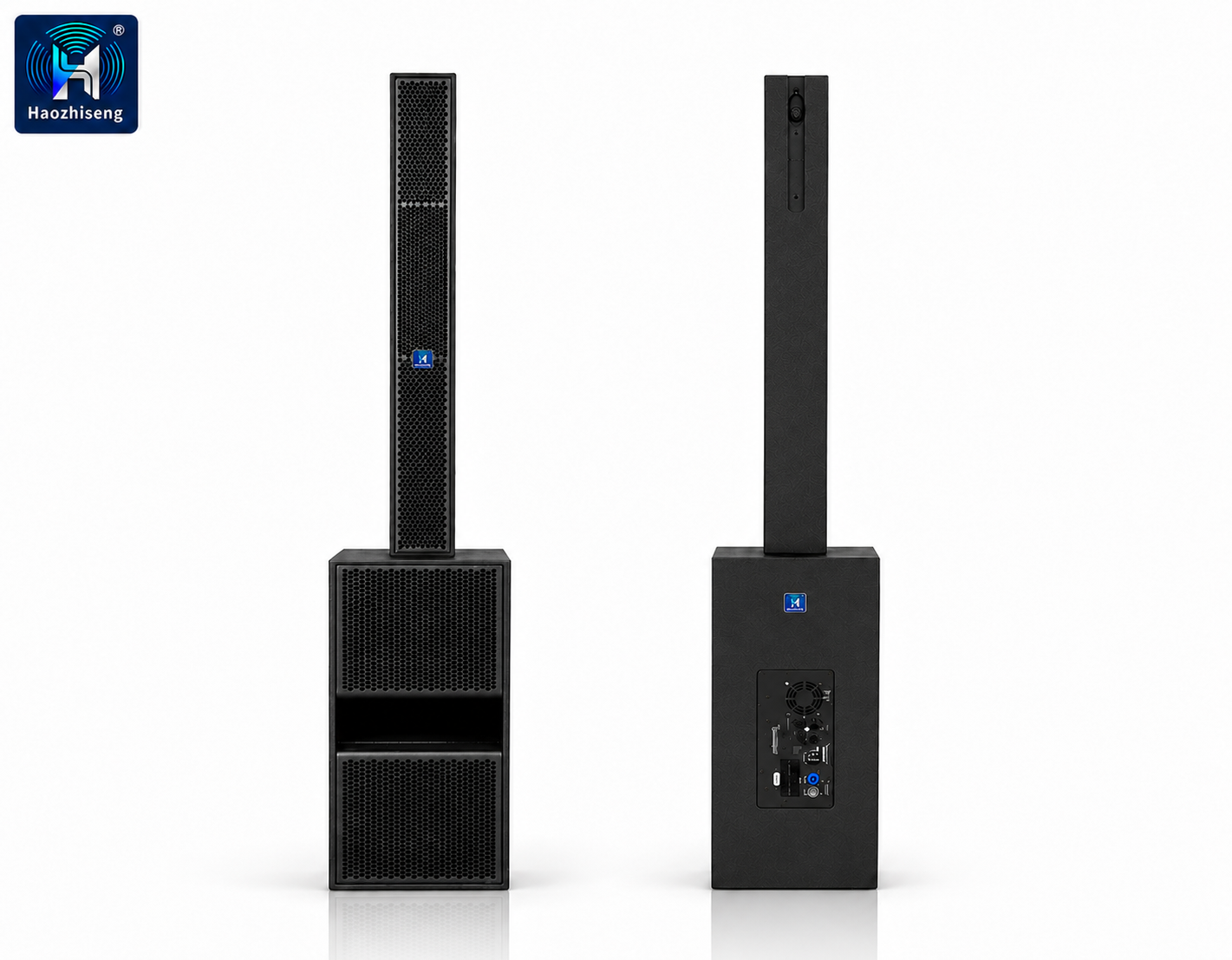

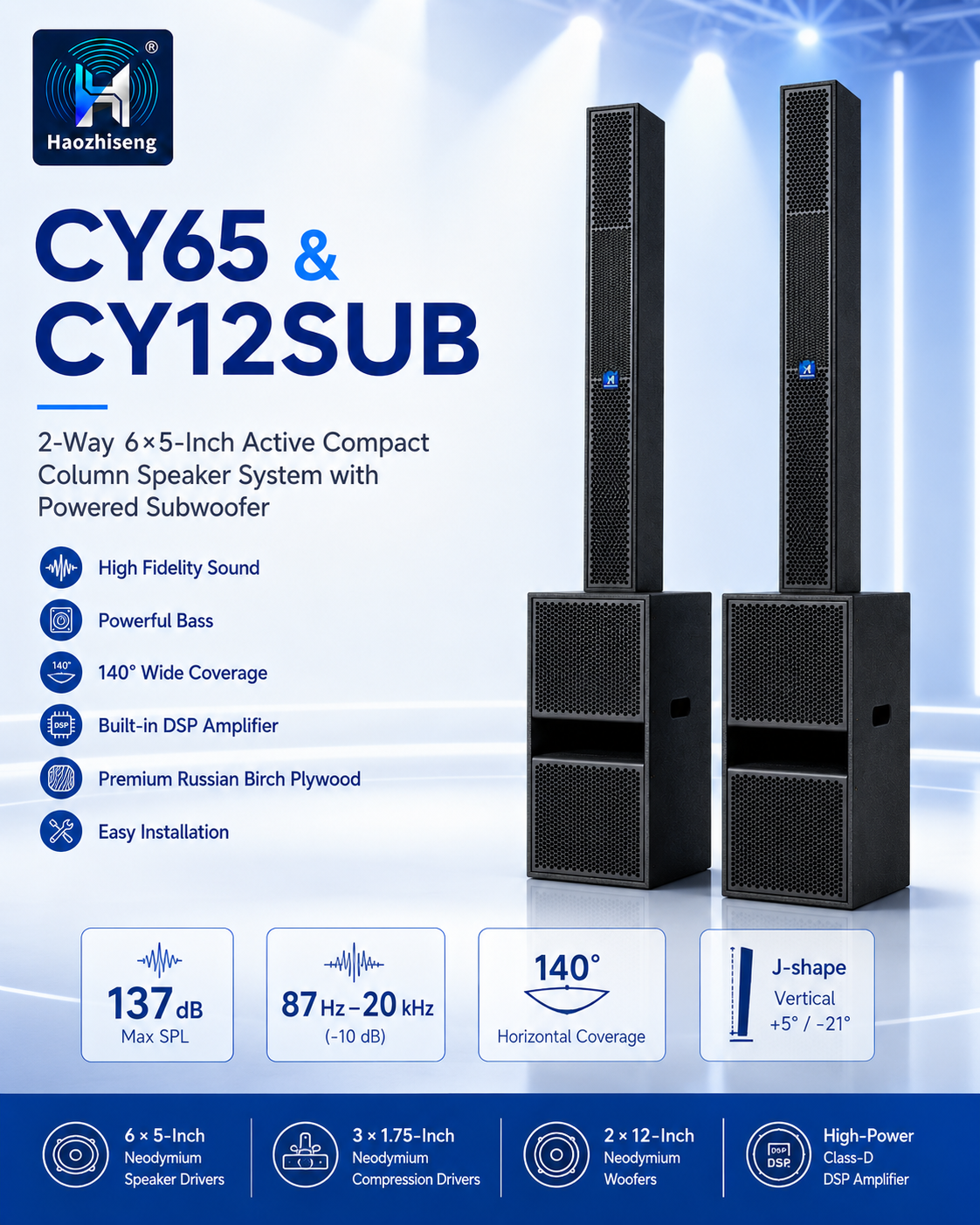

CY65 & CY12SUB 2-Way 6×5-Inch Active Compact Column Speaker Sound System with Powered Subwoofer
Product Overview
The CY65 & CY12SUB is a high-fidelity compact column speaker system designed for professional sound reinforcement, premium residential audio, and fixed installation applications. Combining a slim column speaker with an active dual 12-inch subwoofer, the system delivers clear vocals, balanced midrange performance, powerful bass response, and reliable full-range sound in a compact and elegant design.

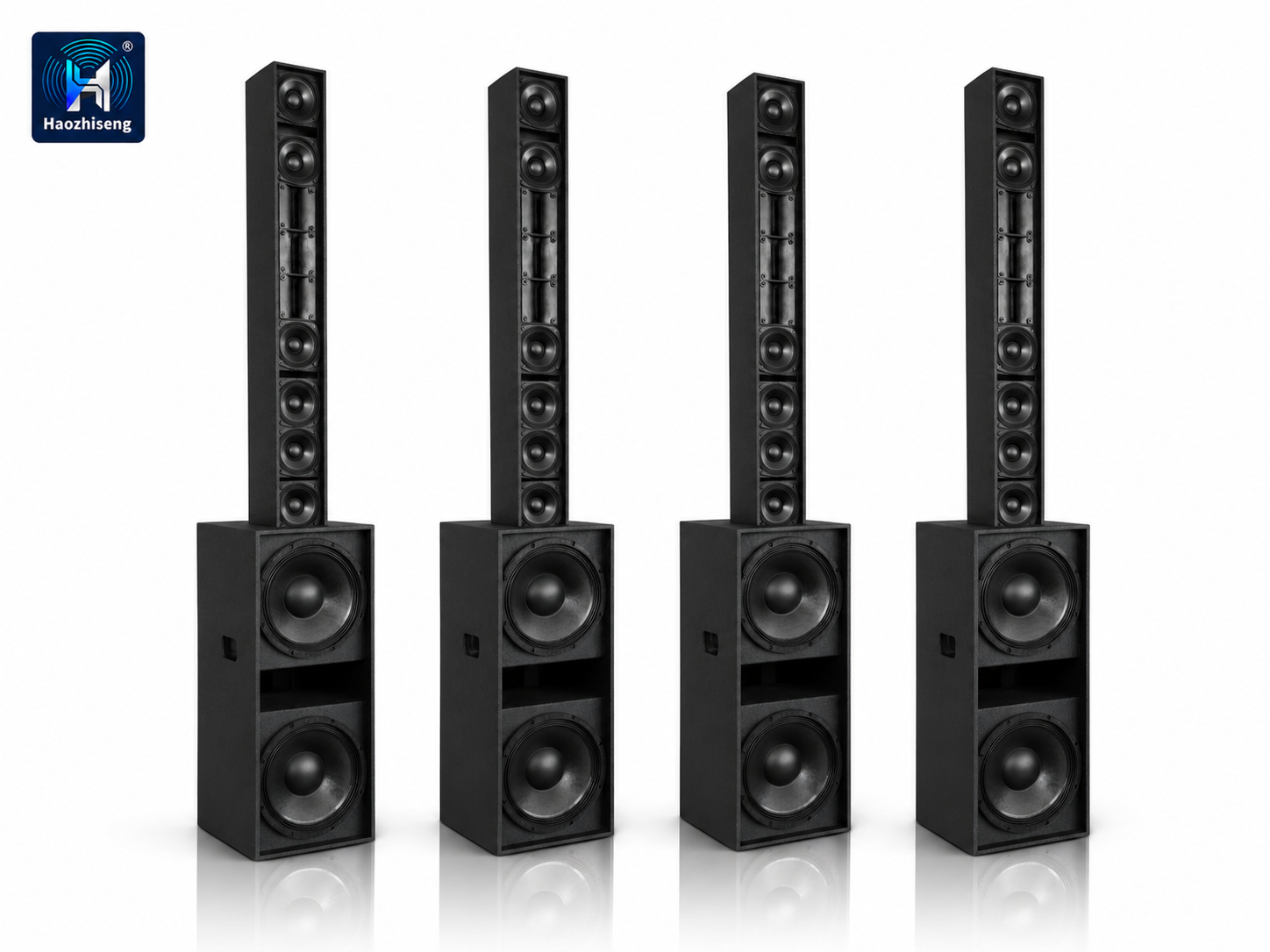

The CY65 column speaker features six 5-inch midrange drivers and three 1.5-inch compression drivers, providing excellent speech intelligibility, smooth sound projection, and wide horizontal coverage. Its optimized J-shaped vertical directivity helps reduce unwanted reflections while improving sound clarity in audience areas.
The CY12SUB active subwoofer is equipped with dual 12-inch low-frequency drivers, built-in DSP processing, and a plate amplifier. It delivers deep, controlled bass with integrated crossover, EQ, and limiter functions for stable and consistent performance across different venues.
Built with premium Russian birch plywood and finished with durable waterproof polyurea paint, the CY65 & CY12SUB system is engineered for long-term reliability, professional daily use, and elegant architectural integration. Available in black, brown, and white, it can easily match different installation environments and interior styles.
Key Features
- Compact 2-way column speaker system with active dual 12-inch subwoofer

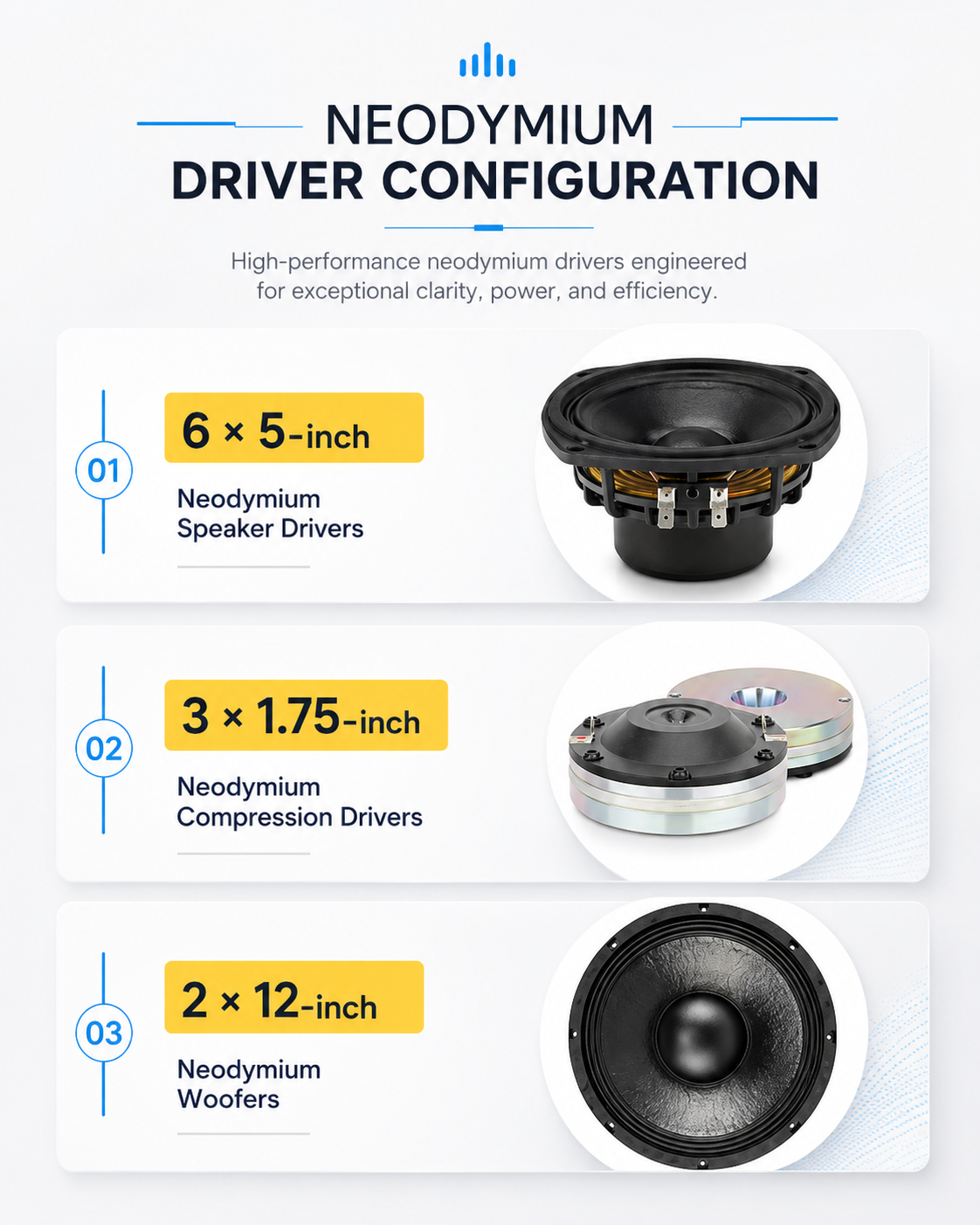

- CY65 column speaker with 6 × 5-inch midrange drivers and 3 × 1.5-inch compression drivers
- CY12SUB powered subwoofer with built-in DSP plate amplifier
- Clear vocal reproduction and high speech intelligibility
- Wide 140° horizontal coverage for even sound distribution
- J-shaped vertical coverage for focused audience-area projection
- Powerful low-frequency extension with dual 12-inch subwoofer design
- Premium Russian birch plywood cabinet construction
- Durable waterproof polyurea coating for long-lasting protection
- Compact, lightweight, and easy to install or transport
- Elegant slim design for commercial and residential installations
- Available in black, brown, and white color options
Applications
- Auditorium sound reinforcement
- Home cinema and premium residential audio systems
- Corporate events and conference rooms
- Trade shows and exhibition halls
- Houses of worship, including churches, mosques, and temples
- Commercial spaces, hotels, lounges, and multifunction halls
- Portable PA systems and fixed installation projects
Specifications
CY65 Column Speaker
| Item | Specification |
|---|---|
| System Type | 2-Way Compact Column Speaker |
| Usable Bandwidth (-10 dB) | 87 Hz – 20 kHz |
| Nominal Directivity (-6 dB) | Horizontal: 140° above 1 kHz |
| Vertical Coverage | +5° / -21° J-shape above 1 kHz |
| Maximum SPL | 137 dB |
| RMS Power Handling | 600 W |
| Midrange Drivers | 6 × 5-inch |
| High-Frequency Drivers | 3 × 1.5-inch compression drivers |
| Nominal Impedance | 8 ohms |
| Net Weight | 21 kg / 46 lb |
| Connectors | NL4 |
| Cabinet Material | Russian birch plywood |
| Finish | Waterproof polyurea paint |
CY12SUB Active Dual 12-Inch Subwoofer
| Item | Specification |
|---|---|
| System Type | Active Dual 12-Inch Subwoofer |
| Usable Bandwidth (-10 dB) | From 40 Hz |
| Maximum SPL | 137 dB |
| RMS Power Handling | 1200 W |
| Low-Frequency Drivers | 2 × 12-inch |
| Nominal Impedance | 4 ohms |
| Built-in Processing | DSP crossover, EQ, limiter |
| Amplifier Type | Built-in DSP plate amplifier |
| Net Weight | 29 kg / 64 lb |
| Connectors | 1 × NL4 Speakon |
| Cabinet Material | Russian birch plywood |
| Finish | Waterproof polyurea paint |
